VC2/3/4/5HT

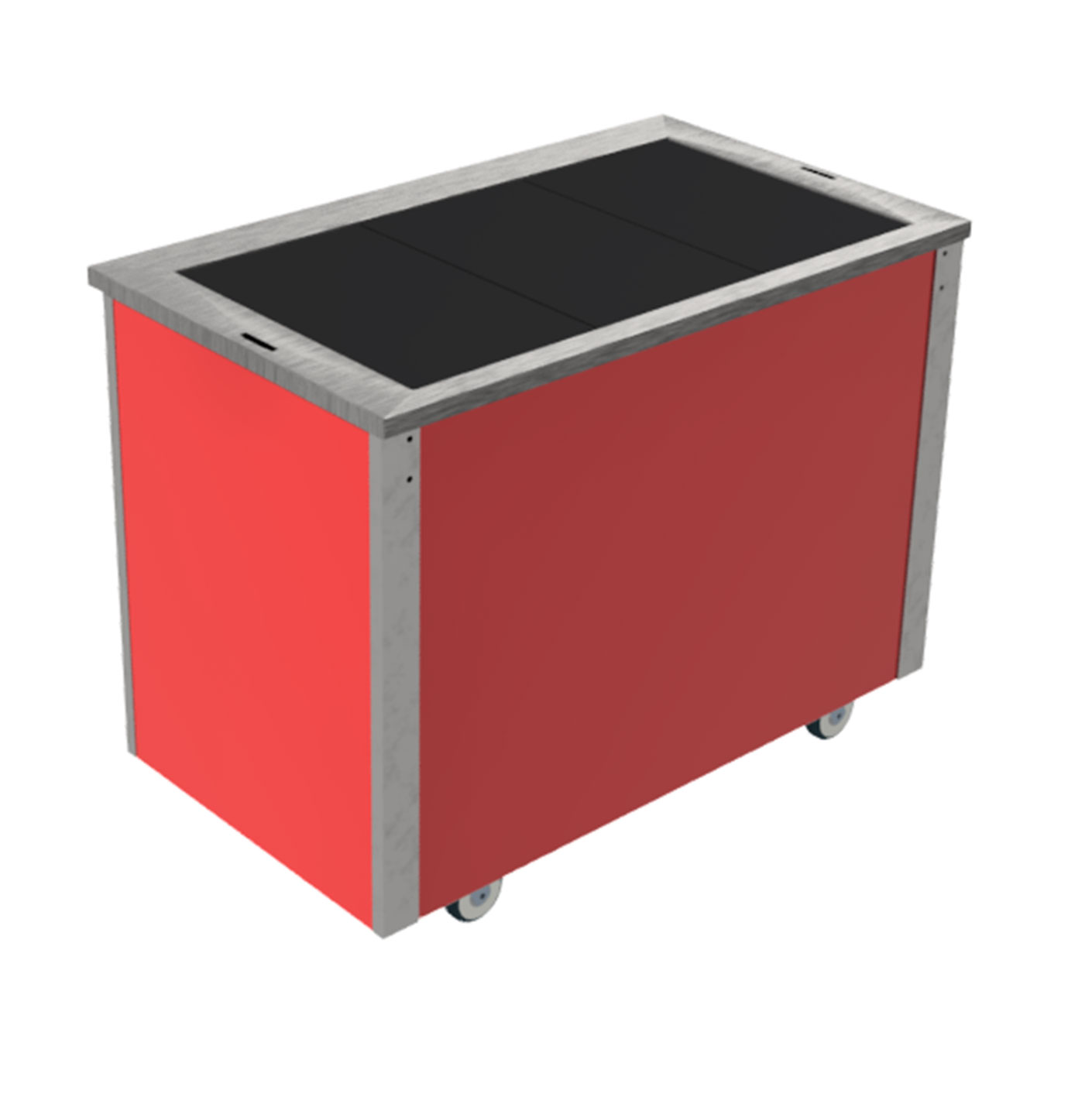

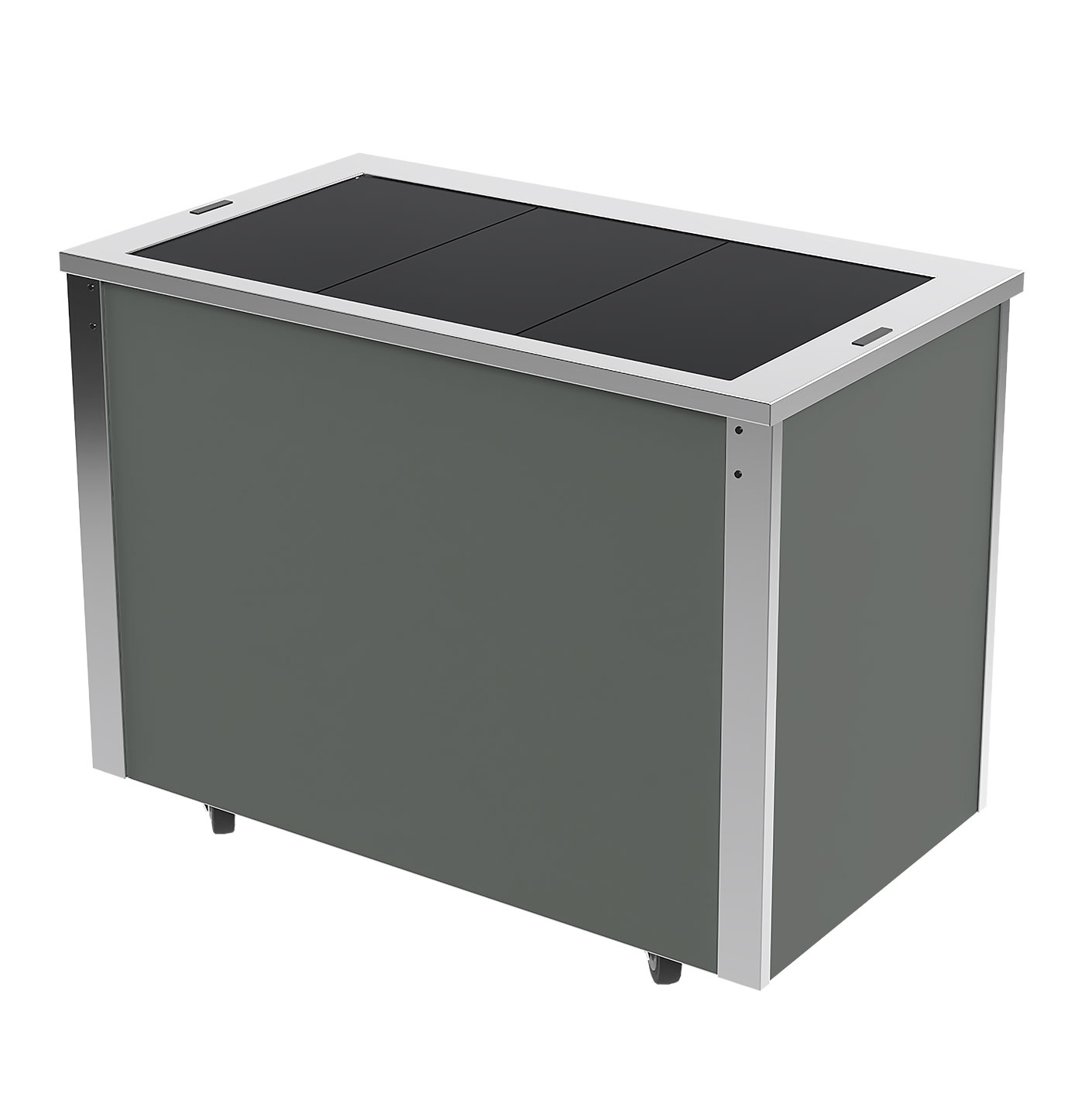

Hot display with individual, Neo-Ceram glass, GN 1/1 size, self regulating thermo panels, with a hot cupboard under fitted with Moffat’s renowned innovative sahara fan heating cell. Easily removable for cleaning and maintenance. Designed to maintain pre-heated, cooked food at a regulated temperature. Suitable for the display of most types of hot foods, The hotcupboard is designed to accommodate GN1/1 size gastronom type pans. The neo-ceram hot top is not an induction type unit which require dedicated food pans, and apart from cast iron can be used with any suitable heatproof food container. Chafing dishes are not required. The hot top surface temperature regulates around 95° hot cupboard controlled by a 30° to 110° thermostat.

DOWNLOADS

Specification

Key features

Fast heat up and recovery time.
Thermostatically controlled hot cupboard.
Unique, removable, forced air heating cell.
Low maintenance, easily cleaned and highly efficient.
Simple self regulating hot top.
Guaranteed evenly distributed heat with no hot spots.
Even flat surface with no distortion or discolouring.
4 models in the range holding 2 to 5 GN 1/1 gastronorm type containers.
Various types of flat bottom dishes can be used.
24 hour operation.
Plug and Go, complete with 2 metre long power cable and 13amp plug.
Fully insulated.
Mobile all swivel castors two with brakes.

Operating Modes

Hot display with individual, Neo-Ceram glass, GN 1/1 size, self regulating thermo panels.

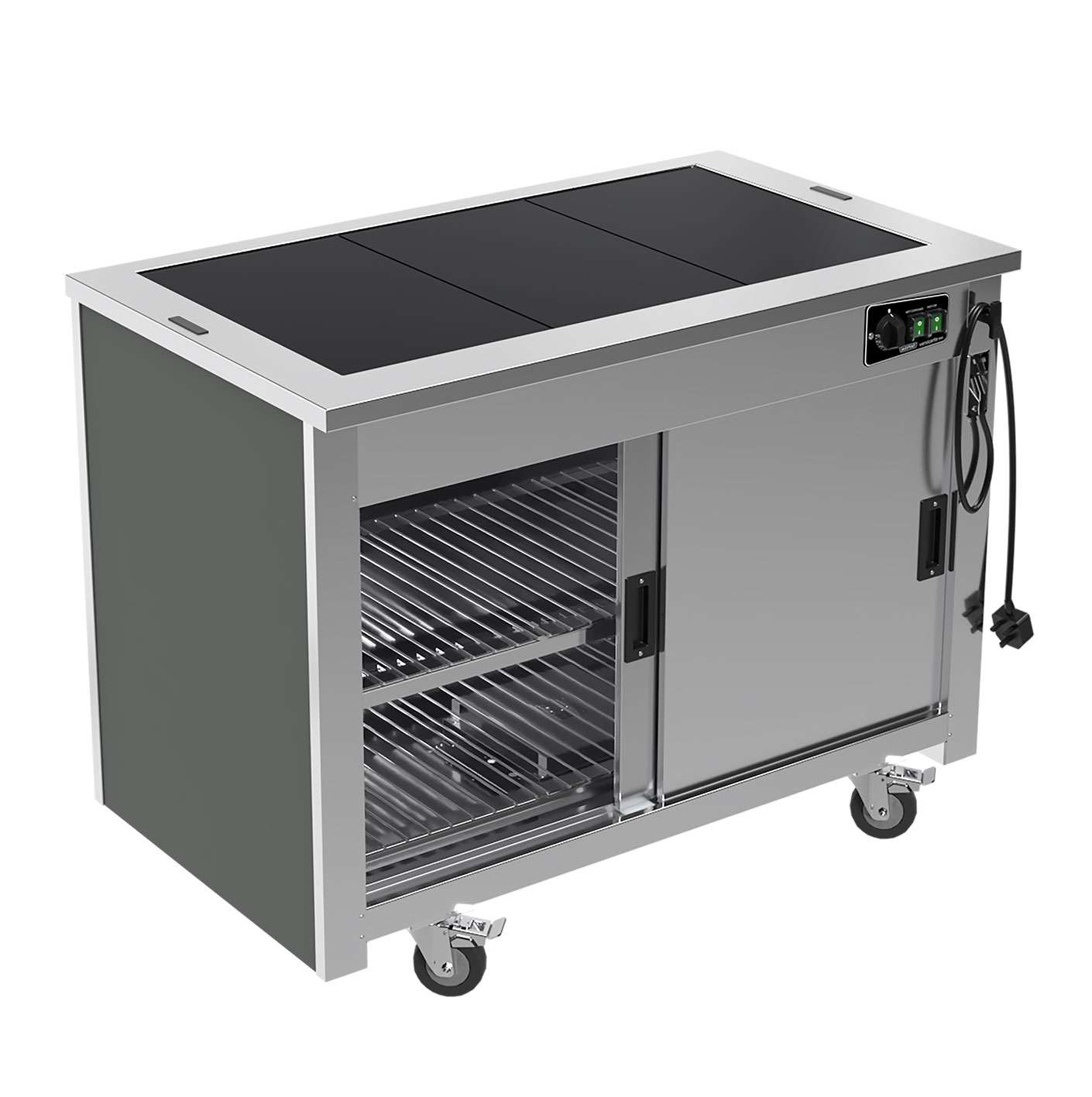

Hot cupboard under fitted with Moffat’s renowned innovative sahara fan heating cell.
Easily removable for cleaning and maintenance.
The hotcupboard is designed to accommodate GN1/1 size gastronom type pans.

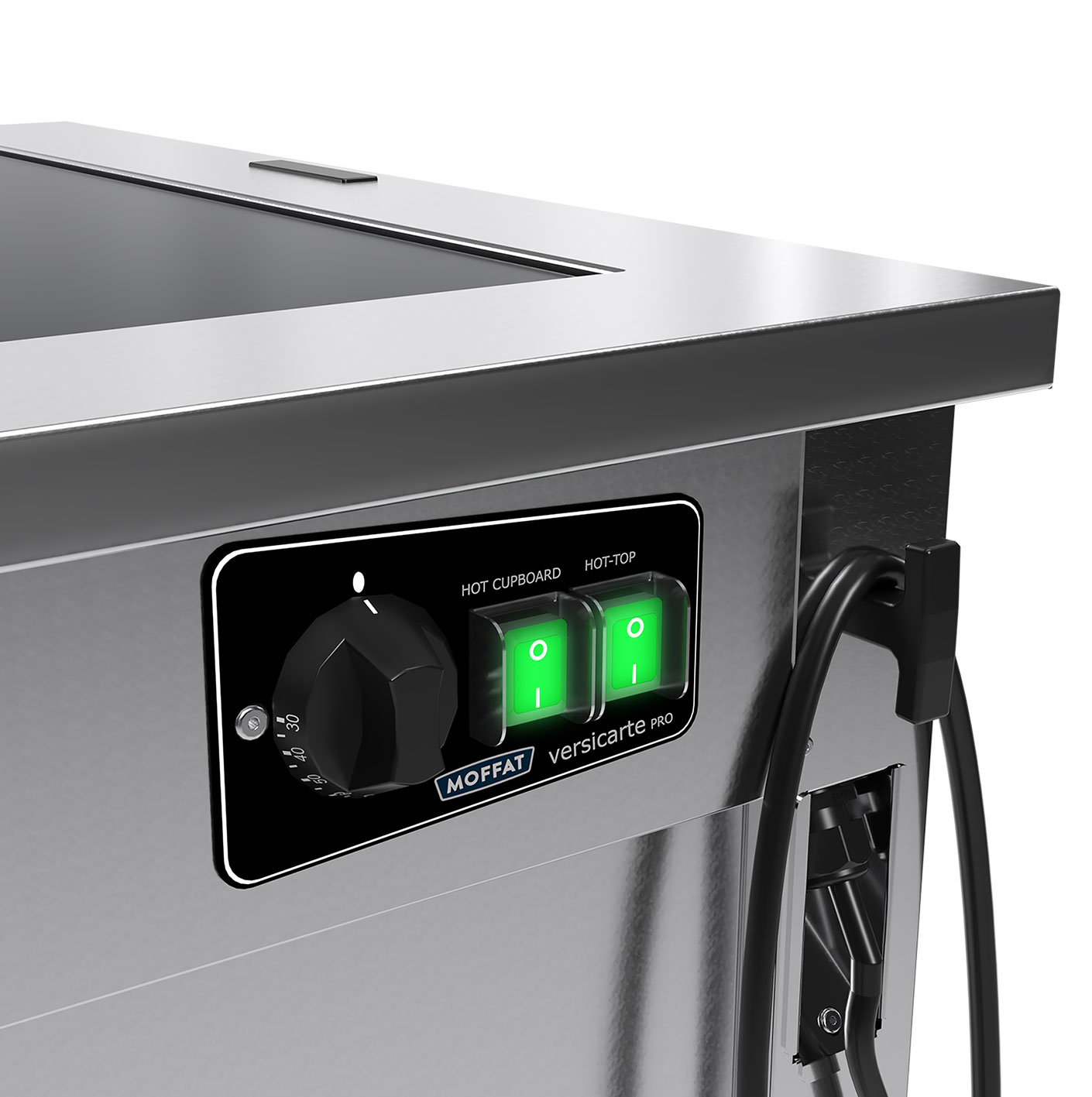

The hot top surface temperature regulates around 95° hot cupboard controlled by a 30° to 110° thermostat.

Electrical Specifications

Rating with Gantry - 1.48 kW - 2.68 kW
Rating without Gantry - 1.26 kW - 2.22 kW
Electrical Supply - 13amp

Wiring Drawings

Wiring drawing can be obtained by contacting Sales

Options

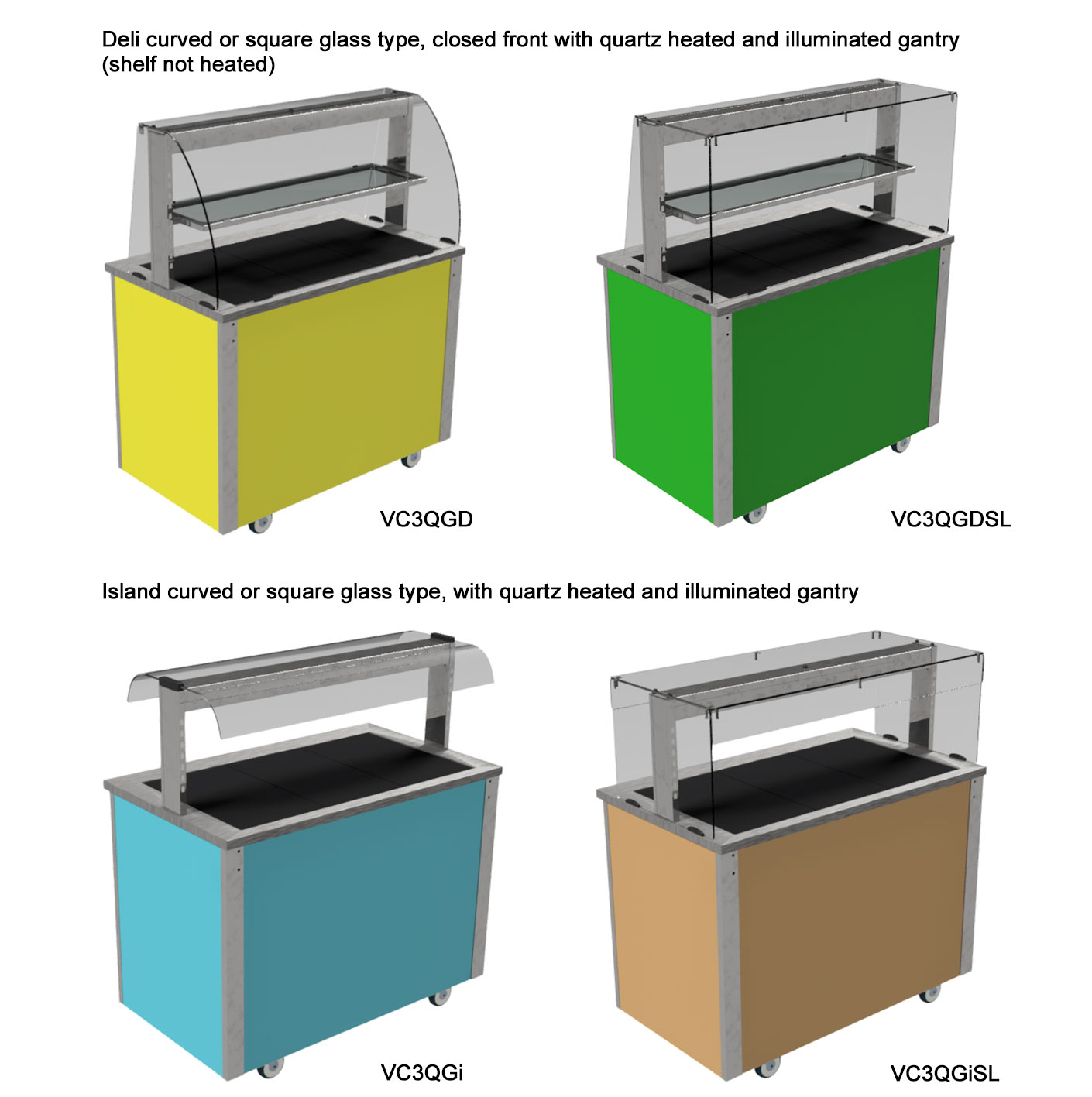

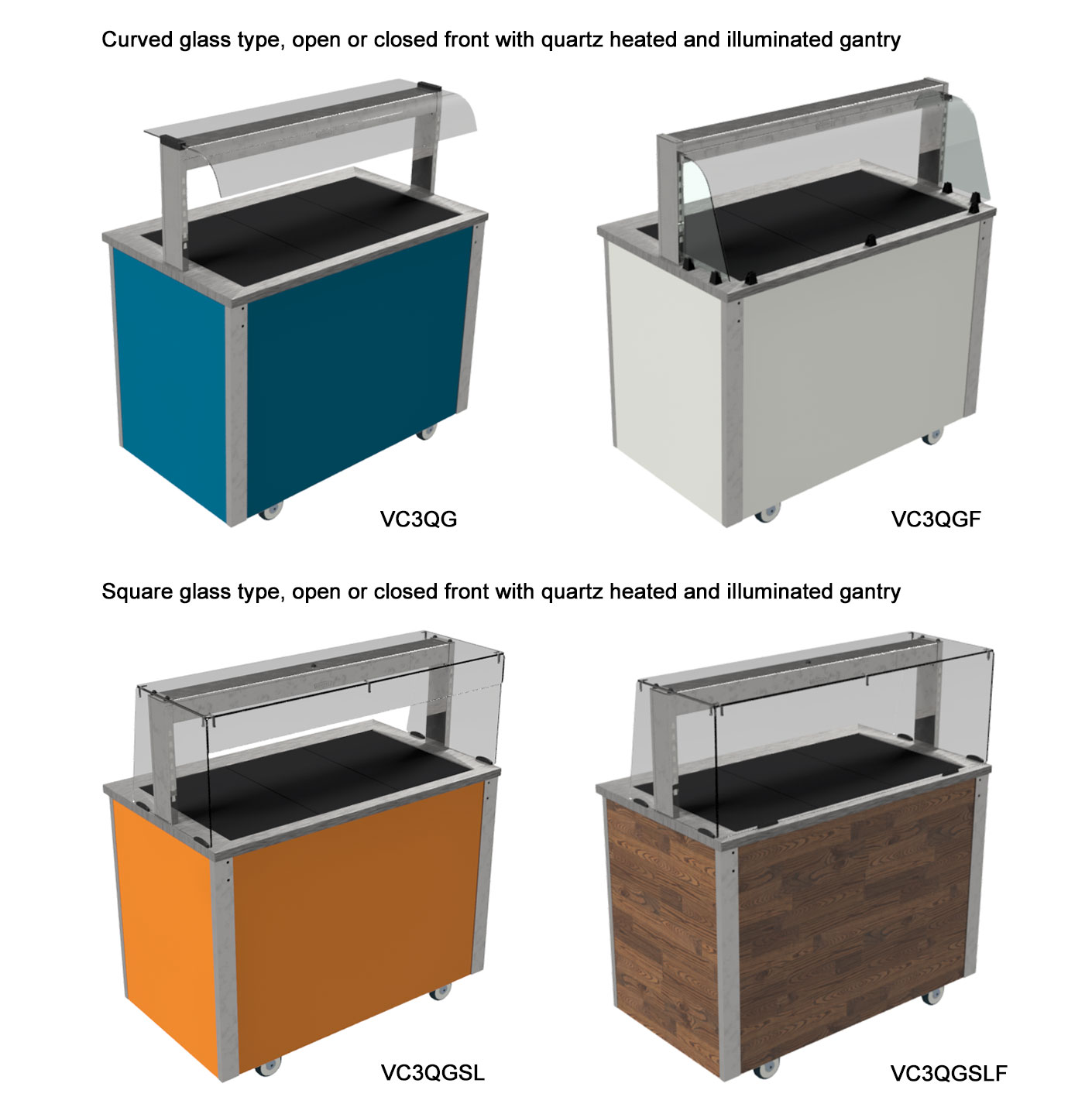

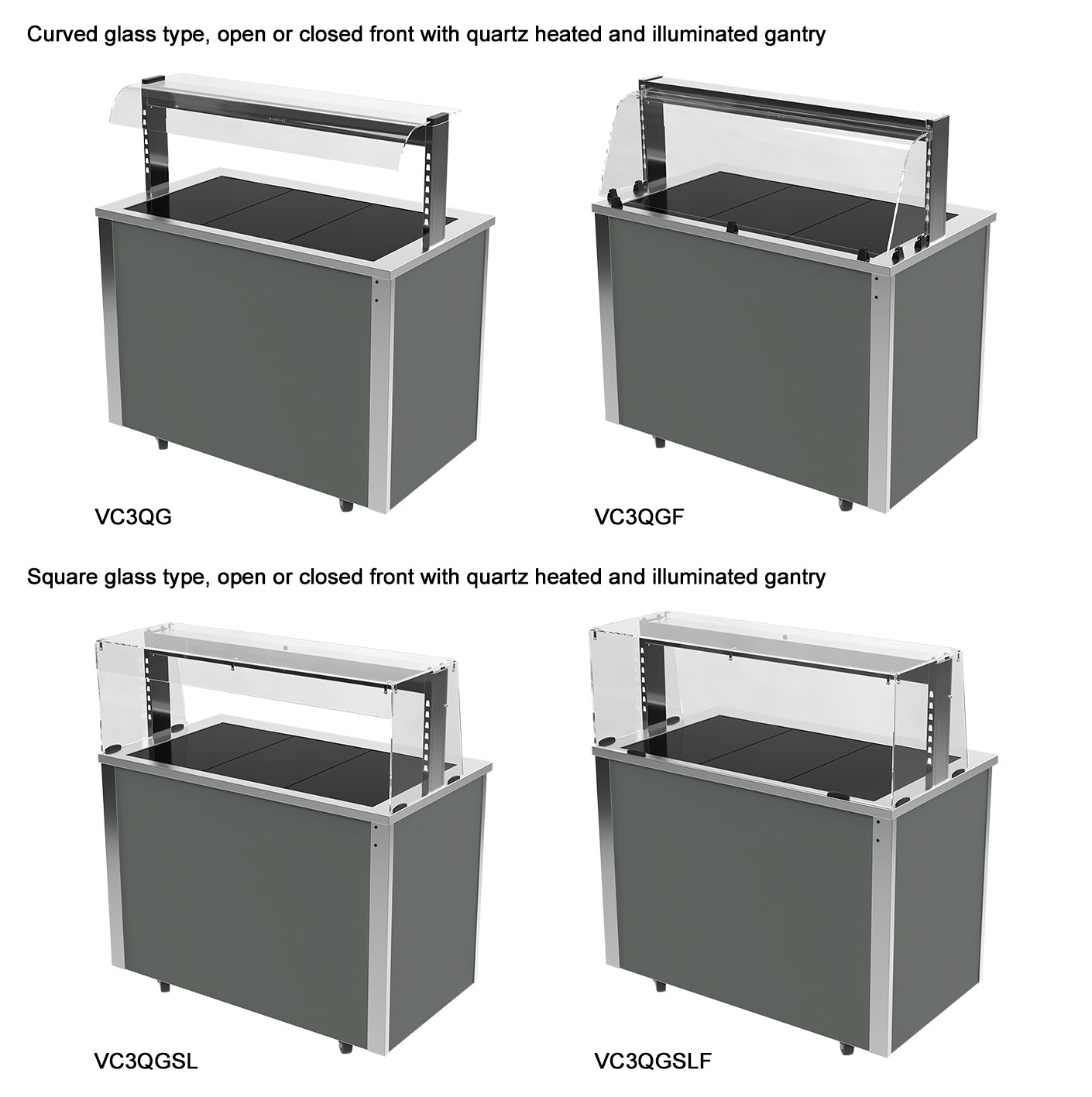

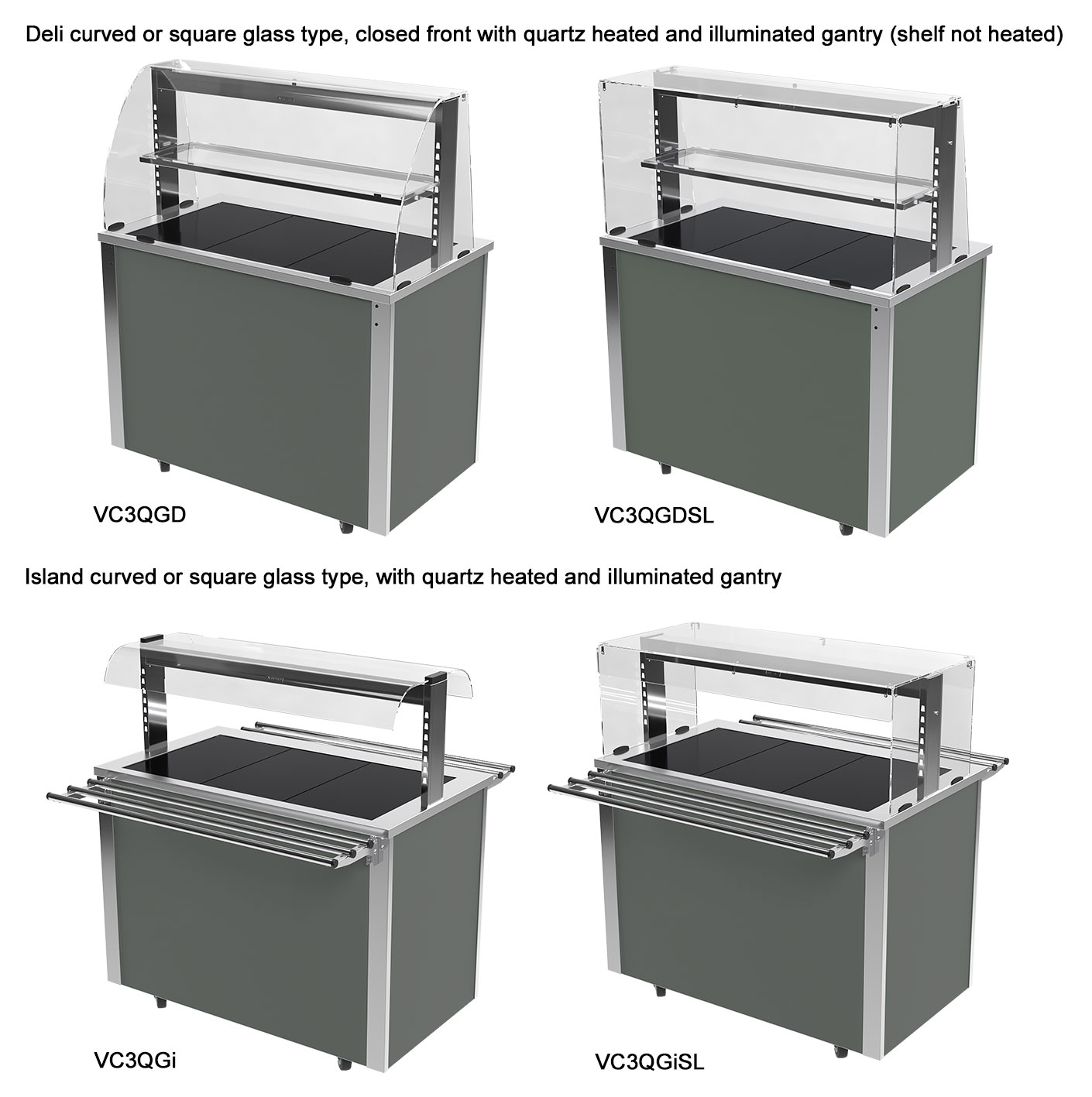

Various heated / illuminated overhead gantry options, factory fitted with base units
Various heated / illuminated overhead gantry options.
Wide choice of coloured outer panels (durable plastic coated steel).
Heavy duty spiked stainless steel carving pad (Code: VCCP).
Fold down solid tray slide or tubular tray rail.
