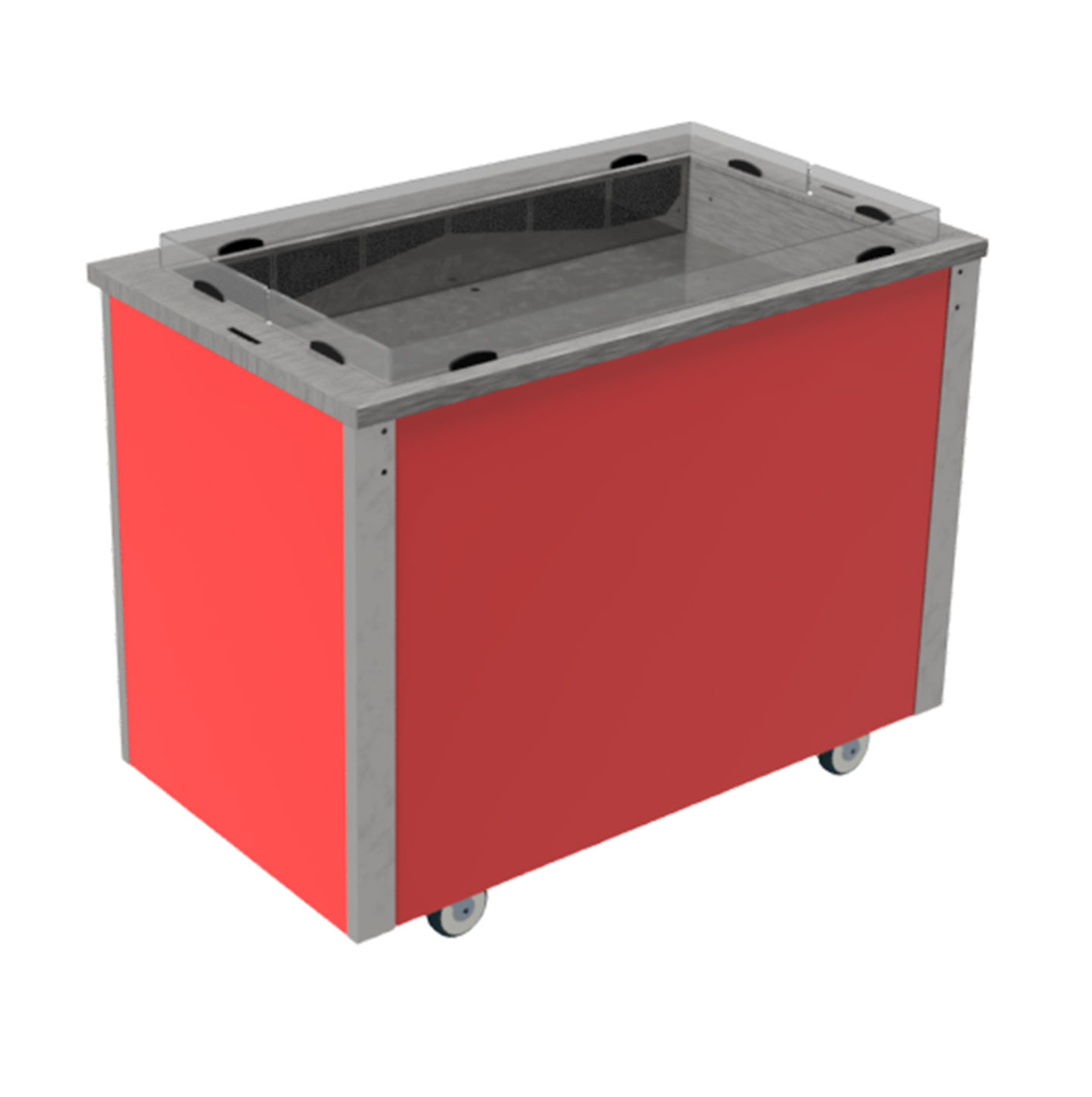

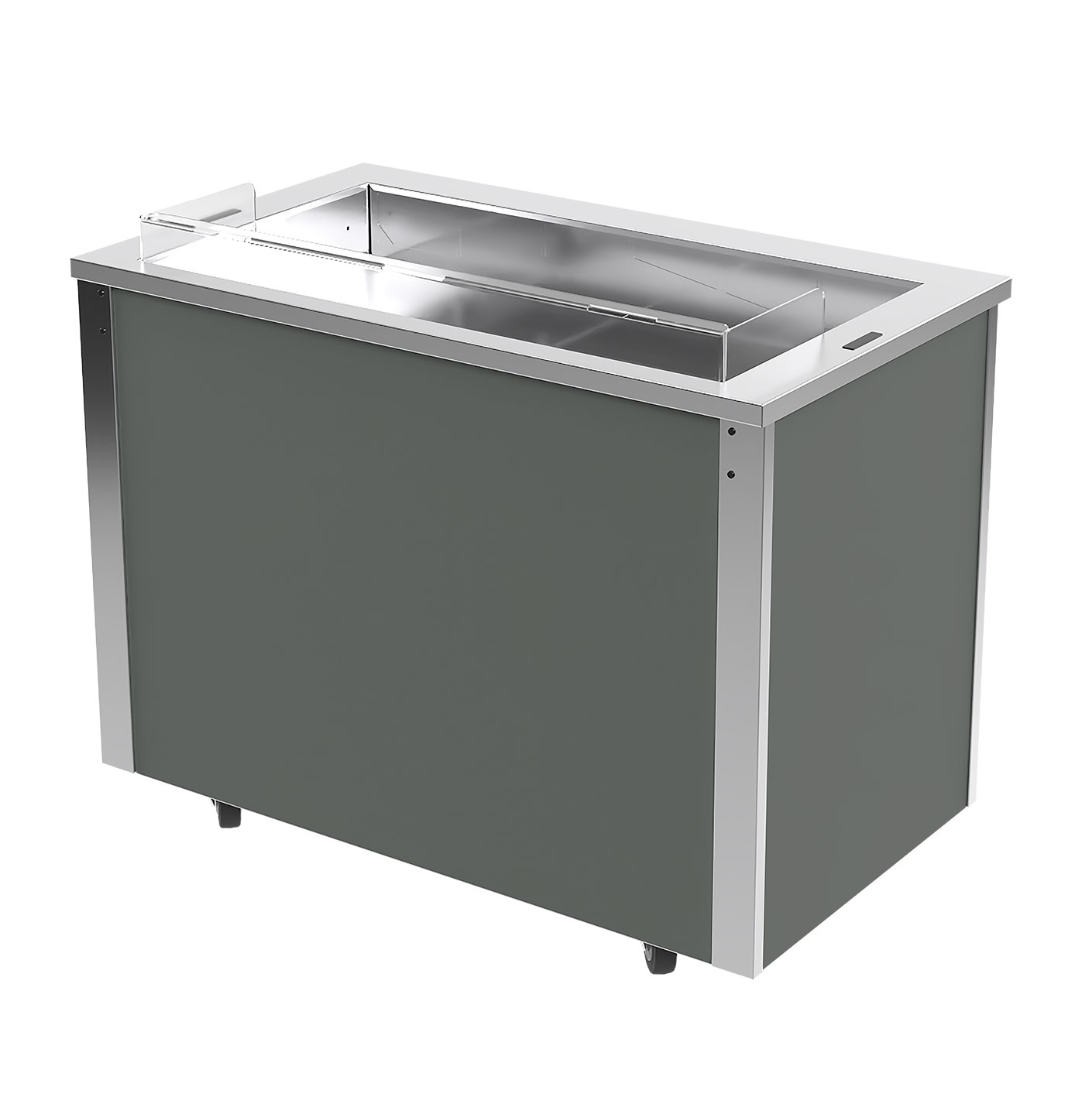

Refrigerated Well
(Gantry and Tray rail are optional extra)

VC2/3/4/5RW

Chilled display units incorporating a cold well, the unique Moffat innovative “Polar Air Stream” system provides a constant wall of cold air which moves across the well blanketing the food displayed and recirculates back through the system. Holding pre-chilled food at a safe and regulated temperature. Retaining taste and freshness throughout, perfect for fruit and vegetables, salads, and cold drinks. Self-contained units with accurate digital control, automatic defrost, high pressure warning, and automatic condensate evaporation. Utilising a highly efficient,naturally occurring hermetically sealed hydrocarbon refrigeration gas type R290 reducing the carbon footprint and energy consumption.

The chilled well is designed to accommodate various type of dishes alternatively Gastronorm GN1/1 pans can be used.



DOWNLOADS

Specification

Key features

  • 4 models in the range holding 2 to 5 GN 1/1 gastronorm type containers.
  • Mobile all swivel castors two with brakes.

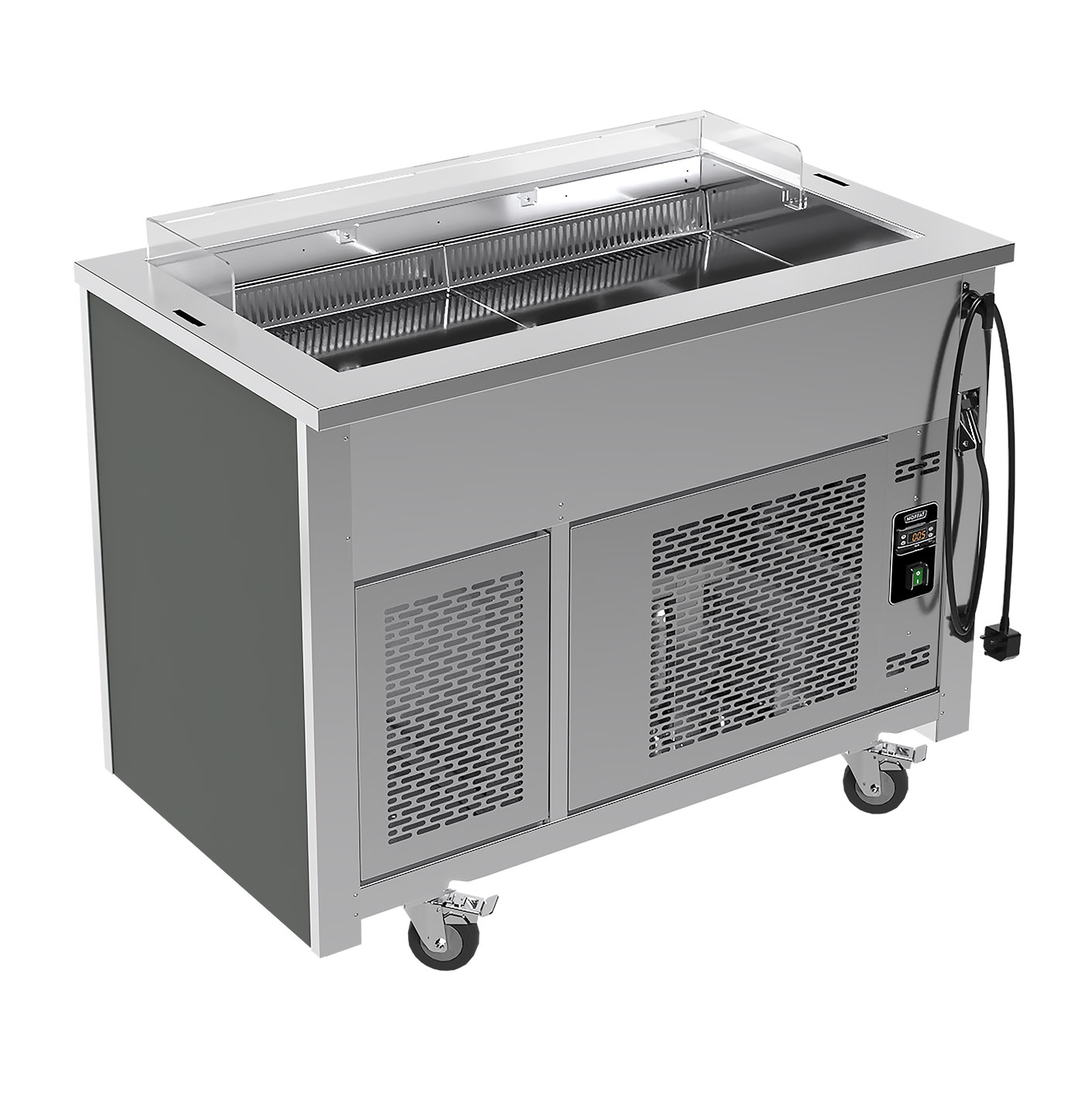

  • Size 3, 4 & 5 have condensing unit set at 90° angle.
    Removes the need for unsightly vents in the front panels.
  • Accommodates 60mm deep 1/1 GN pans [not supplied].

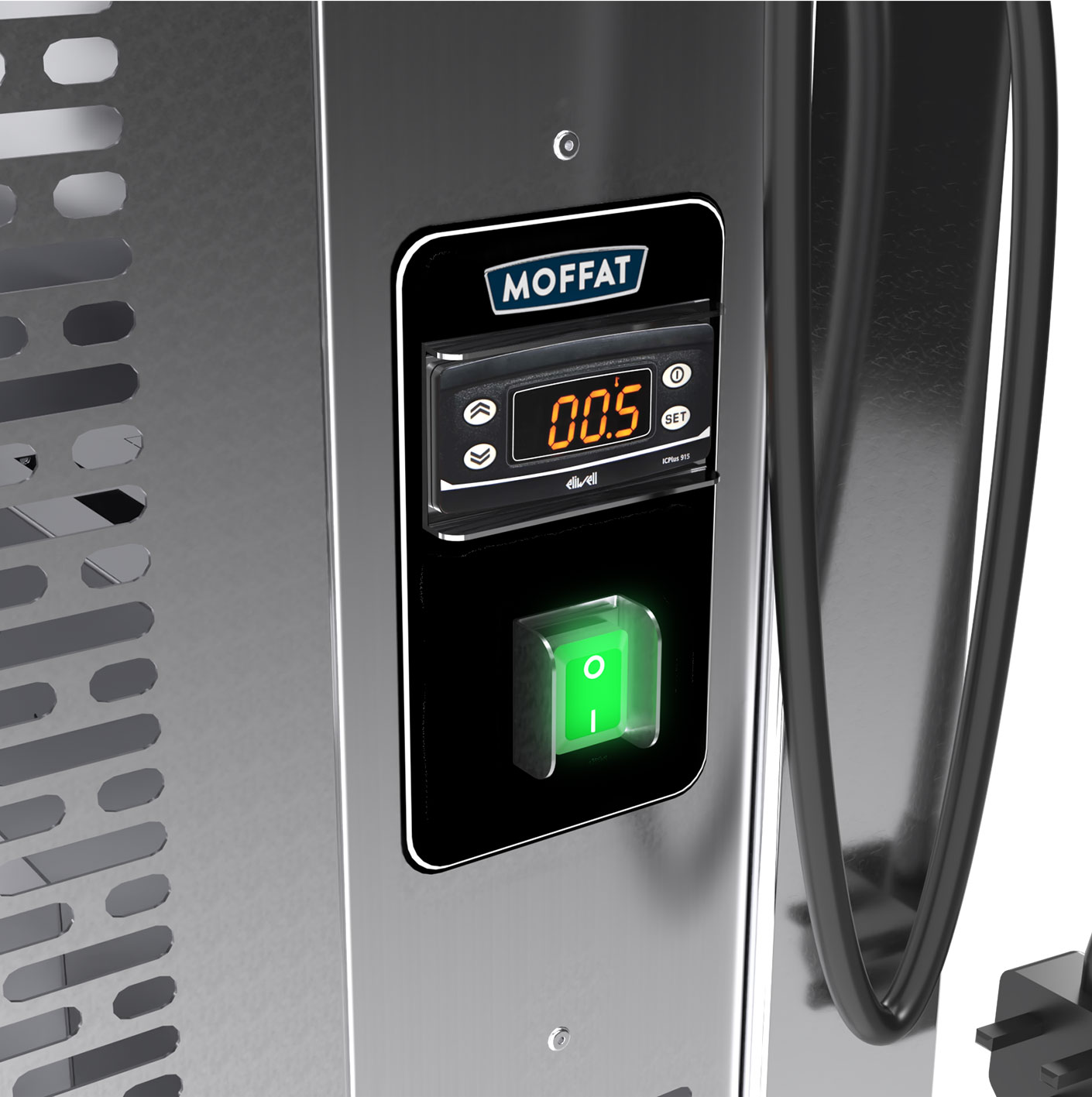

  • Digital thermostat and temperature control with automatic defrost.
  • Advanced air flow design with unique polar air stream technology.
  • Fully insulated efficient, eco-friendly, refrigeration. 24 hour operation.
  • Maintaining the core product temperature of pre-chilled food below 5°C in ambient condition not exceeding 25°C and 60% relative humidity.
  • Automatic condensate water evaporation [no need to empty drip trays).
  • Supplied with 2m long power cord and 13amp plug [13A 230v 50Hz].

Operating Modes

  • Moffat innovative “Polar Air Stream” system provides a constant wall of cold air which moves across the well blanketing the food displayed and recirculates back through the system.
  • Holding pre-chilled food at a safe and regulated temperature.
  • Self-contained units with accurate digital control, automatic defrost, high pressure warning, and automatic condensate evaporation.
  • Utilising a highly efficient,naturally occurring hermetically sealed hydrocarbon refrigeration gas type R290 reducing the carbon footprint and energy
    consumption.

Electrical Specifications

  • Rating with Gantry - 1.22 kW - 1.53 kW
  • Rating without Gantry - 1.2 kW - 1.5 kW
  • Electrical Supply - 13amp

Wiring Drawings

  • Wiring drawing can be obtained by contacting Sales

Options

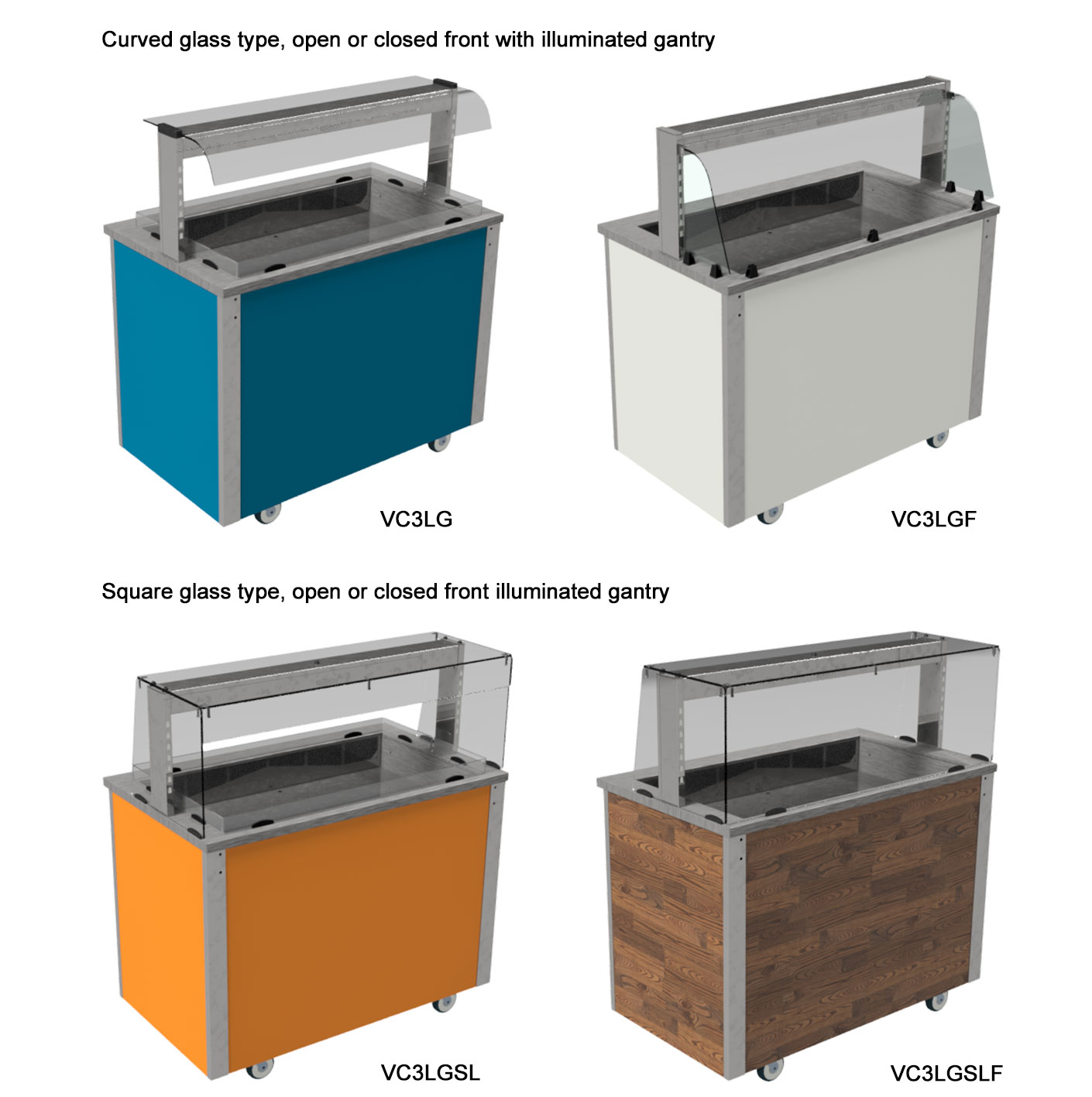

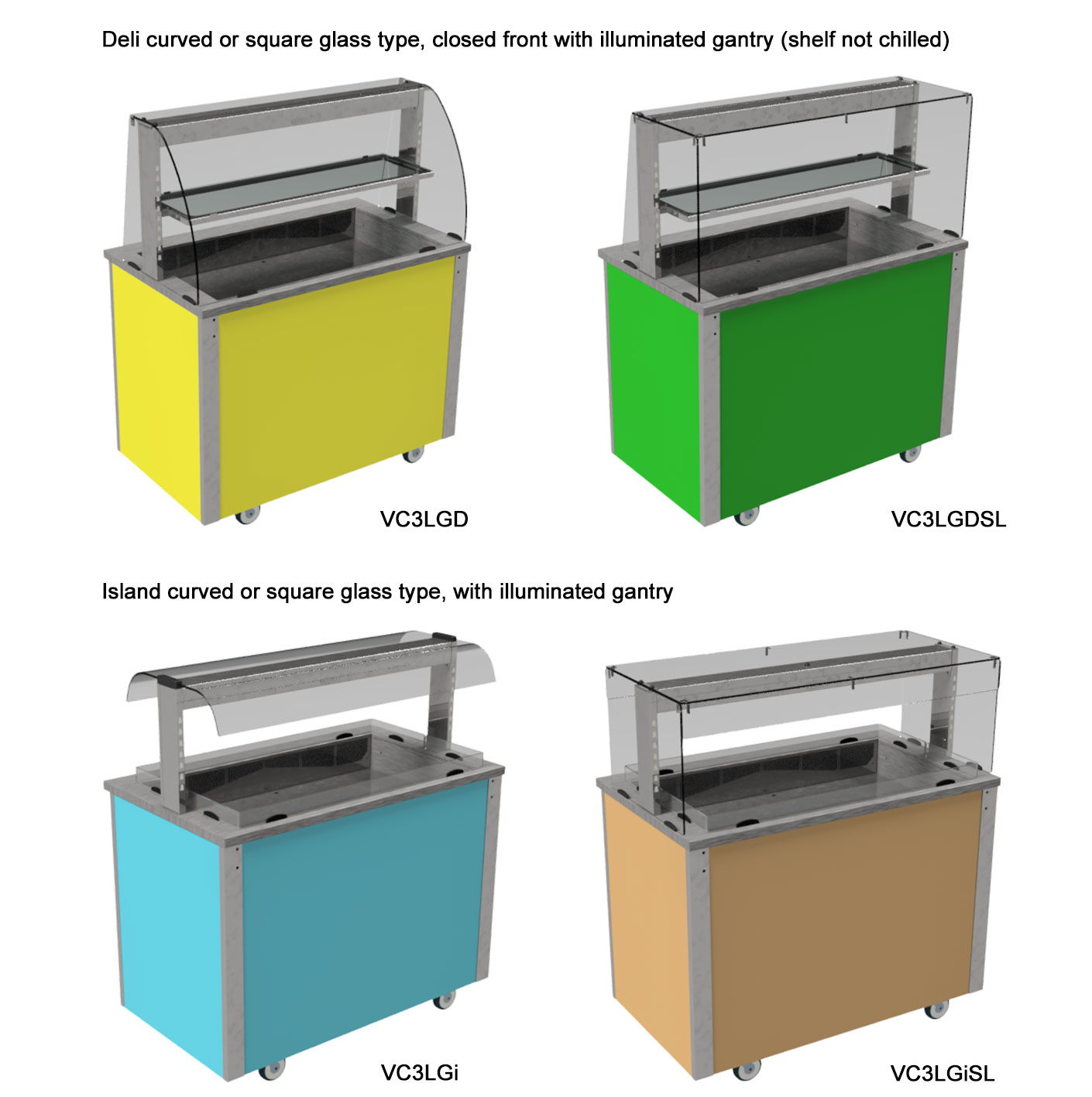

  • Various illuminated overhead gantry options.
  • Wide choice of coloured outer panels (durable plastic coated steel).
  • Fold down solid tray slide or tubular tray rail.
  • Gastronorm adaptor 3 x 1/3 GN Size (Code: DGPA).
  • Prep-shelf and cutting board (Codes: D2PS, D3PS, D4PS & D5PS).
  • Rear sliding doors (Codes: D2DD, D3DD. D4DD & D5DD) Deli models only.

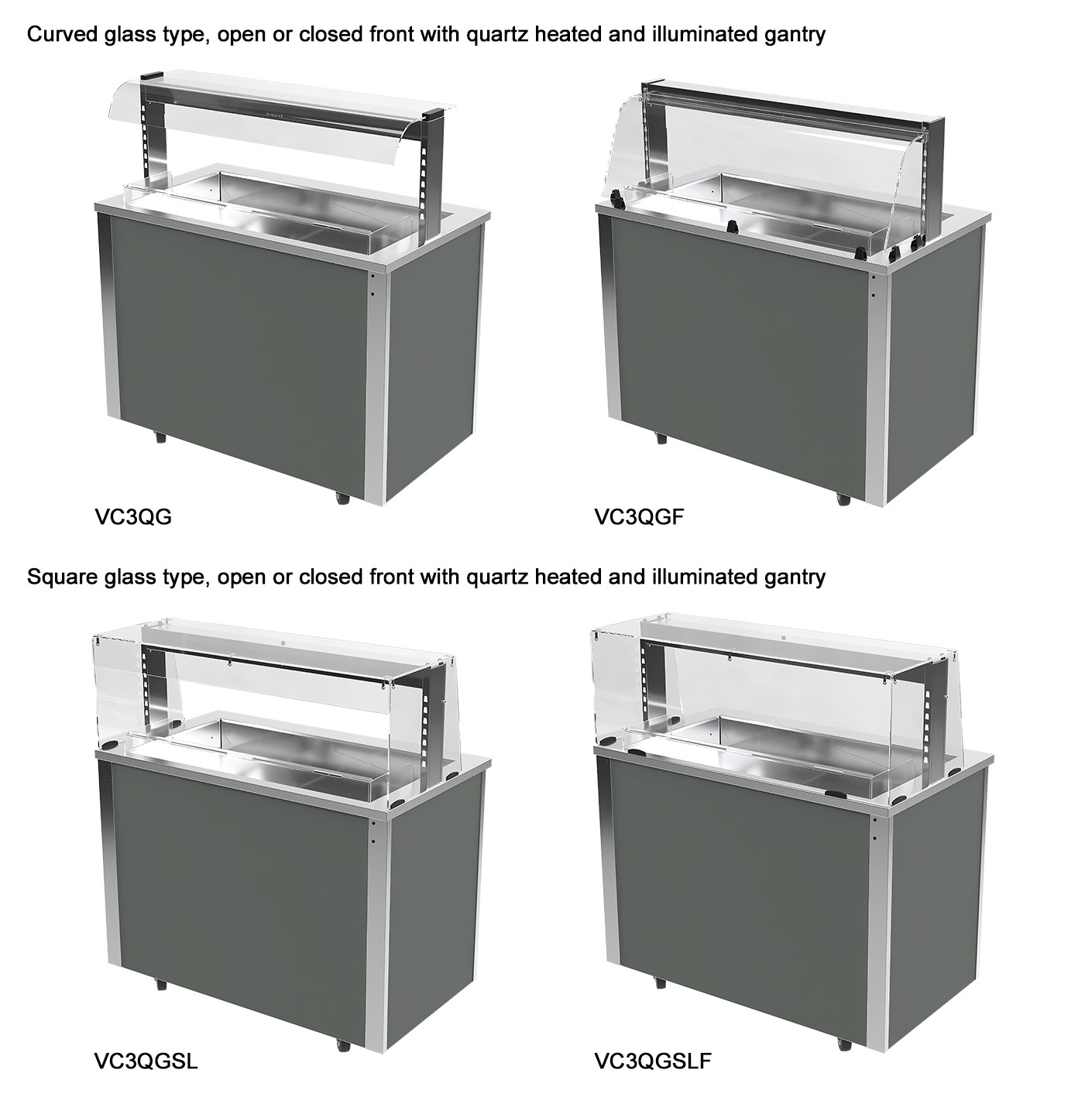

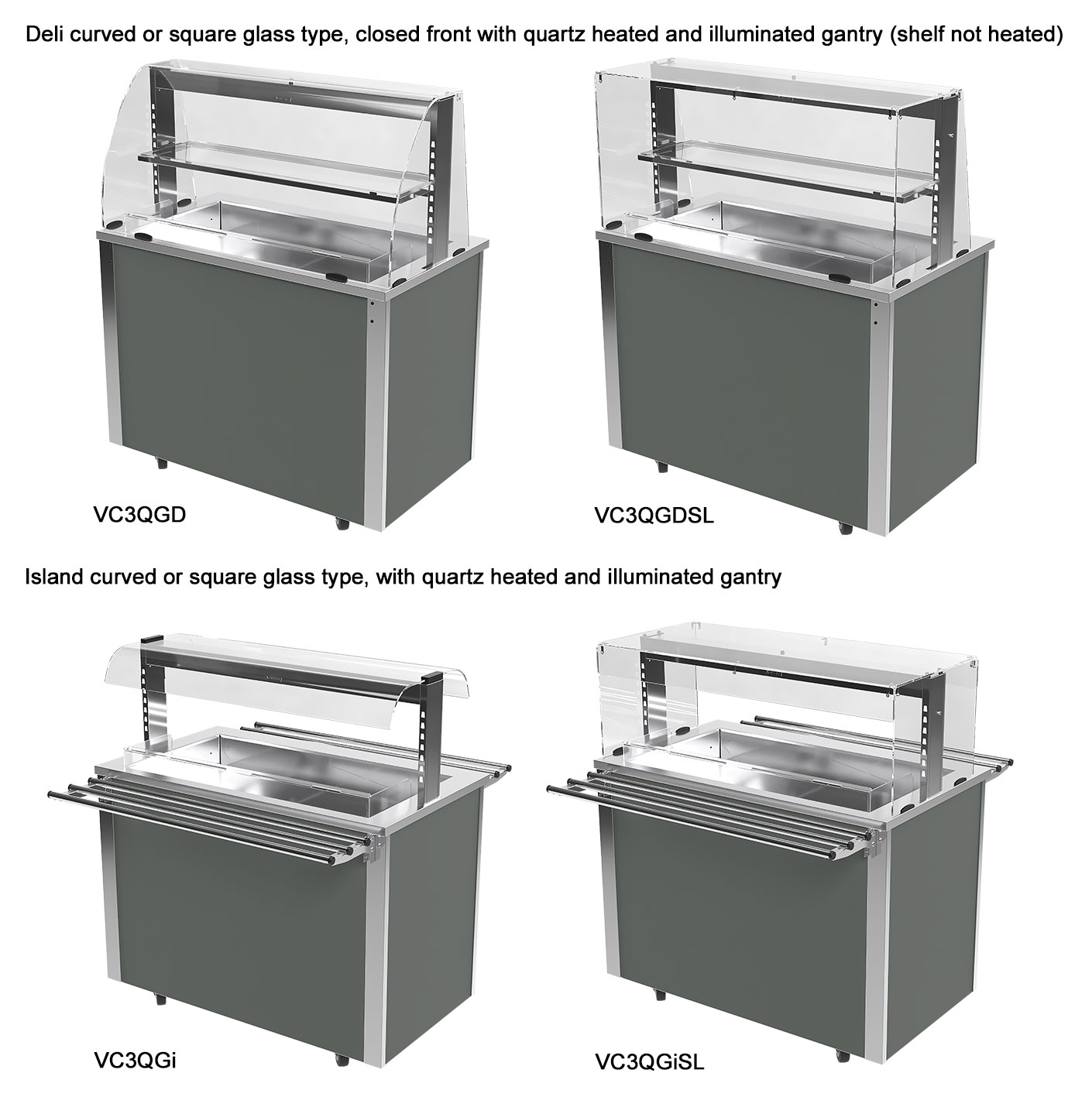

Gantry options
