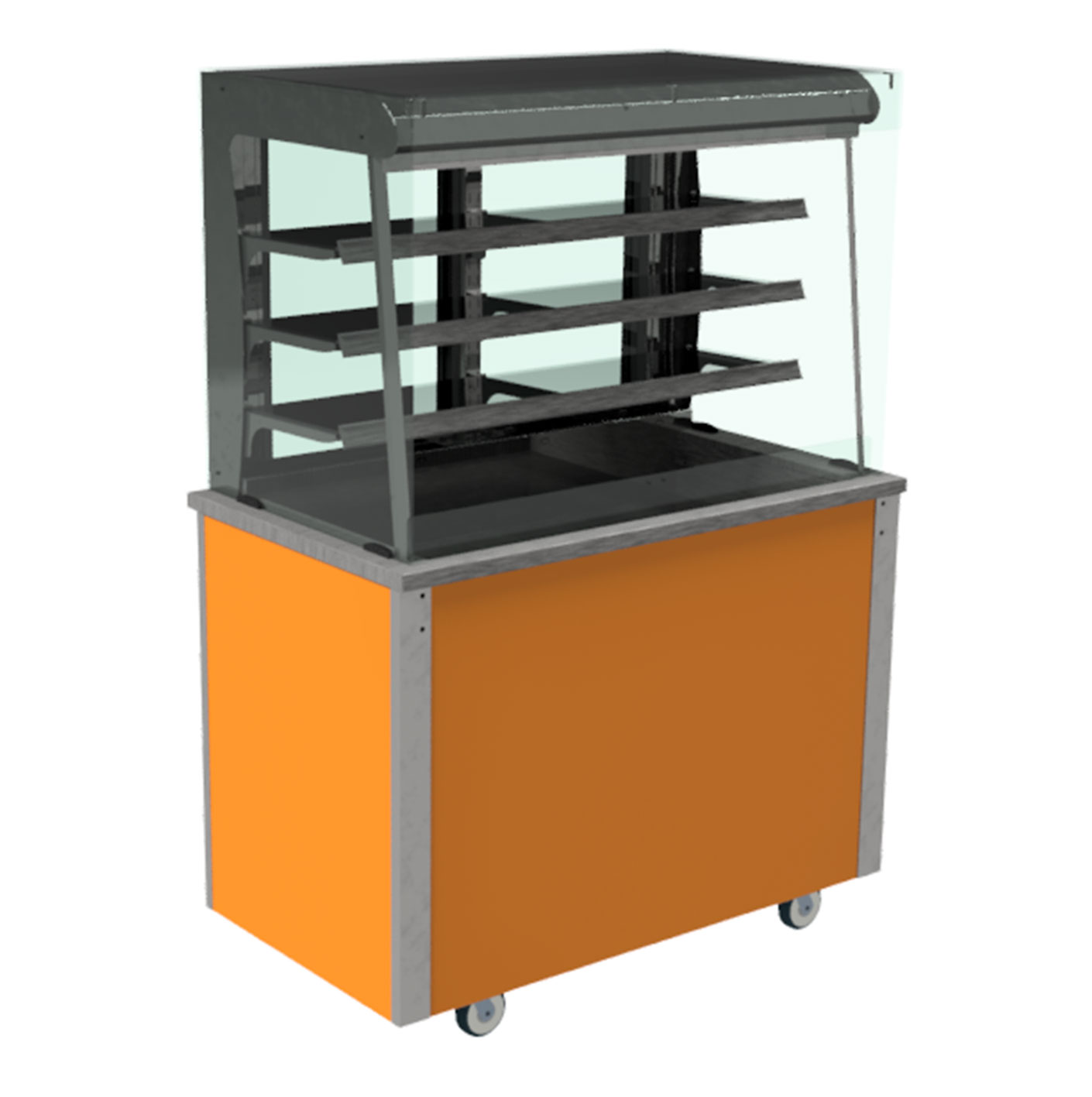

VC2/3/4/5/RDSL

Chilled display units incorporating a cold well and 3 glass display shelves. The unique Moffat innovative “Polar Air Stream” system provides a constant recirculating cold air curtain completely enveloping the food displayed. Holding pre-chilled food at a safe, regulated temperature while retaining taste and freshness. Perfect for sandwiches, fruit, yogurts and cold drinks. Self-contained units with accurate, digital control, automatic defrost, high pressure warning and automatic condensate evaporation. Utilising a highly efficient, naturally occurring, hermetically sealed, hydrocarbon gas type R290 reducing carbon footprint and energy consumption.

DOWNLOADS

Specification

Key features

4 models in the range.
High visability glass display with LED illumination.
Mobile all swivel castors two with brakes.
Size 3, 4 & 5 have condensing unit set at 90° angle.
Removes the need for unsightly vents in the front panels.
Chilled well and three fully adjustable glass shelves.

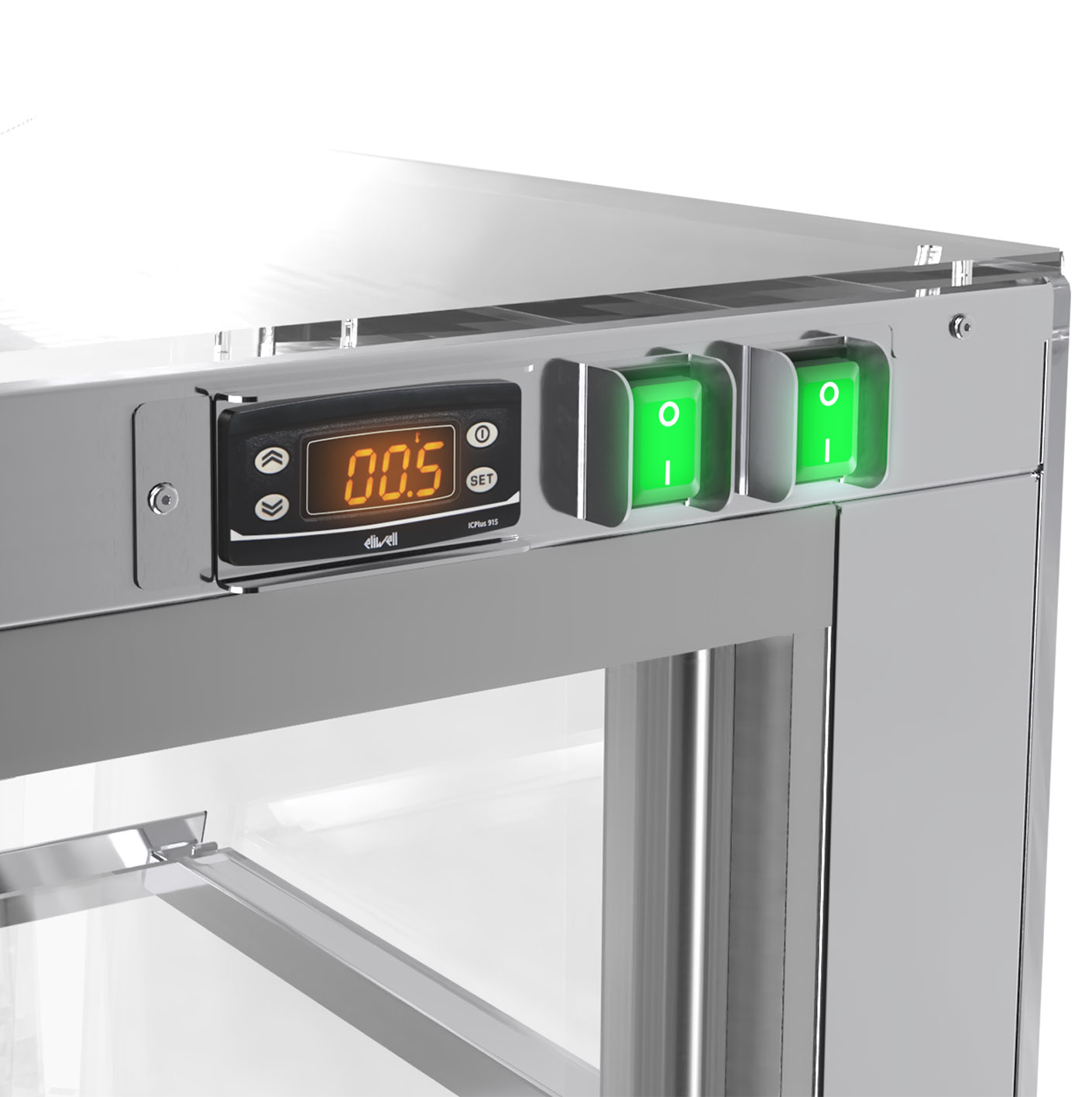

Digital thermostat and temperature control with automatic defrost.
Advanced air flow design with unique polar airstream technology.
Fully insulated efficient, eco-friendly, refrigeration.
Maintaining the core product temperature of pre-chilled food below 5°C in ambient condition not exceeding 25°C and 60% relative humidity.
Automatic condensate water evaporation (no need to empty drip trays).
24 hour operation.
Supplied with 2m long power cord and 13amp plug [13A 230v 50Hz].

Operating Modes

Moffat innovative “Polar Air Stream” system provides
a constant recirculating cold air curtain completely enveloping the food displayed.
Holding pre-chilled food at a safe, regulated temperature while retaining taste and freshness.
Self-contained units with accurate, digital control,
automatic defrost, high pressure warning and automatic condensate evaporation.
Utilising a highly efficient, naturally occurring, hermetically sealed, hydrocarbon gas type R290 reducing carbon footprint and energy consumption.

Electrical Specifications

Rating - 1.5 kW - 1.7 kW
Electrical Supply - 13amp

Wiring Drawings

Wiring drawing can be obtained by contacting Sales

Options

Curved or square glass style open or full front.
Wide choice of coloured outer panles (Durable plastic coated steel).
Locakble roller shutter models.
Fold down solid tray slide or tubular tray rail.

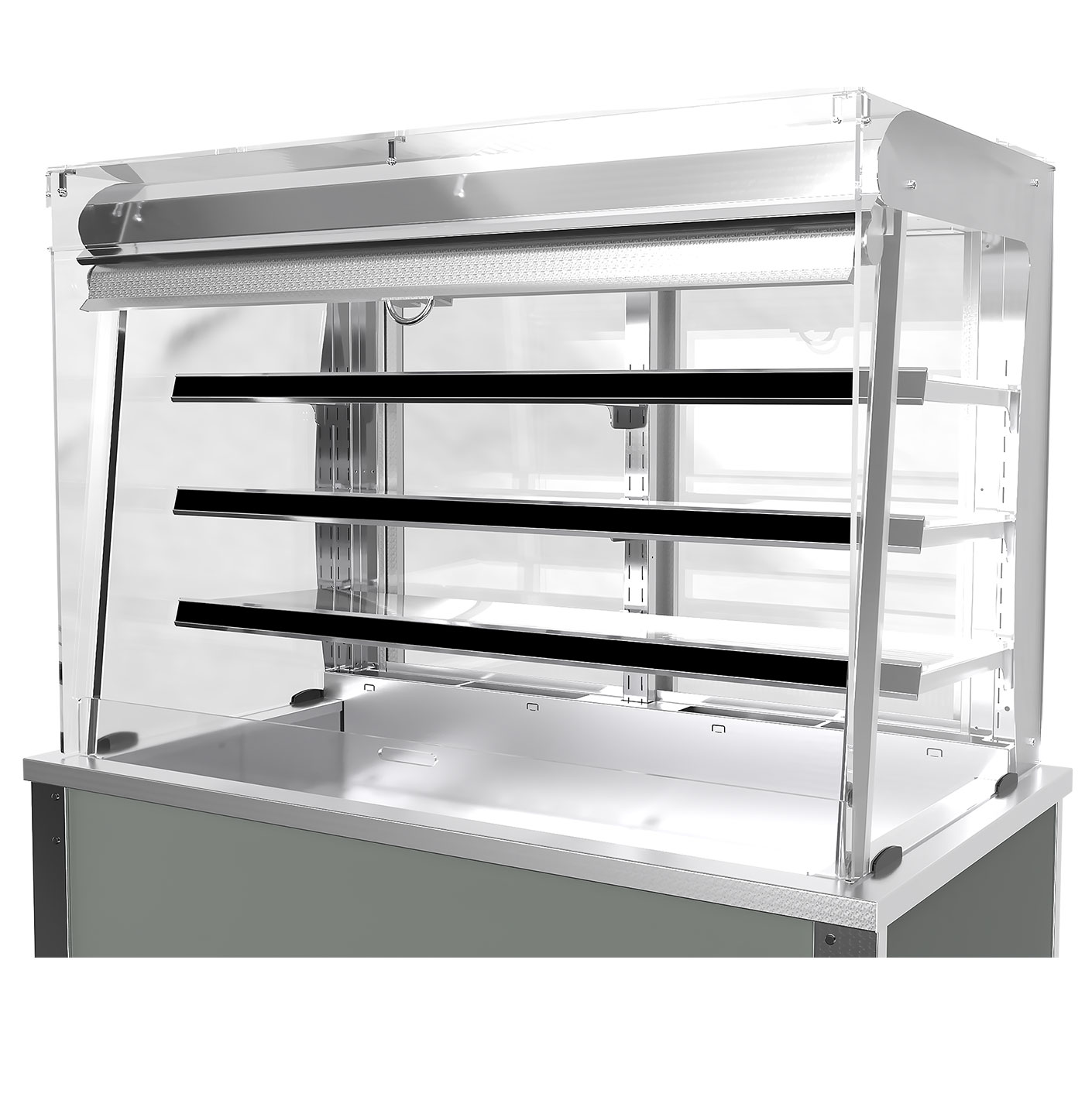

Front roller blind Model codes. NB2:- size 2 unit, NB3:- size 3 unit, NB4:- size 4 unit, NB5:- size 5 unit.
