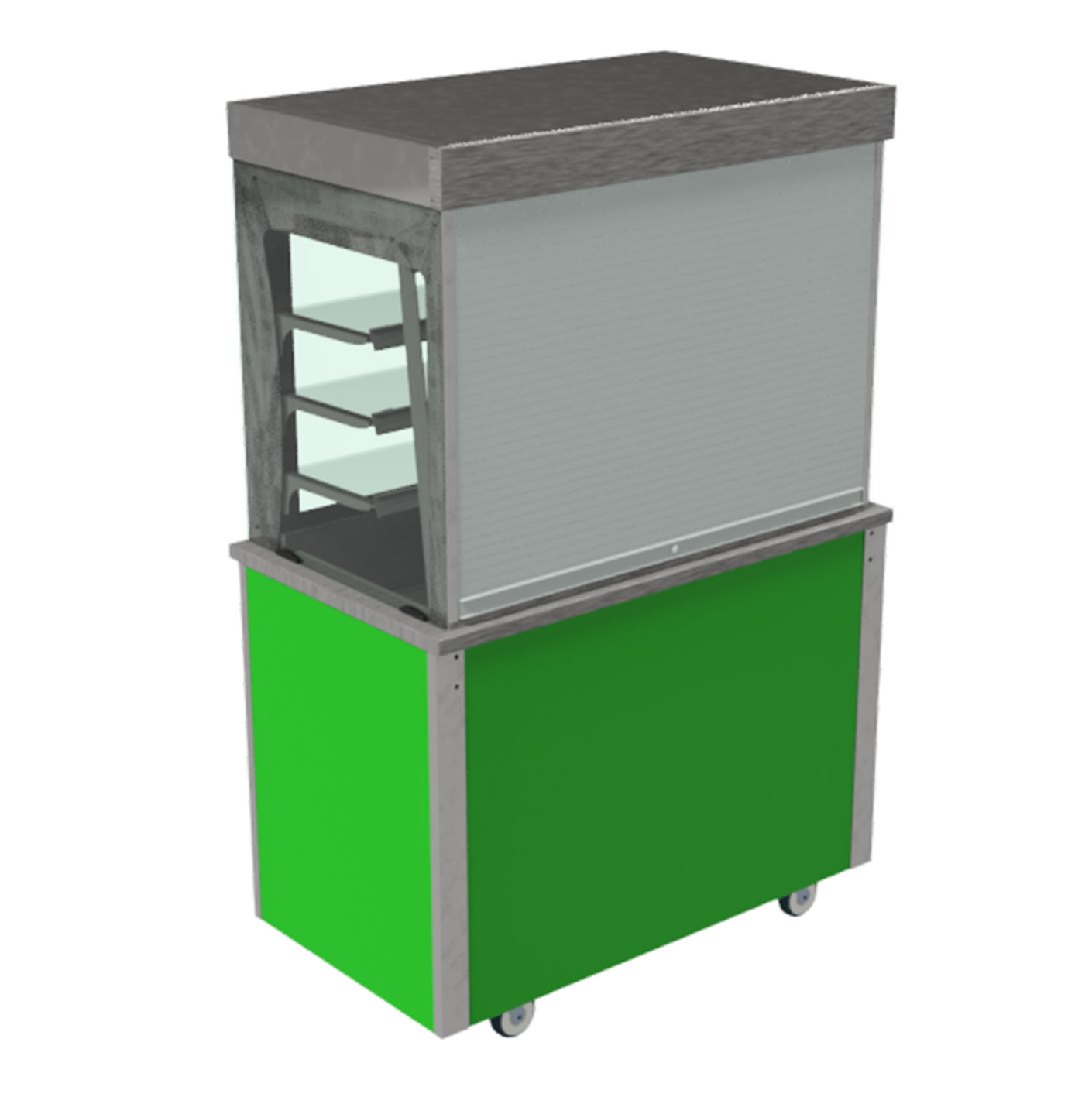

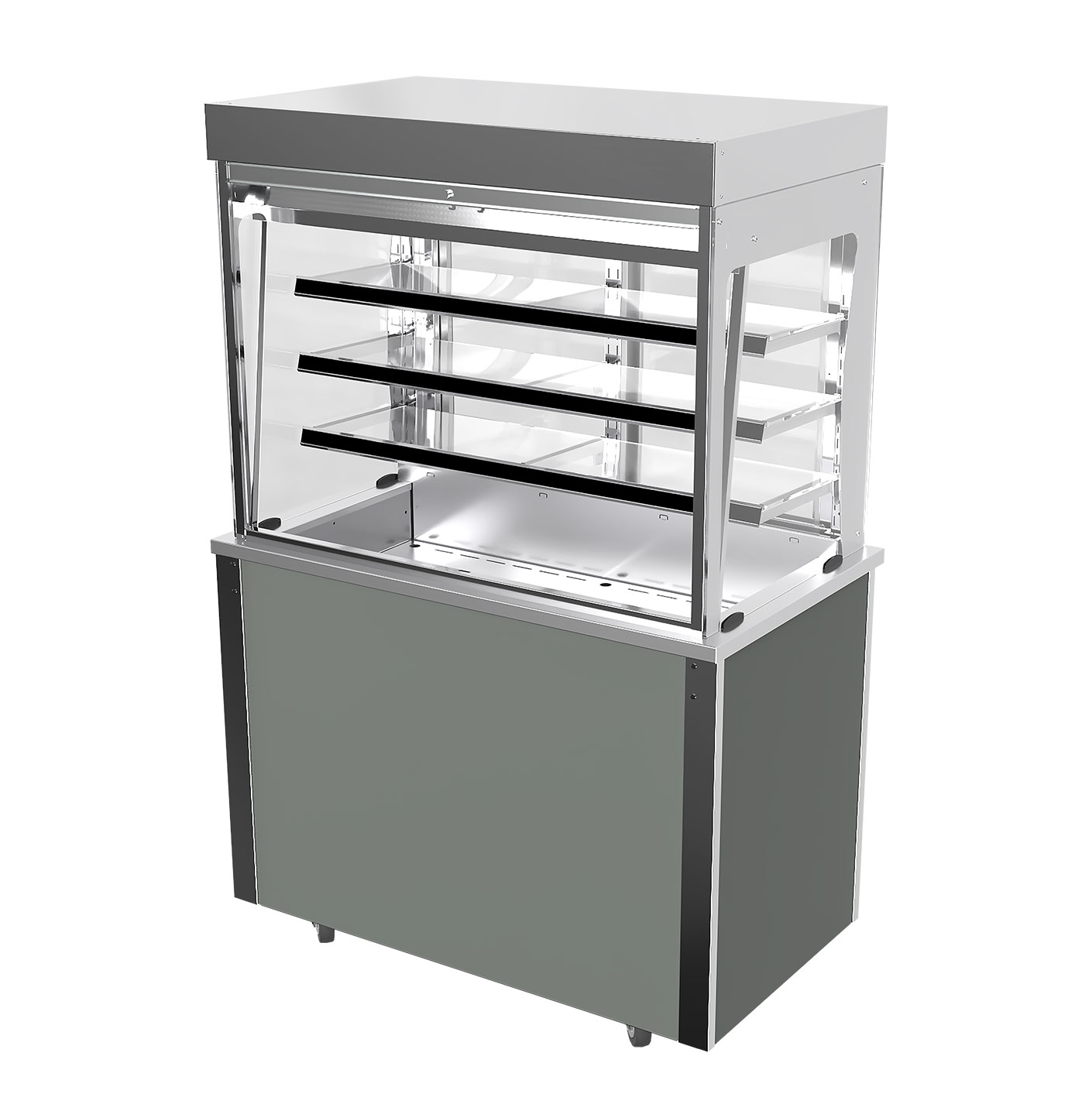

Refrigerated Display

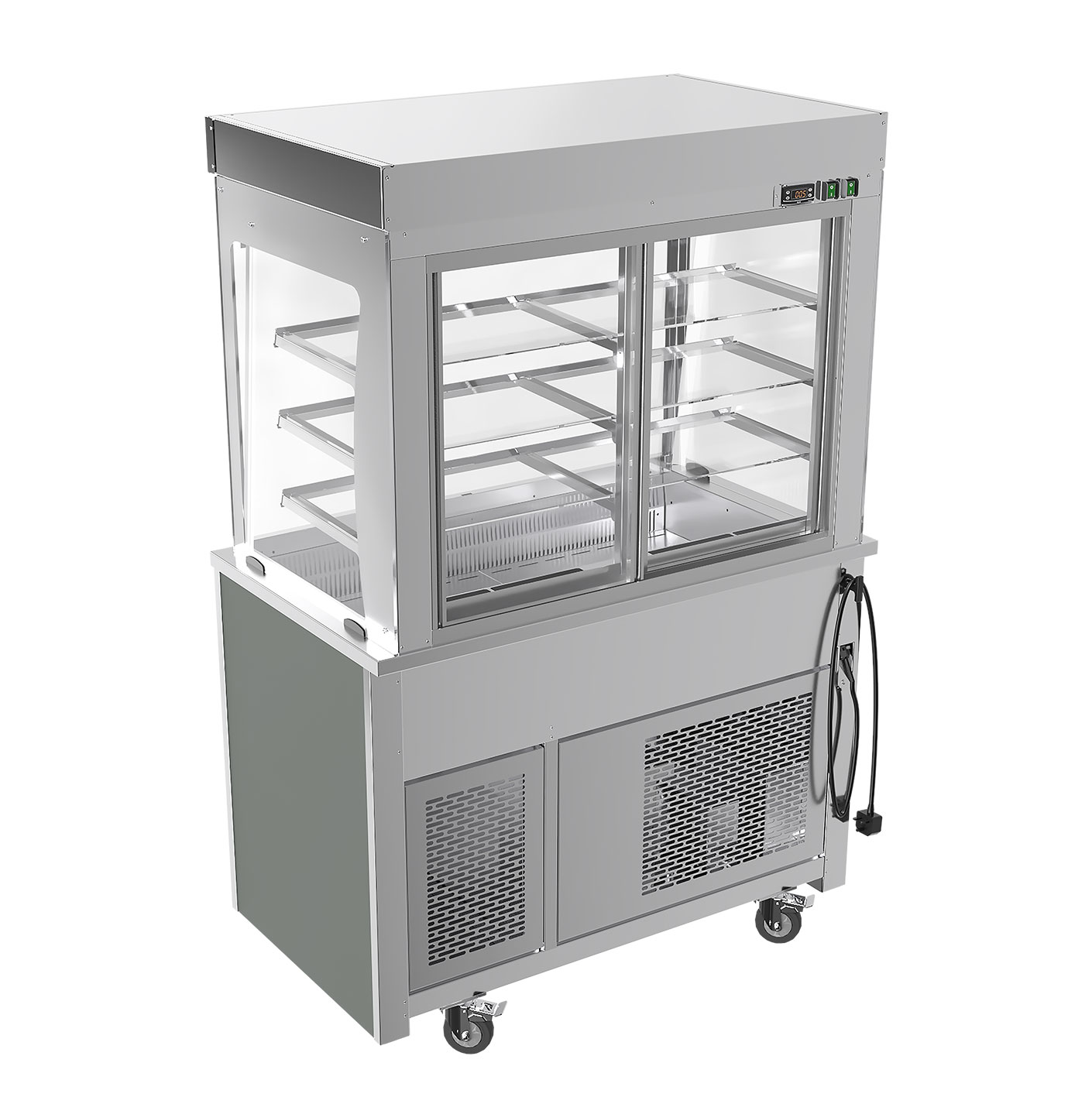

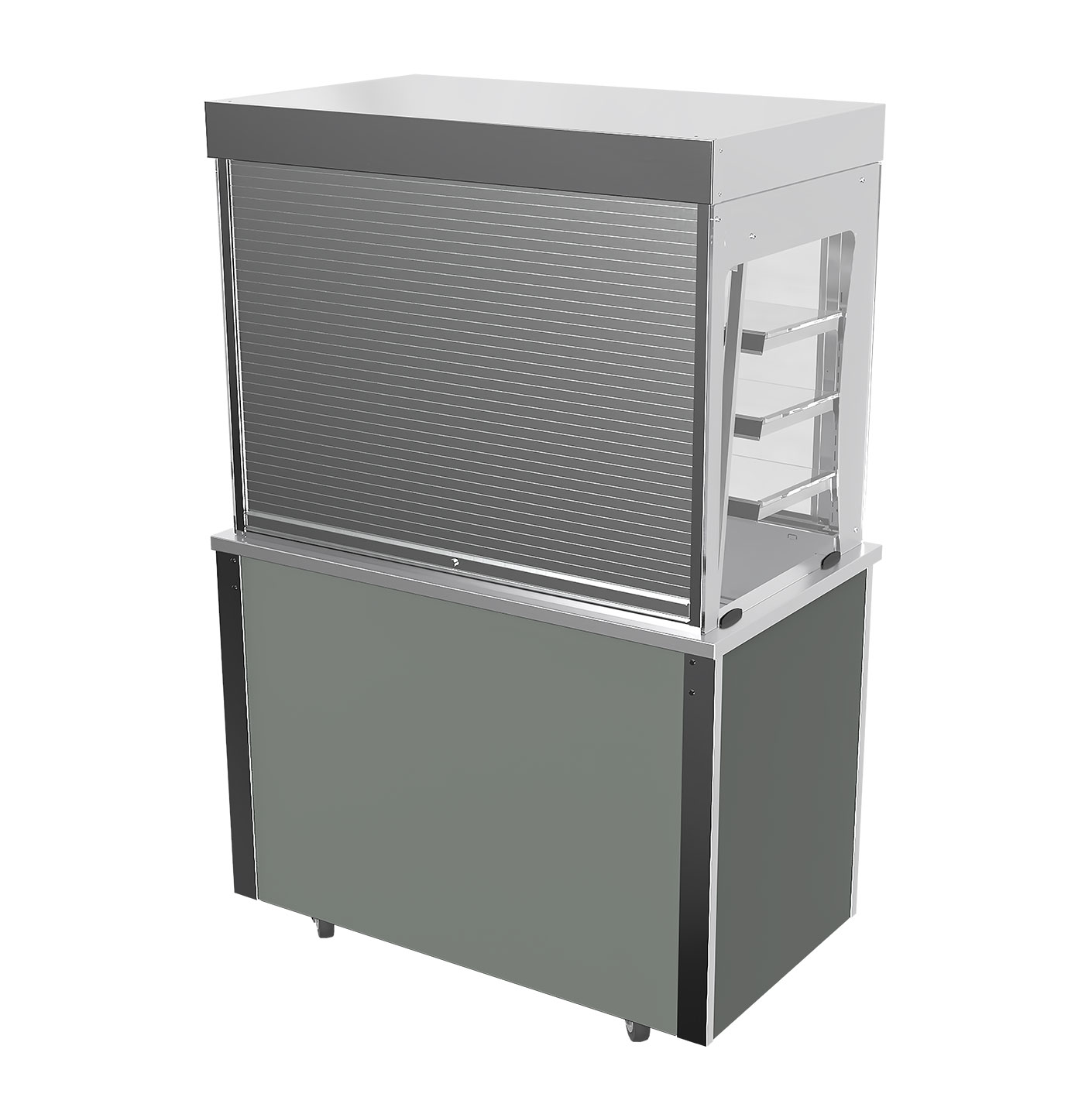

Lockable Roller Shutter and rear sliding door
(Tray rail are optional extra)

VC2/3/4/5/RDSA

Chilled display units incorporating a cold well and 3 glass display shelves. The unique Moffat innovative “Polar Air Stream” system provides a constant recirculating cold air curtain completely enveloping the food displayed. Holding pre-chilled food at a safe, regulated temperature while retaining taste and freshness. Perfect for sandwiches, fruit, yogurts and cold drinks. Self-contained units with accurate, digital control, automatic defrost, high pressure warning and automatic condensate evaporation. Utilising a highly efficient, naturally occurring, hermetically sealed, hydrocarbon gas type R290 reducing carbon footprint and energy consumption.



DOWNLOADS

Specification

Key features

  • 4 models in the range.
  • High visability glass display with LED illumination.
  • Mobile all swivel castors two with brakes.
  • Size 3, 4 & 5 have condensing unit set at 90° angle.
    Removes the need for unsightly vents in the front panels.
  • Chilled well and three fully adjustable glass shelves.

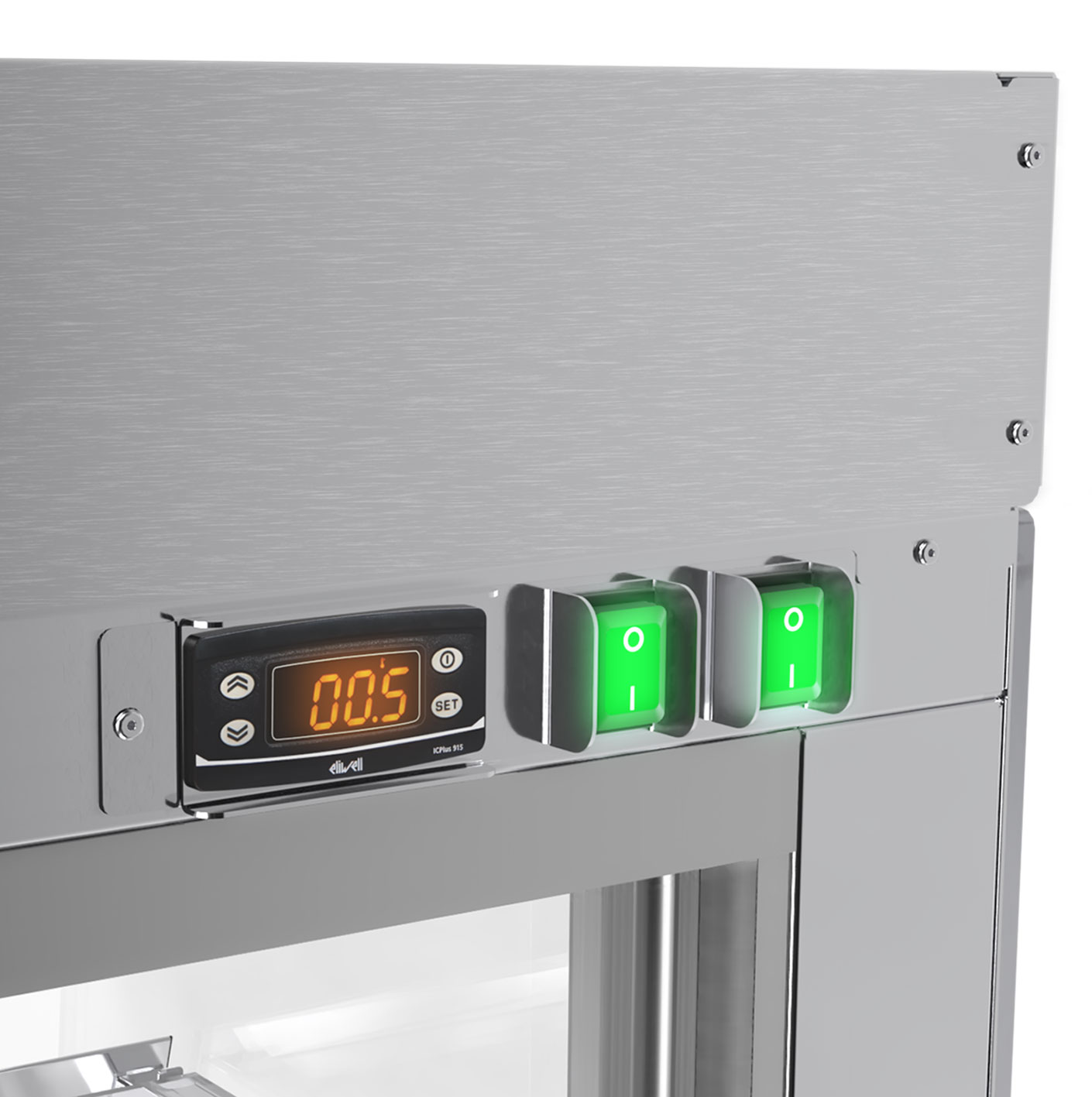

  • Digital thermostat and temperature control with automatic defrost.
  • Advanced air flow design with unique polar airstream technology.
  • Fully insulated efficient, eco-friendly, refrigeration.
  • Maintaining the core product temperature of pre-chilled food below 5°C in ambient condition not exceeding 25°C and 60% relative humidity.
  • Automatic condensate water evaporation (no need to empty drip trays).
  • 24 hour operation.
  • Supplied with 2m long power cord and 13amp plug [13A 230v 50Hz].

Operating Modes

  • Moffat innovative “Polar Air Stream” system provides
    a constant recirculating cold air curtain completely enveloping the food displayed.
  • Holding pre-chilled food at a safe, regulated temperature while retaining taste and freshness.
  • Self-contained units with accurate, digital control,
    automatic defrost, high pressure warning and automatic condensate evaporation.
  • Utilising a highly efficient, naturally occurring, hermetically sealed, hydrocarbon gas type R290 reducing carbon footprint and energy consumption.

Electrical Specifications

  • Rating - 1.5 kW - 1.7 kW
  • Electrical Supply - 13amp

Wiring Drawings

  • Wiring drawing can be obtained by contacting Sales

Options

  • Curved or square glass style open or full front.
  • Wide choice of coloured outer panles (Durable plastic coated steel).
  • Locakble roller shutter models.
  • Fold down solid tray slide or tubular tray rail.
  • Front roller blind Model codes. NB2:- size 2 unit, NB3:- size 3 unit, NB4:- size 4 unit, NB5:- size 5 unit.
