Polar Wells (Models with a deep well fitted

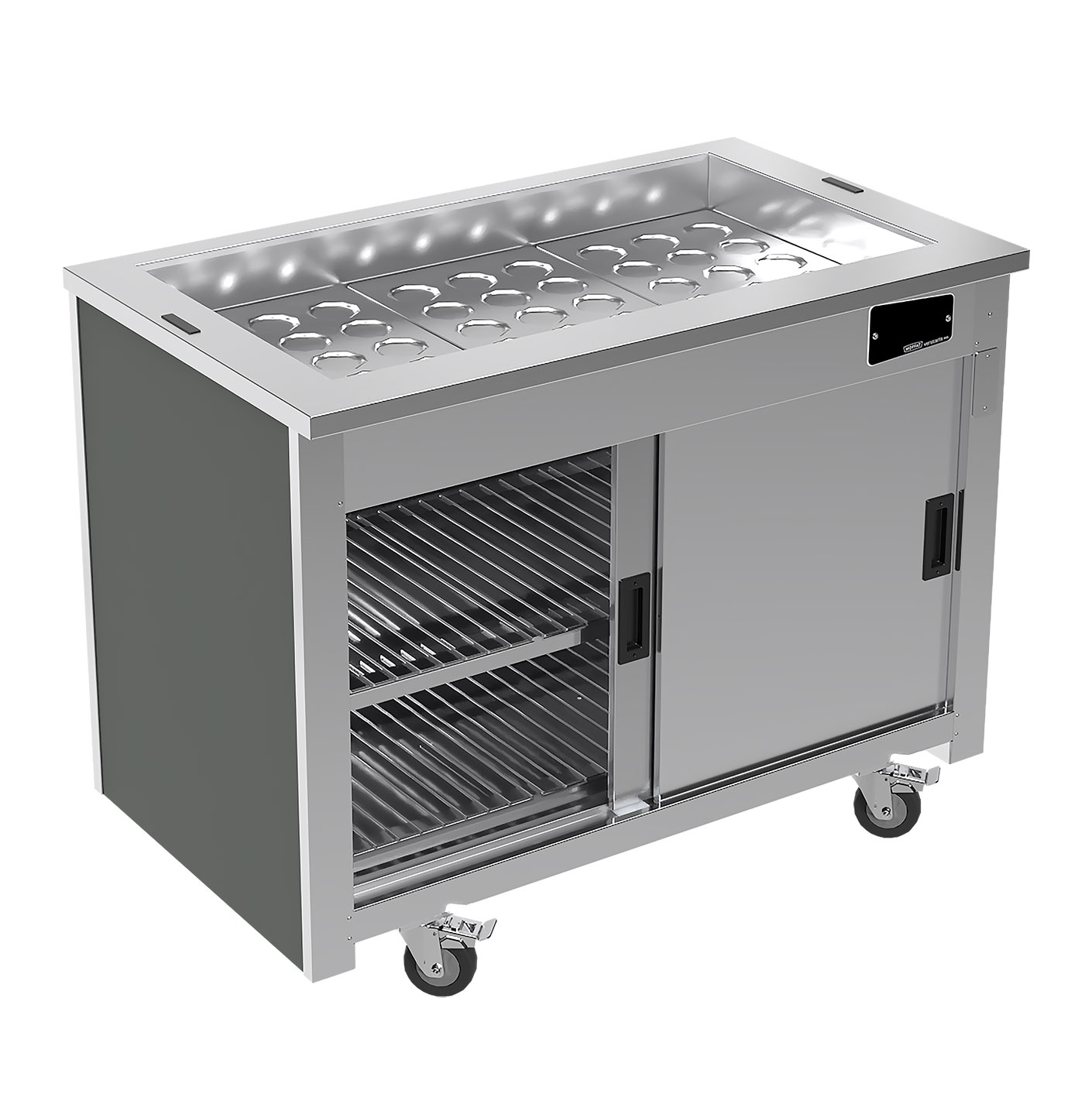

with eutectic polar plates with an ambient storage cupboard under)
(Gantry and Tray rail are optional extra)

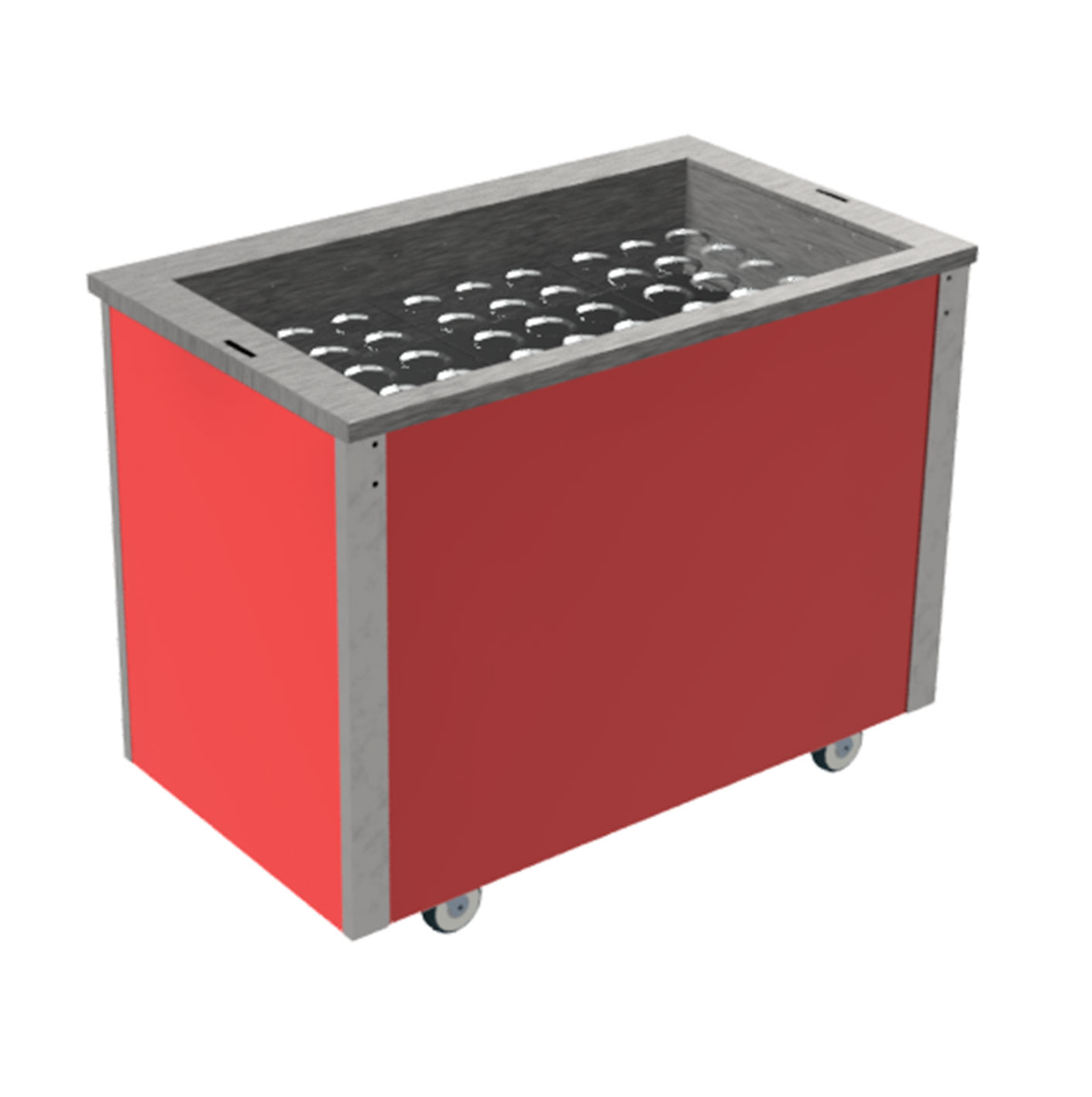

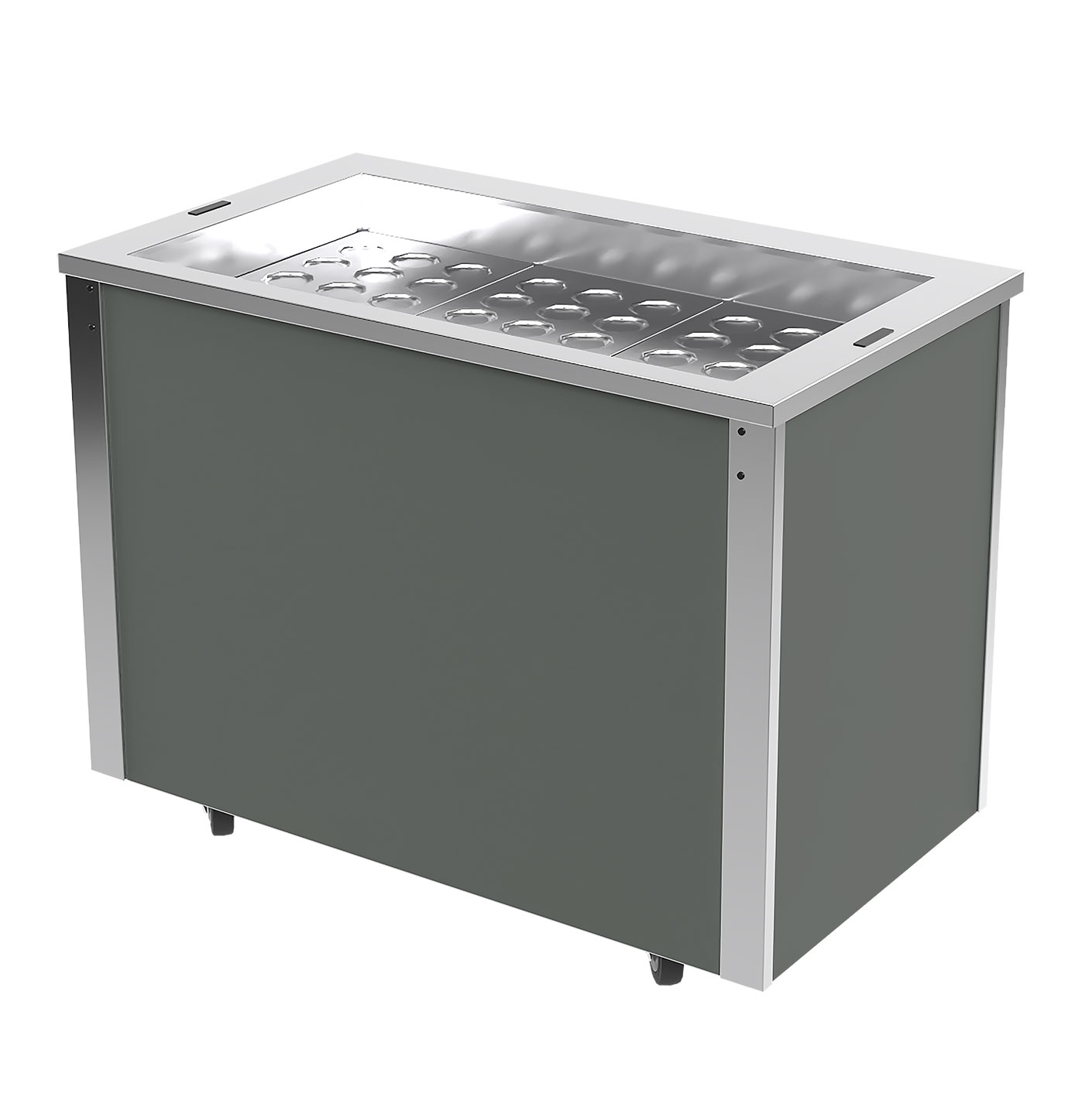

VC2/3/4/5PW
Chilled display and ambient storage cupboard incorporating an insulated well to accommodate gastronorm GN1/1 size eutectic type packs. Moffat Polar Plates keep food chilled for 2 to 3 hours. Before use, the Polar Plates are charged for 8 to 12 hours in a deep freeze. If longer periods of operation are required, extra Polar Plates can be charged and used in rotation.
Holding pre-chilled food by contact cooling perfect for fruit and vegetables, salads, and cold drinks. When no power is available these short term holding modules offers easy
installation a flexibility of use.
DOWNLOADS
Specification
Key features
- Unique, heavy duty solid stainless steel fully sealed polar plates.
- Low maintenance, easily cleaned.
- 4 models in the range holding 2 to 5 GN 1/1 gastronorm type containers.
- Various mixed sizes of gastronorm pans can be used in unison.
- Plug and Go, when fitted with the optional illuminated overhead gantry s complete with 2metre long power cable and 13amp plug.
- Fully insulated well.
- Mobile all swivel castors two with brakes.
Operating Modes
- Moffat Polar Plates keep food chilled for 2 to 3 hours.
- Before use, the Polar Plates are charged for 8 to 12 hours in a deep freeze.
- If longer periods of operation are required, extra Polar Plates can be charged and used in rotation.
Electrical Specifications
- Rating with Gantry - N/A
- Rating without Gantry - 0.023 kW - 0.037 kW
- Electrical Supply - 13amp
Wiring Drawings
- Wiring drawing can be obtained by contacting Sales
Options

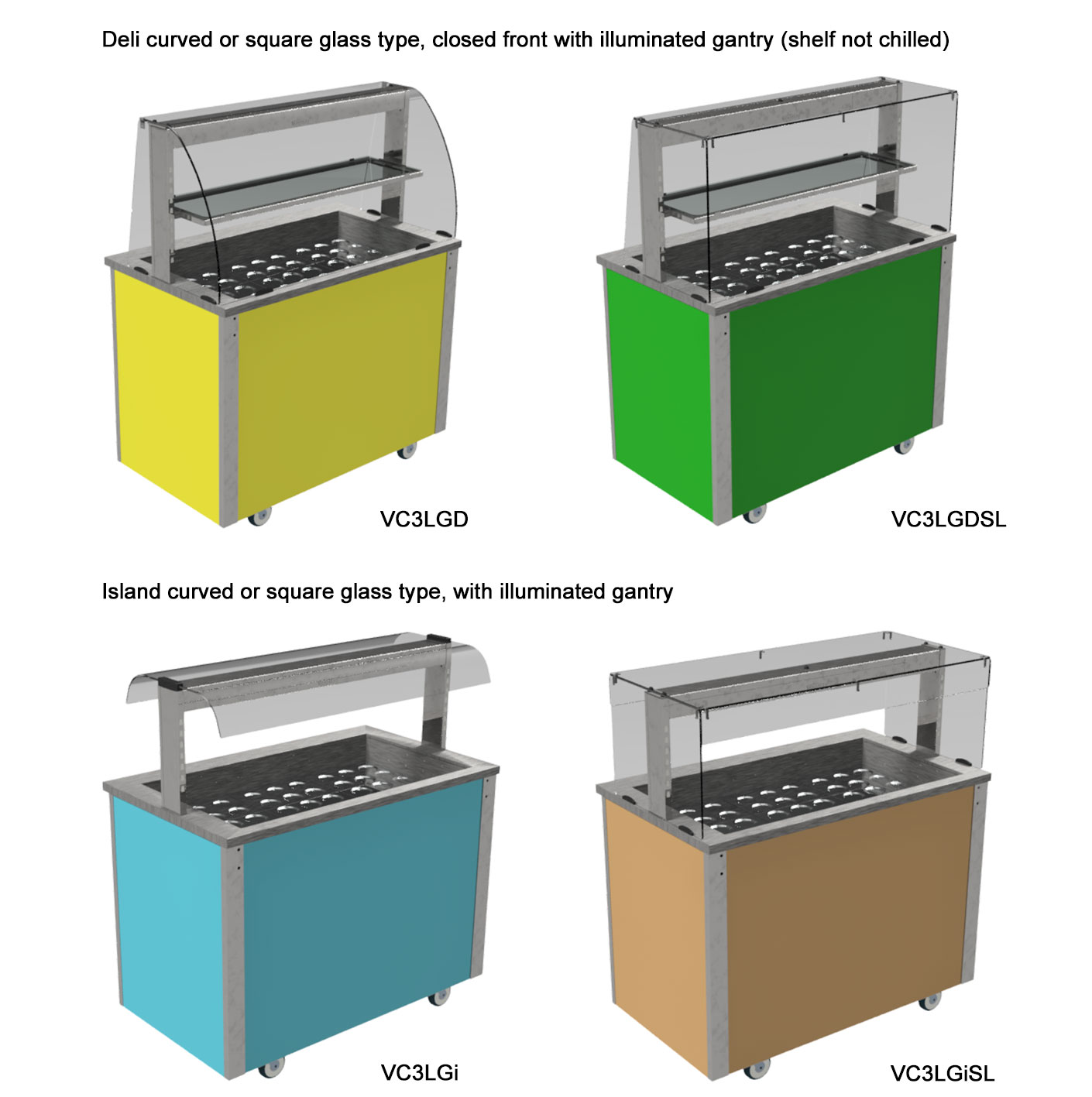

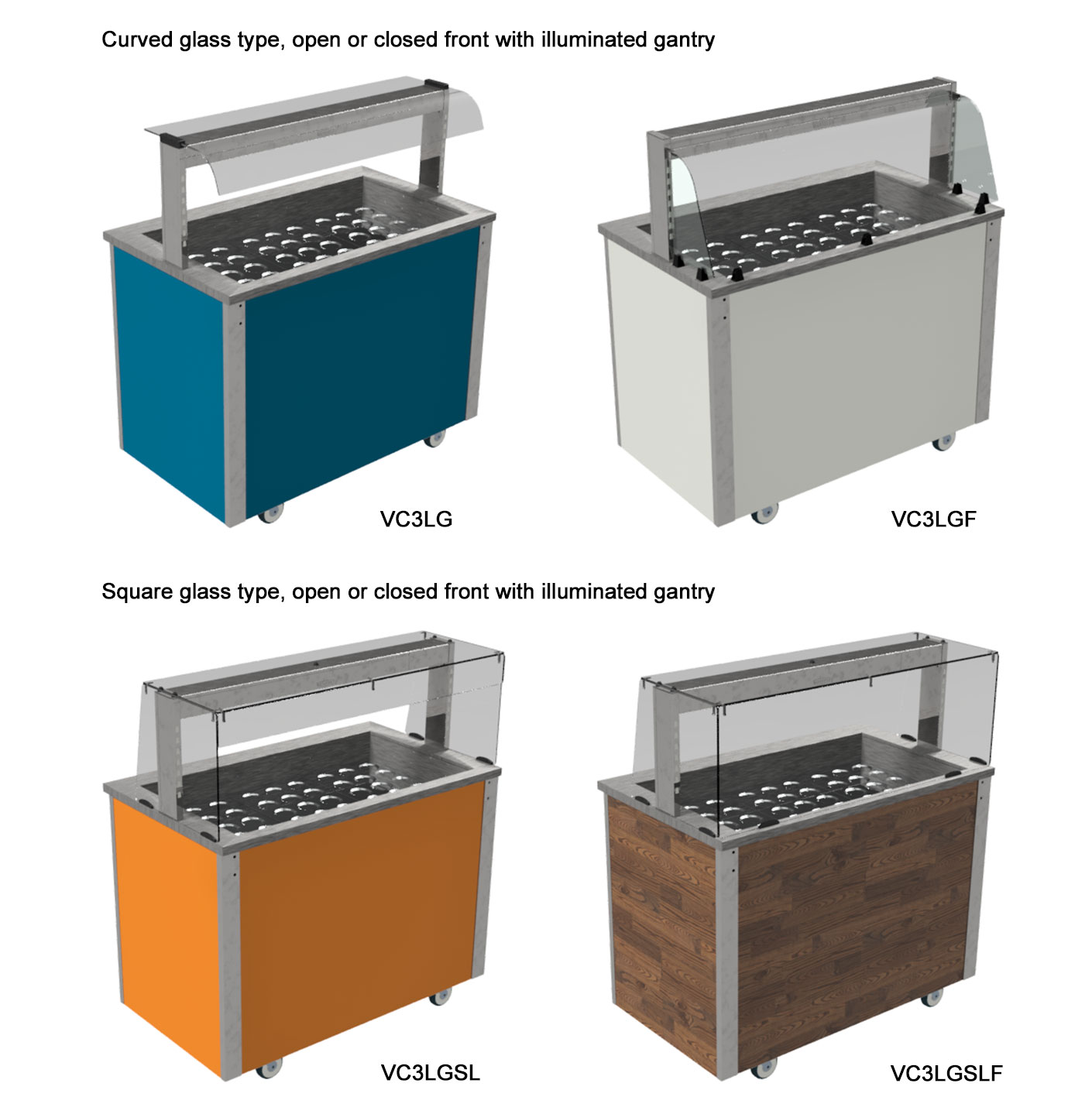

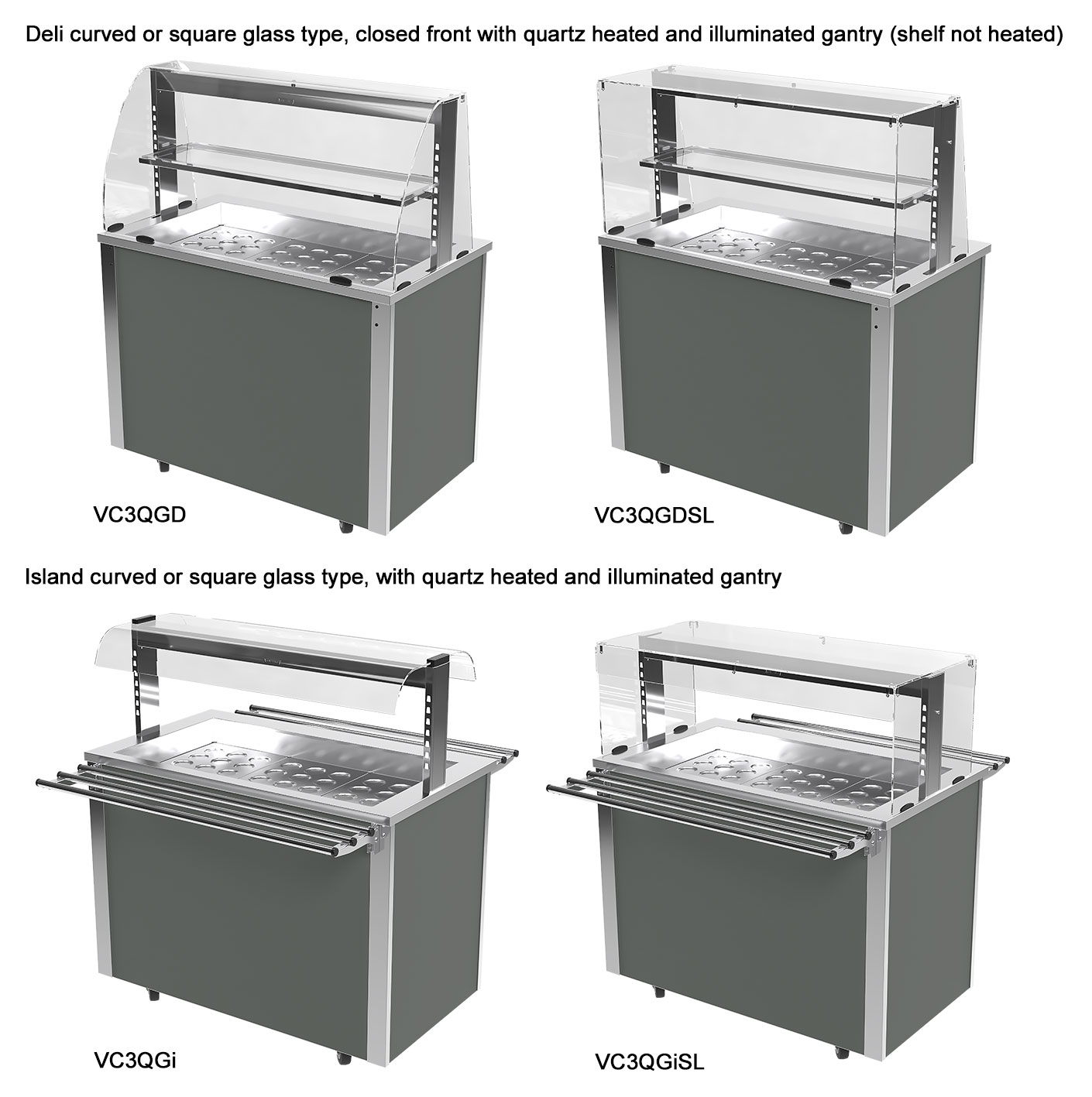

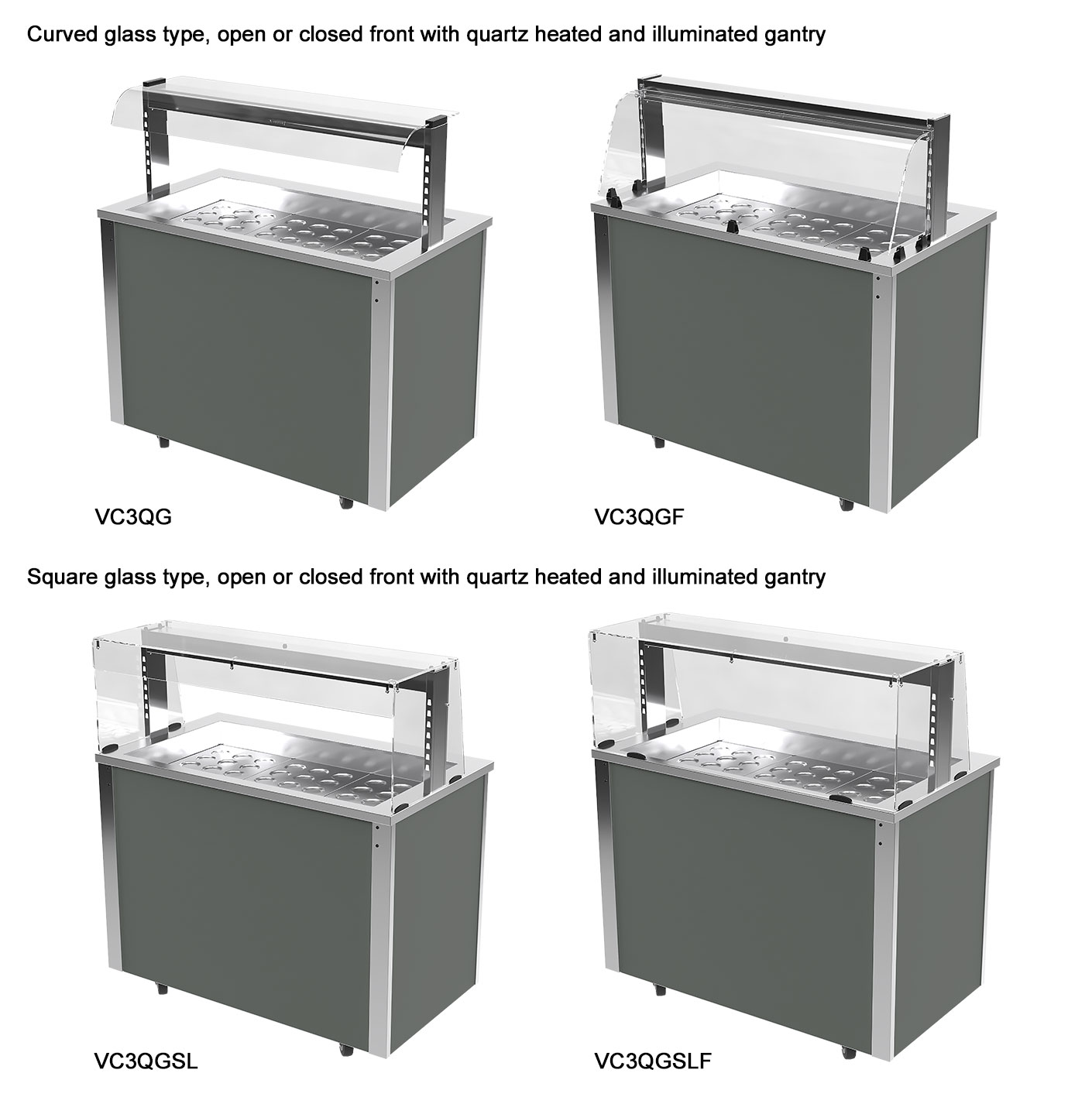

- Various illuminated overhead gantry options, factory fitted with base units
- Various illuminated overhead gantry options.
- Wide choice of coloured outer panels (durable plastic coated steel).
- Additional polar plates.
- Fold down solid tray slide or tubular tray rail.
- Prep-shelf and cutting board (Codes: D2PS, D3PS, D4PS & D5PS).
- Rear sliding doors (Codes: D2DD, D3DD. D4DD & D5DD) Deli models only.
Gantry options
