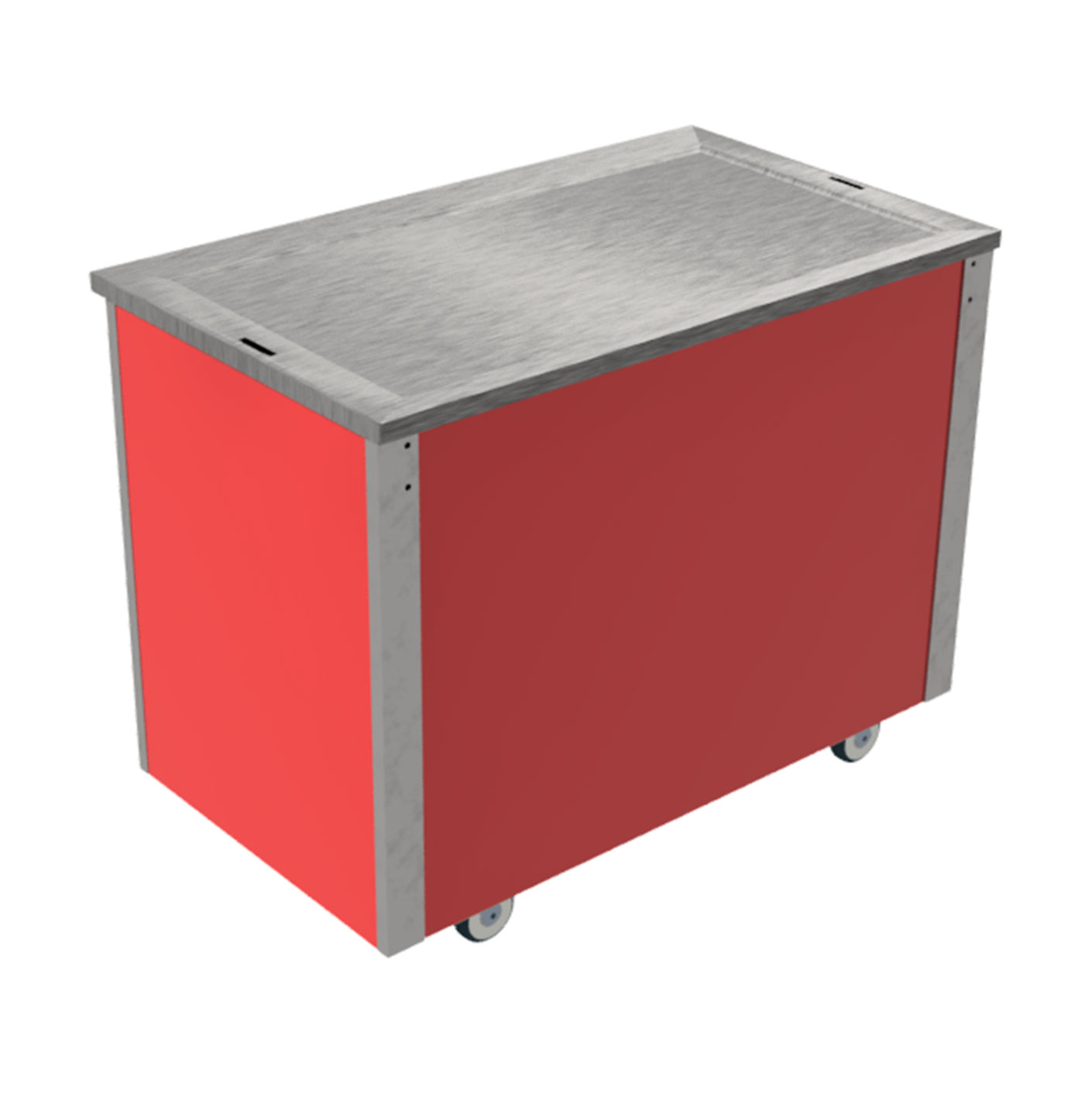

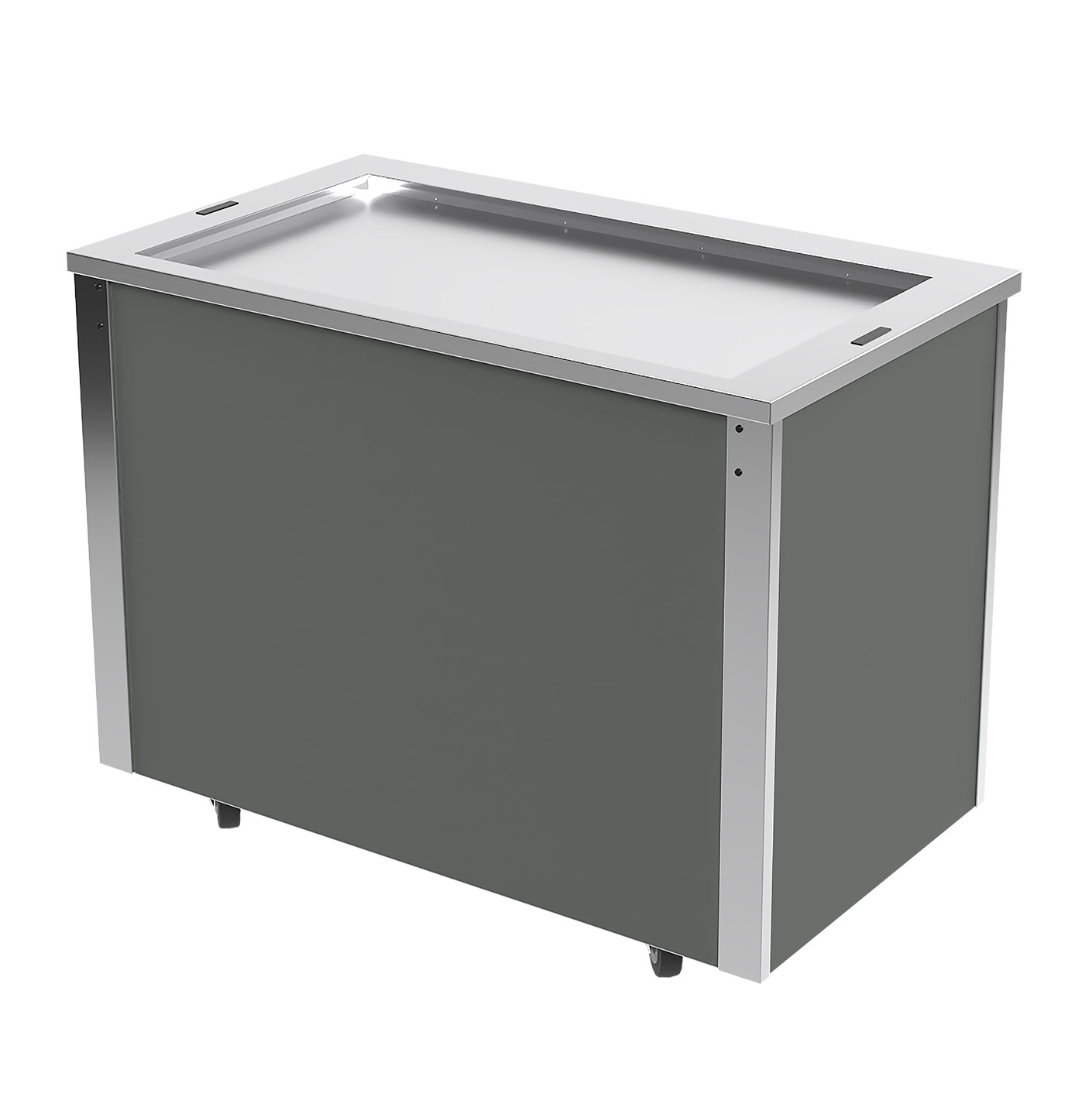

VC2/3/4/5HTS

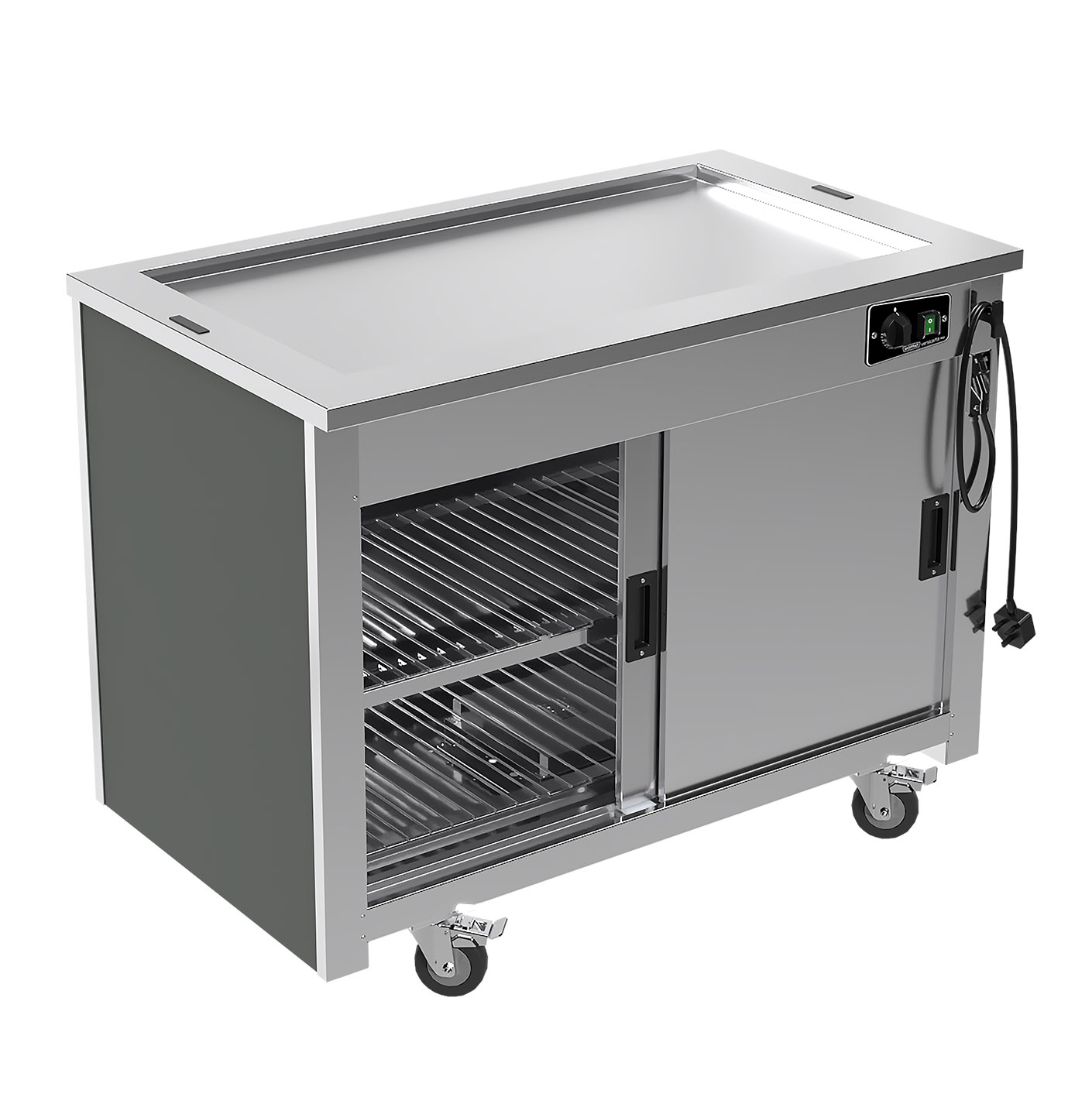

Hot display with a recessed stainless-steel solid top and hot cupboard fitted with Moffat’s renowned innovative sahara fan heating cell. Easily removable for cleaning and maintenance. The energy efficient solid hot top and hot cupboard work in sync, residual heat from the hot cupboard is used to compliment the hot top heating element. Hot cupboard and bainmarie are controlled by a 30° to 110° thermostat. This convection, heated hot top and hot cupboard offers a very hygienic one piece solid stainless steel top. Designed to maintain pre-heated, cooked food at a regulated temperature. Suitable for the display of most types of hot foods, The hot cupboard is designed to accommodate GN1/1 size gastronom type pans.

DOWNLOADS

Specification

Key features

Fast heat up and recovery time.
Thermostatically controlled.
Unique, removable, forced air heating cell.
Low maintenance, easily cleaned, and highly efficient
Very hygienic solid one piece recessed display top.
Energy efficient residual heating design.
4 models in the range holding 2 to 5 GN 1/1 gastronorm type containers.
Various types of flat bottom dishes can be used.
24 hour operation.
Plug and Go, complete with 2 metre long power cable and 13amp plug.
Fully insulated.
Mobile all swivel castors two with brakes.

Operating Modes

Moffat’s renowned innovative sahara fan heating cell. Easily removable for cleaning and maintenance.
The energy efficient solid hot top and hot cupboard work in sync, residual heat from the hot cupboard is used to compliment the hot top heating element.

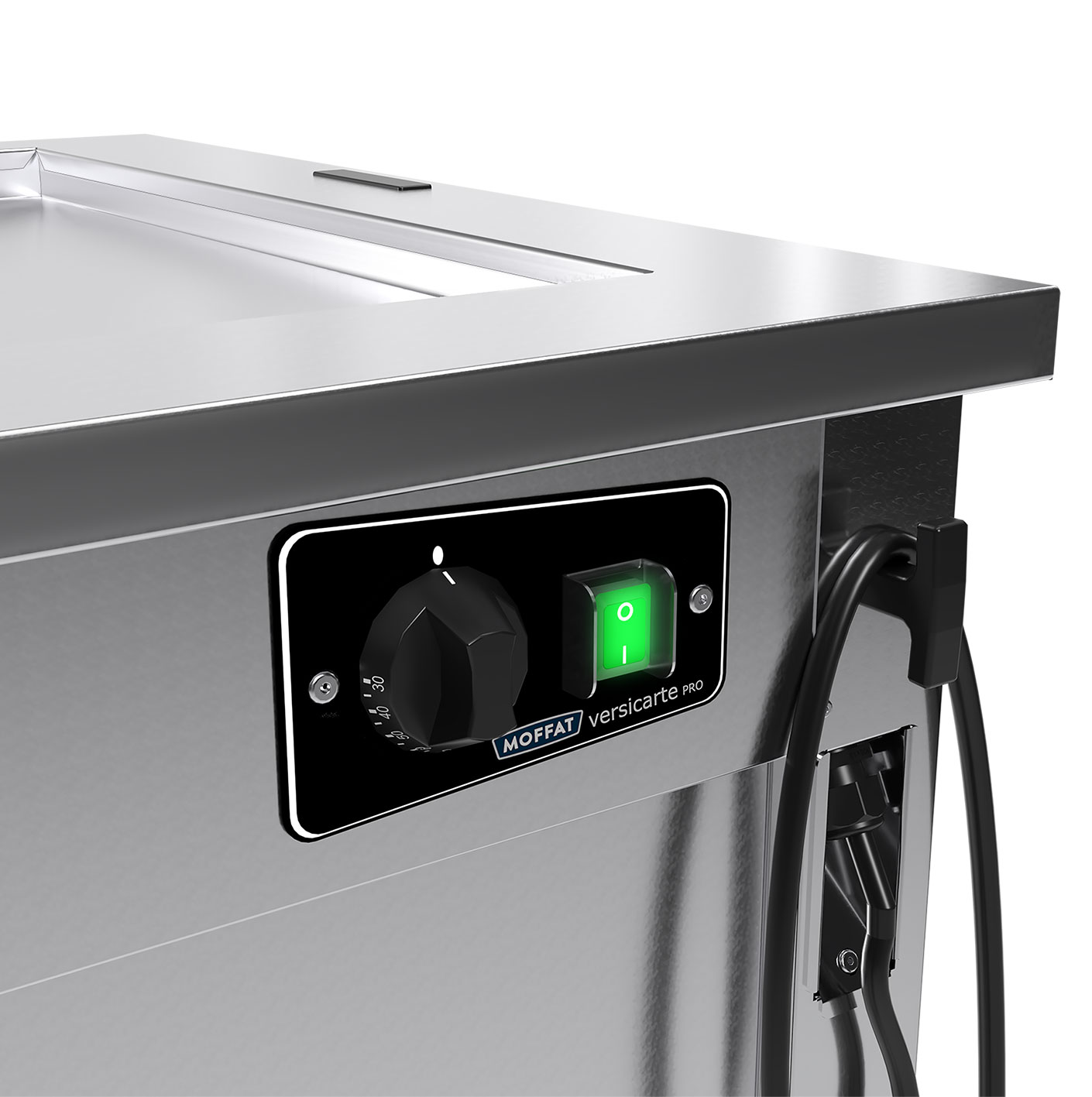

Hot cupboard and bainmarie are controlled by a 30° to 110° thermostat.
This convection, heated hot top and hot cupboard offers a very hygienic one piece solid stainless steel top. Designed to maintain pre-heated, cooked food at a regulated temperature.

Electrical Specifications

Rating with Gantry - 1.87 kW - 2.88 kW
Rating without Gantry - 1.65 kW - 2.0 kW
Electrical Supply - 13amp

Wiring Drawings

Wiring drawing can be obtained by contacting Sales

Options

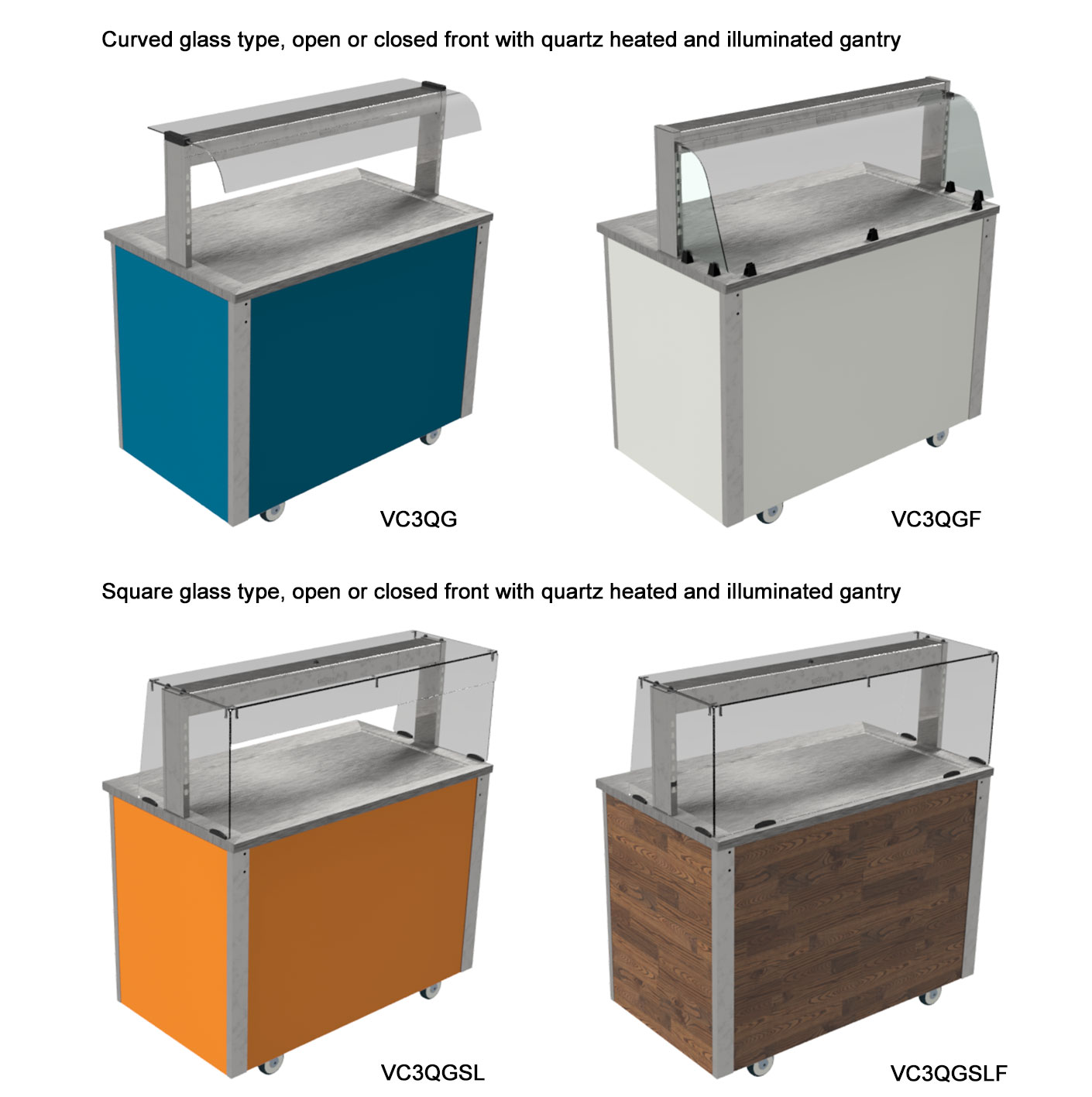

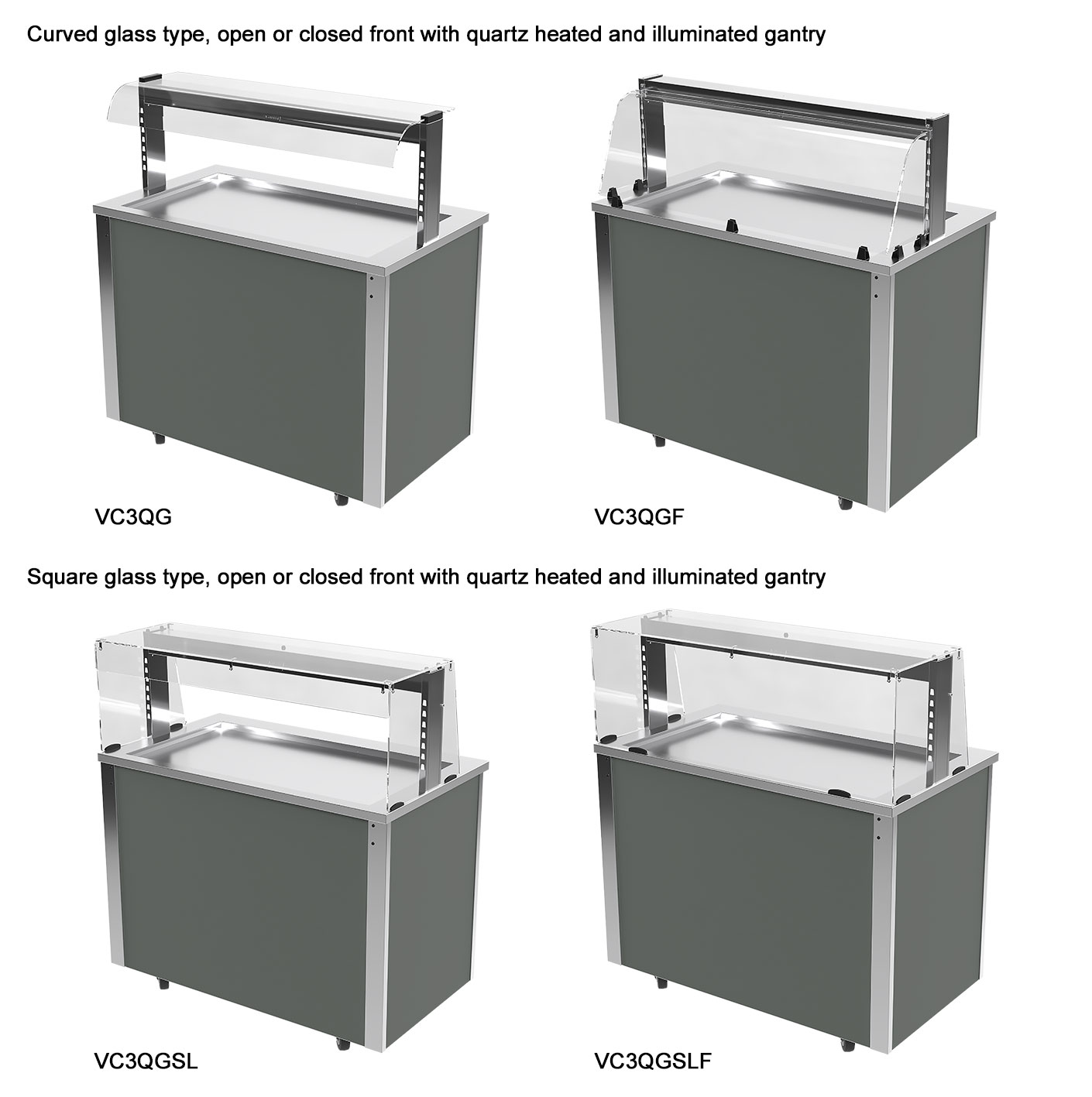

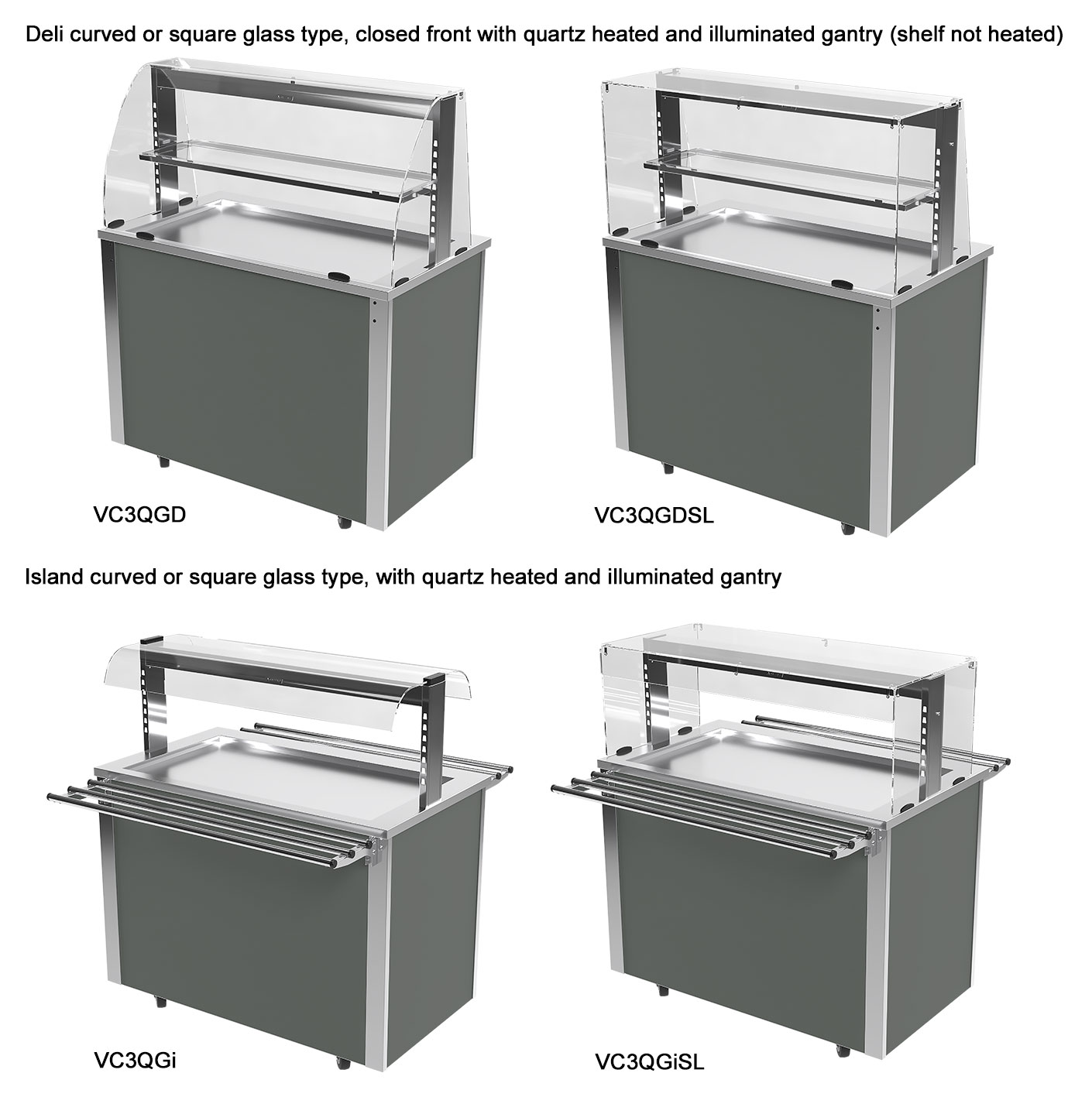

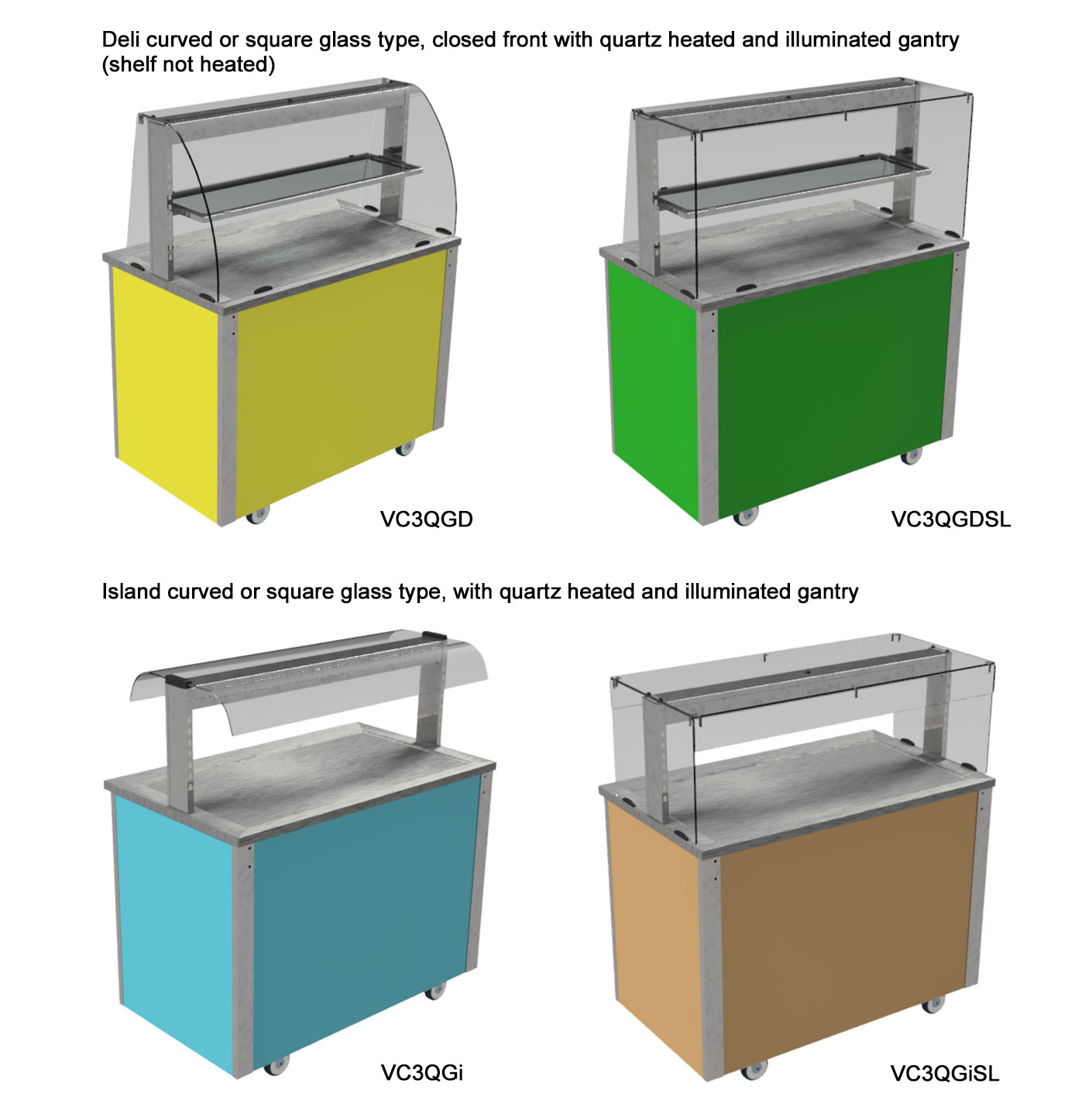

Various heated / illuminated overhead gantry options, factory fitted with base units
Various heated / illuminated overhead gantry options.
Wide choice of coloured outer panels (durable plastic coated steel).
Fold down solid tray slide or tubular tray rail.
