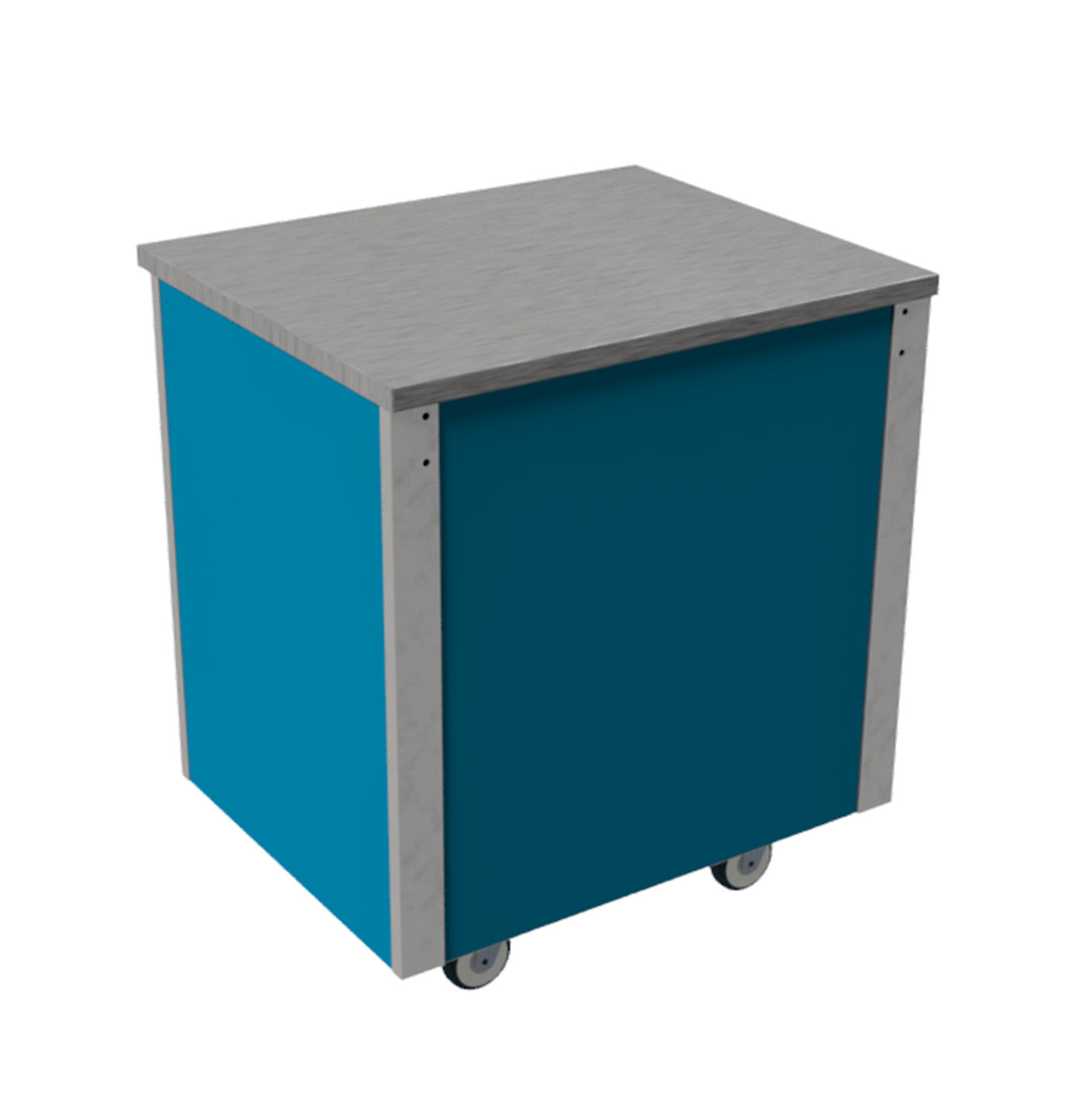

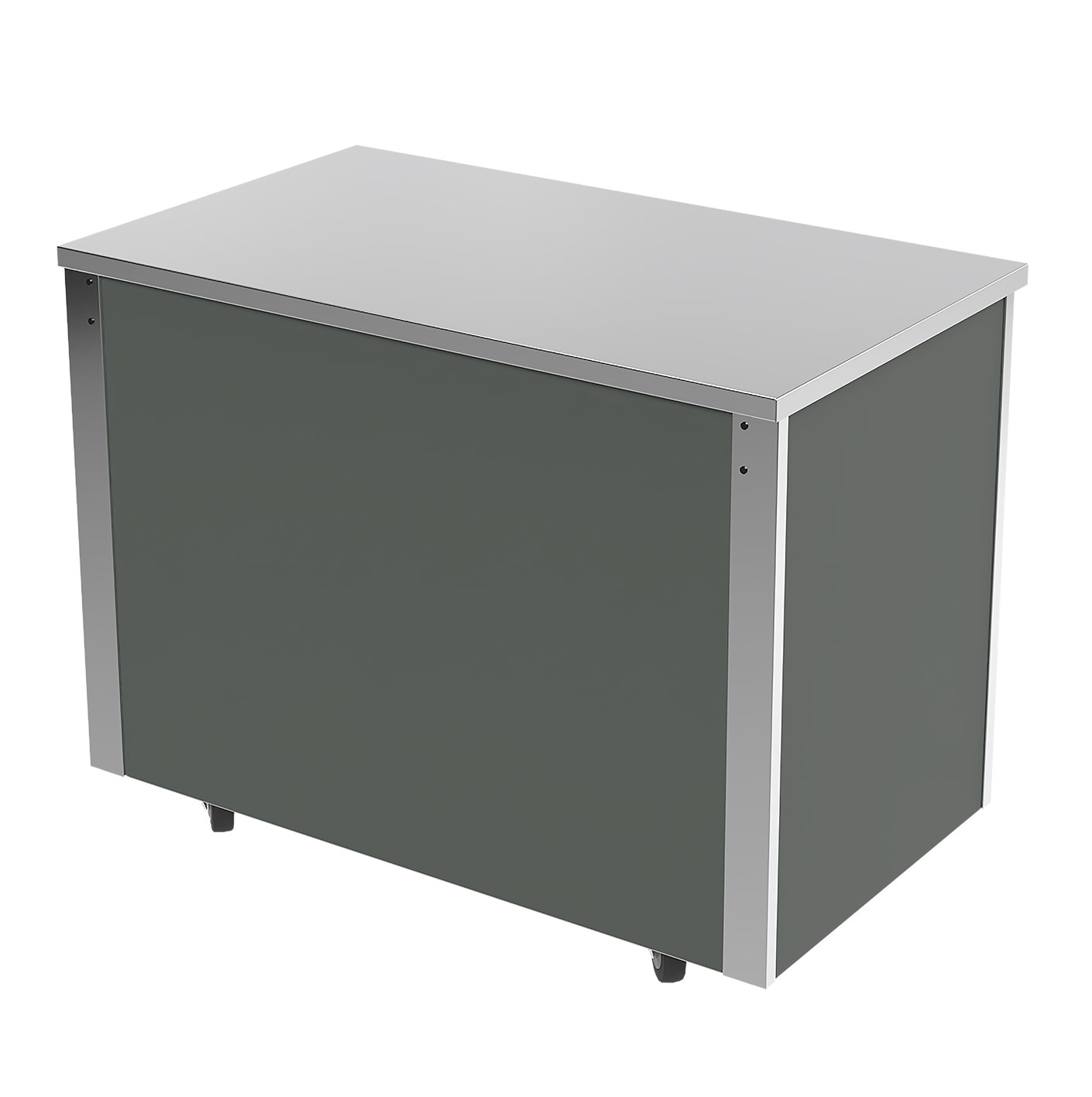

Hot Cupboard
(Tray rail is an optional extra)
VC2/3/4/5/HC

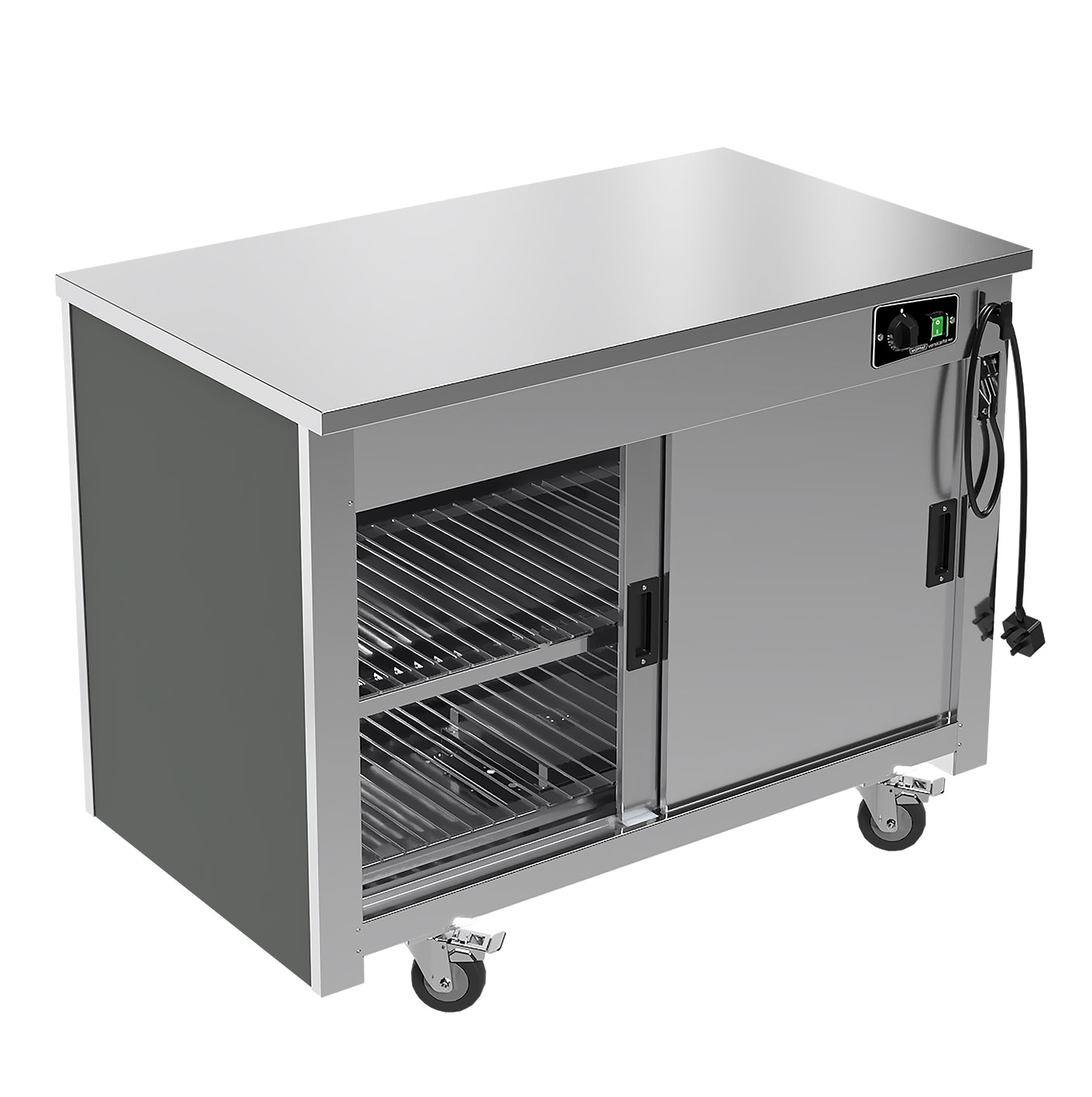

Mobile hot-cupboards with sliding doors. Based on Gastronorm GN1/1 pans available in four lengths. Compact high capacity units, hot food or plates and dishes can be held warm ready for service. Fully insulated robust stainless-steel construction with a solid plain top. Fitted with Moffat’s renowned innovative sahara fan heating cell, an energy saving, fast heat up, recovery forced air heating and recirculation system, spreading the heat evenly throughout the cupboard. the heating cell is easily removed for cleaning and maintenance. Excellent for pre-heating plates and dishes, as well as the temporary storage of precooked food e.g. Cooked meats, poultry, vegetables, sauces, etc.
DOWNLOADS
Specification
Key features
- Unique, removable, forced air heating cell.

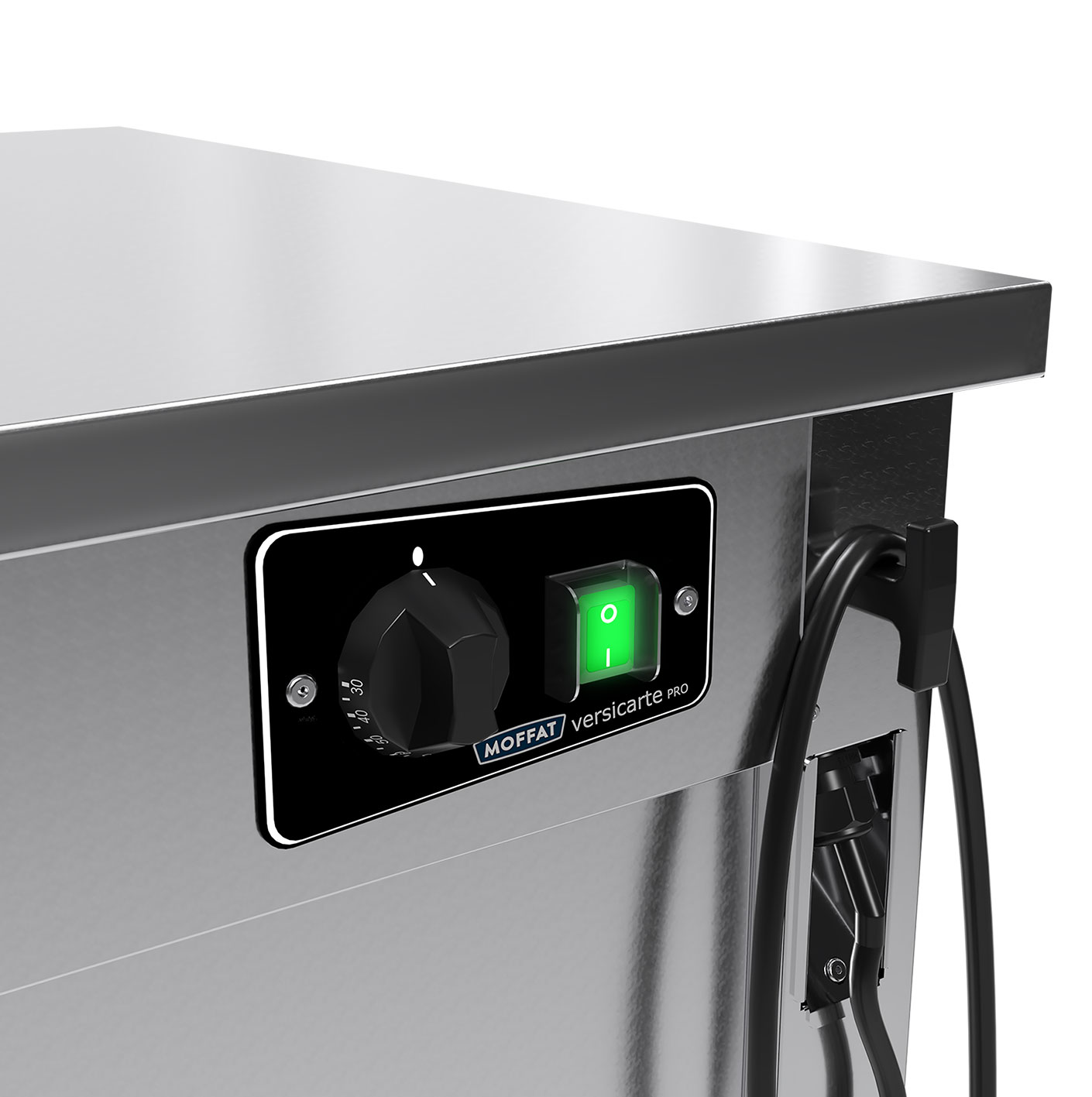

- Thermostatically controlled.
- Doors are very easily removed for cleaning sliding doors have unique double life skid pads doors can be fully rotated and reinserted allowing the spare skid pads to be used offering a long and trouble-free service.
- Easy lift out GN1/1 size multiple grid shelving, and heavy-duty supports.
- Fast heat up and recovery time.
- 4 models in the range holding 2 to 5 GN 1/1 gastronorm type containers.
- 24 hour operation.
- Plug and Go, complete with 2 metre long power cable and 13amp plug.
- Fully insulated.
- Mobile all swivel castors two with brakes.
Operating Modes
- Mobile hot-cupboards with sliding doors. Based on Gastronorm GN1/1 pans.
- Compact high capacity units, hot food or plates and dishes can be held warm ready for service.
- Fitted with Moffat’s renowned innovative sahara fan heating cell.
Electrical Specifications
- Rating - 0.9 kW - 1.9kW
- Electrical Supply - 13amp
Wiring Drawings
- Wiring drawing can be obtained by contacting Sales
Options

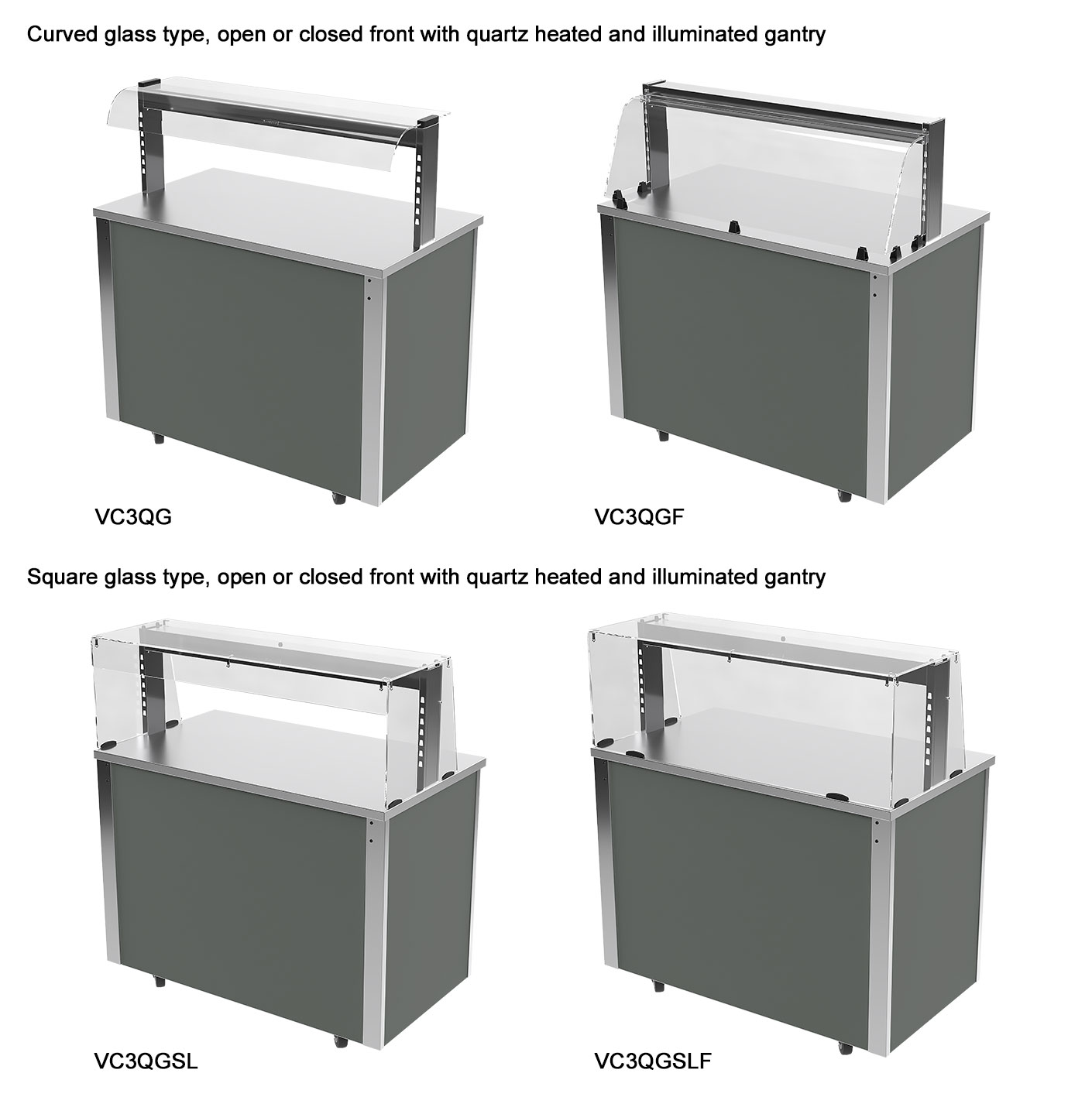

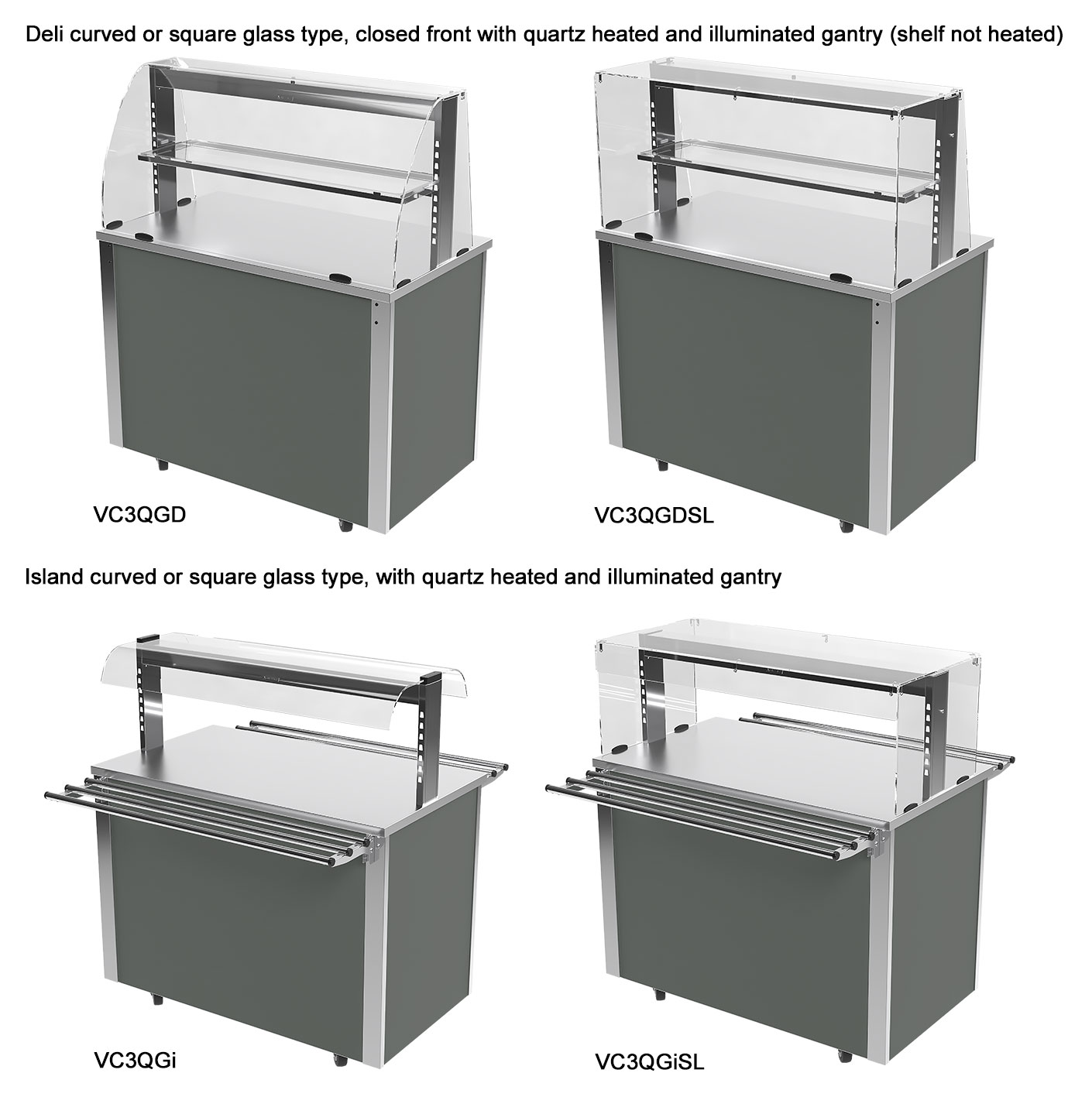

- Various heated and illuminated overhead gantry options.
- Wide choice of coloured outer panels (durable plastic coated steel).
- Fold down solid tray slide or tubular tray rail.
