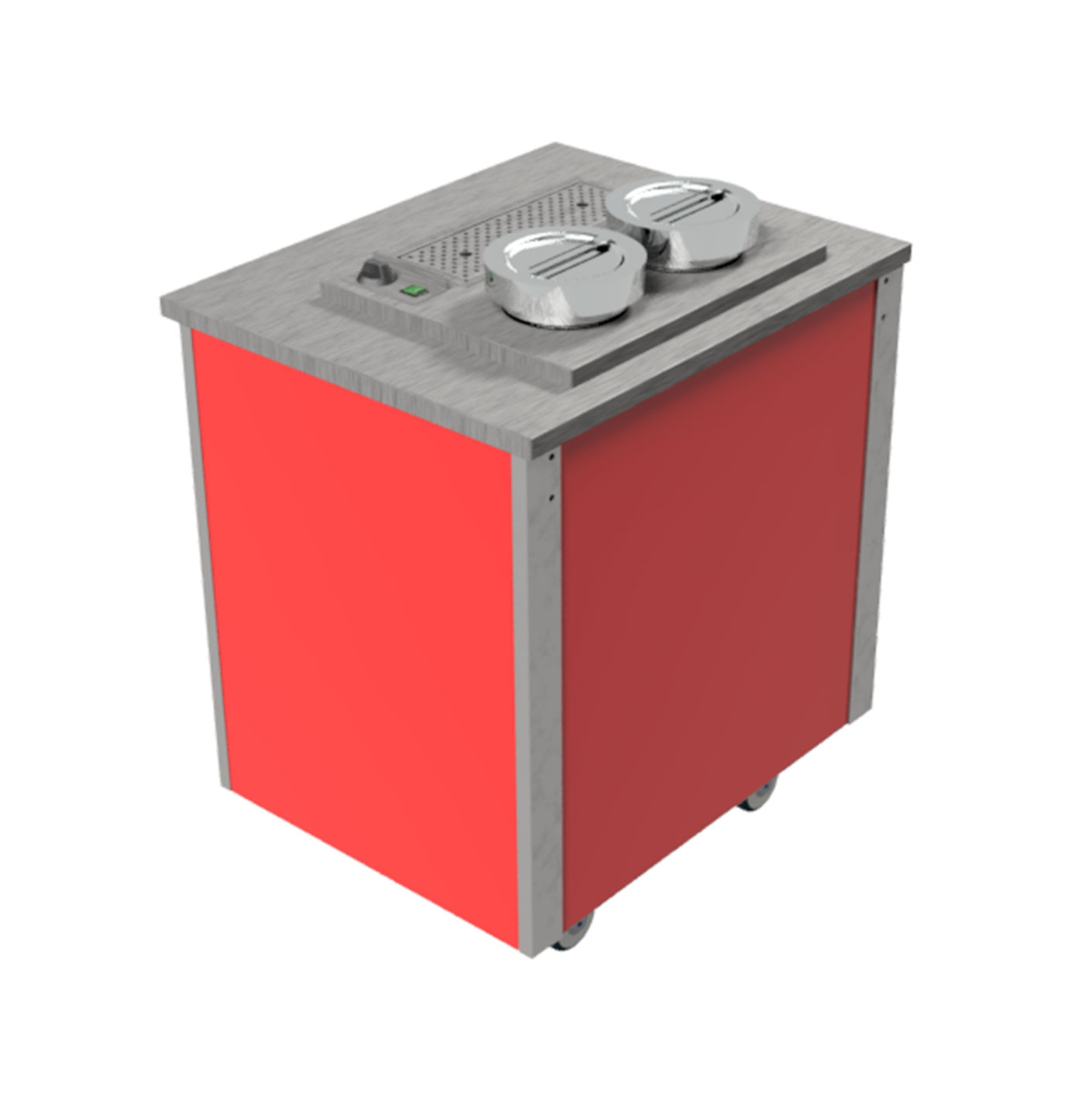

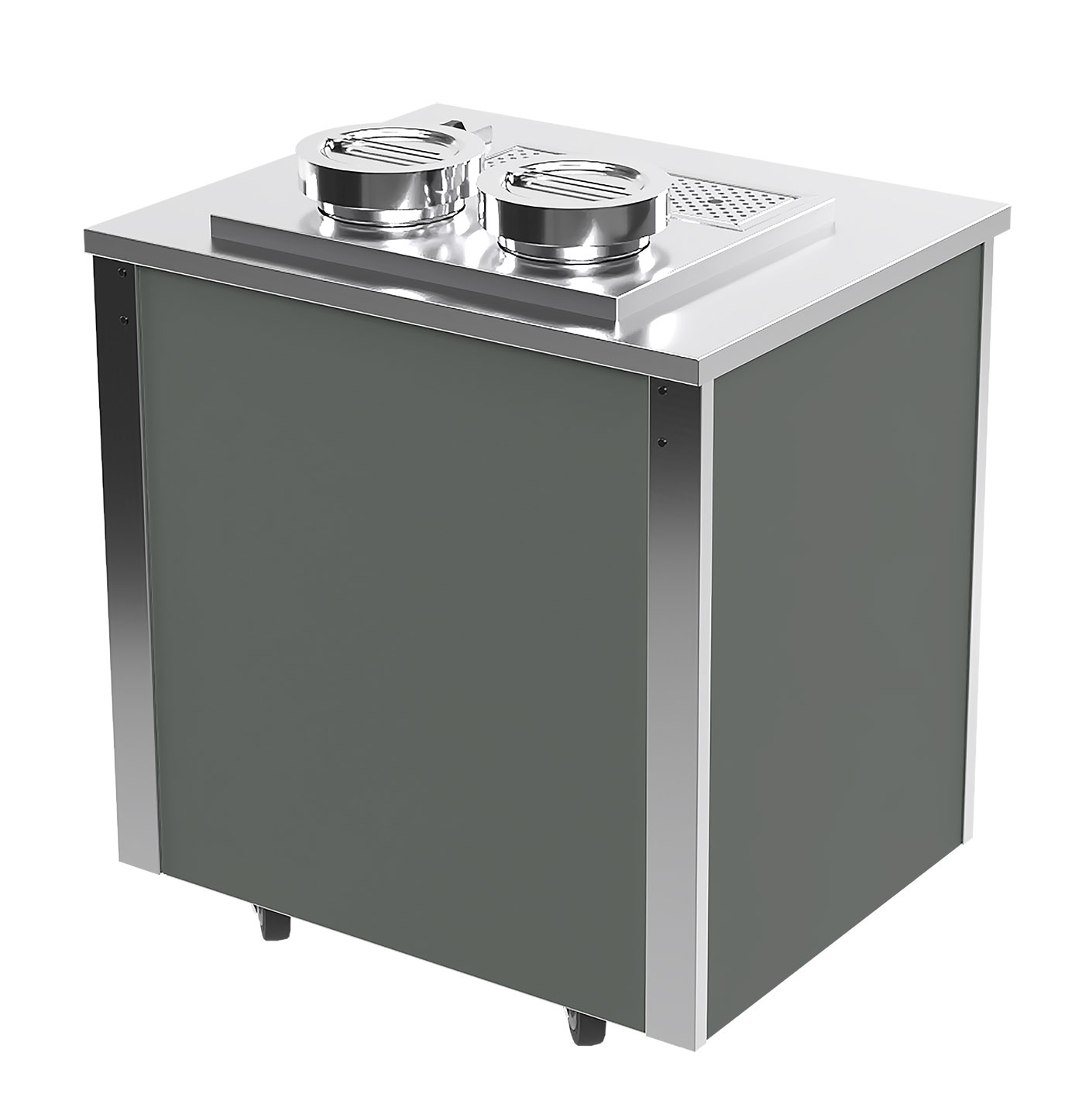

Soup Station
(Tray rail is an optional extra)
VC2SS

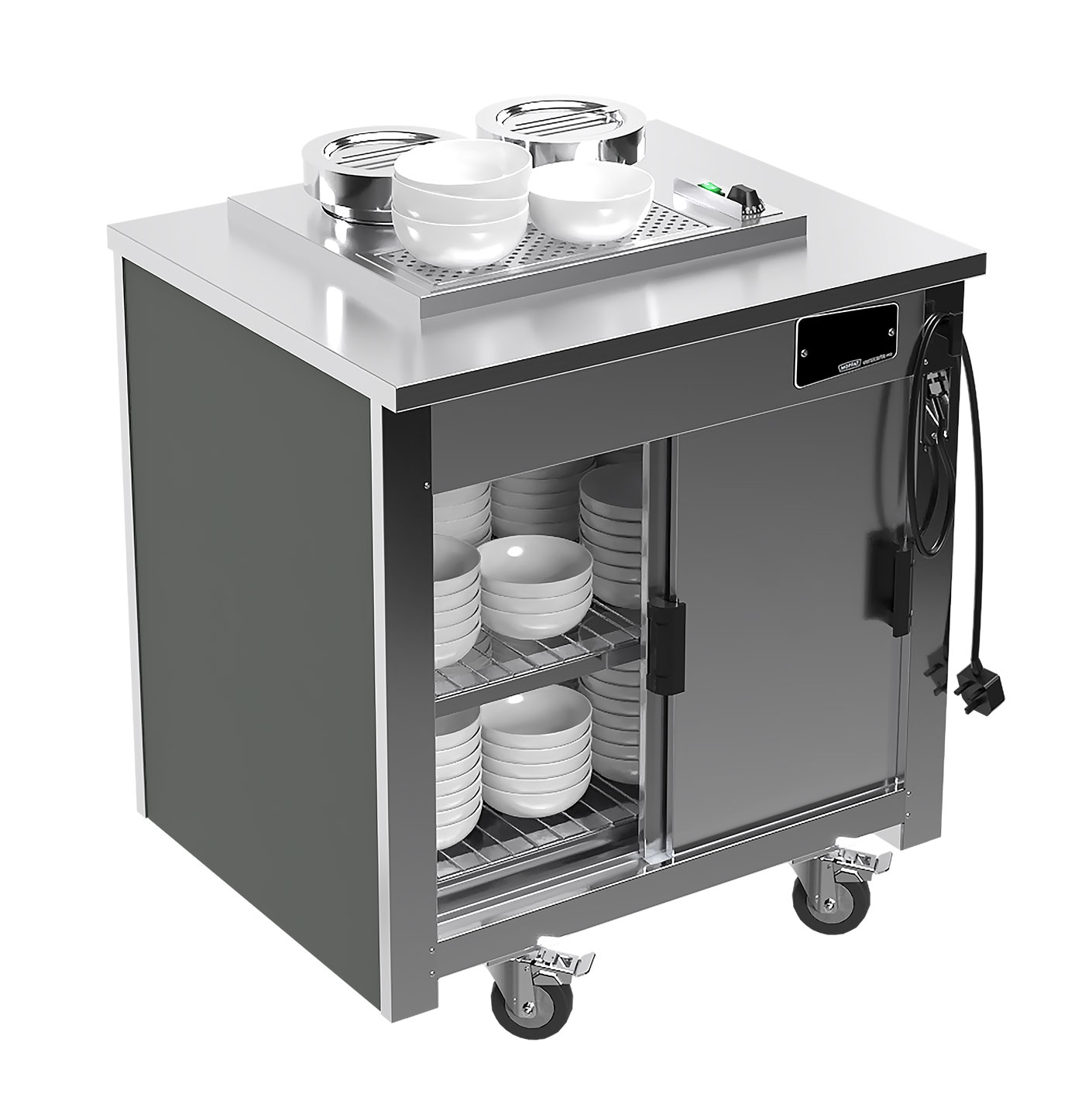

Soup stations with ambient storage cupboard under. The soup dispenser is designed to keep ‘pre-cooked’ soups, sauces, and gravy at serving temperature using built in elements that guarantee even heat distribution. Along with a removable drip tray which aids cleaning, they also come supplied with the 4,5 litre stainless steel pots, complete with stainless steel lids. Controls are surface mounted for convenience and consist of a neon power indicator and an energy regulator dial which also acts as an on/off switch. Each unit is supplied with a moulded 13 amp plug & 2 metre cord for easy installation. [13A 230V]
DOWNLOADS
Specification
Key features
- Low maintenance, easy cleaned and highly efficient.
- Pots can be swapped out and replenished during service.
- A raised lip around well stops liquid ingress into the unit.
- Drip tray can be removed for easy cleaning.
- 24-hour operation [opening must be fitted with pots or covers during service].
- Fully insulated.
- Mobile all swivel castors two with brakes.
- Supplied with 2m long power cord and 13amp plug [13A 230v 50Hz].
Operating Modes
- The soup dispenser is designed to keep ‘pre-cooked’ soups, sauces, and gravy.
- Serving temperature using built in elements that guarantee even heat distribution.
- Along with a removable drip tray which aids cleaning, they also come supplied with the 4,5 litre stainless steel pots, complete with stainless steel lids.

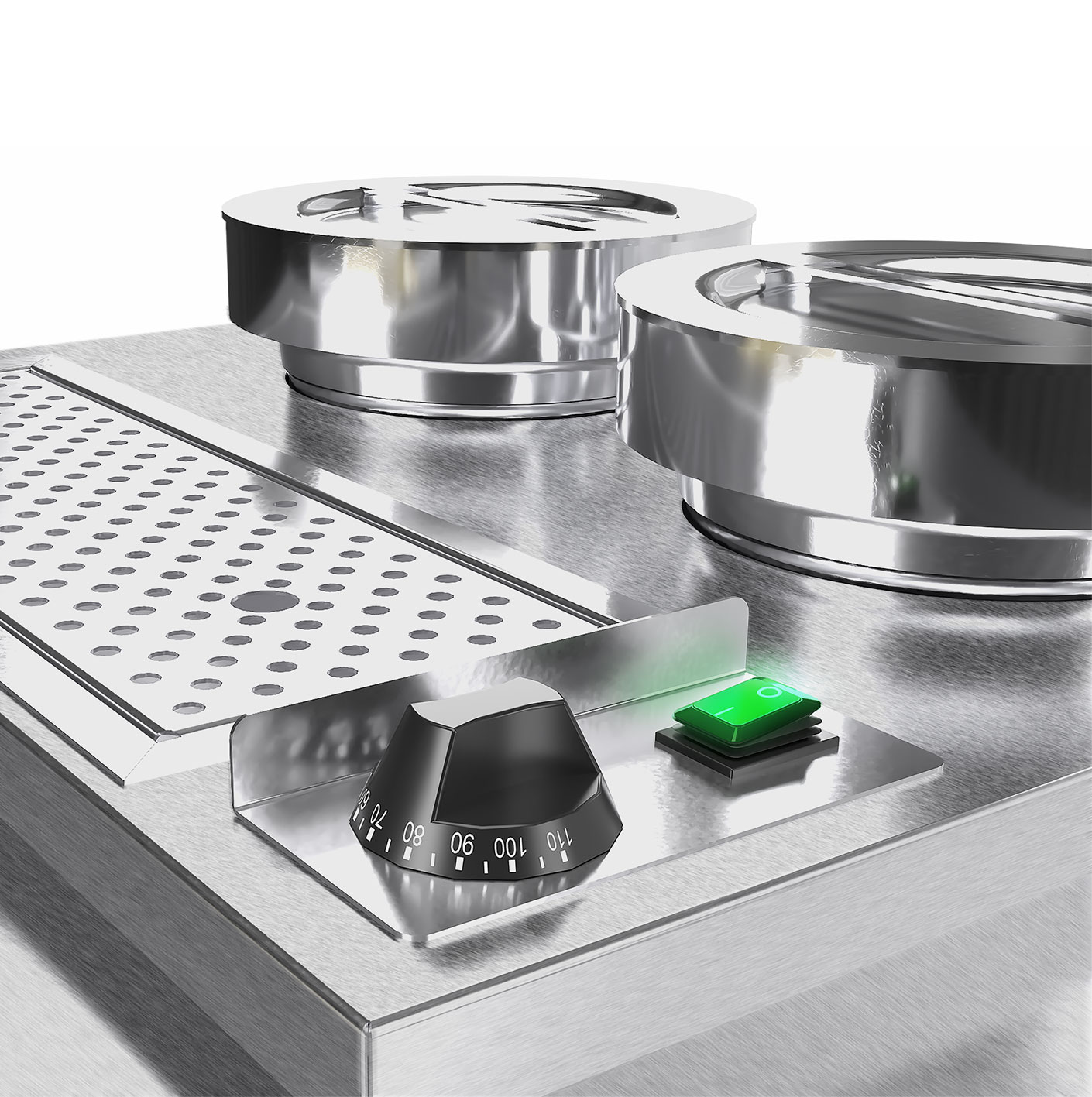

- Controls are surface mounted for convenience and consist of a neon power indicator and an energy regulator dial which also acts as an on/off switch.
Electrical Specifications
- Rating - 0.7 kW
- Electrical Supply - 13amp
Wiring Drawings
- Wiring drawing can be obtained by contacting Sales
Options
- Wide choice of coloured outer panels (Durable plastic coated steel).
- Fold down solid tray slide or tubular tray rail.
- Extra Round Pots [4.5 Litres].
- Can be fitted for self service or for assisted service.
