Cantilever Basket Dispenser
CBD

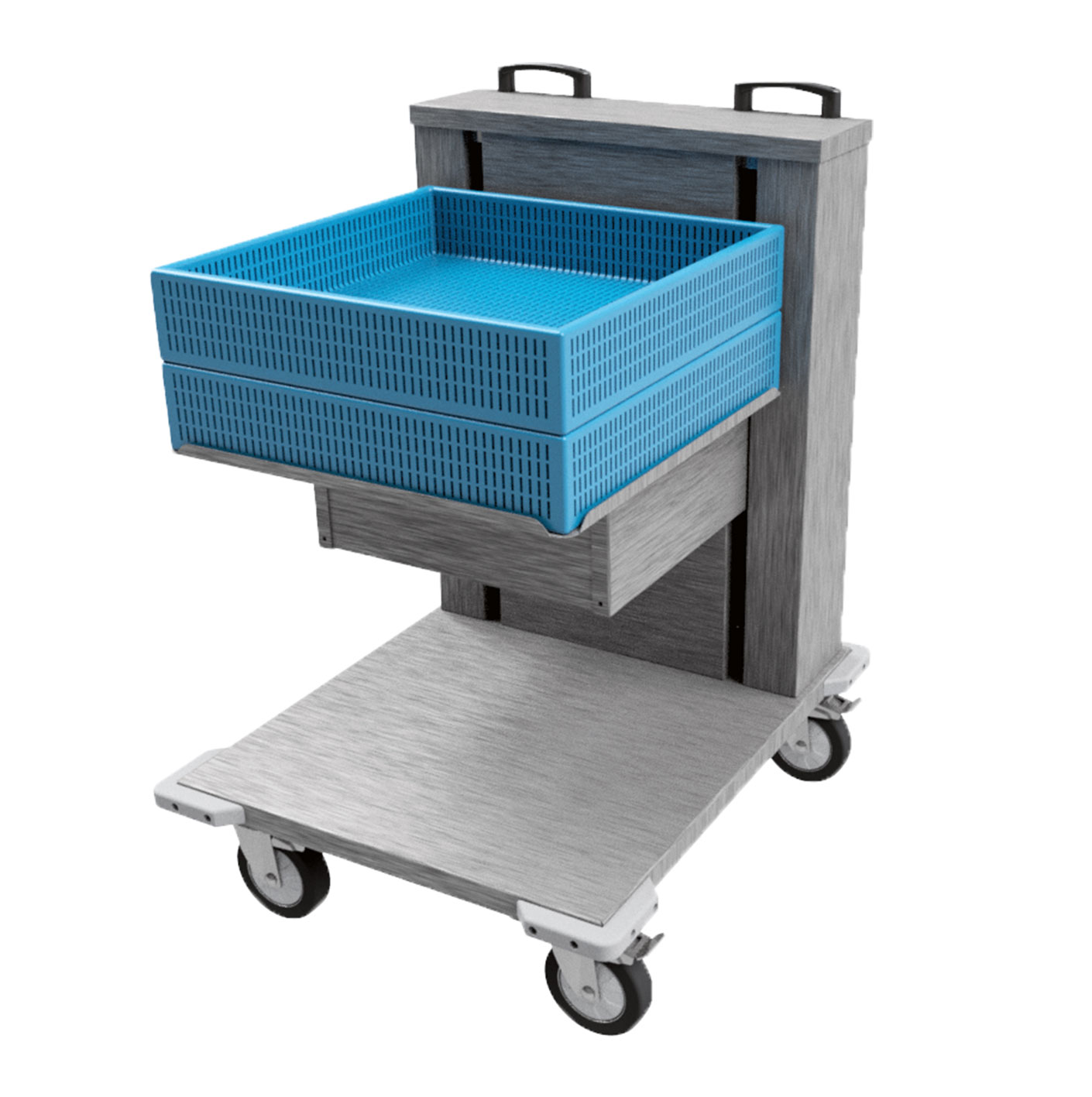

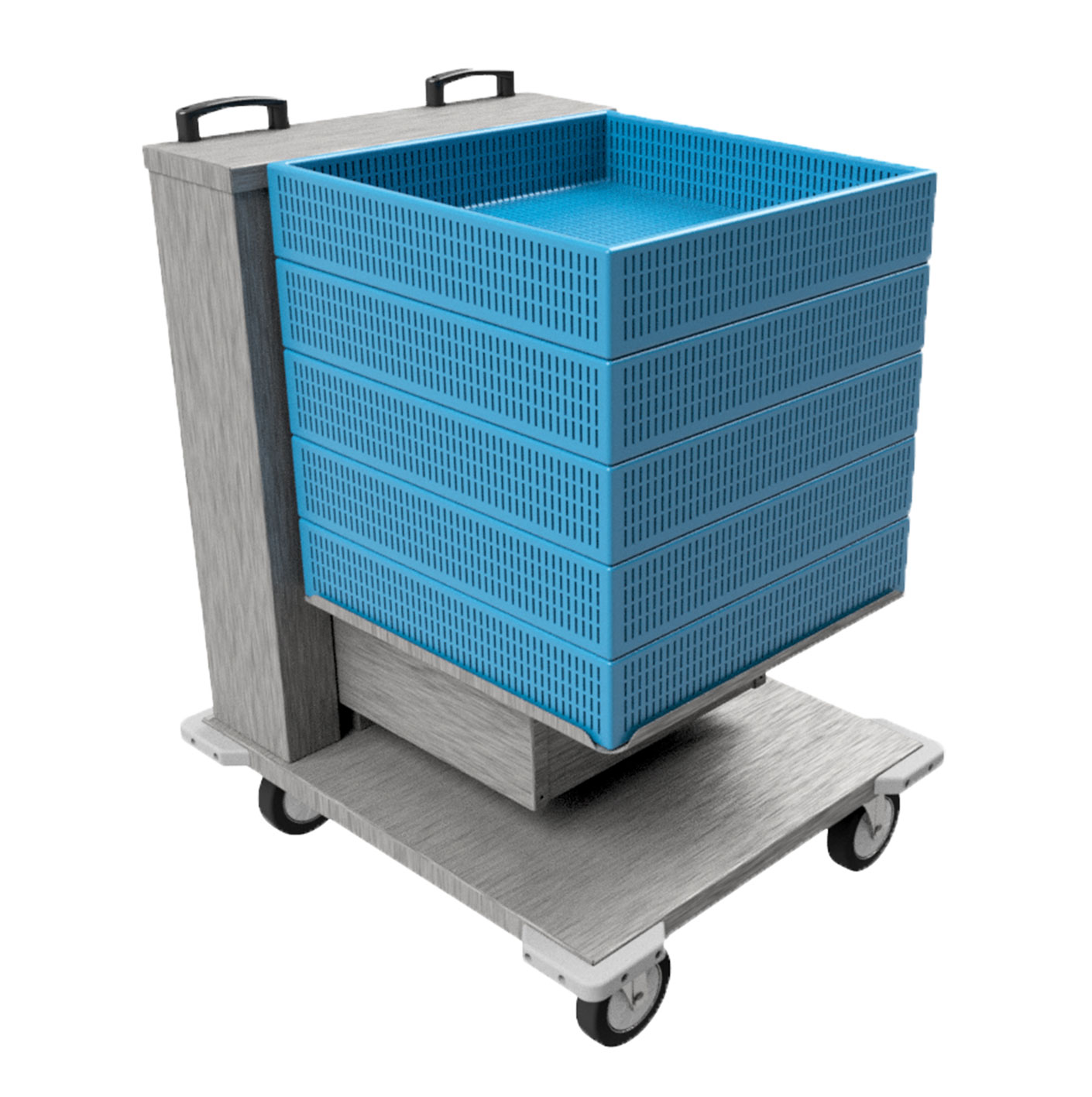

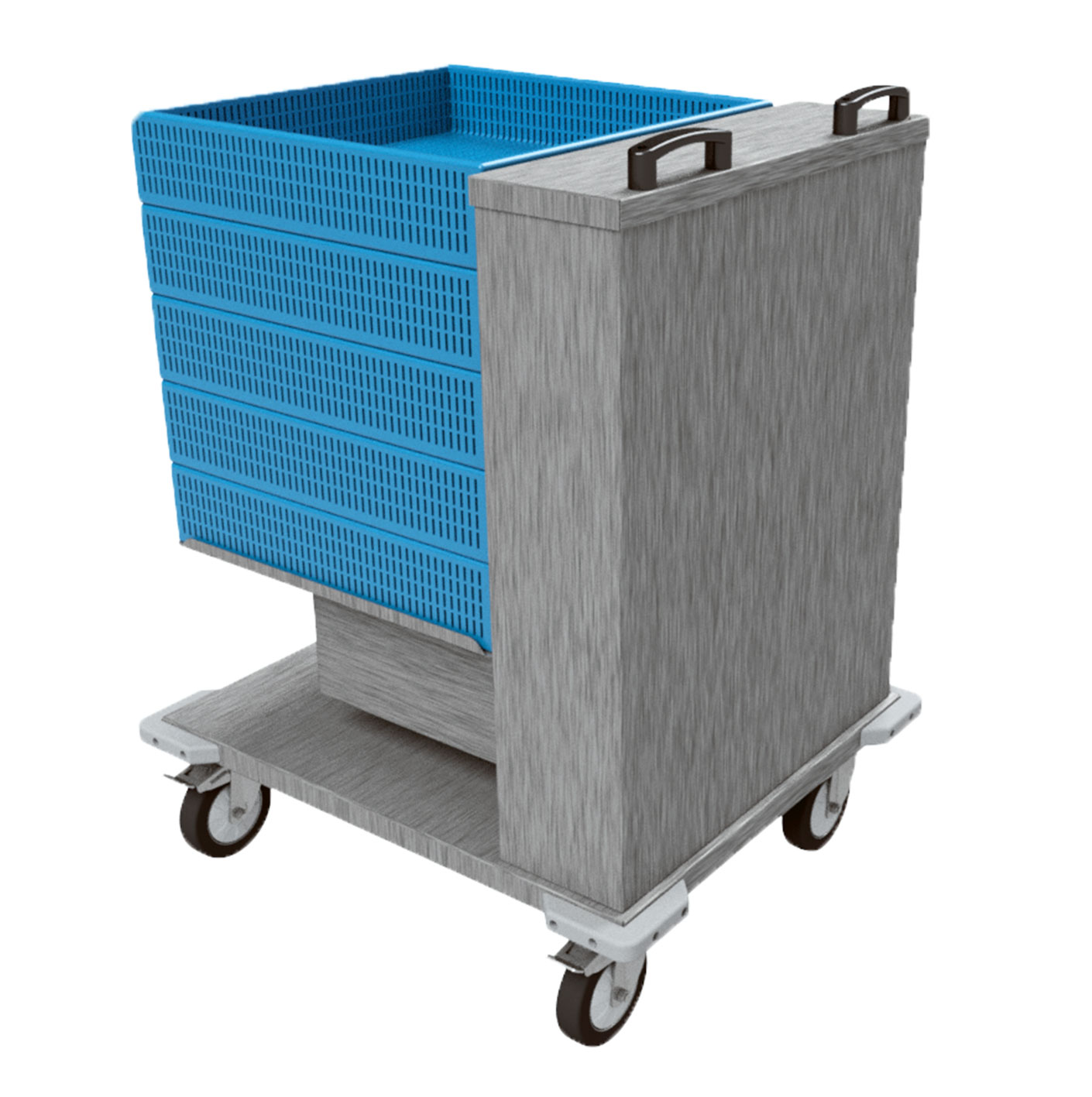

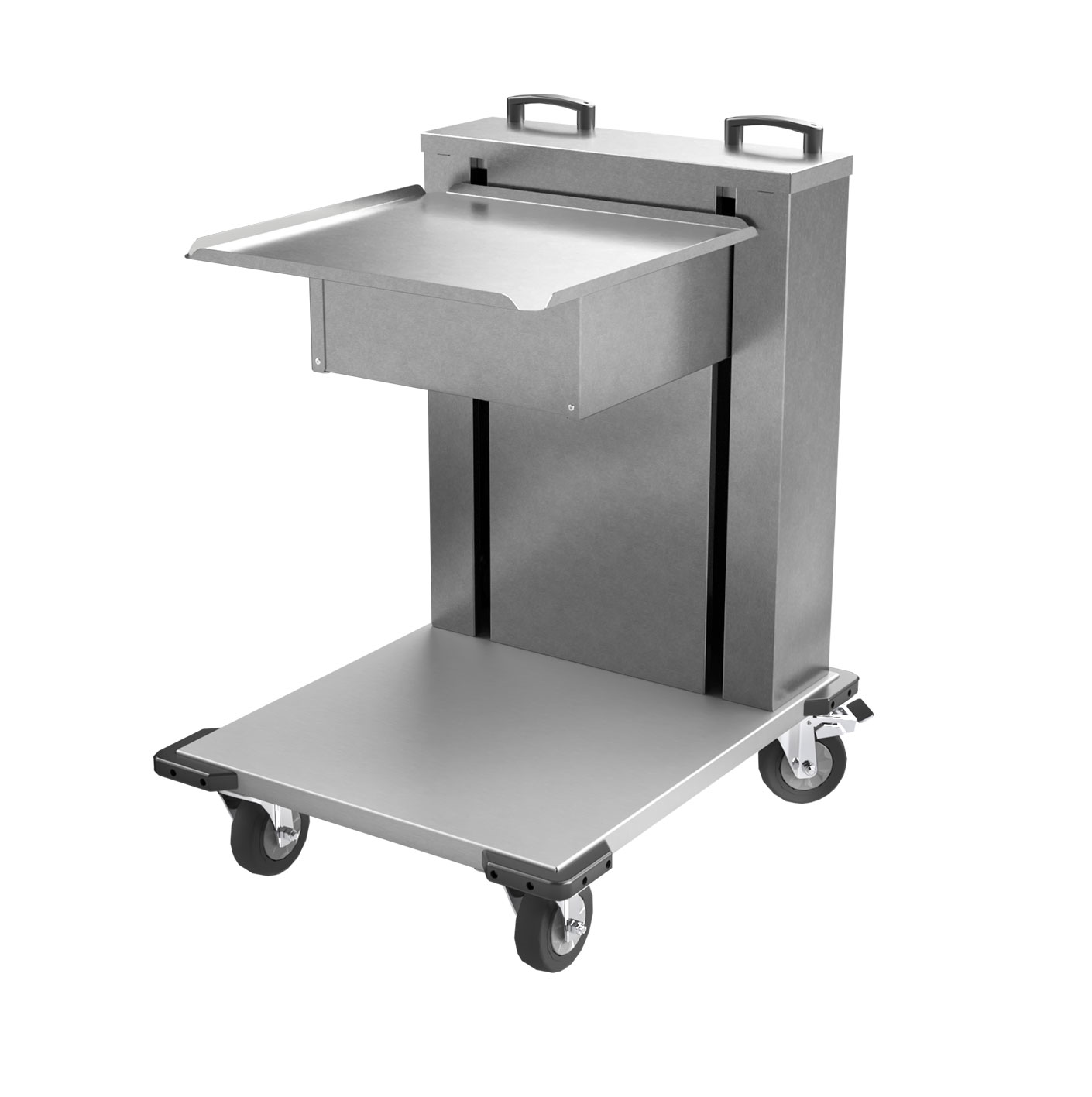

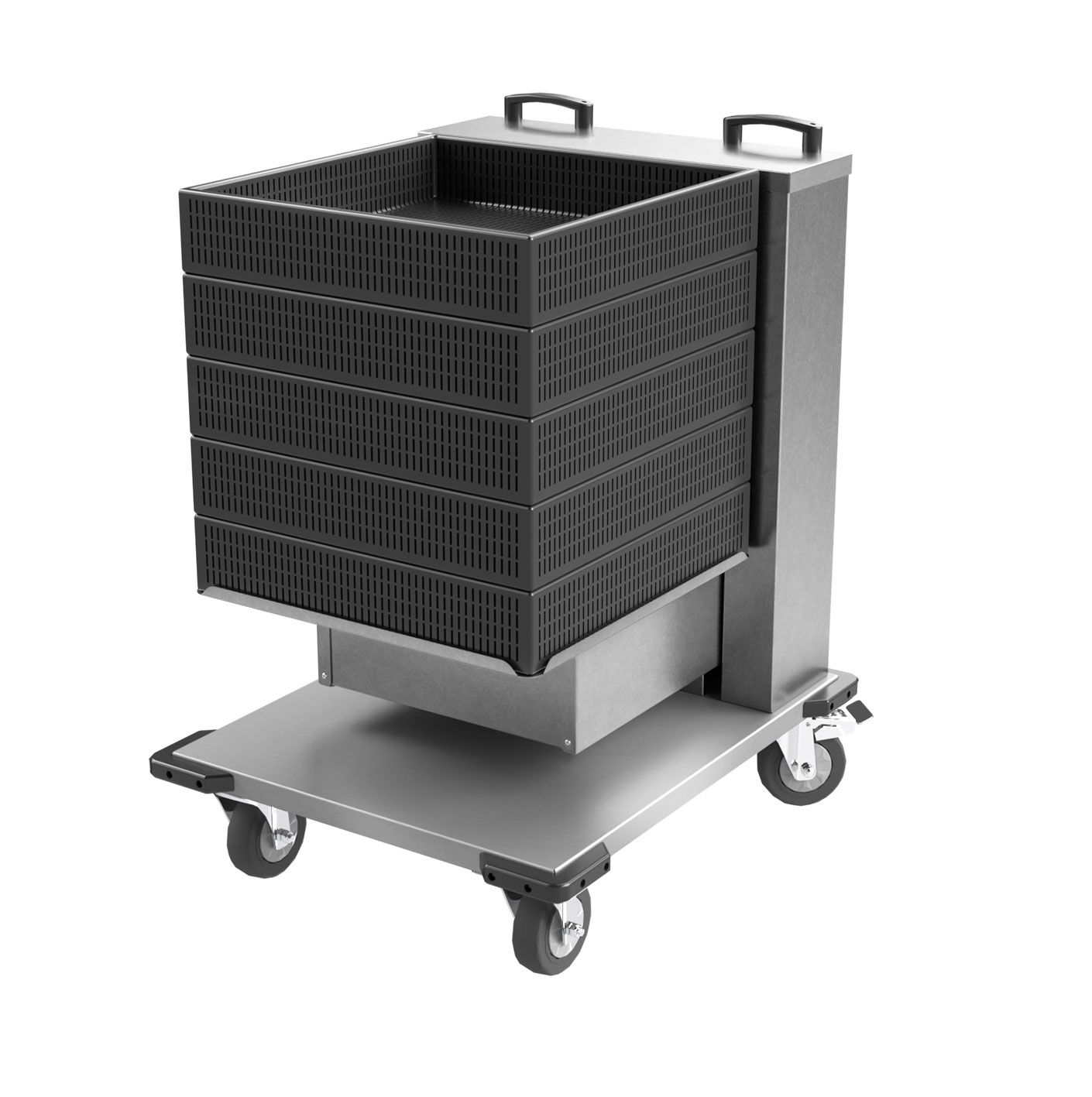

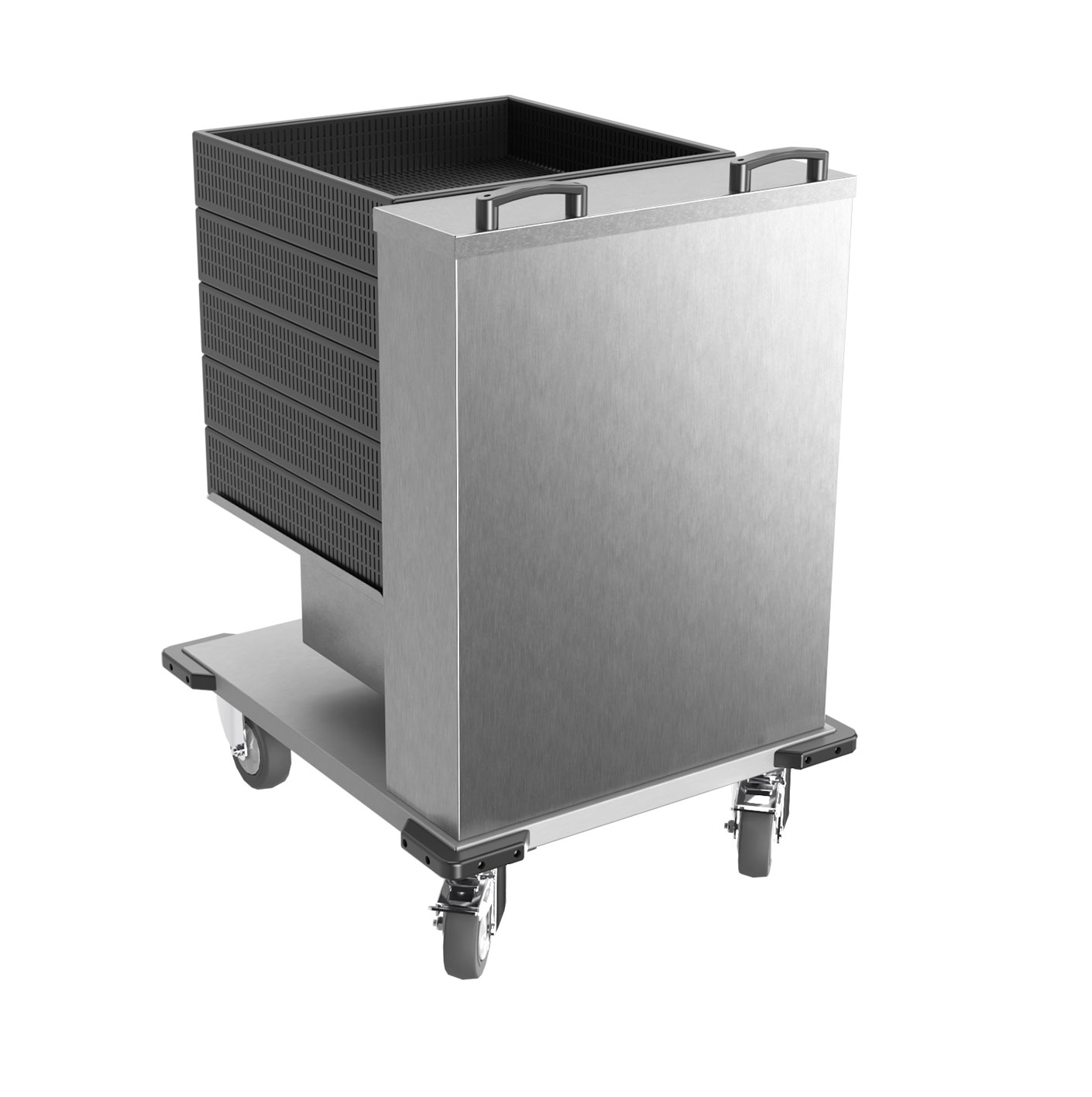

Open basket dispenser with a Pop-Up variable spring system to accommodate different weights of baskets. Lift off top basket and the next one automatically moves up level into position delivering stacked dishwash type baskets holding plates and crockery. This compact mobile unit is perfect for Keeping crockery in one place. Load from the wash-up area & transfer to the point of service. Hygienic design, made of high-quality stainless steel with an enclosed adjustable spring system with heavy duty roller platform guide. Four corner bumpers, protect the equipment on all sides. Ergonomically shaped push pull handles ensure optimal handling. Dispenser runs on all-swivel 5” (125mm) casters of which two are lockable.
DOWNLOADS
Specification
Key features
- Working height set at 910mm from floor level.
- Basket Platform: 510 × 510 mm.
- Stacking height: 600 mm.
- Capacity: 8 baskets (75mm deep) 6 baskets (100mm deep).
- Four swivel castors two with brakes.
- Payload:100 kg.
Operating Modes
- This specially designed dispenser is equipped with a stainless steel Stacking Platform suitable for various types of baskets.
Options
- N/A
