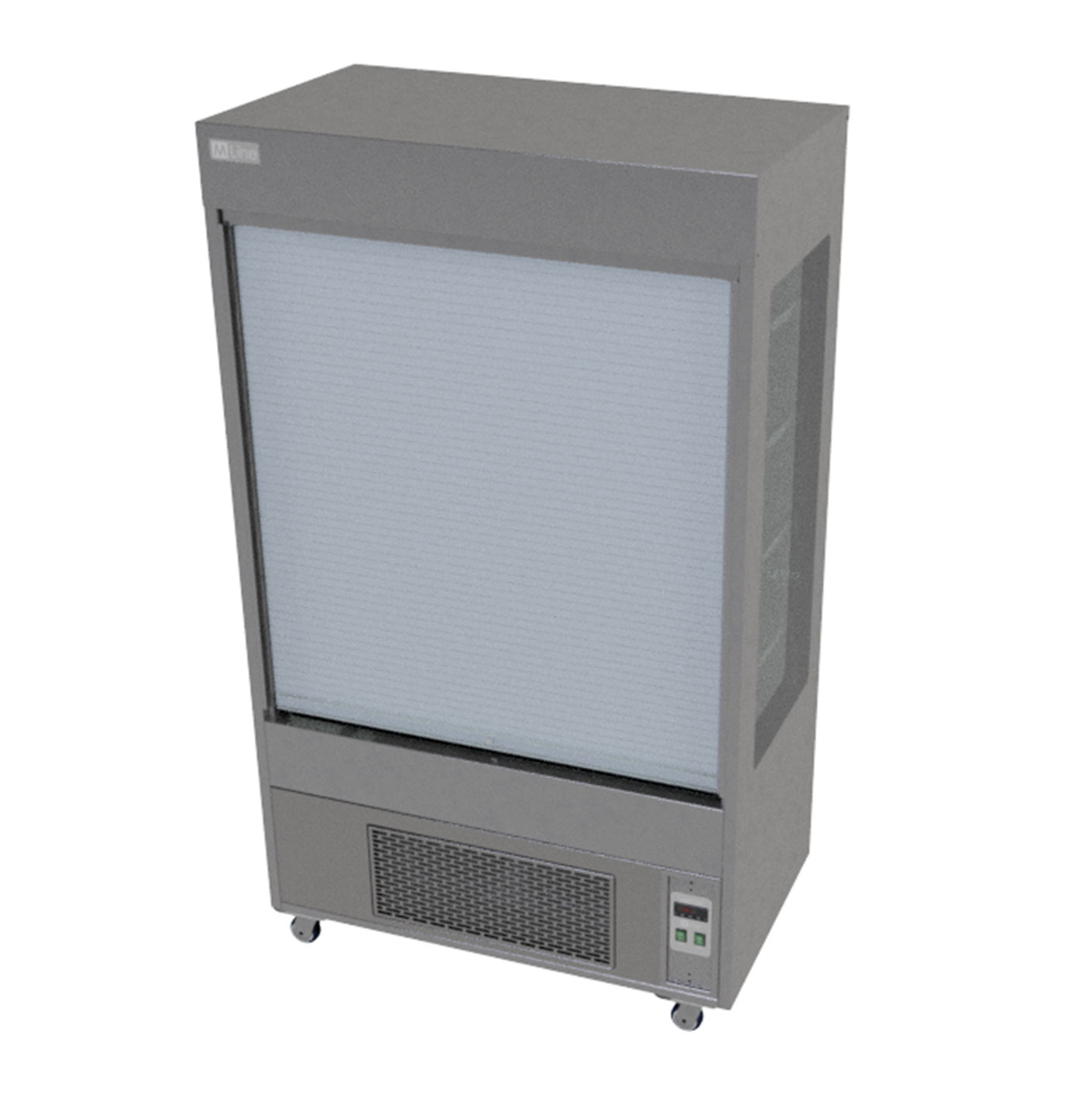

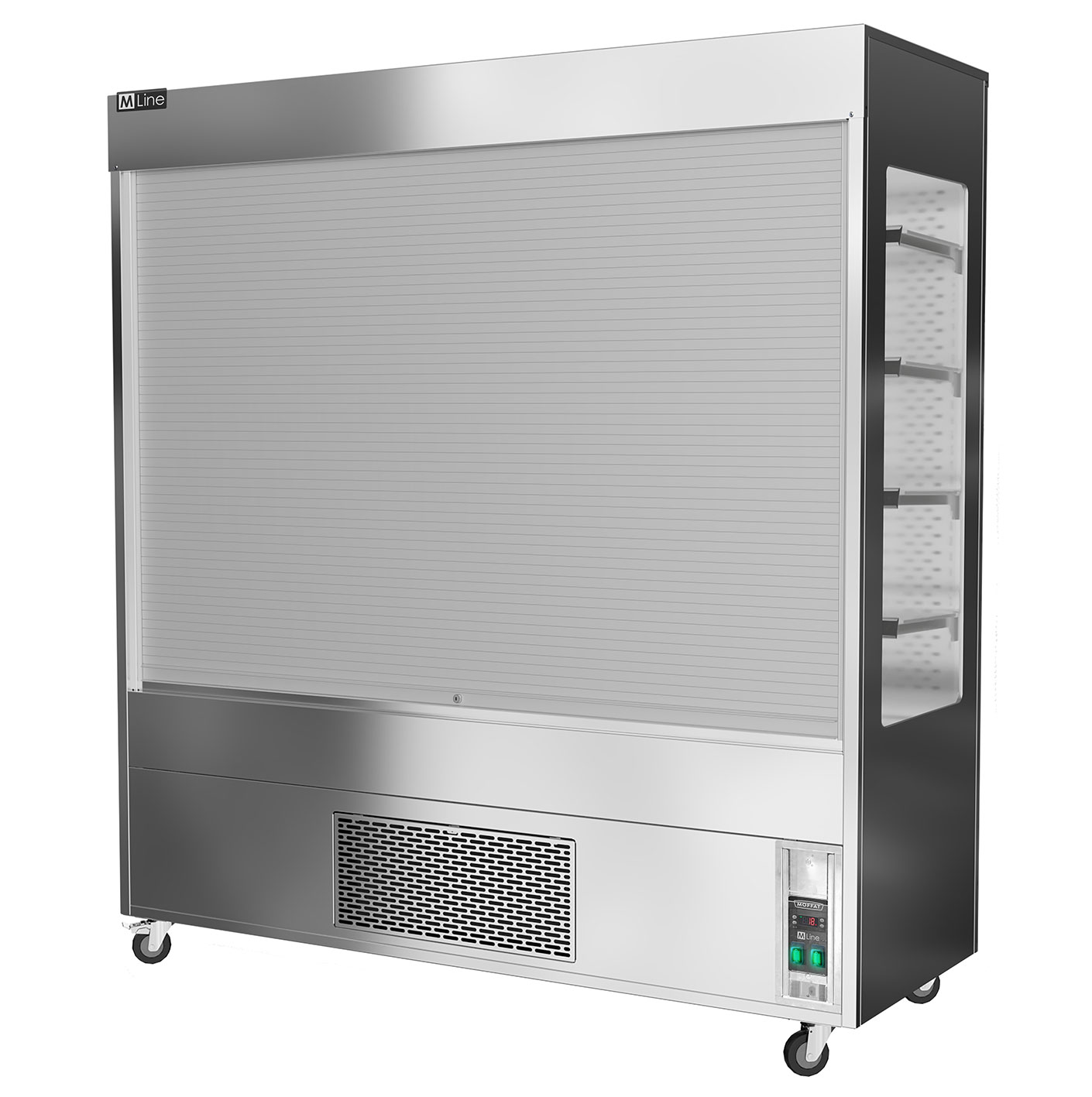

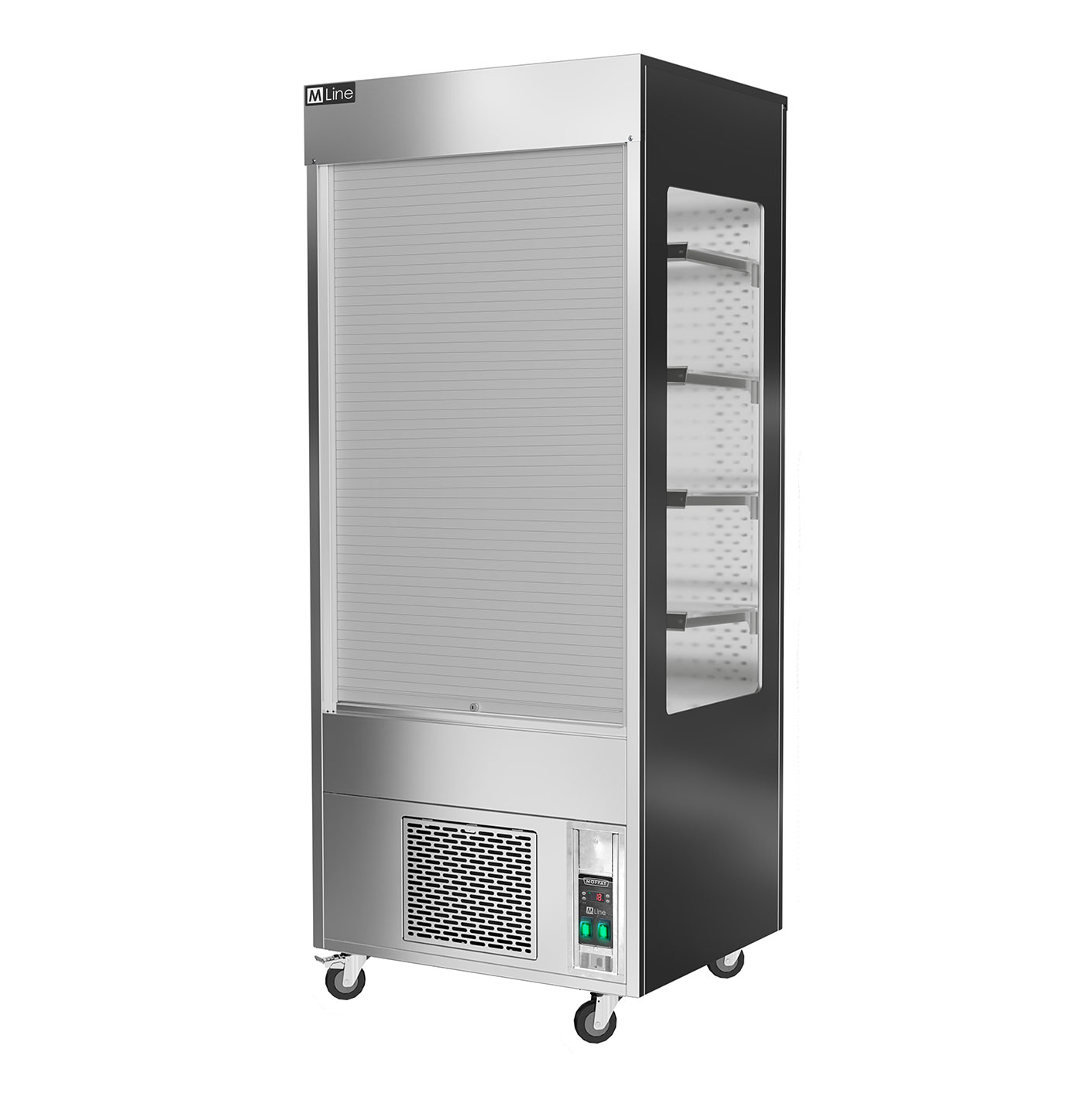

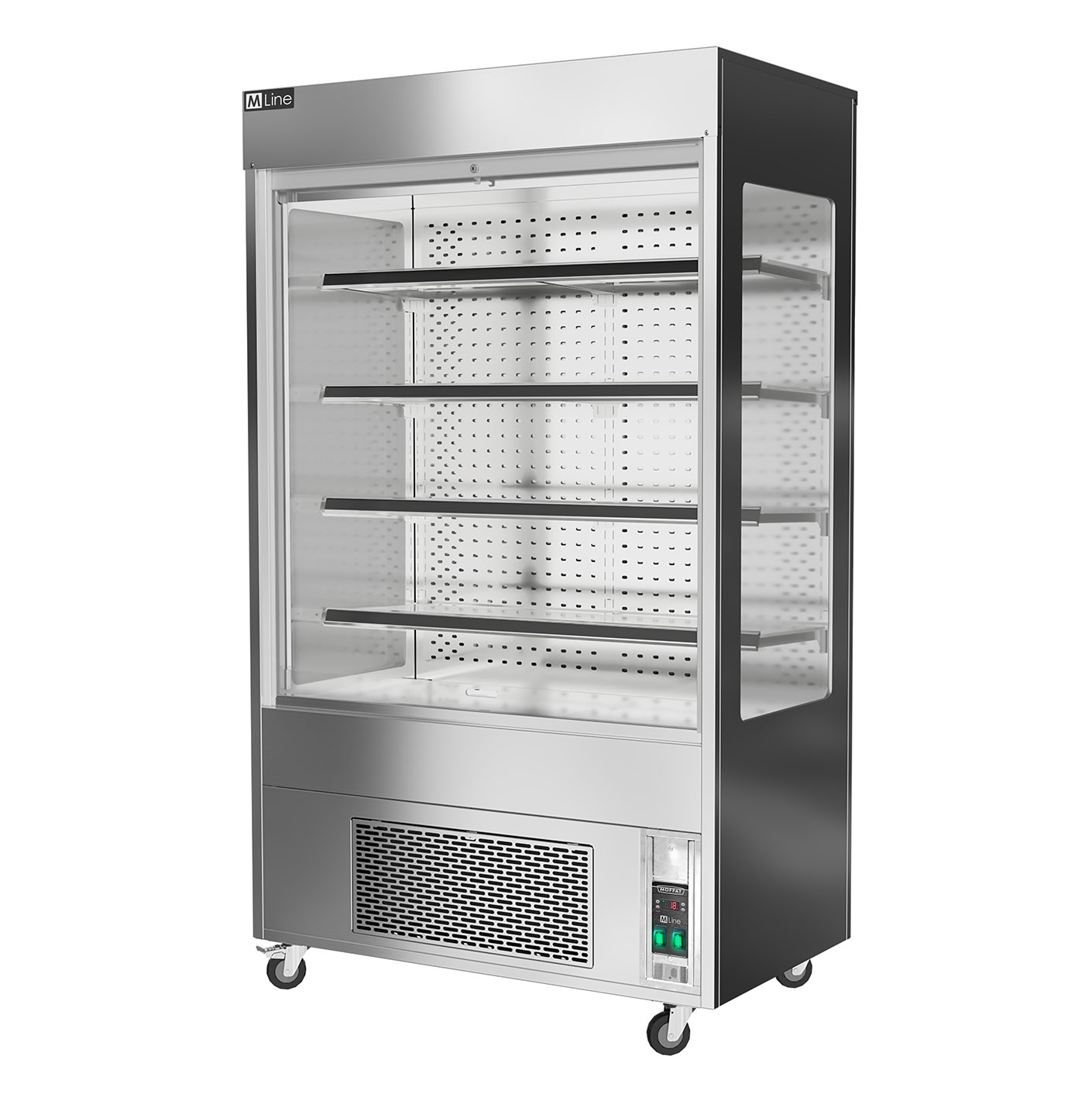

Chilled Merchandisers with Lockable Shutters

ML2/3/4/5SA

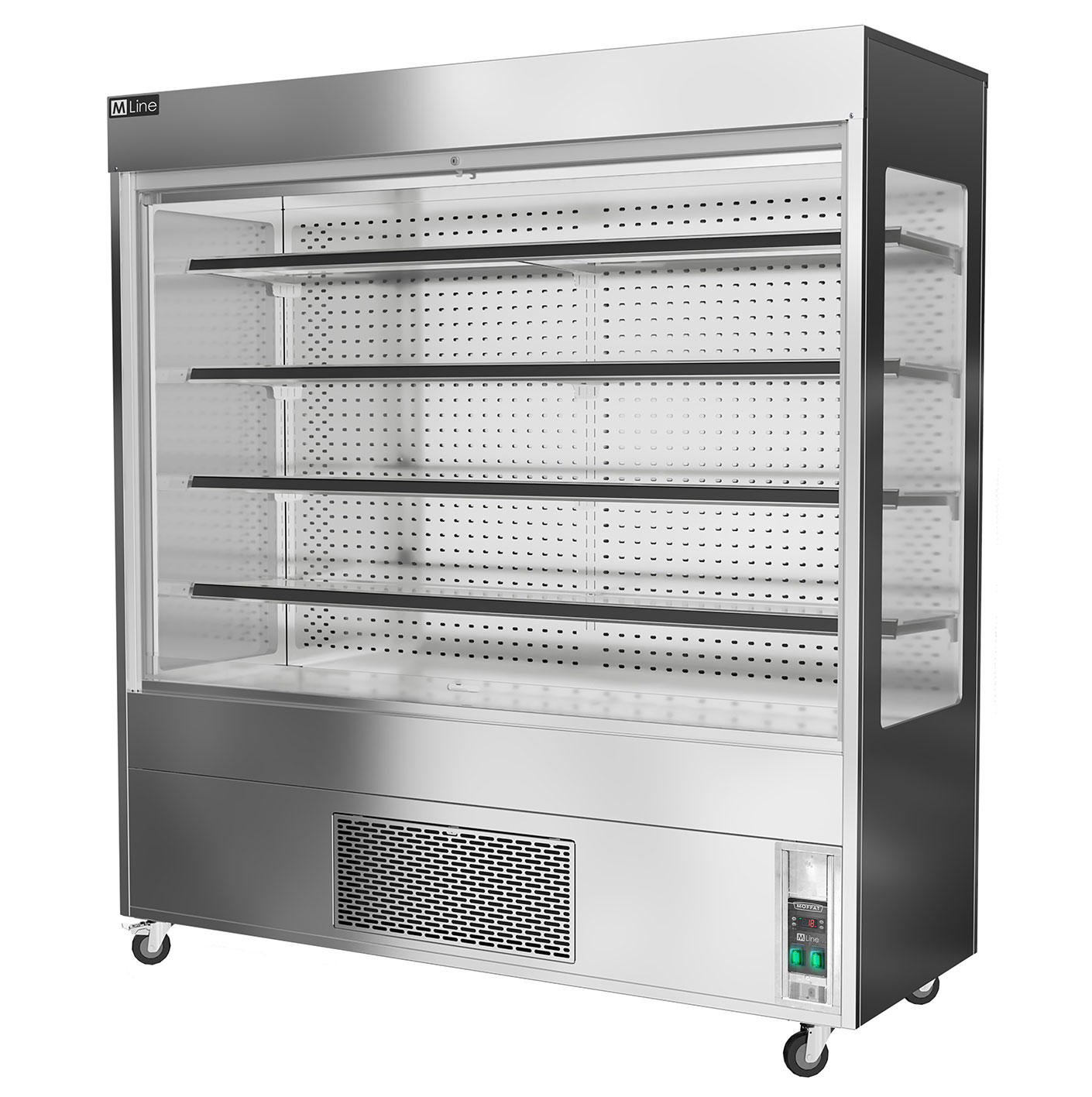

M-Line merchandisers with panoramic side glass, internal glass shelving and LED illumination for enhanced food display and all round viability. These sharp styled units are a perfect fit for any modern designed retail grab and go food outlet, ideal for delicatessens, restaurants, universities, schools, hospitals, supermarkets and coffee shops. The hygienic free-standing mobile design made inside and out from bright polished stainless steel provides easy access for pre packed snacks and cool drinks. Incorporating a low height cold well and 4 glass display shelves.

The unique Moffat innovative “Polar Air Stream” system provides a constant recirculating cold air curtain completely enveloping the food displayed. Holding pre-chilled food at a safe, regulated temperature while retaining taste and freshness. Perfect for sandwiches, fruit, yogurt s and cold drinks. Self-contained units with accurate, digital control, automatic defrost, high pressure warning and automatic condensate evaporation. Utilising a highly efficient, naturally occurring, hermetically sealed, hydrocarbon gas type R290 reducing carbon footprint and energy consumption. Available in a choice of 4 model widths.



DOWNLOADS

Specification

Key features

  • Superstructure complete externally and internally in bright polished stainless steel.
  • Features integral energy efficient chilled R290 hydrocarbon refrigeration.

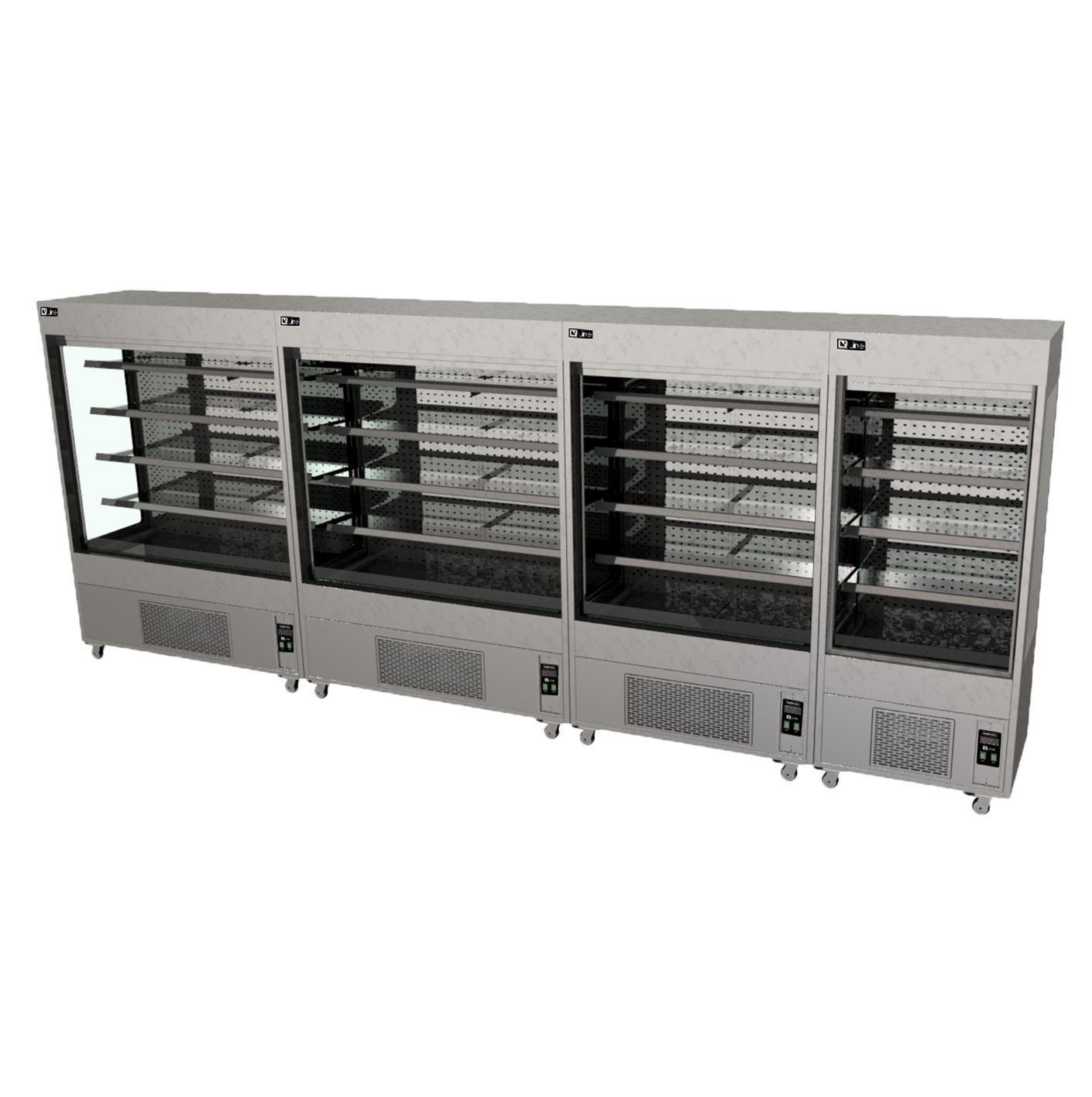

  • 4 models in the range.
  • High visibility glass display with LED illumination.
  • Point of sale / display ticket strips.
  • Mobile all swivel castors two with brakes.
  • Chilled well and four fully adjustable glass shelves.
  • Digital thermostat and temperature control with automatic defrost.
  • Advanced air flow design with unique polar air-stream technology.
  • Fully insulated efficient, eco-friendly, refrigeration.
  • Maintaining the core product temperature of pre-chilled food below 5°C in ambient condition not exceeding 25°C and 60% relative humidity.
  • Automatic condensate water evaporation [no need to empty drip trays).
  • 24-hour operation.
  • Supplied with 2m long power cord and 13amp plug [13A 230v 50Hz]

Operating Modes

  • Moffat innovative “Polar Air Stream” system provides a constant wall of cold air which moves across the well blanketing the food displayed and recirculates back through the system.
  • Holding pre-chilled food at a safe and regulated temperature.
  • Self-contained units with accurate digital control, automatic defrost, high pressure warning, and automatic condensate evaporation.
  • Utilising a highly efficient,naturally occurring hermetically sealed hydrocarbon refrigeration gas type R290 reducing the carbon footprint and energy consumption.

Electrical Specifications

  • Rating - 1.5 kW - 2.0 kW
  • Electrical Supply - 13amp

Wiring Drawings

  • Wiring drawing can be obtained by contacting Sales

Options

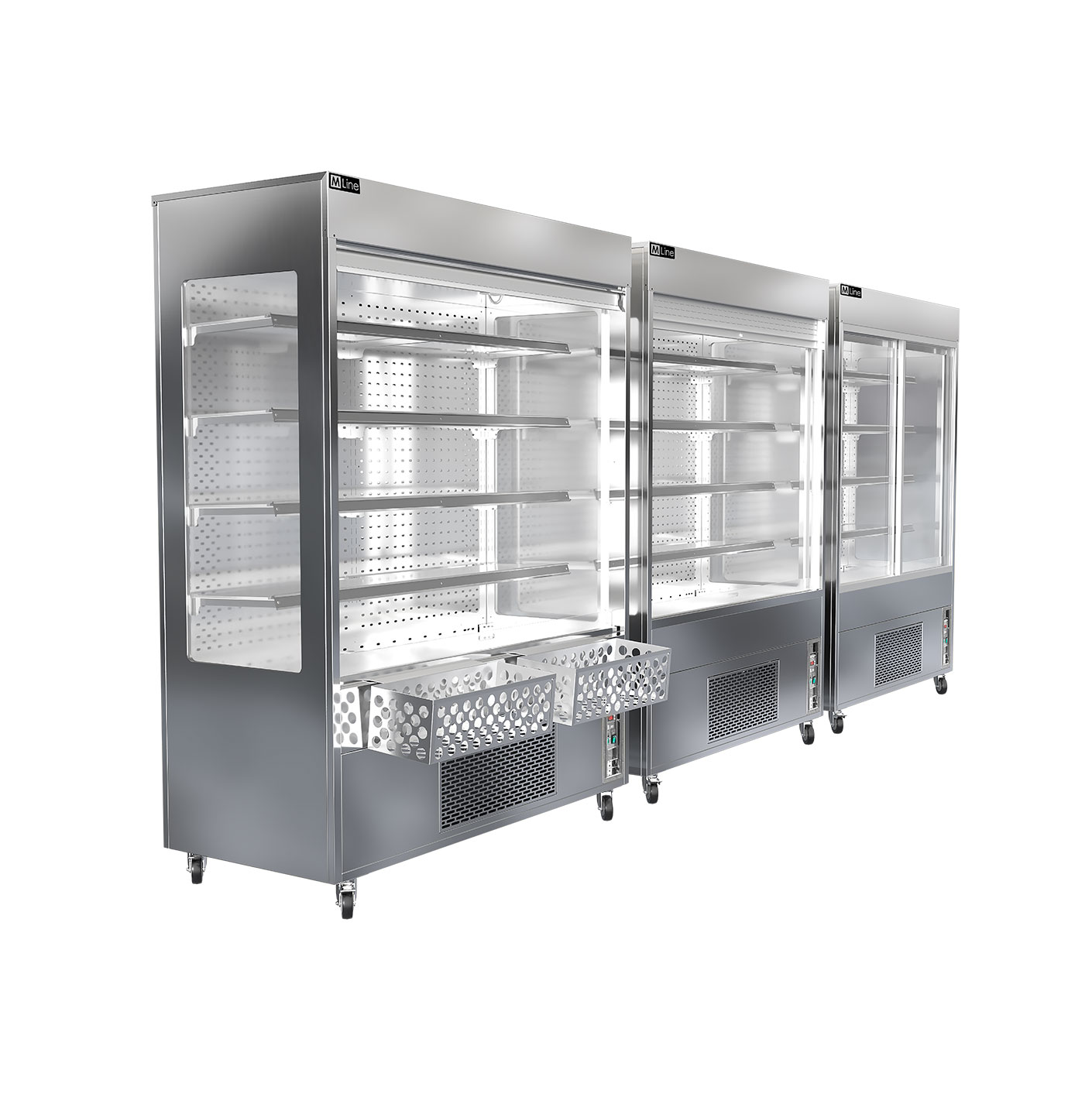

  • Hook on heavy duty Impulse basket

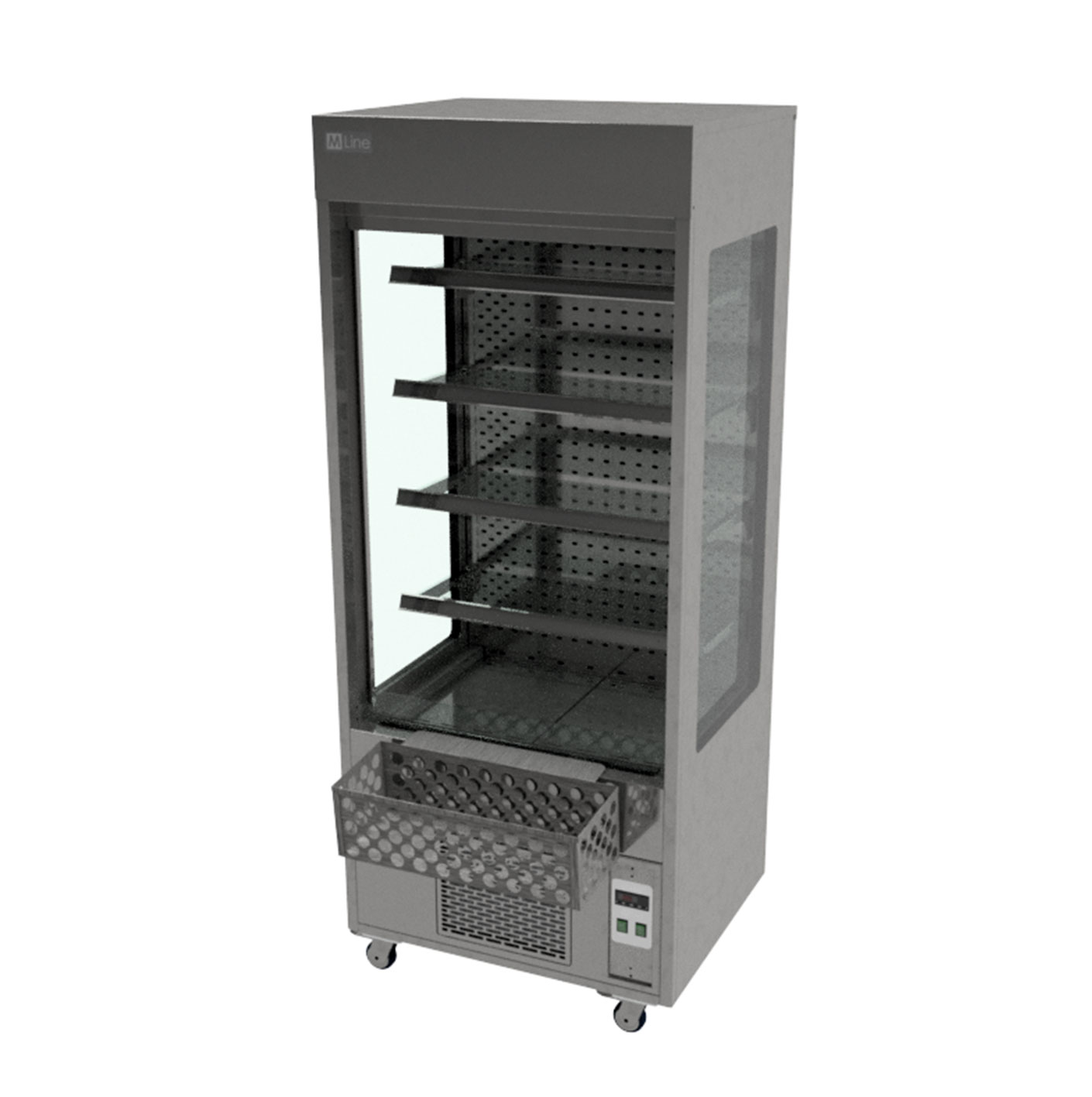

    MIB:- ML2 can accomodate 1 basket
    ML3 can accomodate 2 baskets
    ML4 can accomodate 2 baskets

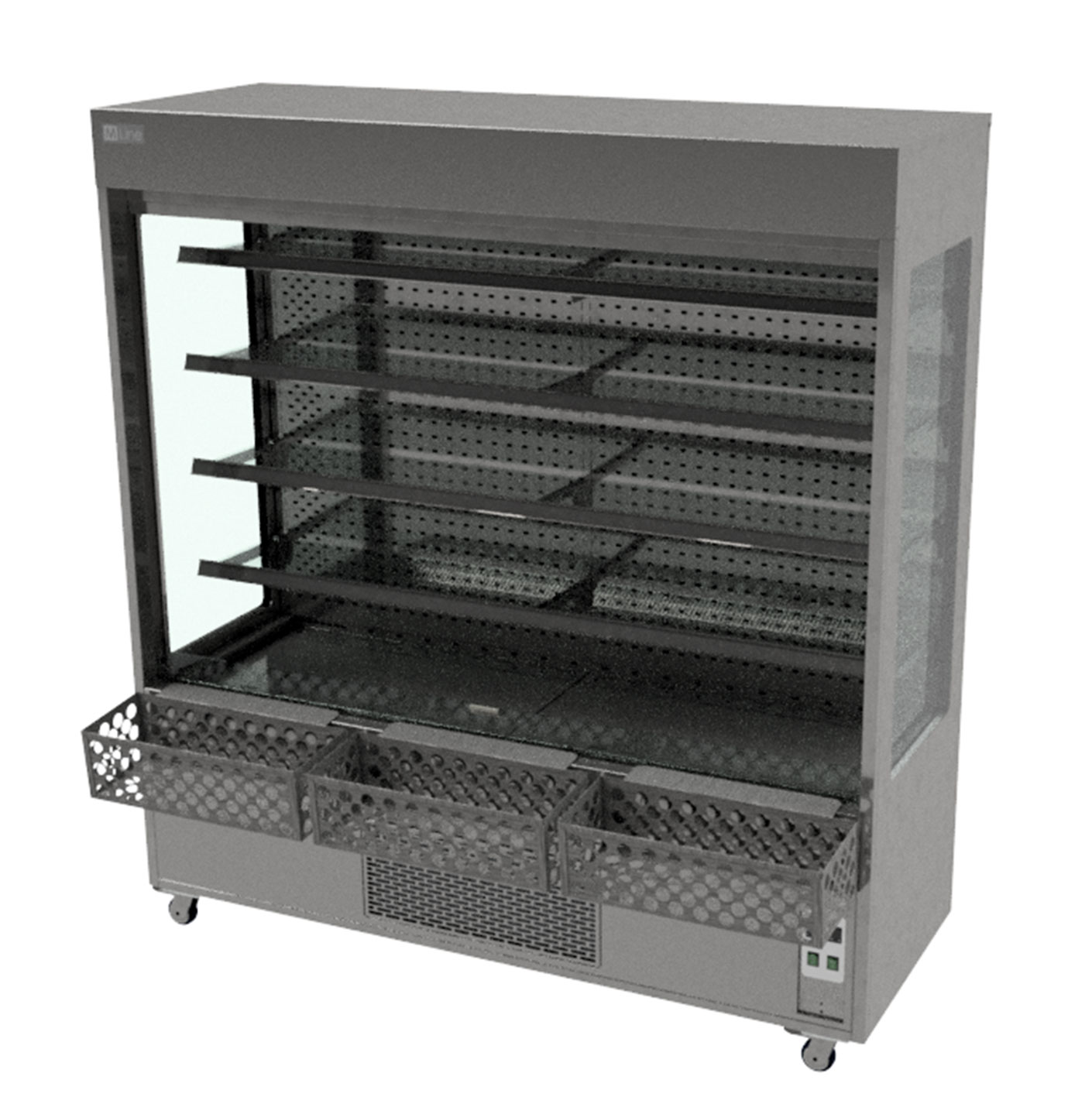

    ML5 can accomodate 3 baskets
