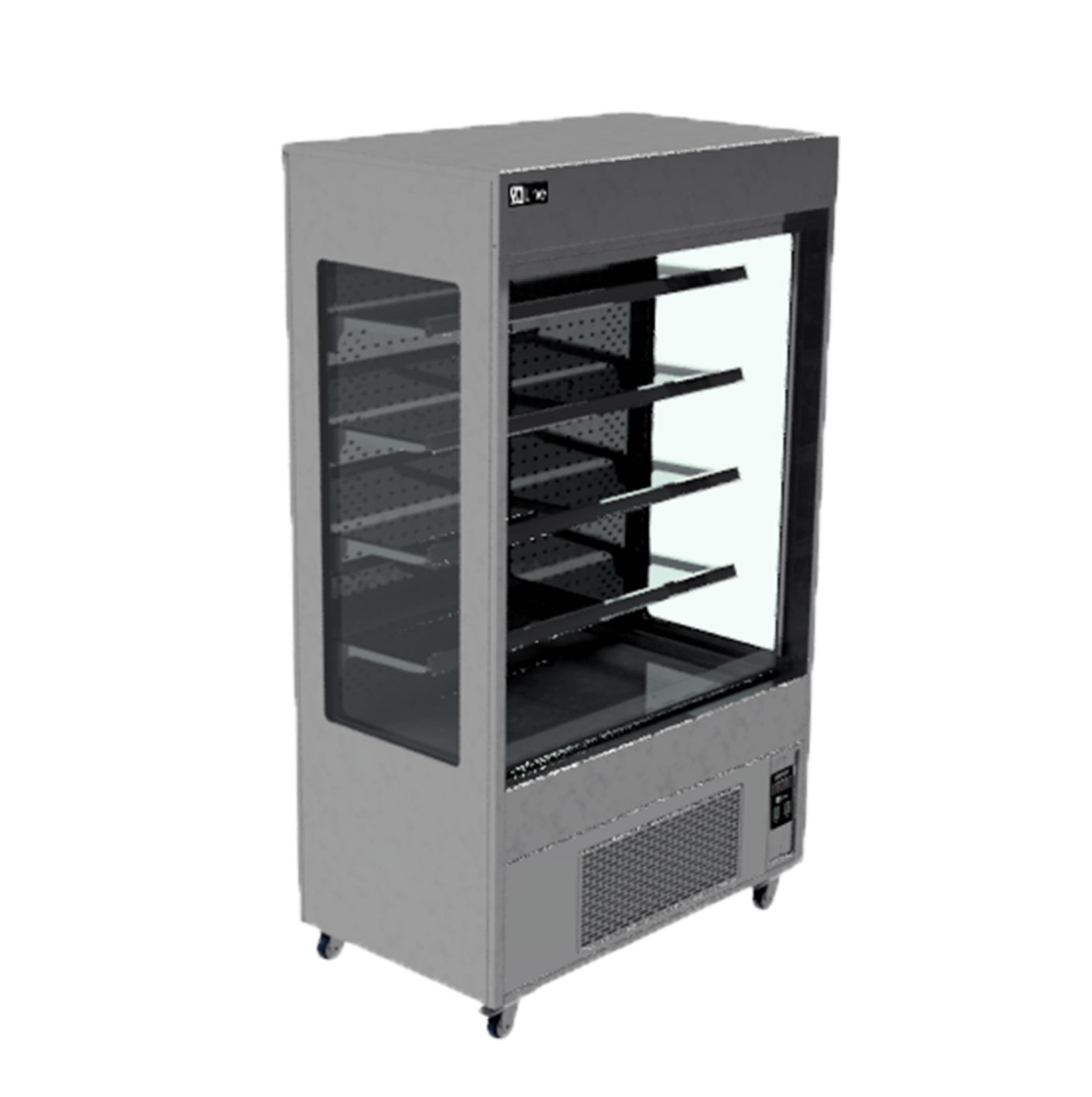

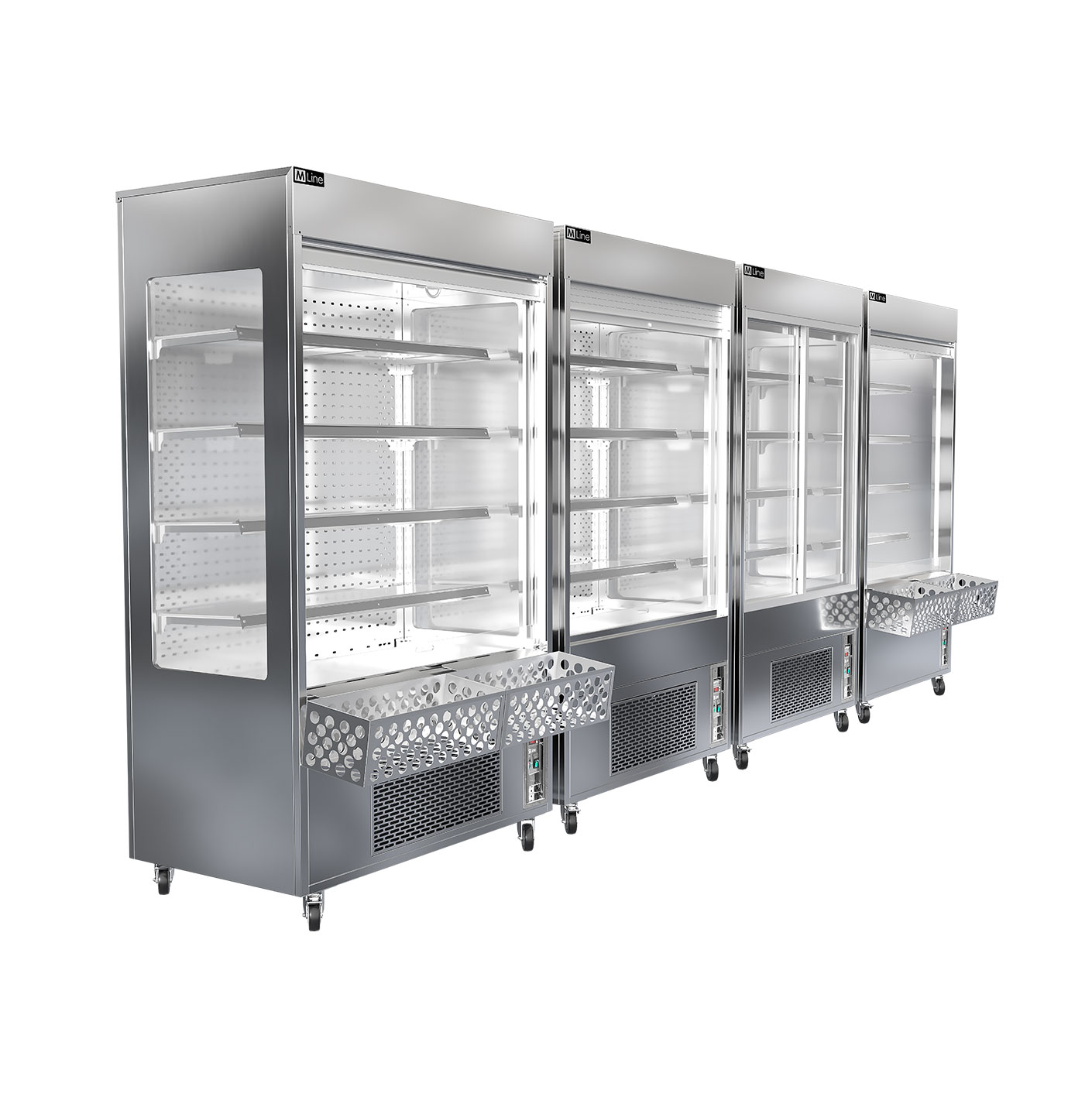

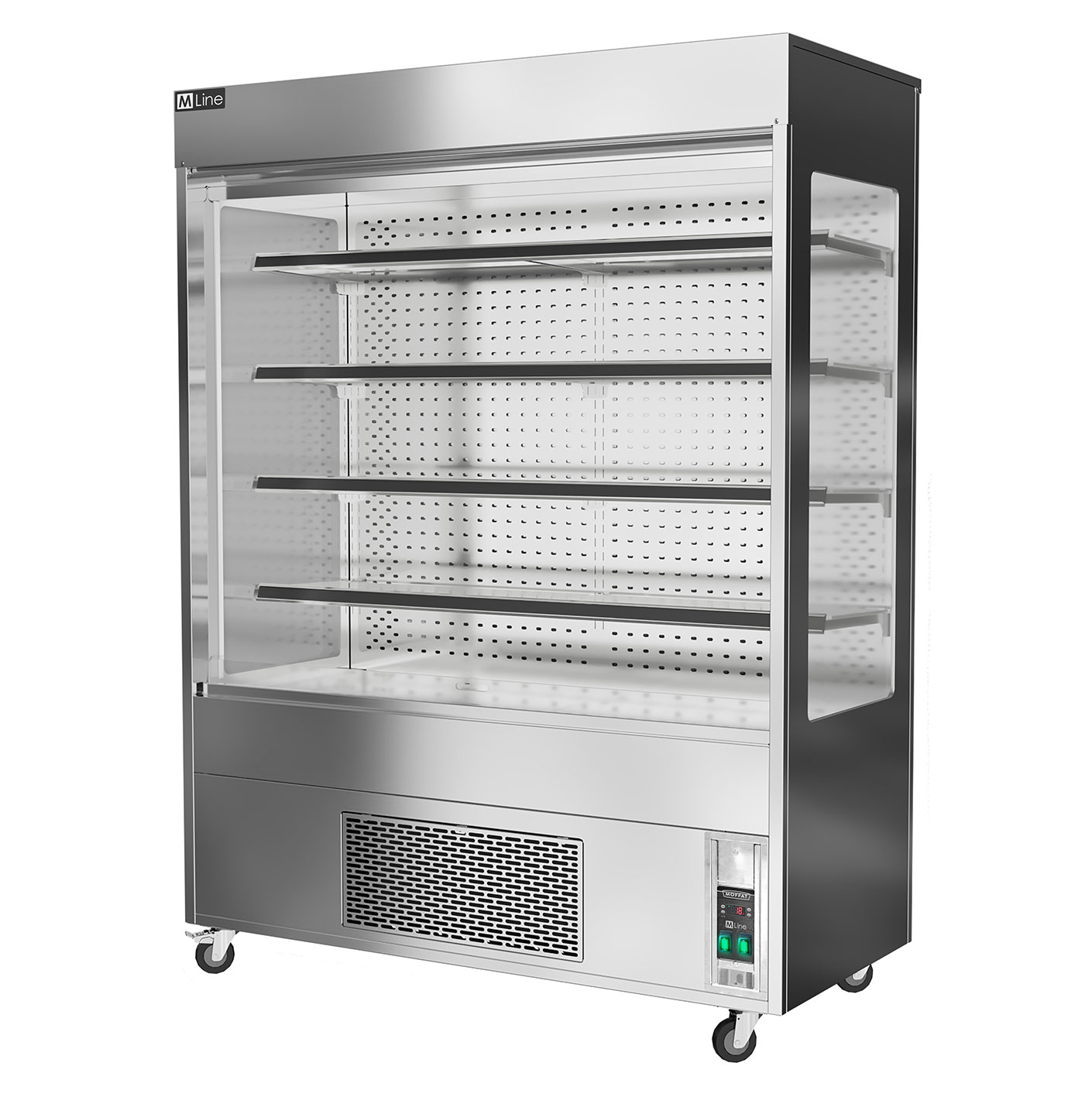

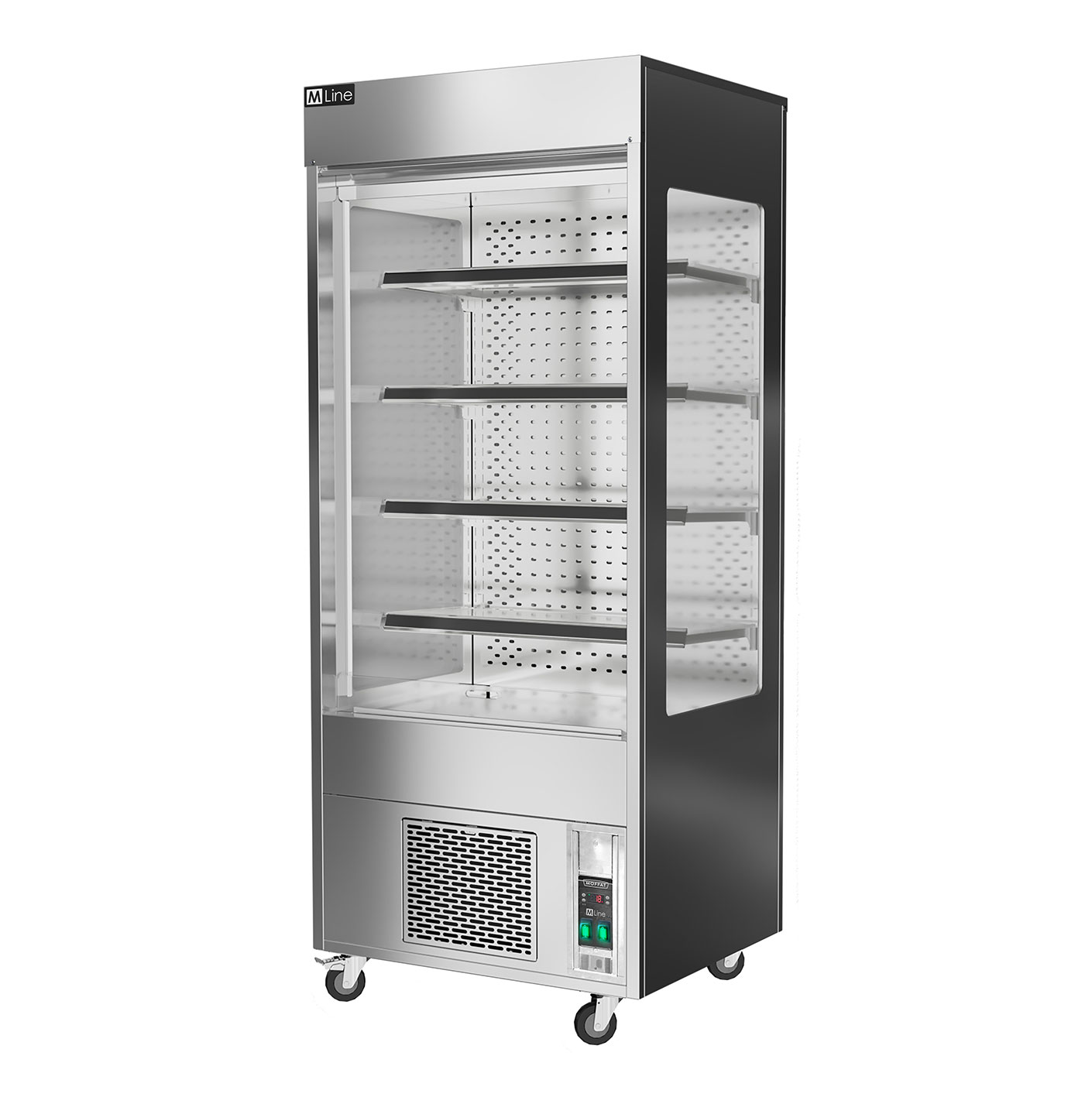

ML2/3/4/5

M-Line merchandisers with panoramic side glass, internal glass shelving and LED illumination for enhanced food display and all round viability. These sharp styled units are a perfect fit for any modern designed retail grab and go food outlet, ideal for delicatessens, restaurants, universities, schools, hospitals, supermarkets and coffee shops. The hygienic free-standing mobile design made inside and out from bright polished stainless steel provides easy access for pre packed snacks and cool drinks. Incorporating a low height cold well and 4 glass display shelves.

The unique Moffat innovative “Polar Air Stream” system provides a constant recirculating cold air curtain completely enveloping the food displayed. Holding pre-chilled food at a safe, regulated temperature while retaining taste and freshness. Perfect for sandwiches, fruit, yogurt s and cold drinks. Self-contained units with accurate, digital control, automatic defrost, high pressure warning and automatic condensate evaporation. Utilising a highly efficient, naturally occurring, hermetically sealed, hydrocarbon gas type R290 reducing carbon footprint and energy consumption. Available in a choice of 4 model widths.

DOWNLOADS

Specification

Key features

Superstructure complete externally and internally in bright polished stainless steel.
Features integral energy efficient chilled R290 hydrocarbon refrigeration.
4 models in the range.
High visibility glass display with LED illumination.
Point of sale / display ticket strips.
Mobile all swivel castors two with brakes.
Chilled well and four fully adjustable glass shelves.
Digital thermostat and temperature control with automatic defrost.
Advanced air flow design with unique polar air-stream technology.
Fully insulated efficient, eco-friendly, refrigeration.
Maintaining the core product temperature of pre-chilled food below 5°C in ambient condition not exceeding 25°C and 60% relative humidity.
Automatic condensate water evaporation [no need to empty drip trays).
24-hour operation.
Supplied with 2m long power cord and 13amp plug [13A 230v 50Hz]

Operating Modes

Moffat innovative “Polar Air Stream” system provides a constant wall of cold air which moves across the well blanketing the food displayed and recirculates back through the system.
Holding pre-chilled food at a safe and regulated temperature.
Self-contained units with accurate digital control, automatic defrost, high pressure warning, and automatic condensate evaporation.
Utilising a highly efficient,naturally occurring hermetically sealed hydrocarbon refrigeration gas type R290 reducing the carbon footprint and energy
consumption.

Electrical Specifications

Rating - 1.5 kW - 2.0 kW
Electrical Supply - 13amp

Wiring Drawings

Wiring drawing can be obtained by contacting Sales

Options

Front roller blind Model codes.
NB2:- size 2 unit,
NB3:- size 3 unit,
NB4:- size 4 unit,
NB5:- size 5 unit.

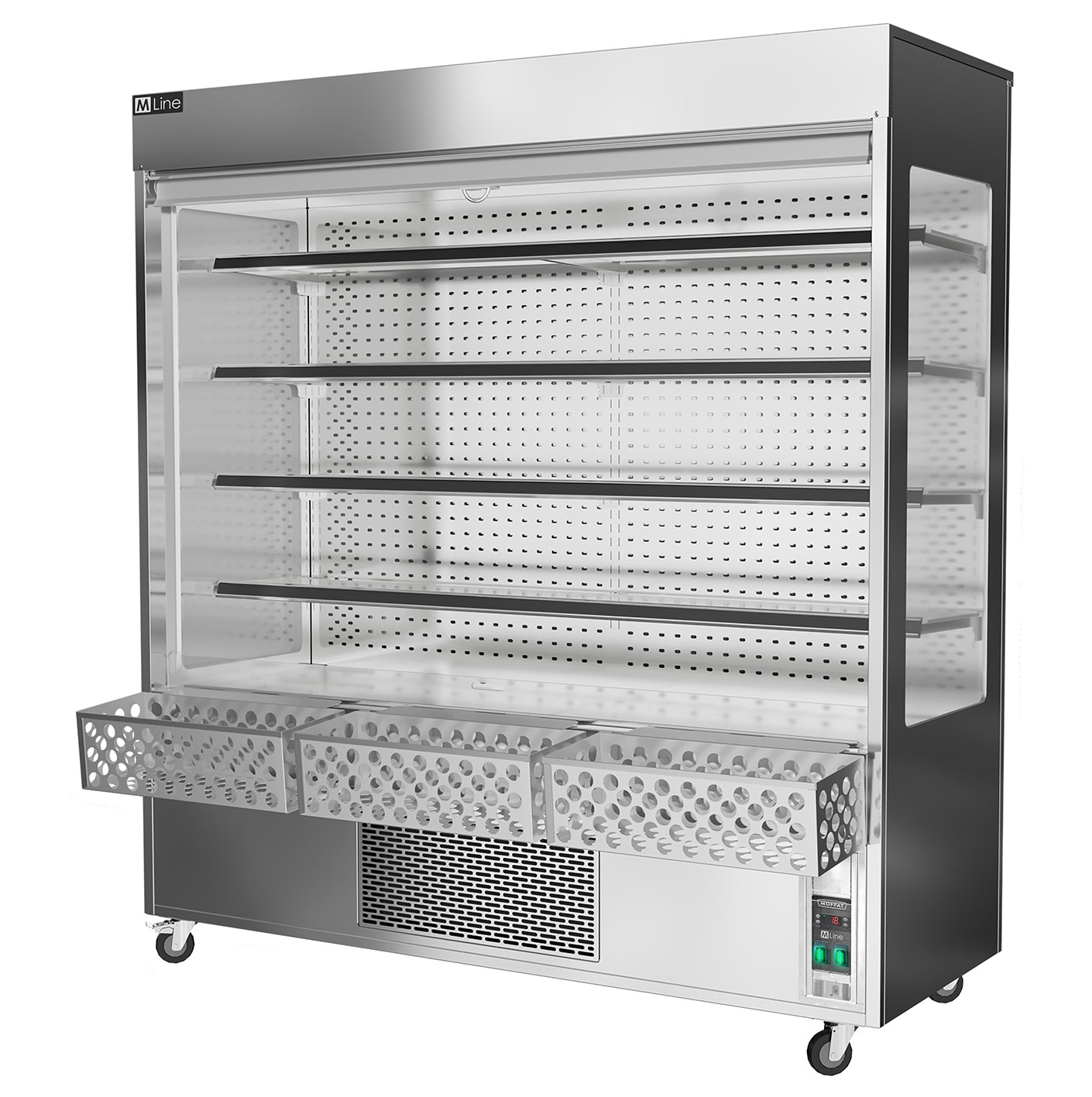

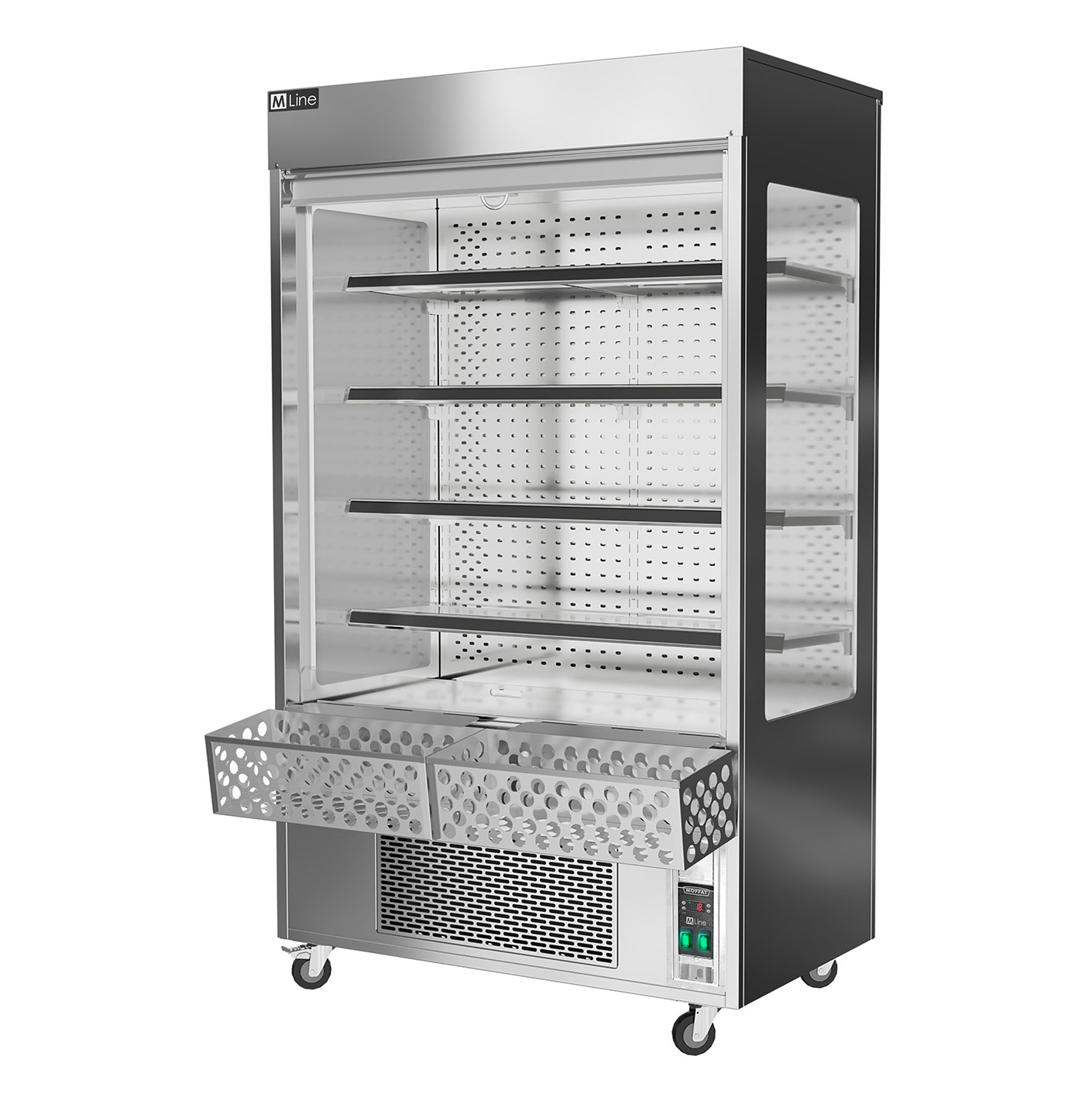

Hook on heavy duty Impulse basket
MIB:- ML2 can accomodate 1 basket
ML3 can accomodate 2 baskets
ML4 can accomodate 2 baskets
ML5 can accomodate 3 baskets
