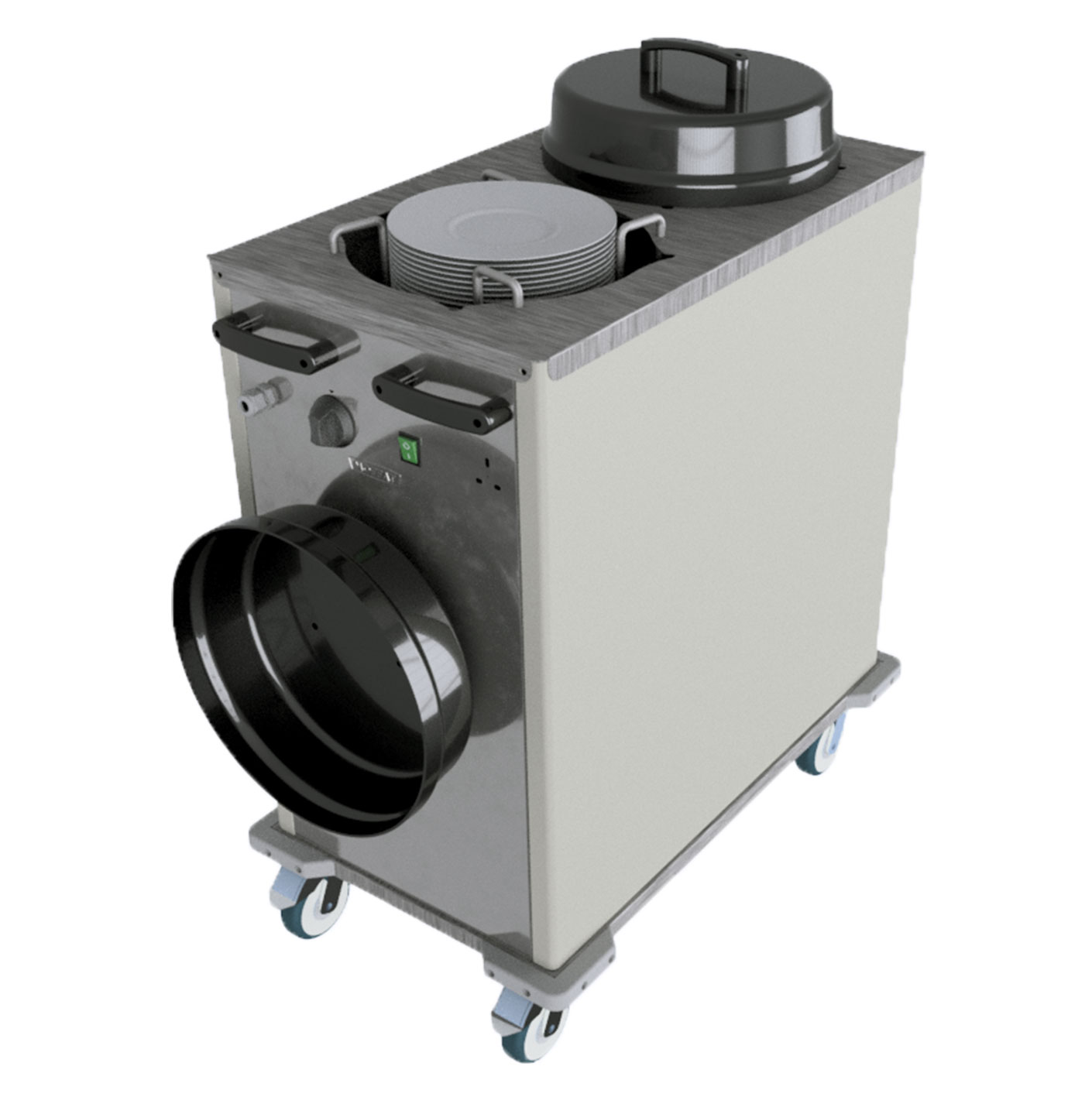

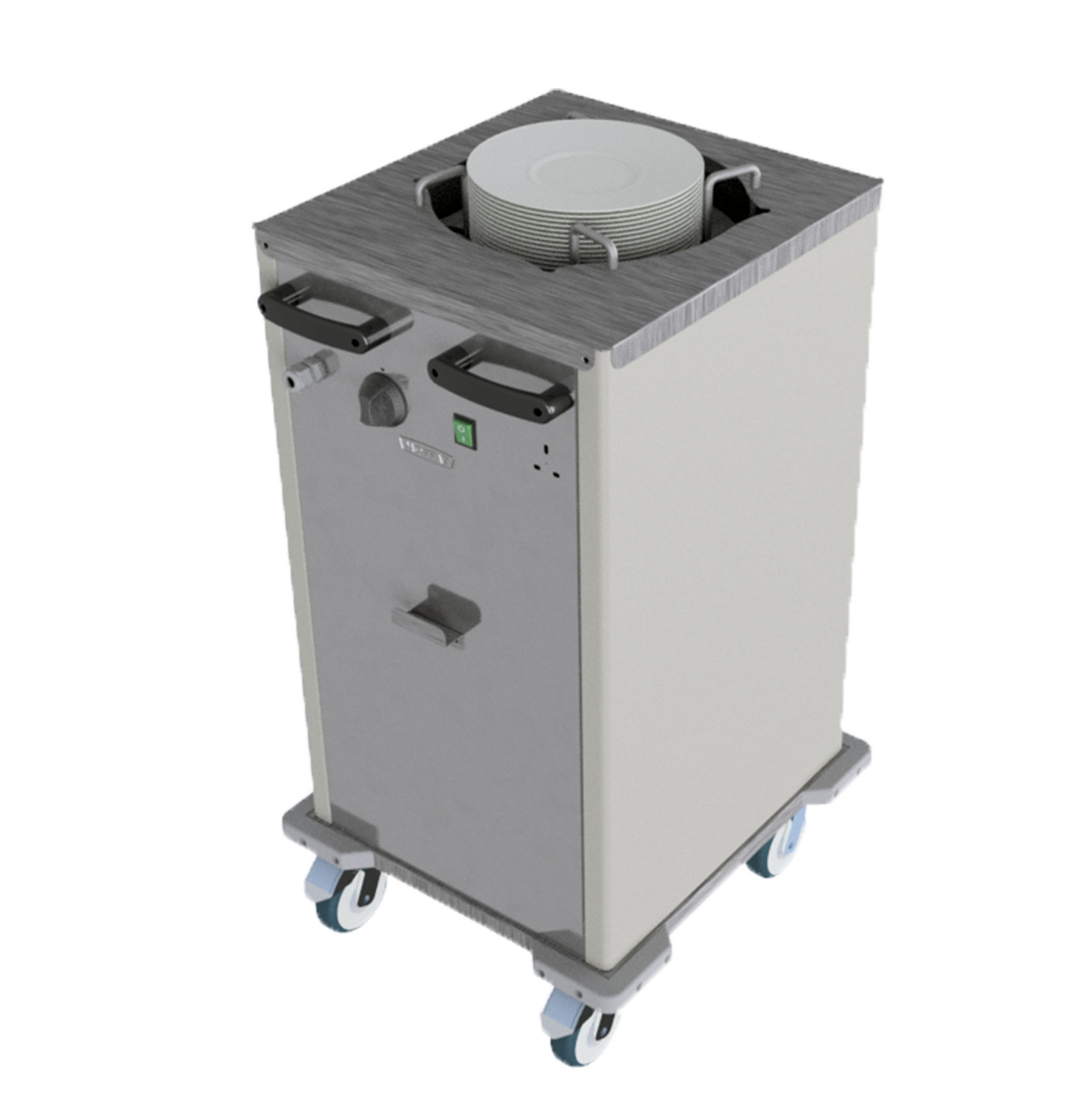

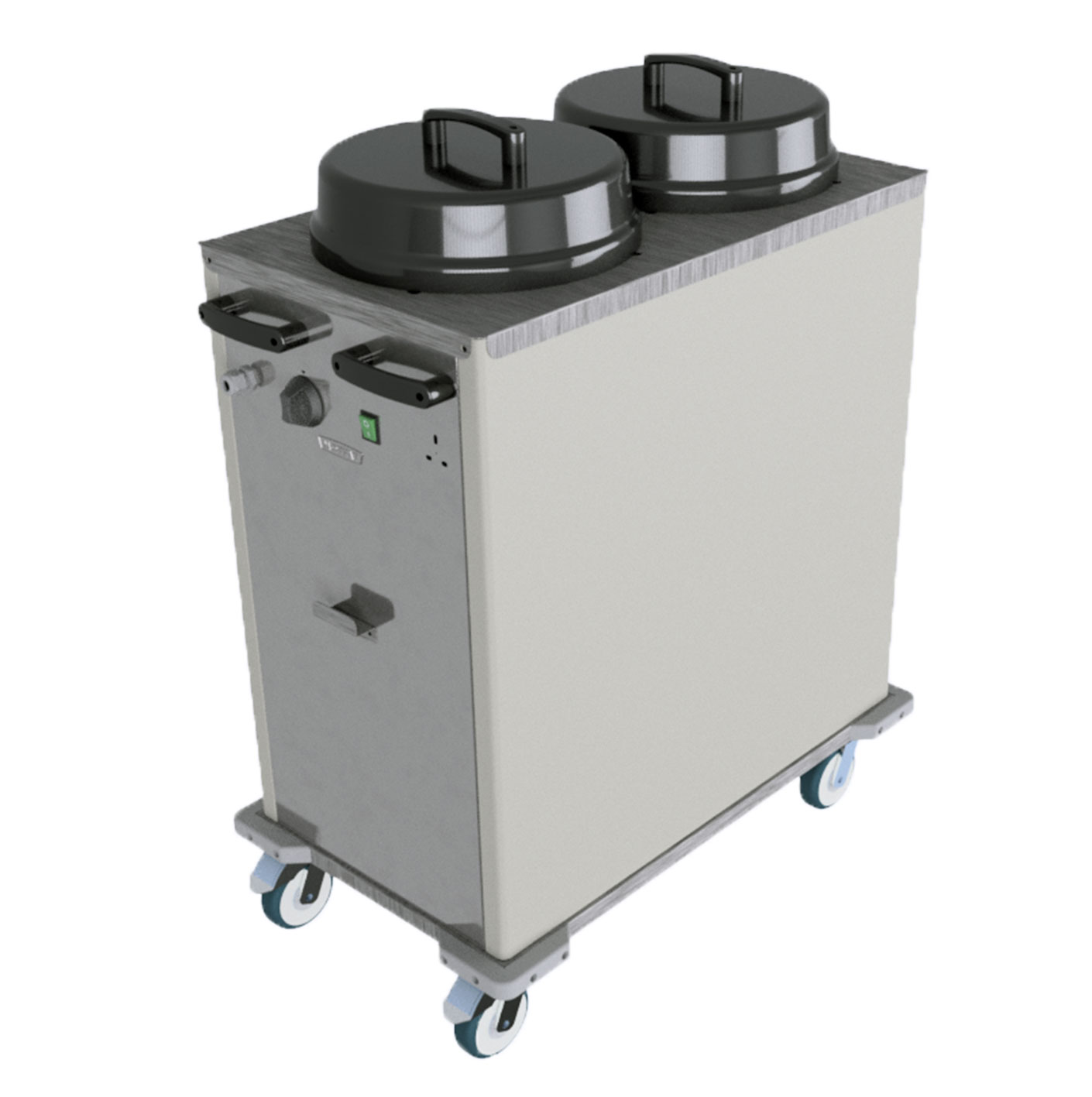

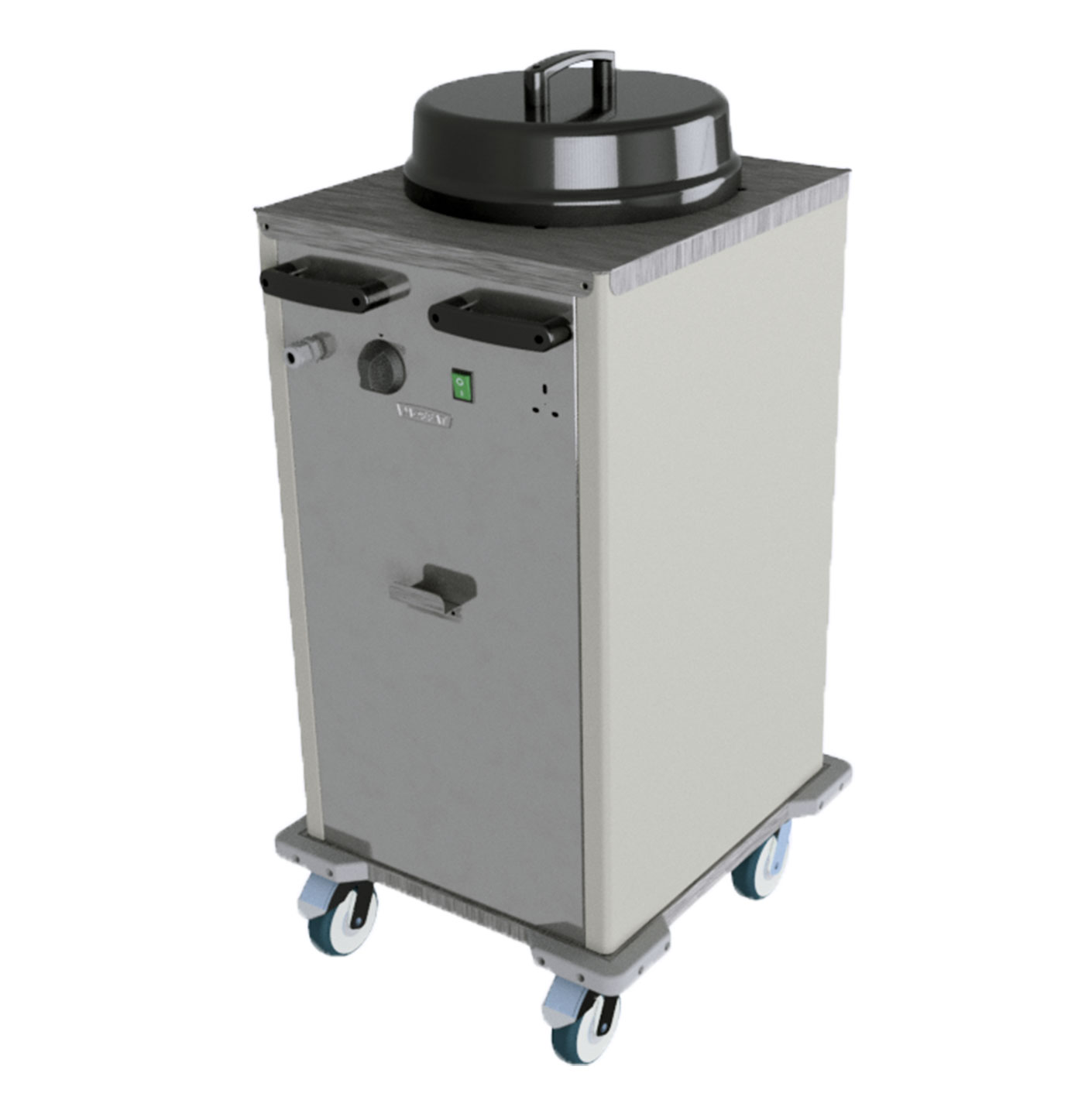

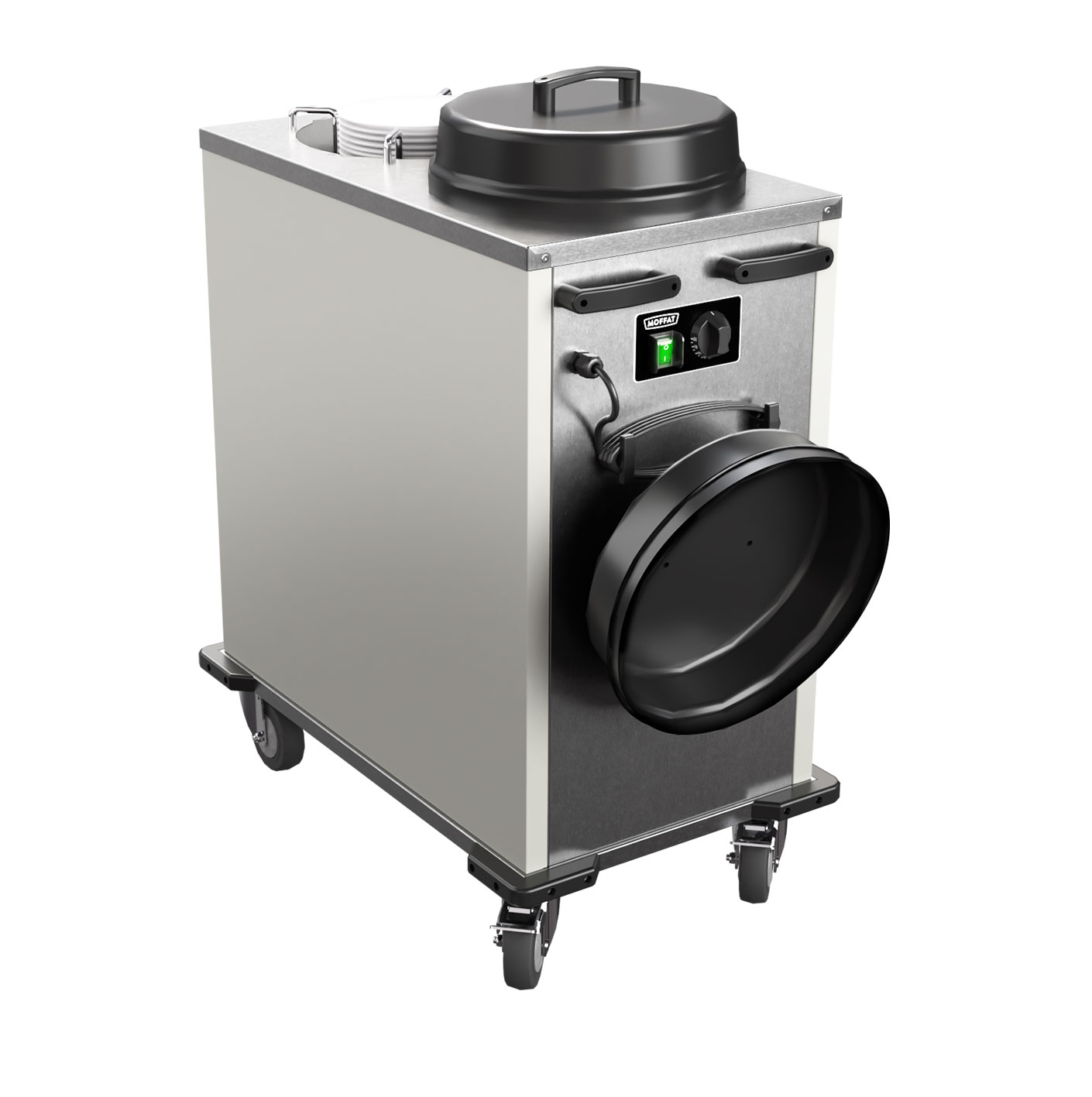

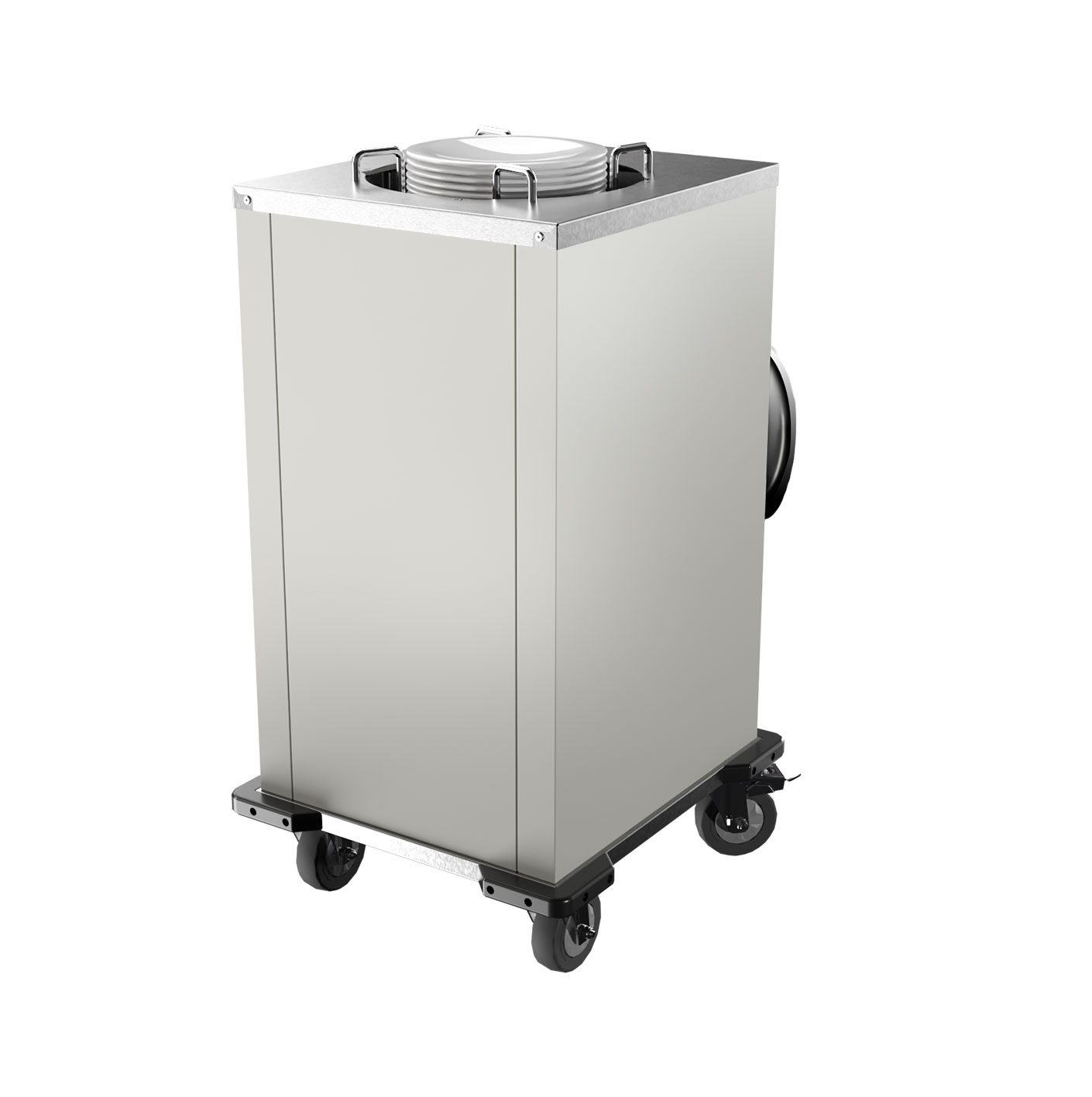

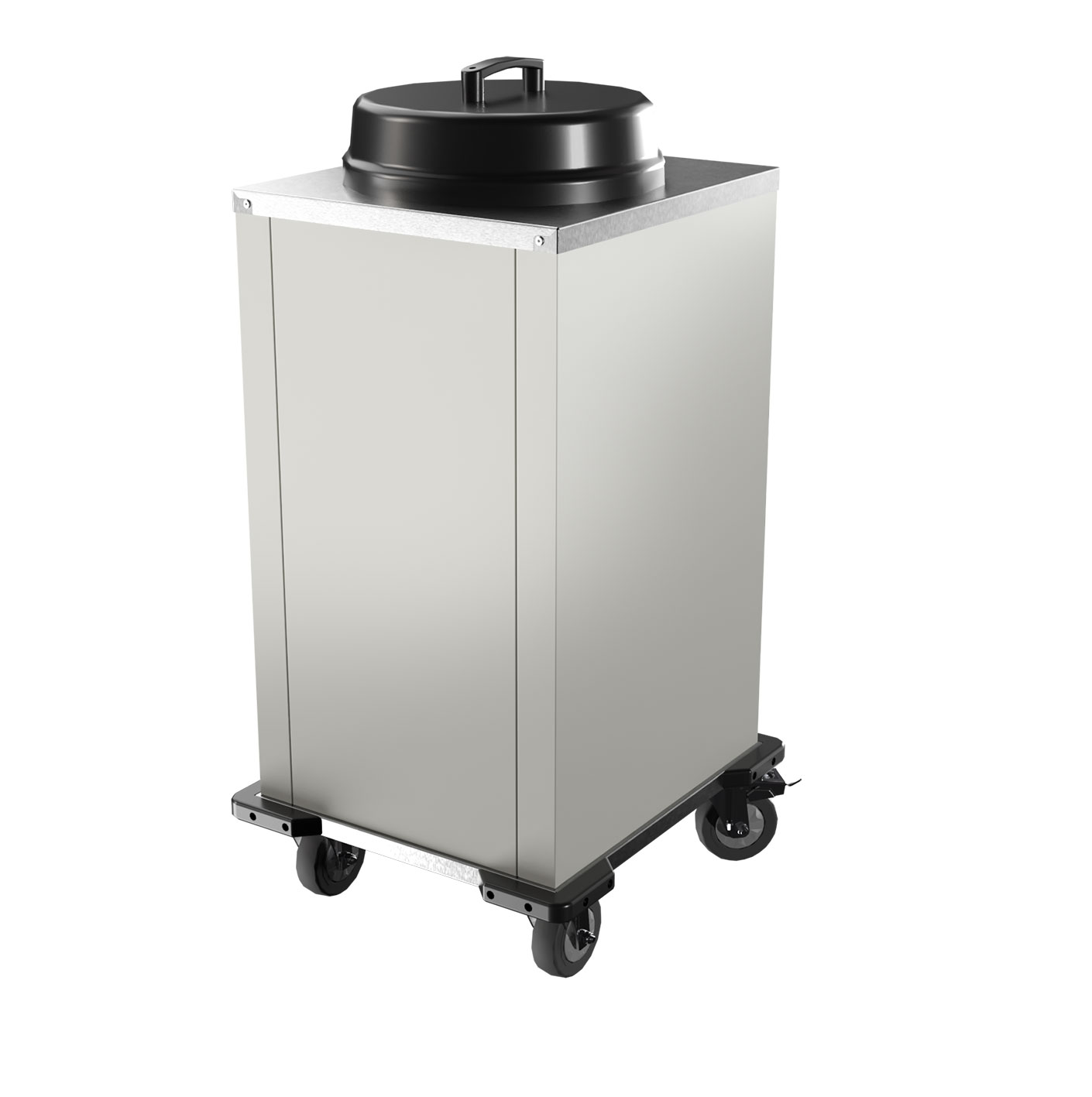

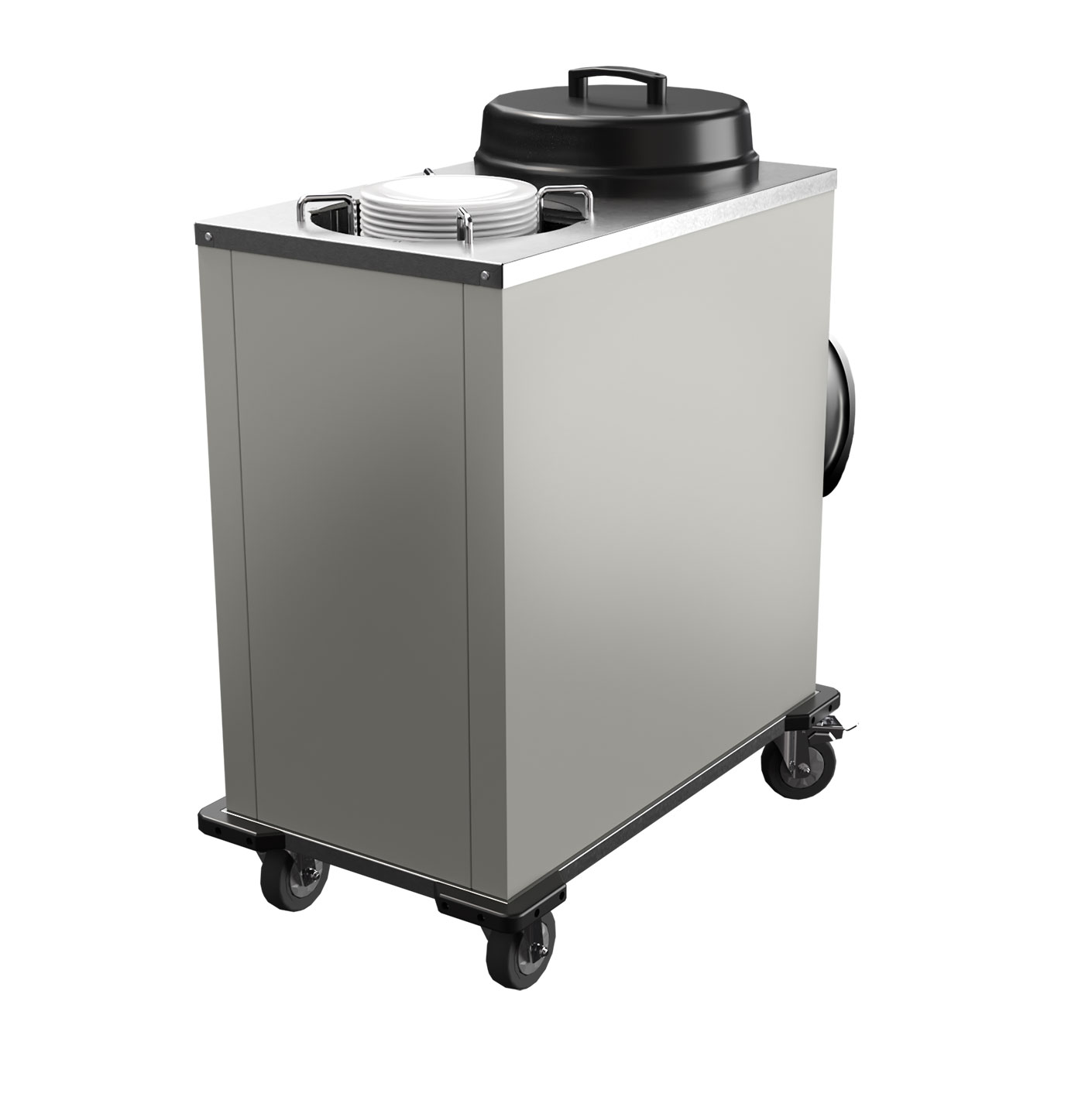

HP1 and HP2

Mobile and heated pop up plate dispensers. Each tube has four adjustable guide rods to enable it to take various size plates from 8” to 12” (205mm - 305mm) in diameter with a maximum capacity of around 75 plates per tube.

The dispensers have a variable spring system to accommodate different weights of plates. Lift off top plate and the next one automatically moves up into position. Heated units fitted with the renown Moffat Sahara fan forced air system complete with Impact resistant ABS covers and 13amp plug and cable. Temperature is thermostatically controlled and is adjustable between 30°C and 110° C, for convenience there is a handy cover /lid holder.

DOWNLOADS

Specification

Key features

Forced air heating and recirculation.
Fast heat up and recovery times.
Energy saving efficiency and even heat distribution.
Thermostatic control adjustable from 30°C to 110°C.
Interior finished in clinical bright polished stainless steel.
Capacity approximately 75 plates per tube depending on type, profile and thickness.
Supplied with ABS lids.
Simplistic easy adjustable springs allows repeated pop up plate presentation.
24/7 operation.
Exterior panels in durable plastic coated steel
Easily adjustable plate guides, no tools required.
Complete with a 2 metre long cable and 13 amp plug.
Outer panels Goosewing Grey.
