Universal Basket Dispensers

UBD

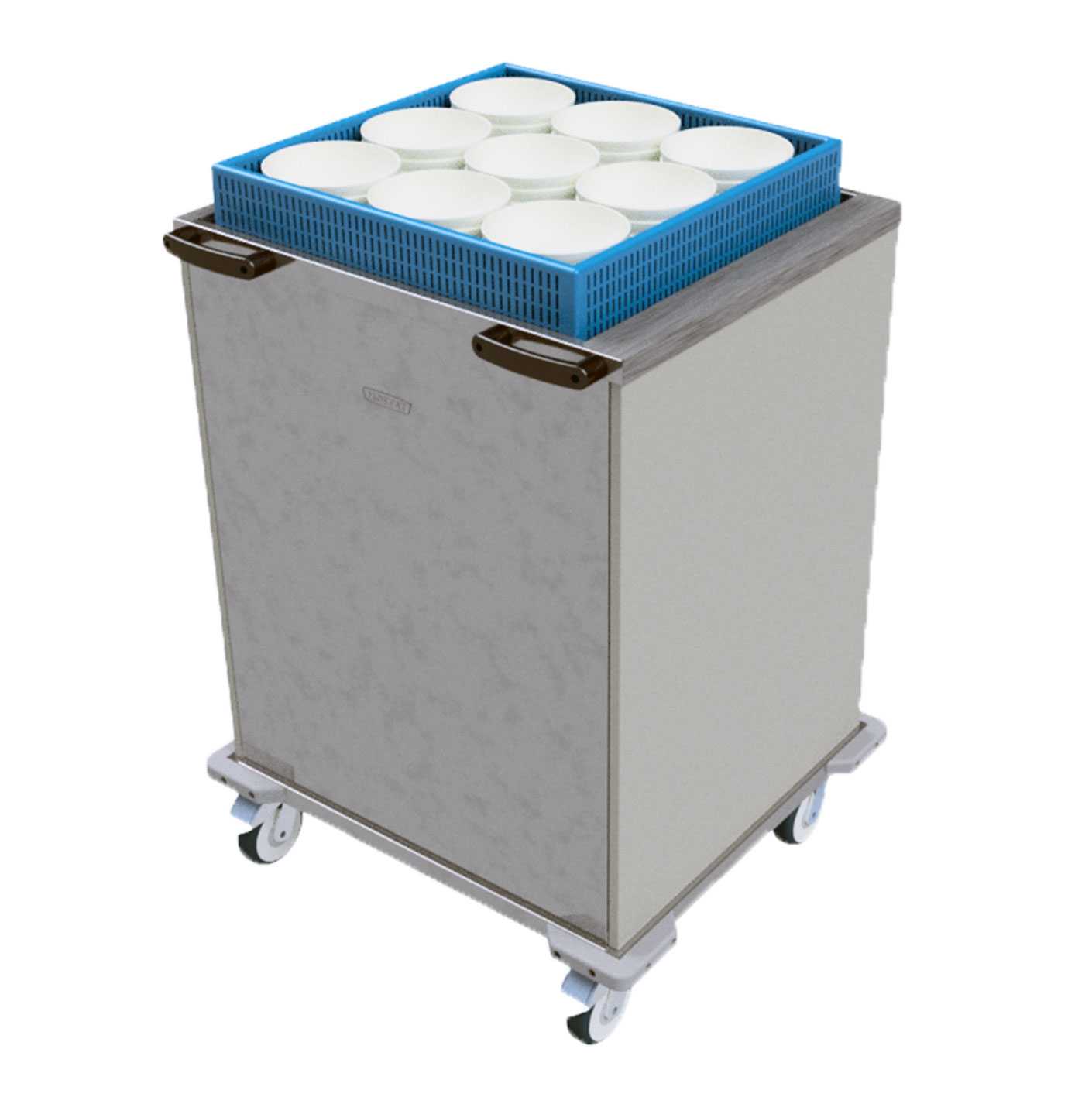

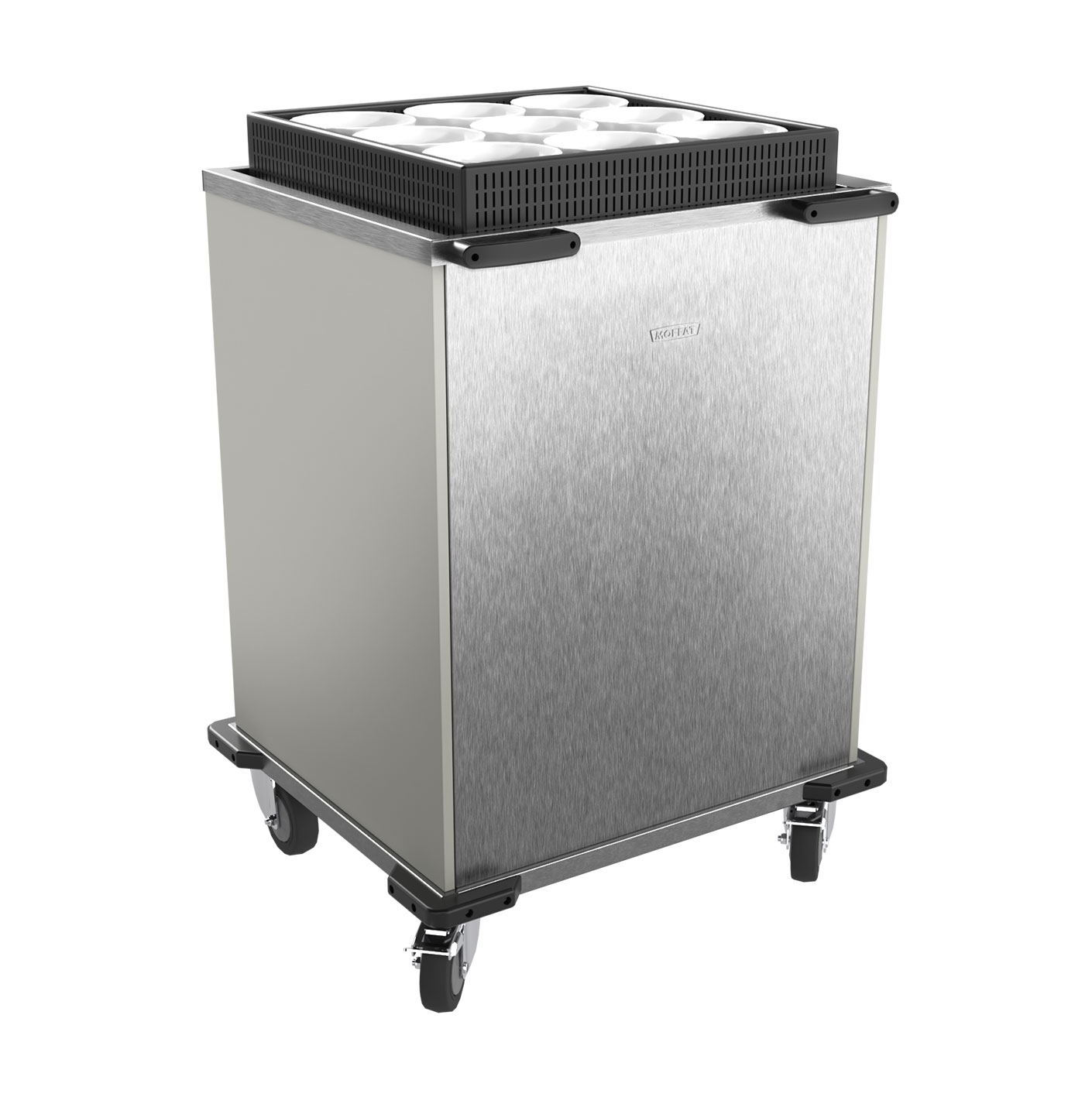

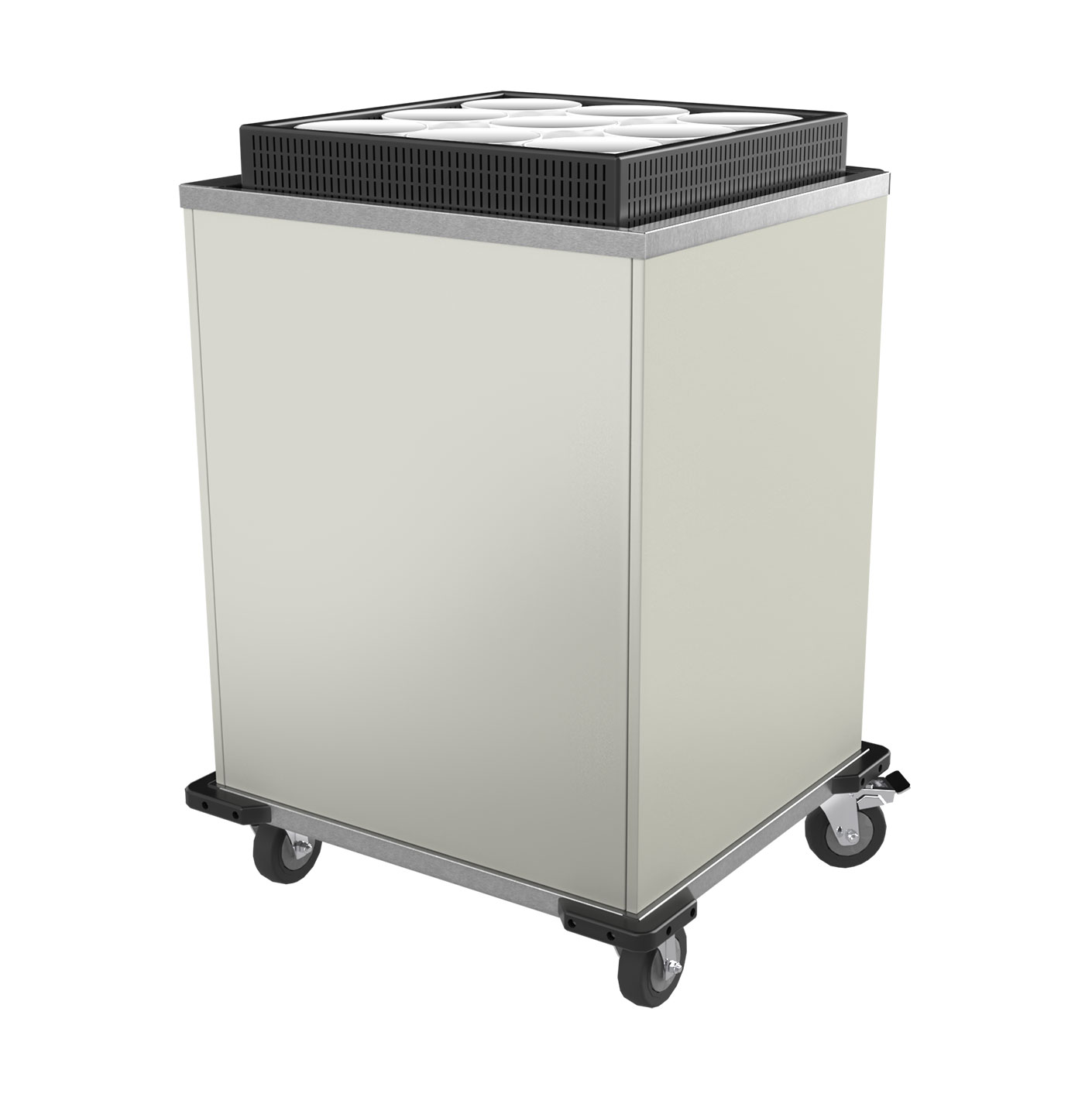

Enclosed basket dispenser with a Pop-Up variable spring system to accommodate different weights of baskets. Lift off top basket and the next one automatically moves up level into position delivering stacked dishwash type baskets holding different formats and sizes of crockery. This compact mobile unit is perfect for Keeping crockery and plates in one place. Load from the wash-up area & transfer to the point of service. Hygienic design, made of high-quality stainless steel and durable plastic coated outer panels. Four corner bumpers, protect the equipment on all sides. Ergonomically shaped push pull handles ensure optimal handling. Dispenser runs on allswivel 4” (100mm) casters of which two are lockable.



DOWNLOADS

Specification

Key features

  • Working height set at 890mm from floor level.
  • Basket Platform: 510 × 510 mm.
  • Stacking height: 600 mm.
  • Capacity: 5 baskets (100mm deep) 7 baskets (75mm deep).
  • Four swivel castors two with brakes.
  • Payload:100 kg.
  • Outer panels in durable plastic coated steel in Goosewing Grey.

Operating Modes

  • Self levelling basket dispenser.

Options

  • N/A
