Triple Laminated Wall Bench and Centre Tables
SWB and SCT

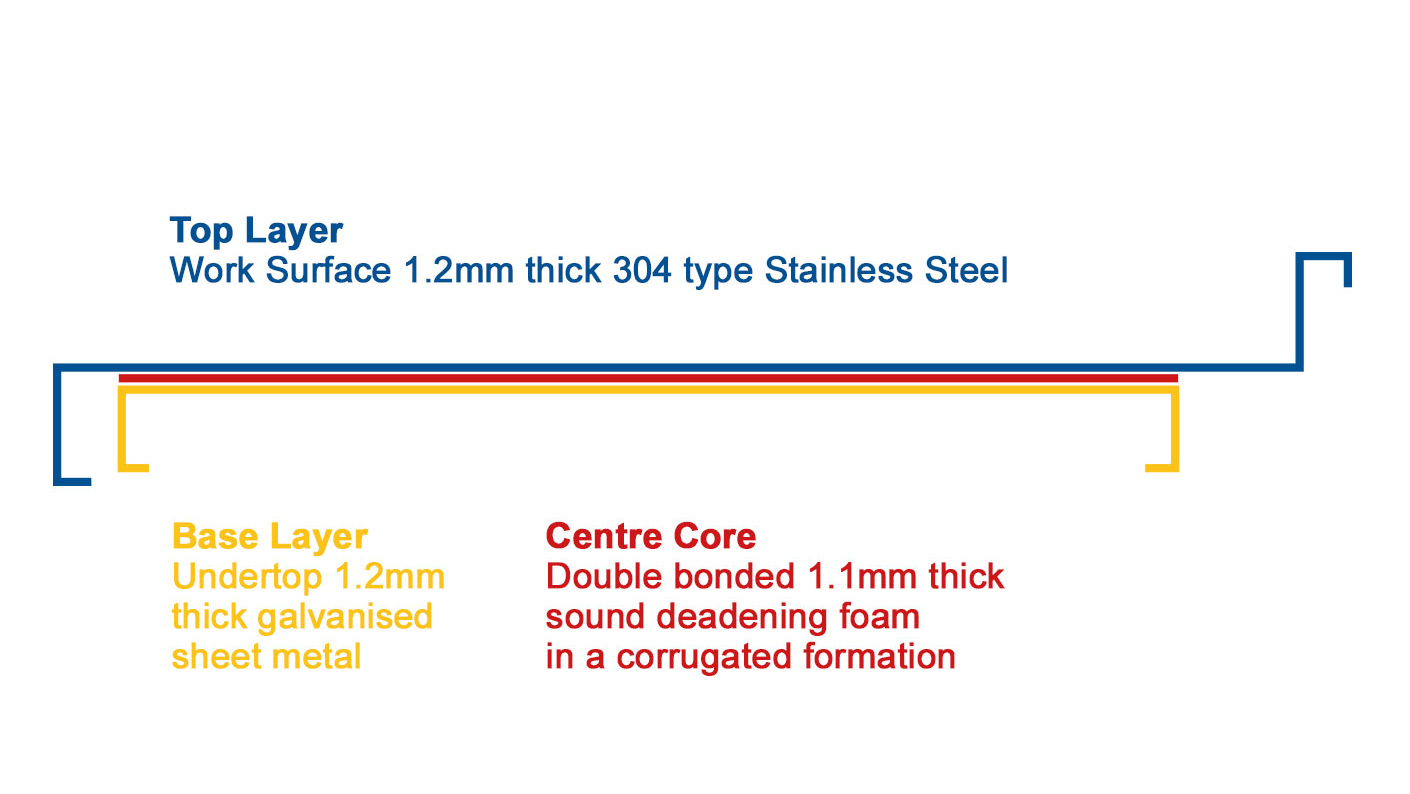

Unrivalled in quality with a specially designed triple laminate composite. Offering an internally dampened work top more than twice the thickness of a traditional table. The combined over all thickness of the complete work top is 3.5mm.

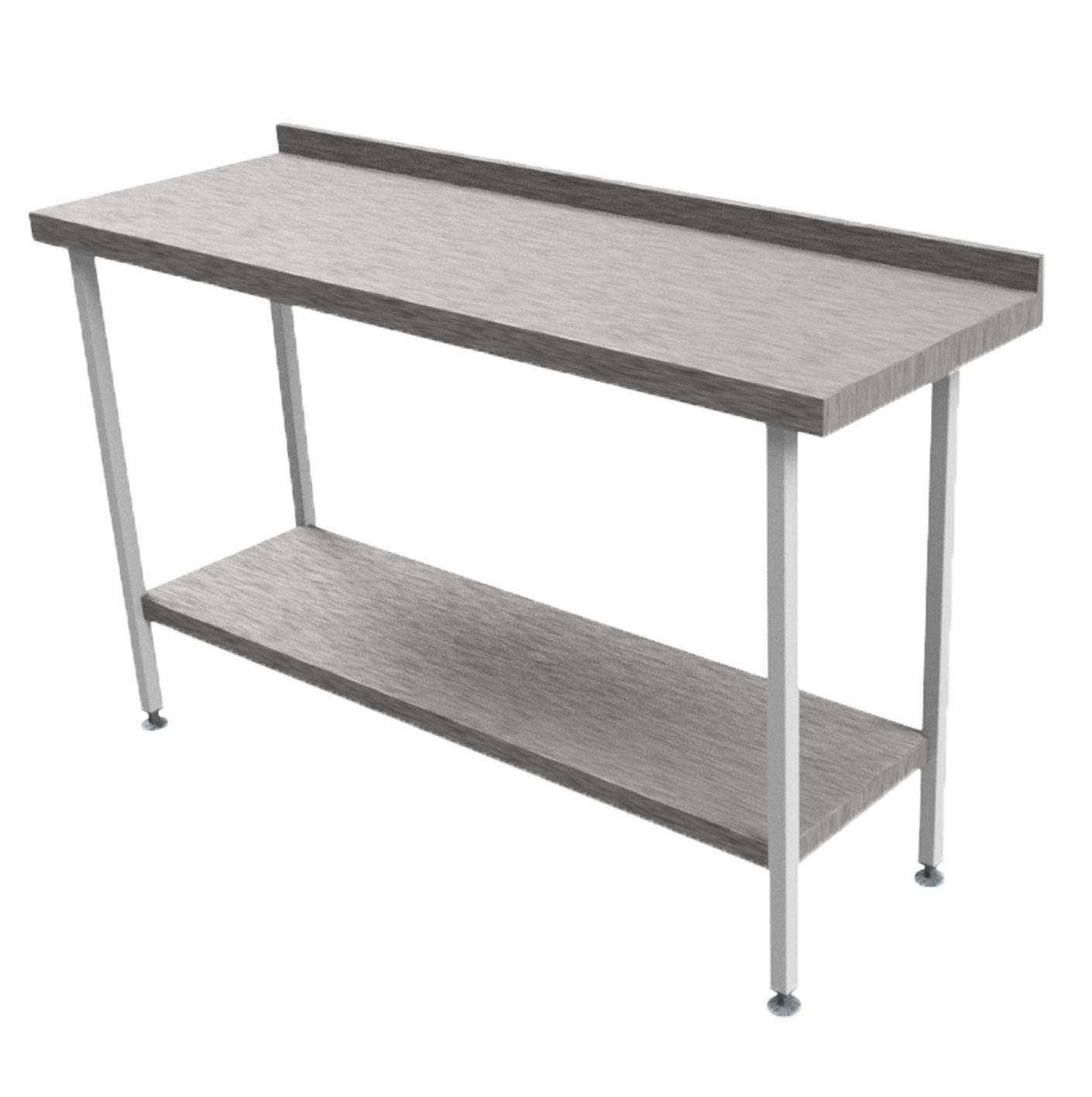

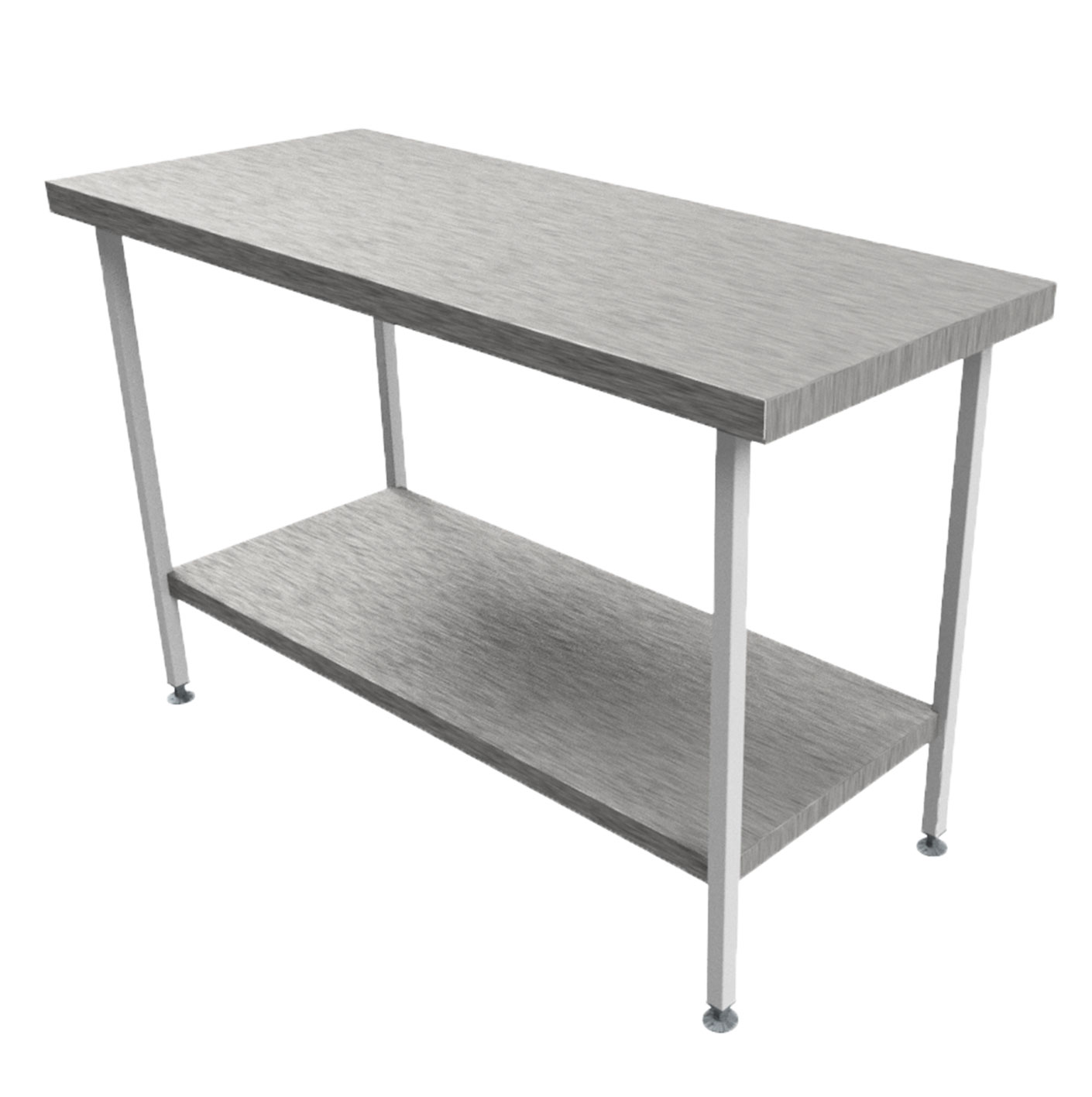

S’ Range Wall Benches and Centre Table tops are manufactured from type 304 stainless steel. Wall Benches have 50mm turn down front and ends and a 50mm high rear upstand with a 20mm return to wall (as detailed in line diagram). Centre Tables have 50mm turn down all round. All units are 900mm high to work surface and are supported on stainless steel legs with adjustable feet or optional castors, complete with stainless steel undershelf. (Units over 2100mm long have 6 legs). Unit sizes are as shown in the brochure but special sizes (with cutouts etc.) are available to suit your special requirements.
Guide to model codes. SWB = Wall Bench / SCT = Centre Table
Number 6 at the end of a code denotes the unit is 600mm deep.
Number 65 denotes 650mm deep and 7 denotes 700mm deep.
DOWNLOADS
Specification
Key features
- All Standard Wall bench and Centre tables are supplied with a 430-type stainless steel Under Shelf.
- Legs are made from 30mm square tube section 430 type stainless steel.
- Unique concealed clamping system with fully welded anchor pins ensure a strong steady construction.
- Floor fixing ready Die Cast Flanged feet are fully adjustable for height, up to a max of 35mm in adjustment.
- Models up to 2100mm long are fitted with four legs.
- Models above 2100mm long have six legs.
- 50mm down turn facia and ends.
- Wall bench type also have a fully welded and polished one-piece construction 50mm upstand to the rear.
- Wall Bench/Centre Table 600mm deep
- Wall Bench/Centre Table 650mm deep
- Wall Bench/Centre Table 700mm deep
- Wall Bench/Centre Table 750mm deep
| Model | Dimensions L x D x H |
|---|---|
| SWB/SCT36 | 300 x 600 x 900 |
| SWB/SCT66 | 600 x 600 x 900 |
| SWB/SCT96 | 900 x 600 x 900 |
| SWB/SCT126 | 1200 x 600 x 900 |
| SWB/SCT156 | 1500 x 600 x 900 |
| SWB/SCT186 | 1800 x 600 x 900 |
| SWB/SCT216 | 2100 x 600 x 900 |
| SWB/SCT246 | 2400 x 600 x 900 |
| Model | Dimensions L x D x H |
|---|---|
| SWB/SCT365 | 300 x 650 x 900 |
| SWB/SCT665 | 600 x 650 x 900 |
| SWB/SCT965 | 900 x 650 x 900 |
| SWB/SCT1265 | 1200 x 650 x 900 |
| SWB/SCT1565 | 1500 x 650 x 900 |
| SWB/SCT1865 | 1800 x 650 x 900 |
| SWB/SCT2165 | 2100 x 650 x 900 |
| SWB/SCT2465 | 2400 x 650 x 900 |
| Model | Dimensions L x D x H |
|---|---|
| SWB/SCT37 | 300 x 700 x 900 |
| SWB/SCT67 | 600 x 700 x 900 |
| SWB/SCT97 | 900 x 700 x 900 |
| SWB/SCT127 | 1200 x 700 x 900 |
| SWB/SCT157 | 1500 x 700 x 900 |
| SWB/SCT187 | 1800 x 700 x 900 |
| SWB/SCT217 | 2100 x 700 x 900 |
| SWB/SCT247 | 2400 x 700 x 900 |
| Model | Dimensions L x D x H |
|---|---|
| SWB/SCT375 | 300 x 750 x 900 |
| SWB/SCT675 | 600 x 750 x 900 |
| SWB/SCT975 | 900 x 750 x 900 |
| SWB/SCT1275 | 1200 x 750 x 900 |
| SWB/SCT1575 | 1500 x 750 x 900 |
| SWB/SCT1875 | 1800 x 750 x 900 |
| SWB/SCT2175 | 2100 x 750 x 900 |
| SWB/SCT2475 | 2400 x 750 x 900 |
Innovation
- Unrivalled in quality with a specially designed triple laminate composite. Offering an internally dampened work top more than twice the thickness of a traditional table. The combined over all thickness of the complete work top is 3.5mm.
Options

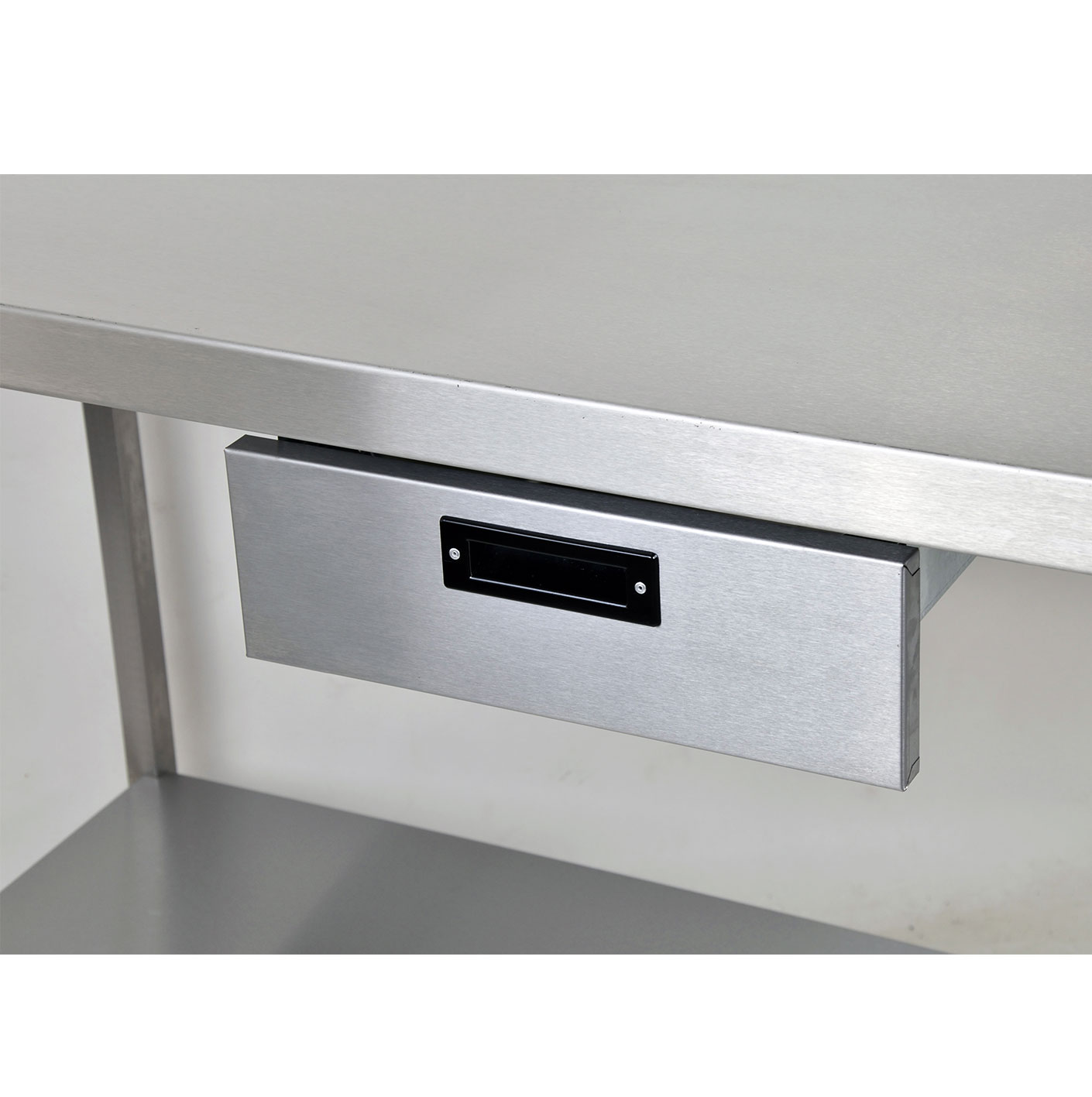

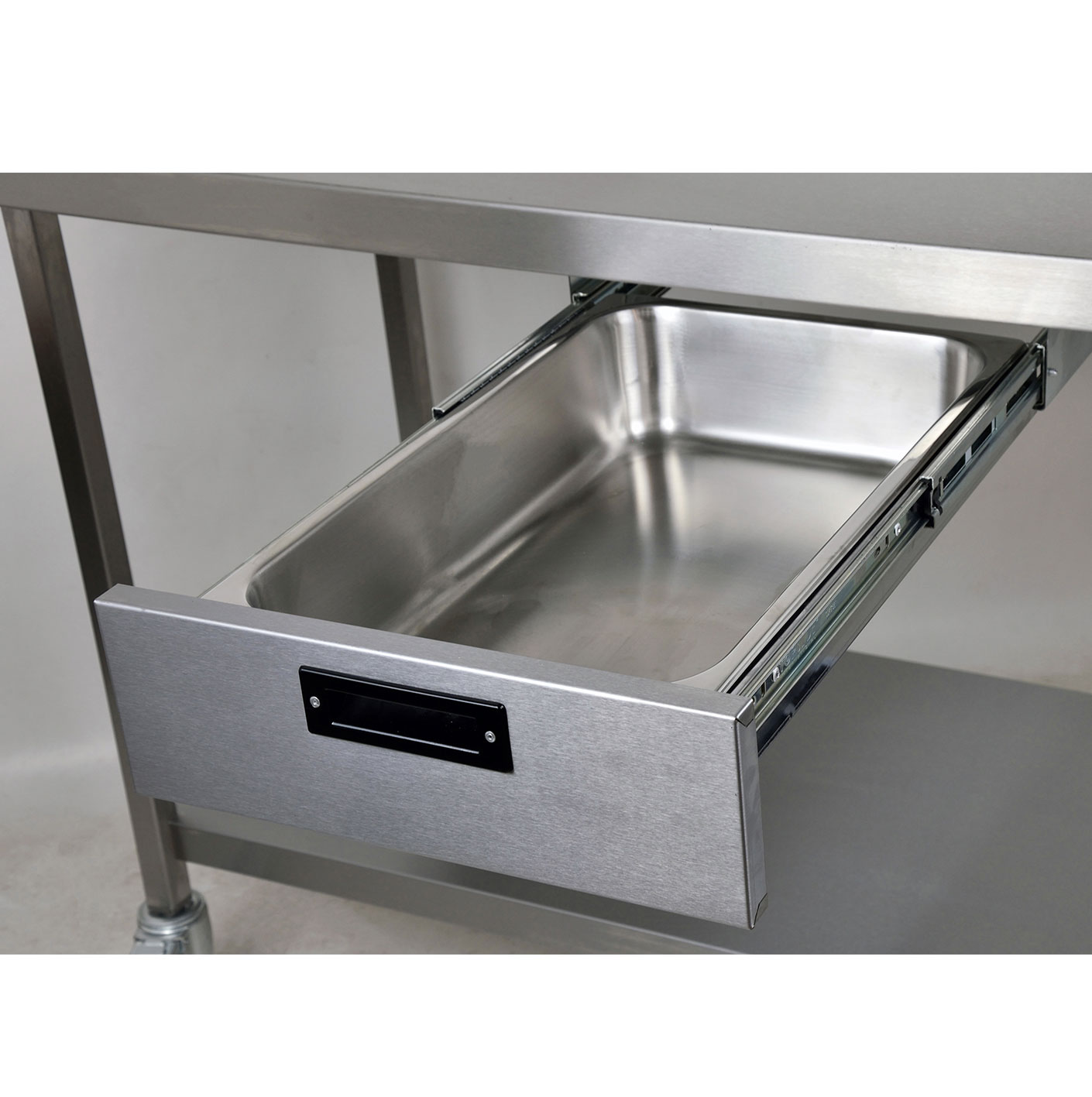

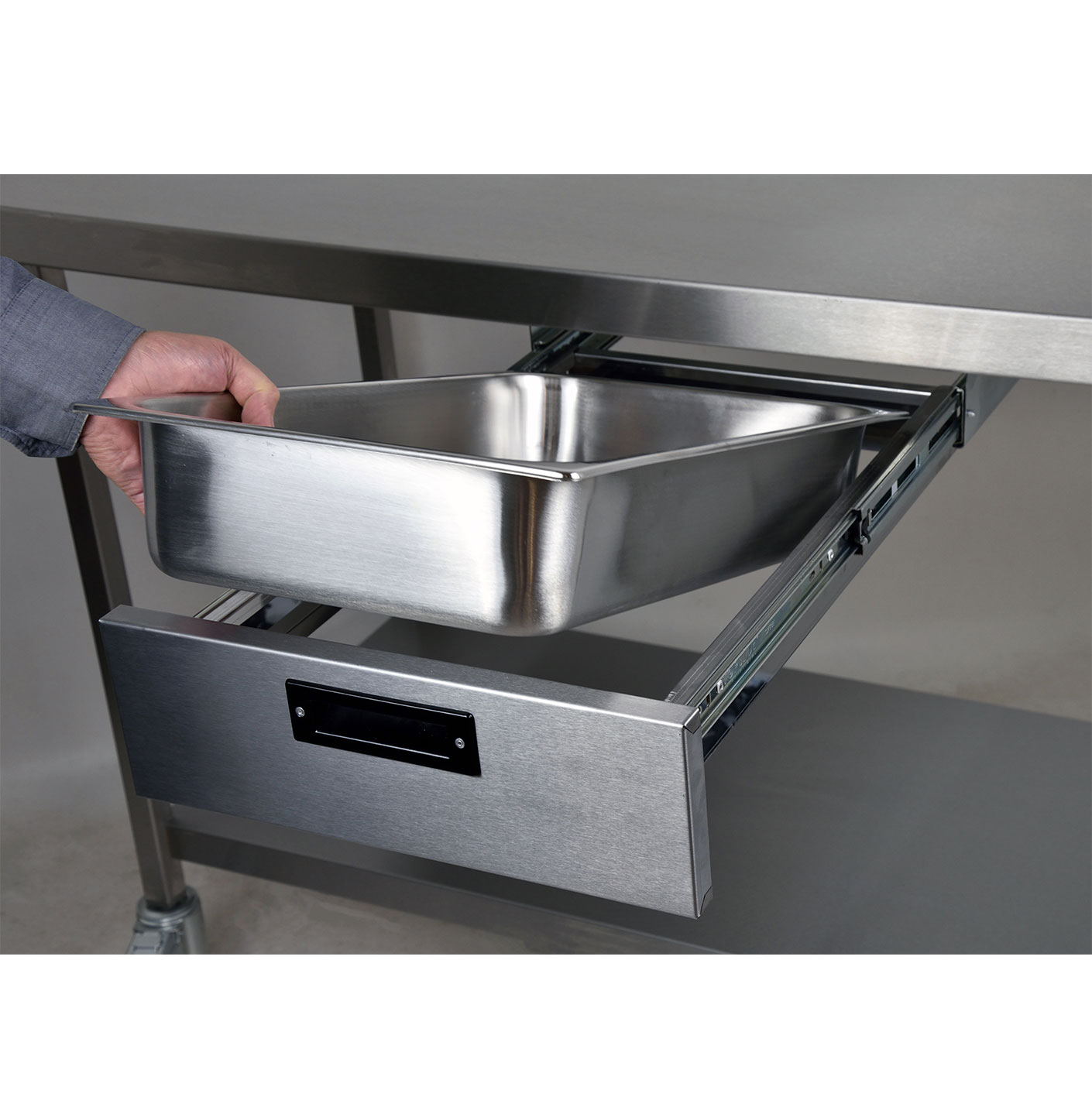

- FX32 GN drawer fitted complete with stainless steel pan
- FX33 Bank of 2 Gastronorm drawers complete with stainless steel pans
- FX34 Bank of 3 Gastronorm drawers complete with stainless steel pans
- FX35 Bank of 4 Gastronorm drawers complete with stainless steel pans
- FX36 Bank of 1 Gastronorm drawer fitted complete with polypropylene pan
- FX37 Bank of 2 Gastronorm drawer fitted complete with polypropylene pan
- FX38 Bank of 3 Gastronorm drawer fitted complete with polypropylene pan
- FX39 Bank of 4 Gastronorm drawer fitted complete with polypropylene pan
- FX40 Gastronorm drawer ( fitted) complete with adaptor & lift out grey plastic 4 section cutlery box
- FX41 Bank of 2 Gastronorm drawer ( fitted) complete with adaptor & lift out grey plastic 4 section cutlery box
- FX42 Bank of 3 Gastronorm drawer ( fitted) complete with adaptor & lift out grey plastic 4 section cutlery box
- FX43 Bank of 4 Gastronorm drawer ( fitted) complete with adaptor & lift out grey plastic 4 section cutlery box
- FX44 Drawer lock for gastronorm drawer range (multiply by number of lockable drawers required)
