Six-S Space Saving Stainless Steel Shelving System
6S6/9/12/15/18PL
6S6/9/12/15/18PLSS
6S6/9/12/15/18PF
6S6/9/12/15/18PFSS
6S6/9/12/15/18PLH
6S6/9/12/15/18PLSSH
6S6/9/12/15/18PFH
6S6/9/12/15/18PFSSH
Designed for use in cold or dry stores, these extendable units will suit all types of application including restaurants, hospitals, warehouses, butcheries and bakeries.
Uprights are made from 30mm square section stainless steel with adjustable feet to compensate for uneven surfaces. Shelves are manufactured in stainless steel with a 50mm downturn and 15mm return all round in a satin smooth polish finish and are available in plain or perforated styles.
Our unique ‘Versiclamp’ system holds the shelves securely in place but allows for infinite adjustment to the distance between shelves. These shelving systems are available in 1500mm or 1800mm high units. These units can be supplied fully assembled or as a flat pack budget option with tools and instructions.
DOWNLOADS
Specification
Key features
- Recommended Max Capacity per shelf
600 Length 60kg, 900 Length 55kg,
1200 Length 50kg, 1500 Length 45kg,
1800 Length 40kg - Solid Shelf System 1500mm high
Stainless steel Grade 430 - Solid Shelf System 1500mm high
Stainless steel Grade 304 - Perforated Shelf System 1500mm high
Stainless steel Grade 430 - Perforated Shelf System 1500mm high
Stainless steel Grade 304 - Solid Shelf System 1800mm high
Stainless steel Grade 430 - Solid Shelf System 1800mm high
Stainless steel Grade 304 - Perforated Shelf System 1800mm high
Stainless steel Grade 430 - Perforated Shelf System 1800mm high
Stainless steel Grade 304
Model | Dimensions L x D x H |
---|---|

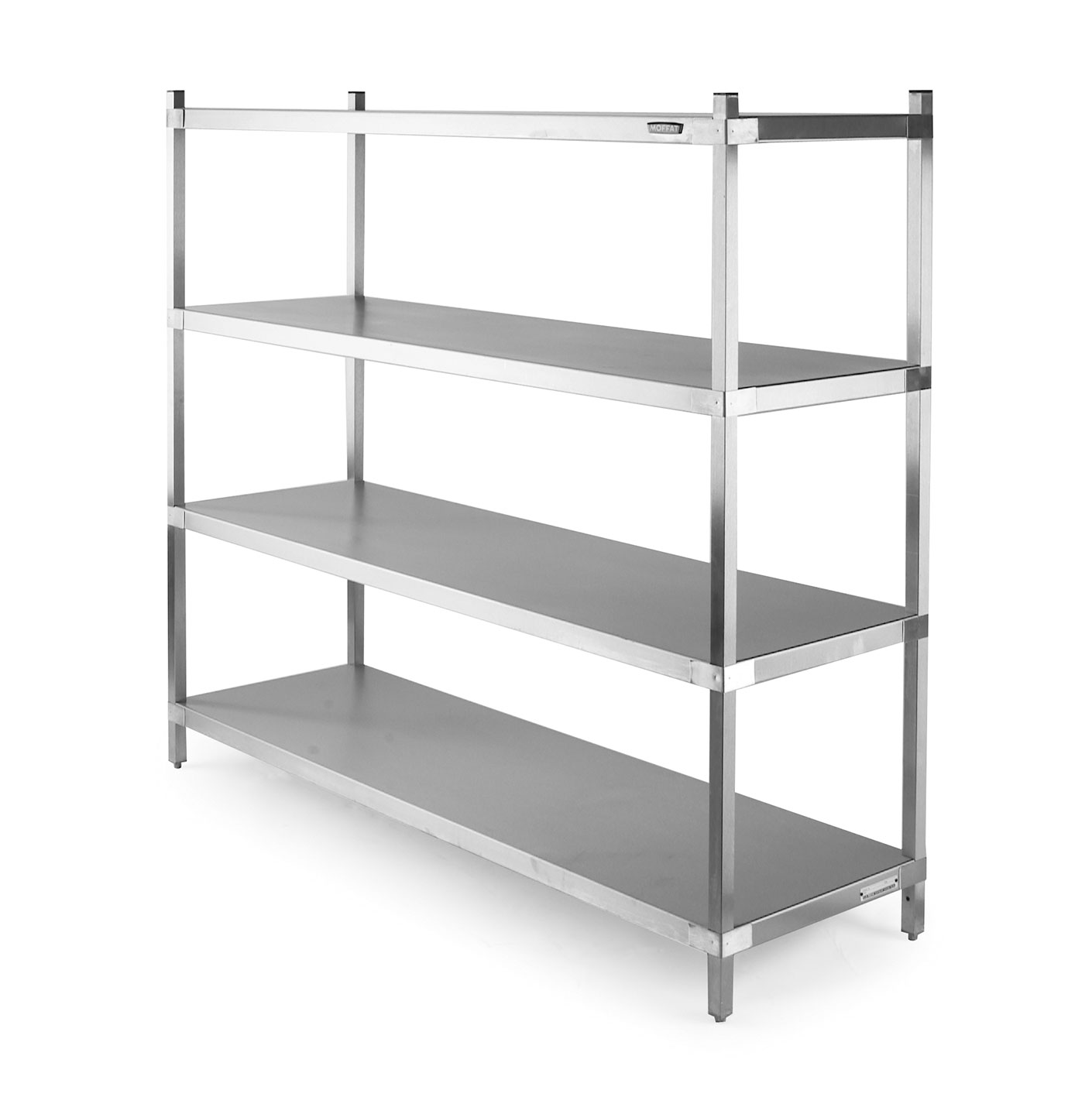

6S6PL | 600 x 520 x 1500 |
6S9PL | 900 x 520 x 1500 |
6S12PL | 1200 x 520 x 1500 |
6S15PL | 1500 x 520 x 1500 |
6S18PL | 1800 x 520 x 1500 |
Model | Dimensions L x D x H |
---|---|
6S6PLSS | 600 x 520 x 1500 |
6S9PLSS | 900 x 520 x 1500 |
6S12PLSS | 1200 x 520 x 1500 |
6S15PLSS | 1500 x 520 x 1500 |
6S18PLSS | 1800 x 520 x 1500 |
Model | Dimensions L x D x H |
---|---|

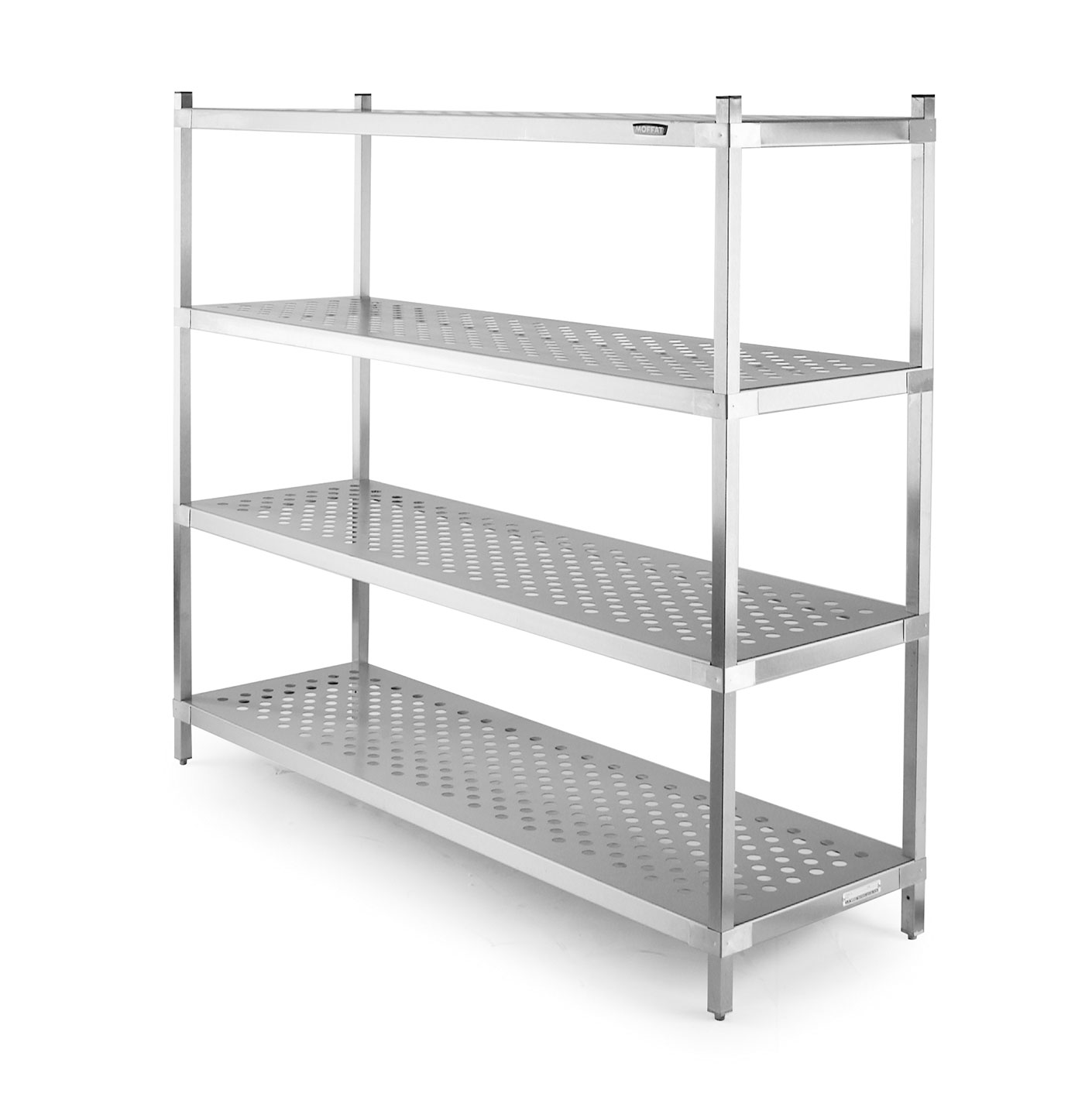

6S6PF | 600 x 520 x 1500 |
6S9PF | 900 x 520 x 1500 |
6S12PF | 1200 x 520 x 1500 |
6S15PF | 1500 x 520 x 1500 |
6S18PF | 1800 x 520 x 1500 |
Model | Dimensions L x D x H |
---|---|
6S6PFSS | 600 x 520 x 1500 |
6S9PFSS | 900 x 520 x 1500 |
6S12PFSS | 1200 x 520 x 1500 |
6S15PFSS | 1500 x 520 x 1500 |
6S18PFSS | 1800 x 520 x 1500 |
Model | Dimensions L x D x H |
---|---|
6S6PLH | 600 x 520 x 1800 |
6S9PLH | 900 x 520 x 1800 |
6S12PLH | 1200 x 520 x 1800 |
6S15PLH | 1500 x 520 x 1800 |
6S18PLH | 1800 x 520 x 1800 |
Model | Dimensions L x D x H |
---|---|
6S6PLSSH | 600 x 520 x 1800 |
6S9PLSSH | 900 x 520 x 1800 |
6S12PLSSH | 1200 x 520 x 1800 |
6S15PLSSH | 1500 x 520 x 1800 |
6S18PLSSH | 1800 x 520 x 1800 |
Model | Dimensions L x D x H |
---|---|
6S6PFH | 600 x 520 x 1800 |
6S9PFH | 900 x 520 x 1800 |
6S12PFH | 1200 x 520 x 1800 |
6S15PFH | 1500 x 520 x 1800 |
6S18PFH | 1800 x 520 x 1800 |
Model | Dimensions L x D x H |
---|---|
6S6PFSSH | 600 x 520 x 1800 |
6S9PFSSH | 900 x 520 x 1800 |
6S12PFSSH | 1200 x 520 x 1800 |
6S15PFSSH | 1500 x 520 x 1800 |
6S18PFSSH | 1800 x 520 x 1800 |
Options
- PGF Set of 4, all swivel castors, 125mm dia, two with brakes.
