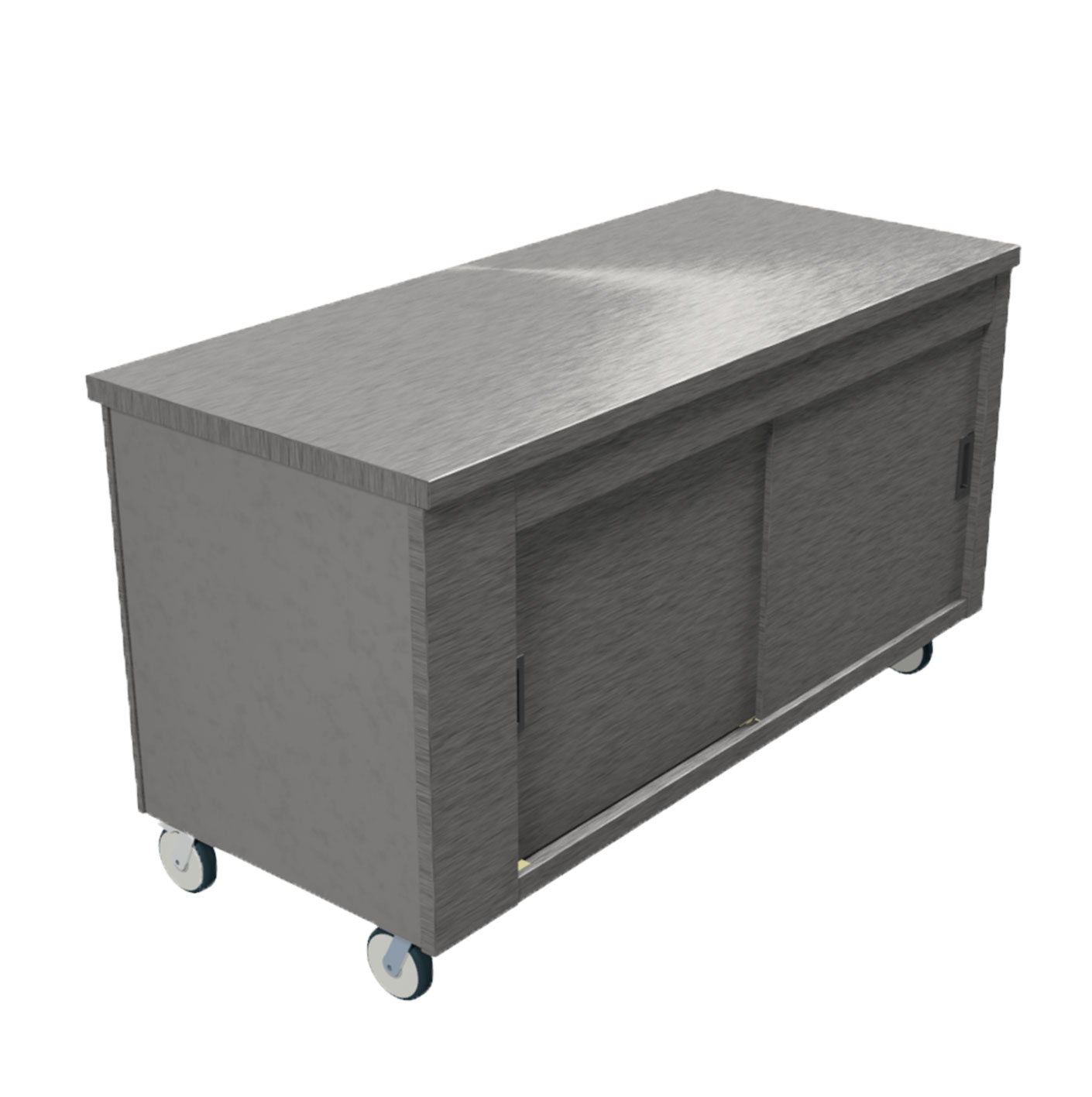

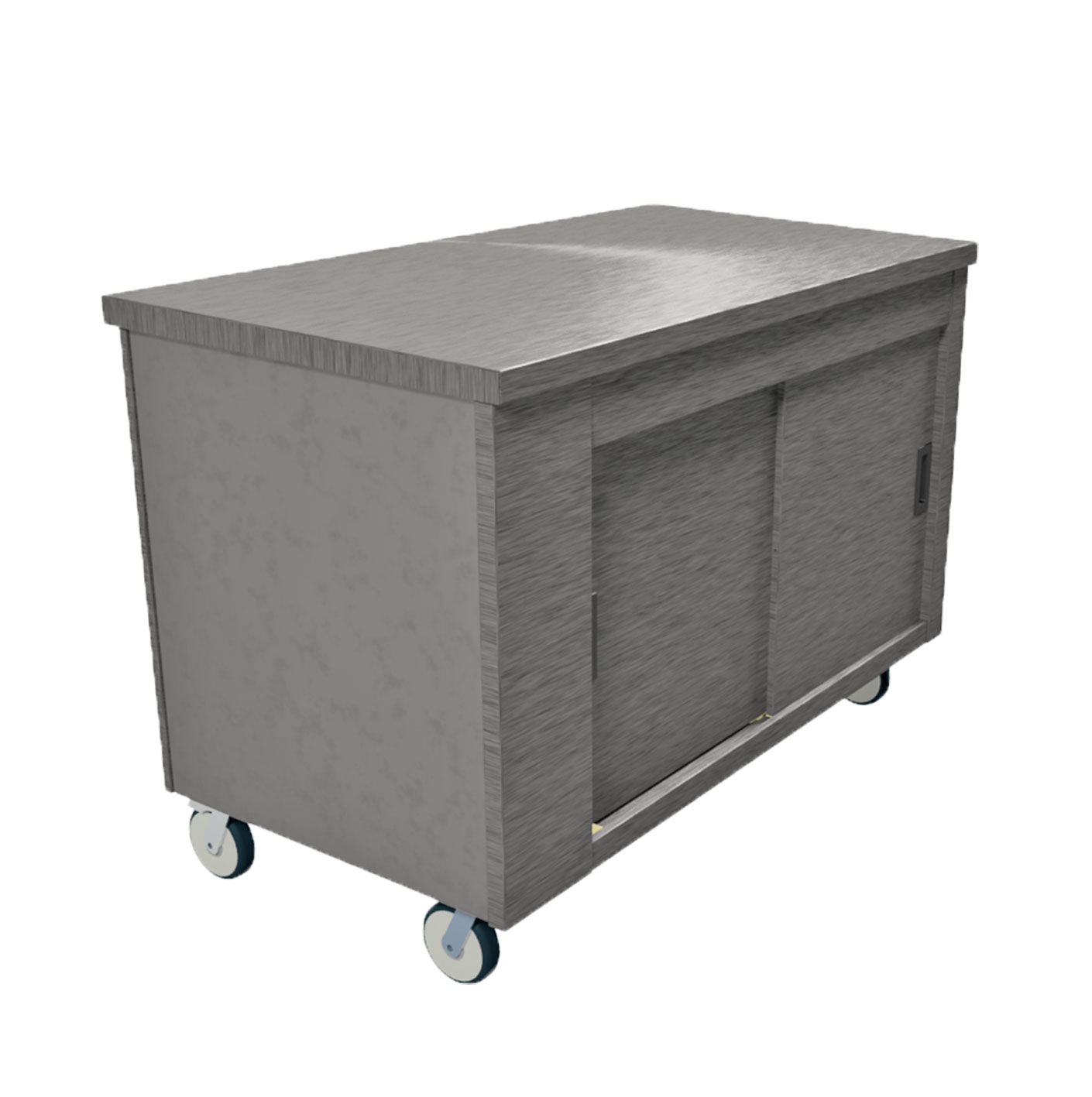

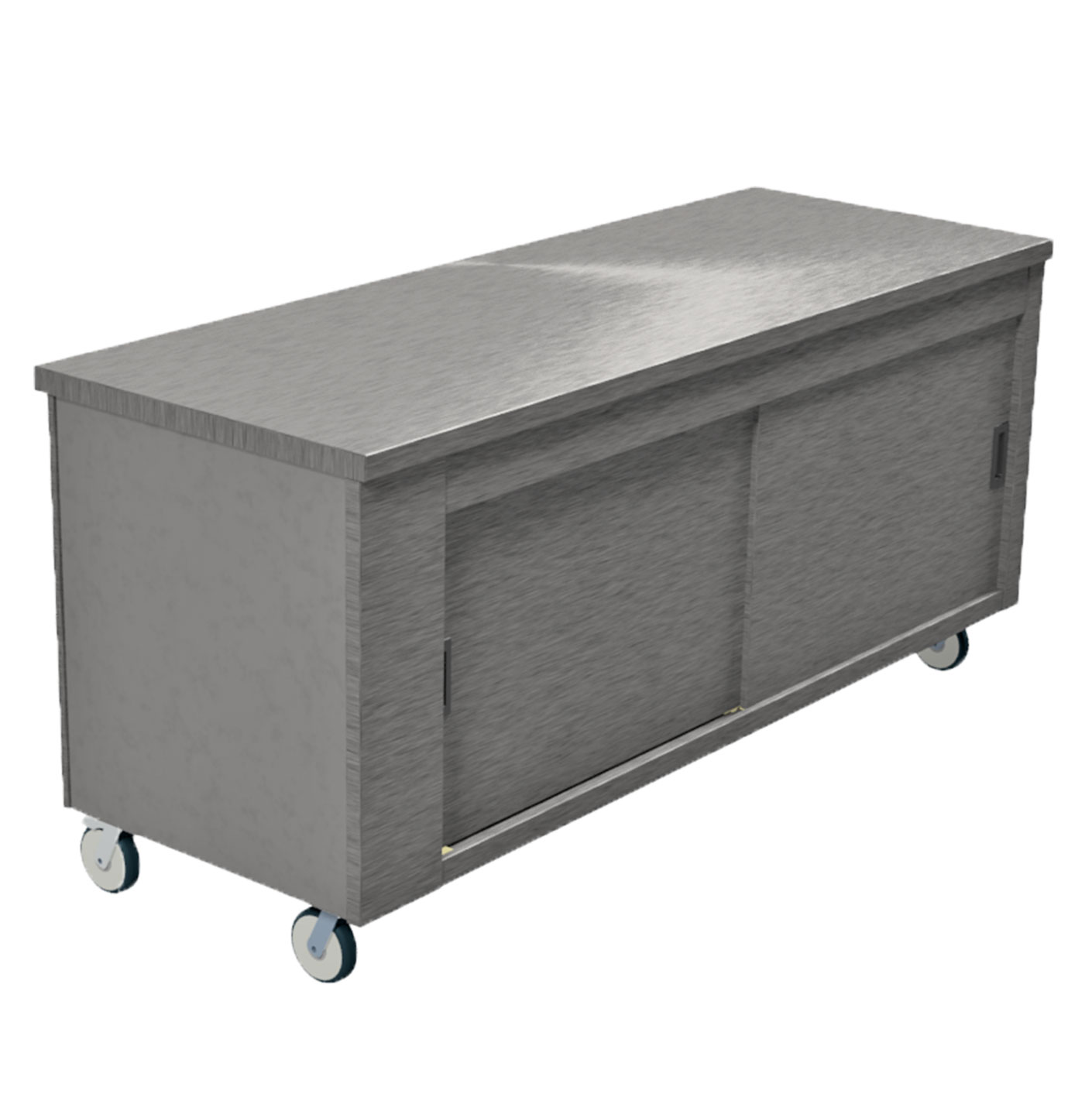

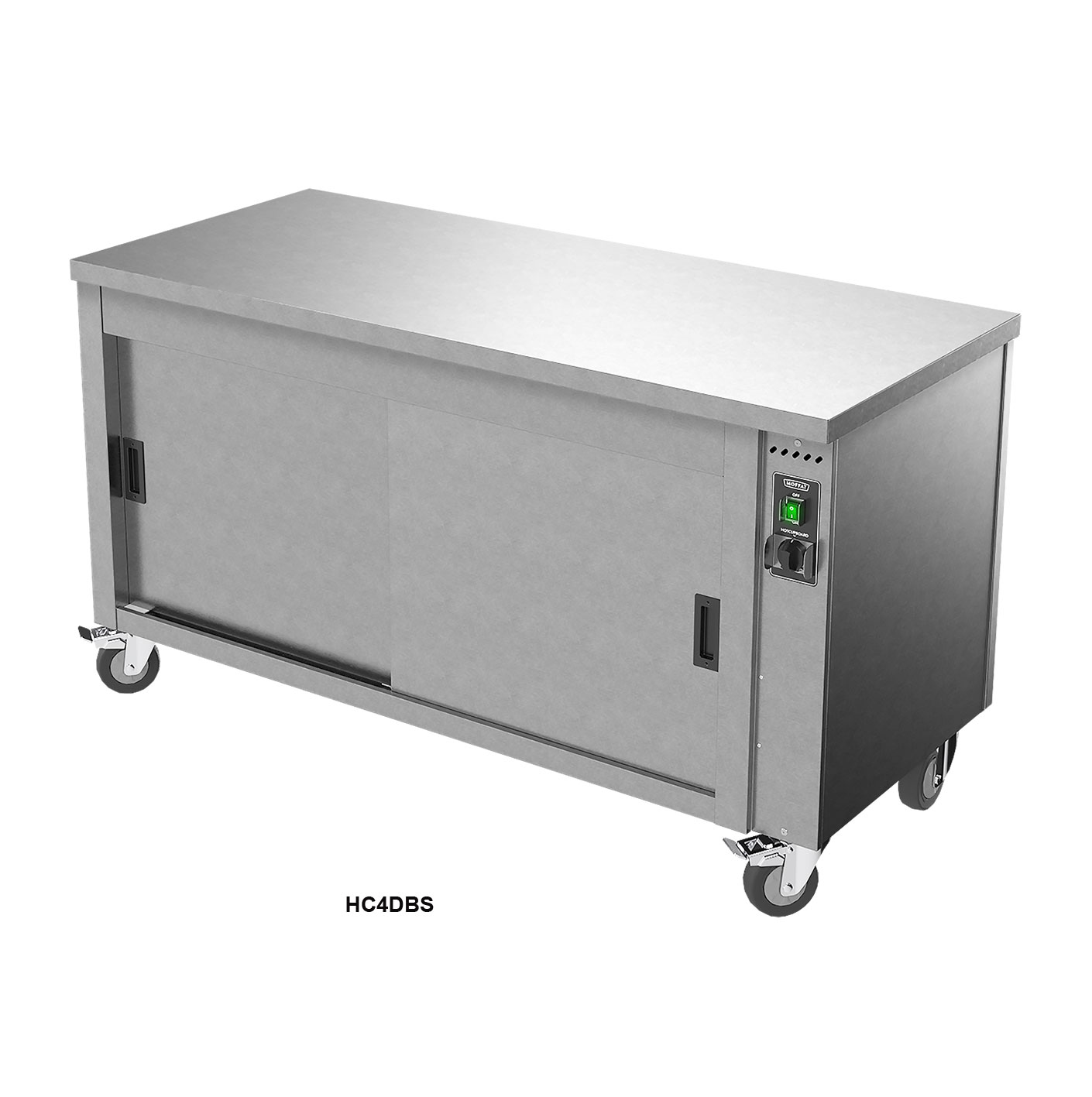

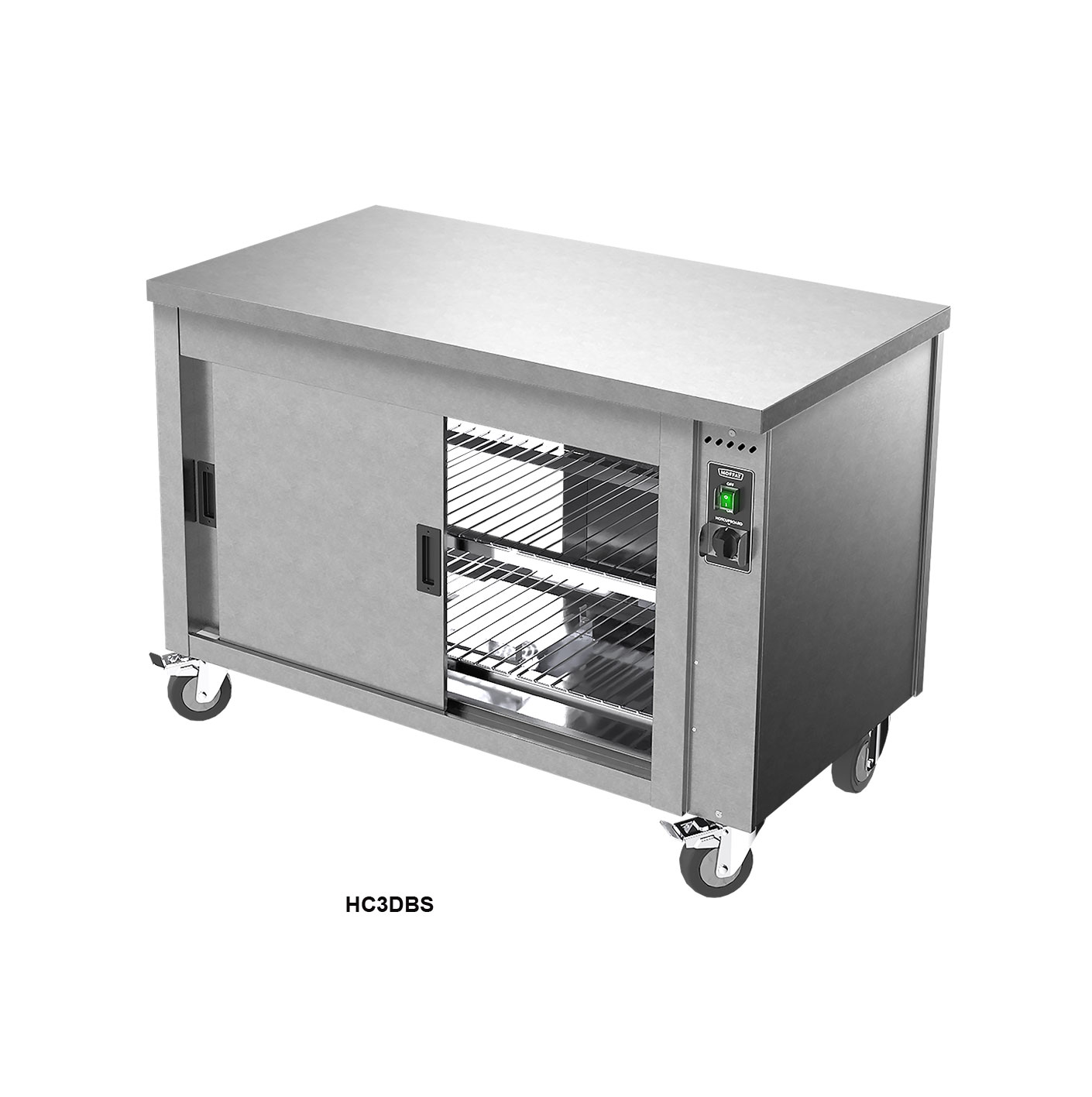

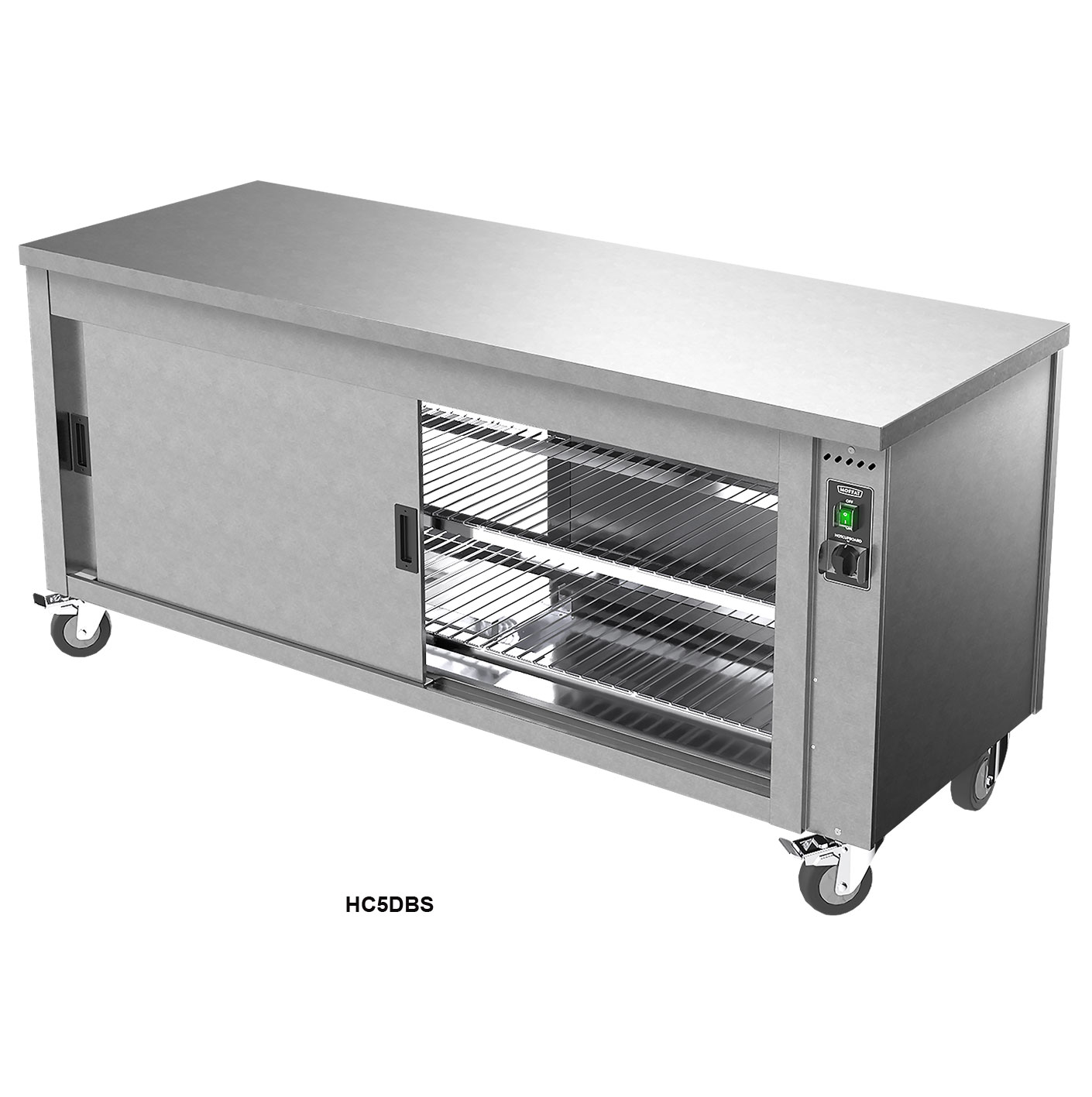

Premier Hot Cupboard Doors Both Sides
HC2/3/4/5DBS
Mobile hot-cupboards with sliding doors on both sides. Based on Gastronorm GN1/1 pans available in four lengths. Compact high capacity units, hot food or plates and dishes can be held warm ready for service. Fully insulated robust stainless-steel construction with a solid plain top. A heavy-duty range aimed at the busy kitchen particularly suited to Restaurants, Hotels, Conference Centres, Universities, Schools, and Holiday Centres. Excellent for pre-heating plates and dishes, as well as the temporary storage of precooked food e.g. cooked meats, poultry, vegetables, sauces, etc. With an energy saving, fast heat up and recovery forced air heating and recirculation system, spreading the heat evenly throughout the cupboard.
DOWNLOADS
Specification
Key features
- Doors both sides.
- Insulated for increased efficiency.
- With hygiene in mind all stainless-steel construction, inner panels are bright polished.
- Forced-air, convection, heated cupboard offers unparalleled flexibility of use.
- Fan unit is easily removable for cleaning and maintenance.
- Base and door track in one piece for easy cleaning.
- Thermostatically controlled fan assisted hot cupboard. 30°-110°C.
- Doors are very easily removed for cleaning, sliding doors have unique double life skid pads.
- Doors can be fully rotated and reinserted allowing the spare skid pads to be used offering a long and trouble-free service.
- Easy lift out GN 1/1 size multiple grid shelves, held by heavy-duty stainless-steel tube supports.
- The recessed, slide-out control panel is mounted to the operator right hand side.
- Mobile as standard fitted with 125mm diameter castors all swivel two with brakes.
- Mobility allows for easy kitchen deep clean.
- Complete with a 2-meter-long cable and plug [most units work from a 13-amp supply
Operating Modes
- Doors both sides.
- Forced-air, convection, heated cupboard offers unparalleled flexibility of use.
- Fan unit is easily removable for cleaning and maintenance.
- Base and door track in one piece for easy cleaning.
- Thermostatically controlled fan assisted hot cupboard. 30°-110°C.
Electrical Specifications
- Rating - 0.9 kW - 1.9 kW
- Electrical Supply - 13amp
Wiring Drawings
- Wiring drawing can be obtained by contacting Sales
Options
- Non-mobile on adjustable for height feet [no extra cost but must be stated on order]
- Overhead gantry traditional pass through type. (See Moffat Kitchen pass range)
- Door Locks
