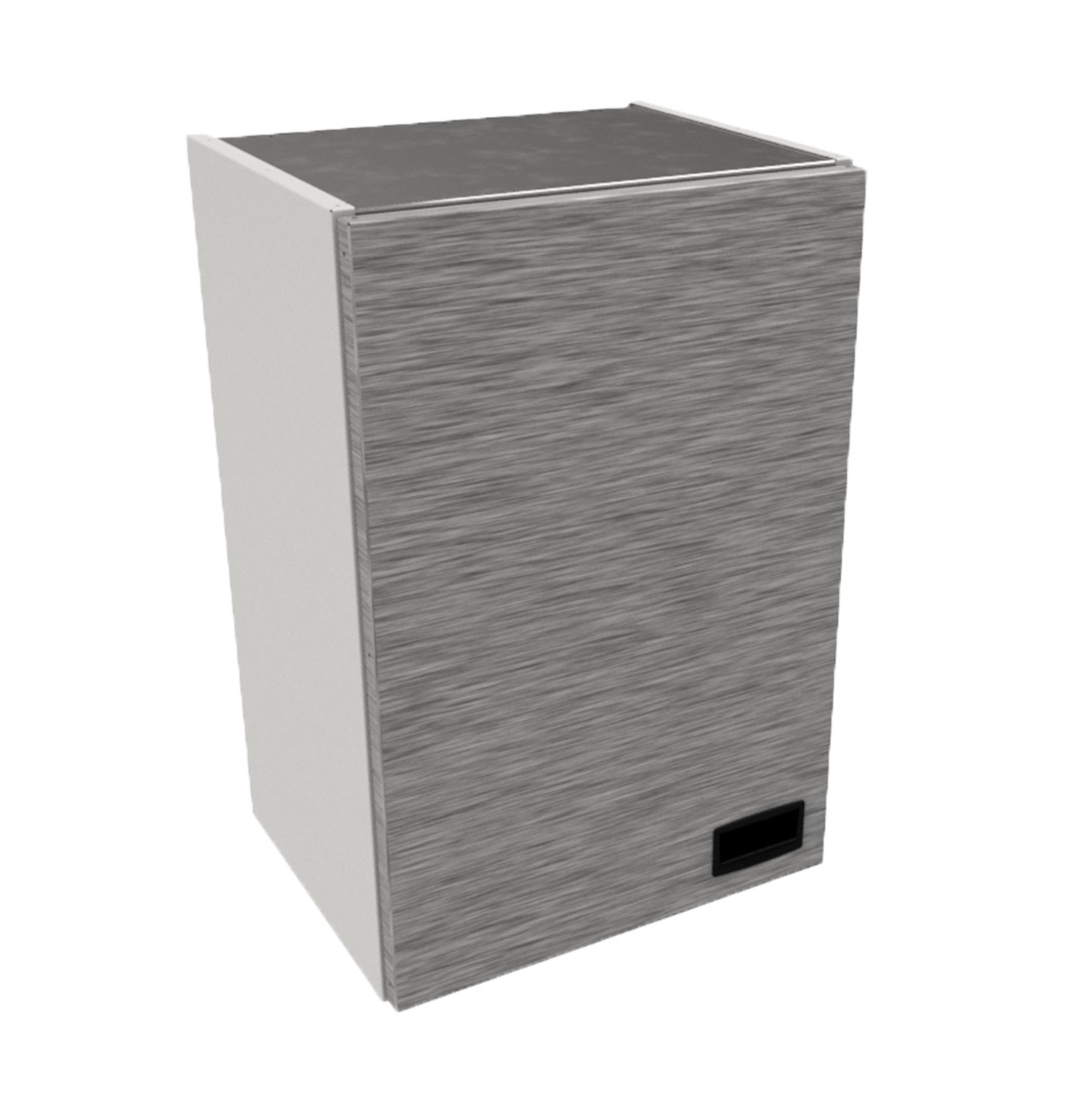

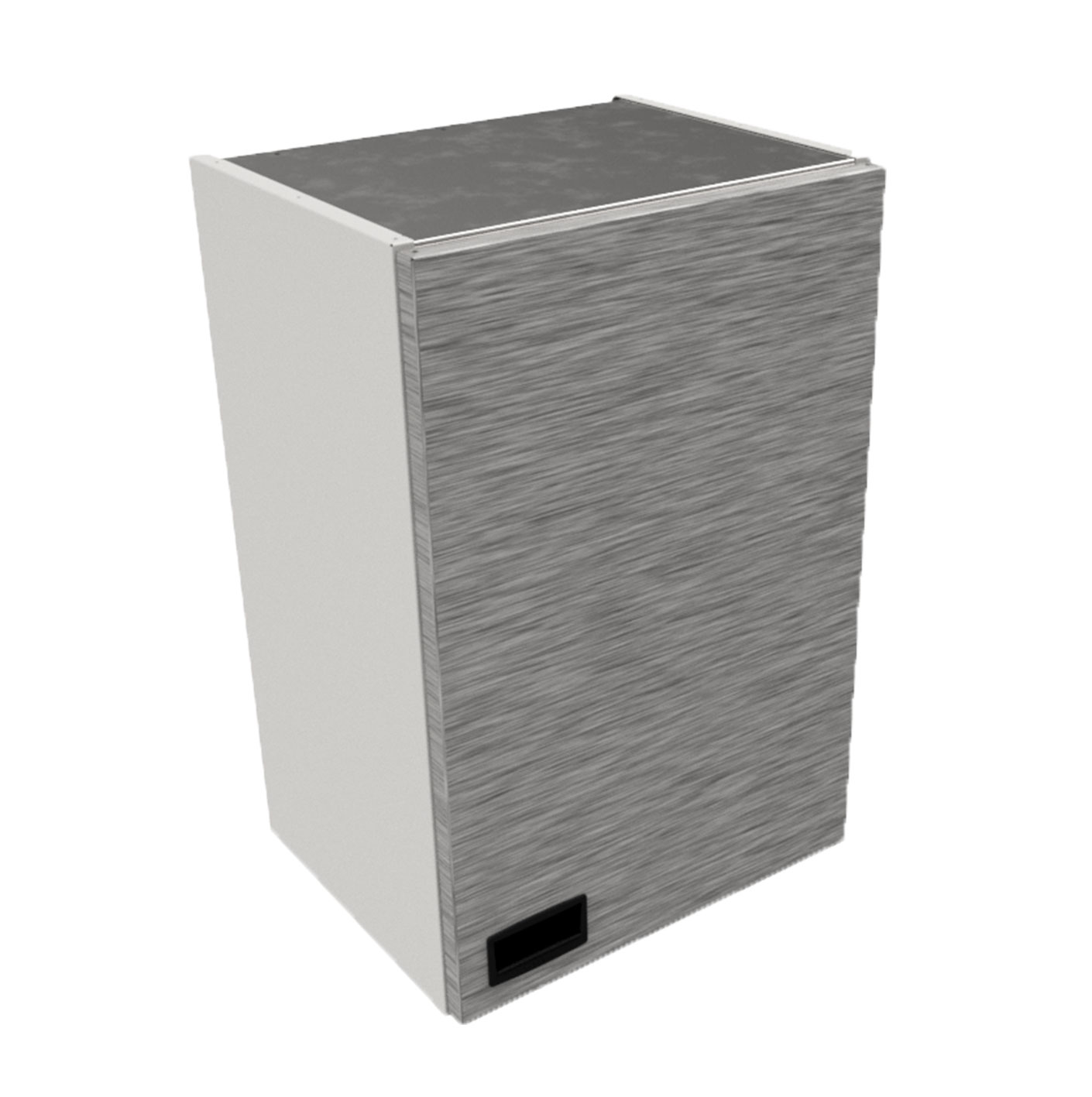

WC4HL/R WC8H WC10H WC12H

Commercial grade wall cupboards available in three standard lengths (400mm 800mm 1000mm or 1200mm long) with hinged doors. Wall cupboards are fully enclosed, fabricated in stainless steel. The internal mid shelf is removable and adjustable for height in 48mm increments. Designed with a flat roof as standard with the option of a sloping type roof.

Doors:
Hinged doors are soft closing and very easy to remove and adjust
fitted with sturdy easy clip in hinges and black recessed handles.

DOWNLOADS

Specification

Key features

Wall mounted commercial stainless steel fully enclosed storage cupboard.
Top wall mounting hooks and adjustable cabinet fixings.
Hinged doors are soft closing and open to 100 degrees.
Aesthetic black recessed door handles.
With handy adjustable overhead cabinet brackets for easy fitting and wall fixing.
Available in 400mm, 800mm, 1000mm and 1200mm standard lengths.
Adjustable height mid-Shelf.
Standard cupboard height 600mm. 700mm with the sloping roof option.

Operating Modes

All stainless-steel construction.
Available in 400, 800, 1000 and 1200, standard lengths. Bespoke lenghts are available POA. The maximum length for a bespoke option is1200mm.
The internal mid shelf is removable and adjustable for height in 48mm increments.
Hinged doors are soft closing and open to 100 degrees with black aesthetic recess handles.
Corner unit hinges open 170 degrees .

Options

Lockable doors [Two keys per lock]. Hinged or sliding door cupboard types. Add “L” to the model code. Example WC8SL :- 800mm long sliding door unit with door locks.

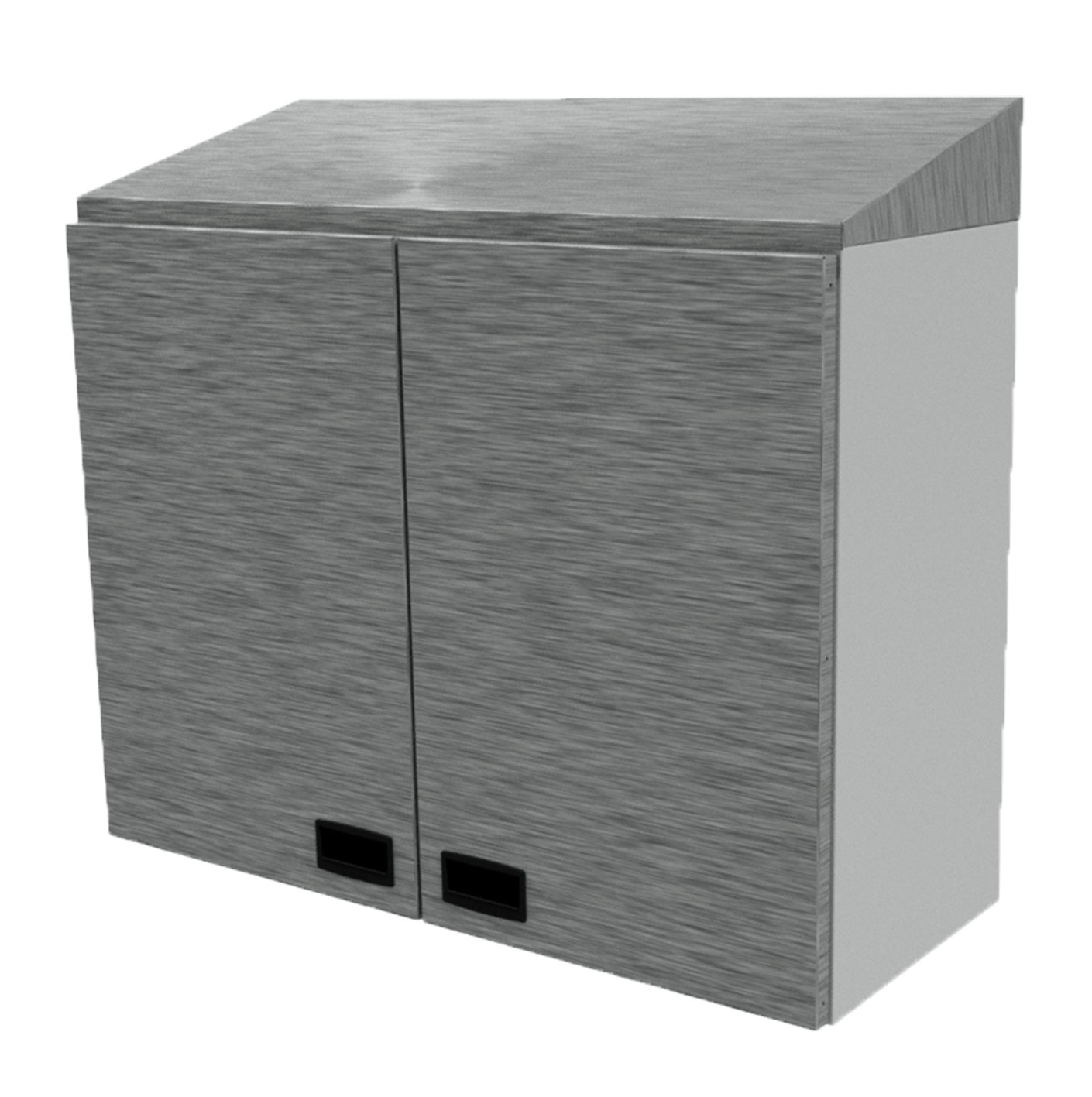

Wall cupboard with a sloping top. A sloping top to the wall cupboard is more hygienic as it reduces surface build up of dust and debris and is easier to keep clean. Add “SR” to the model code Example WC8SLSR :- 800mm long sliding door unit with door locks
and a sloping top.
Bespoke(Non standard lengths) Available on request.
