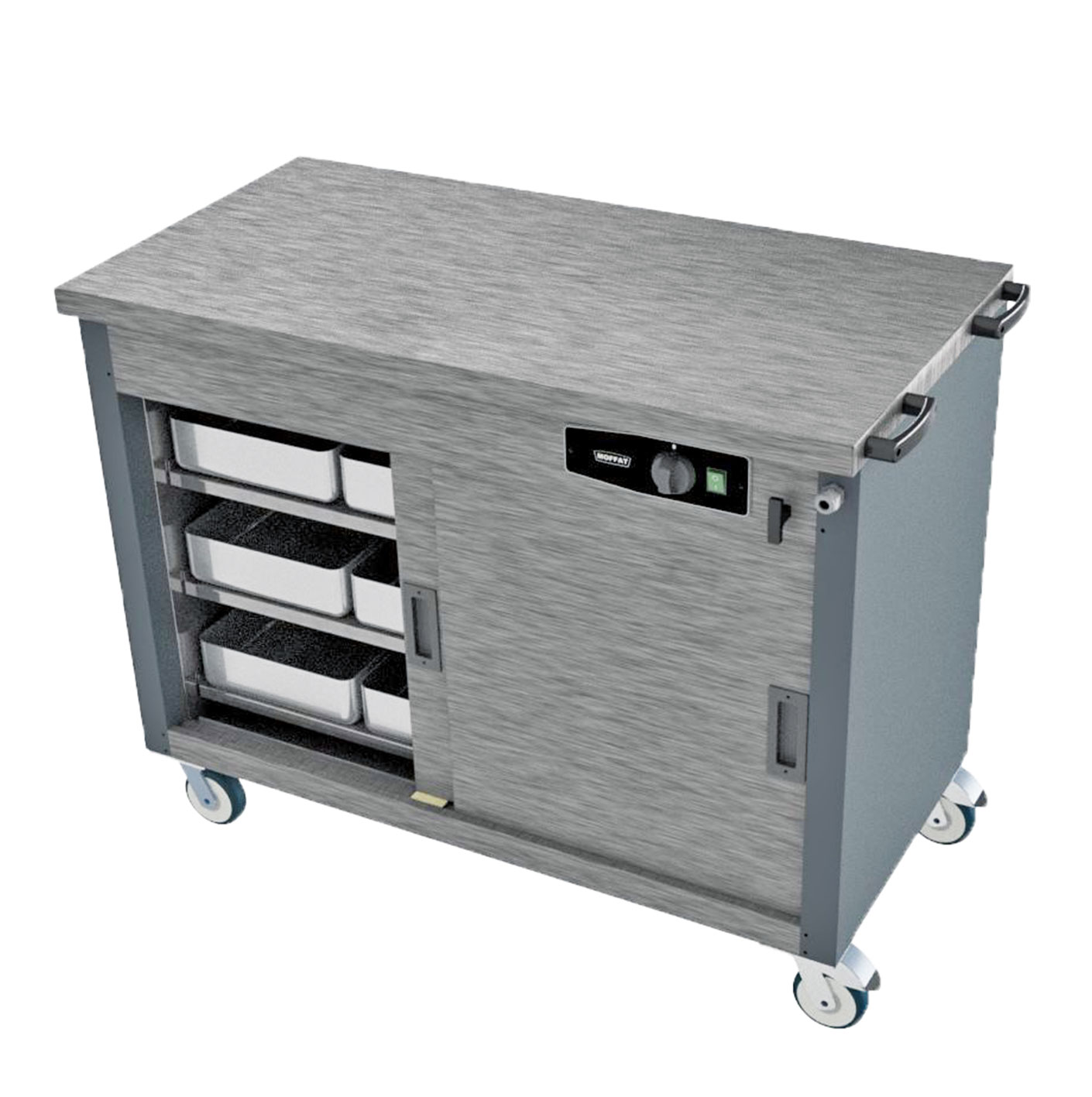

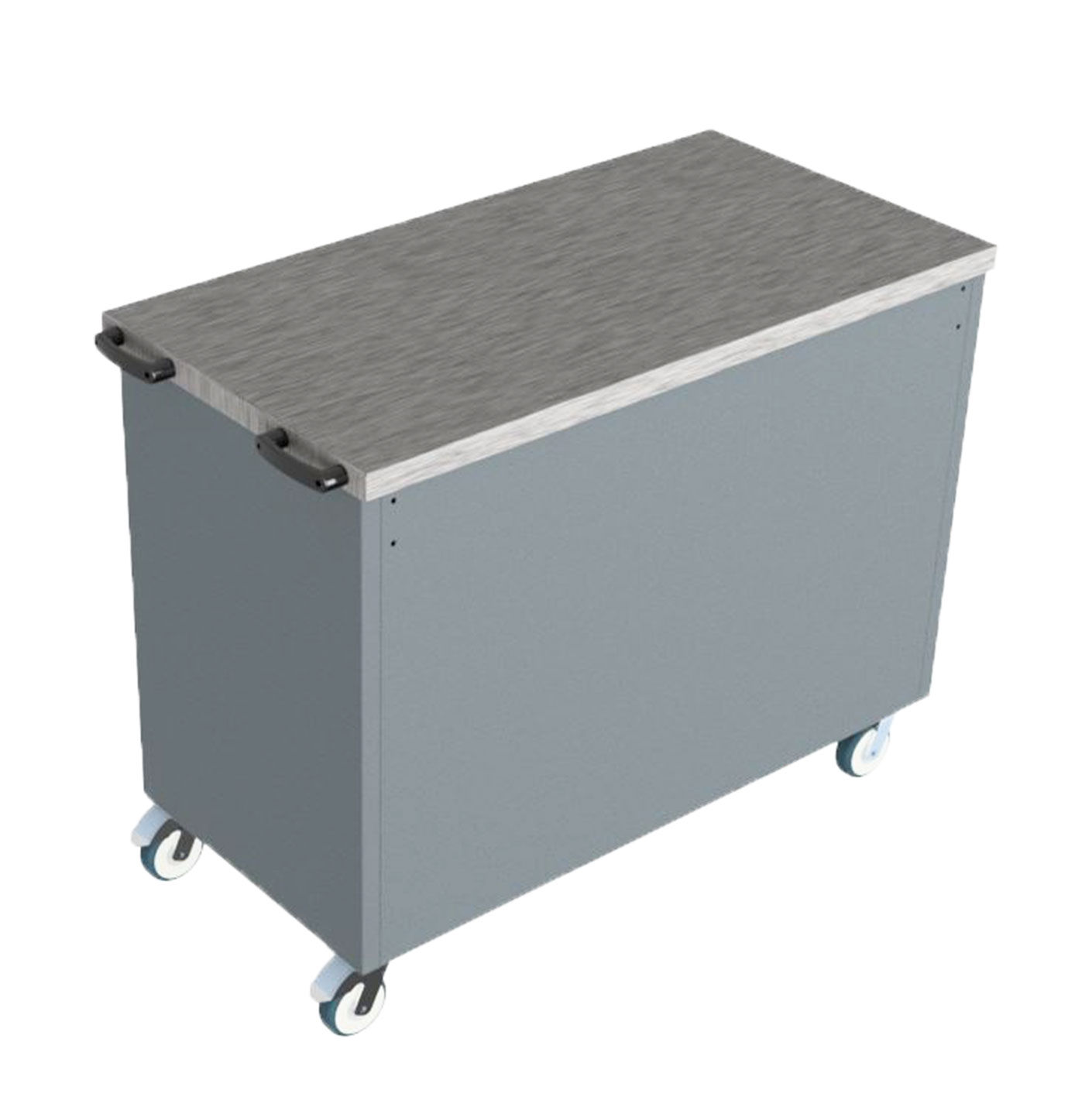

Mobile Hot Cupboard

MH9 and MHB9

Hot service trolley designed for cost effective hot food storage, transport, and service. Incorporating a hot cupboard fitted with Moffat’s renowned innovative sahara fan heating cell. Easily removable for cleaning and maintenance. Residual heat from the hot cupboard is used to warm the work top serving area. The MHB9 model has a recessed work top serving area specially made to suit traditional type Grundy serving tins. Hot cupboard is controlled by a 30° to 110° thermostat. Designed to maintain pre-heated, cooked food at a regulated temperature. Internally the trolley has three robust shelves suitable for the storage and transport of most types of hot foods, in various types of pans up to 150 mm deep.



DOWNLOADS

Specification

Key features

  • Fast heat up and recovery time
  • Thermostatically controlled.
  • Unique, removable, forced air heating cell.
  • Low maintenance, easily cleaned, and highly efficient

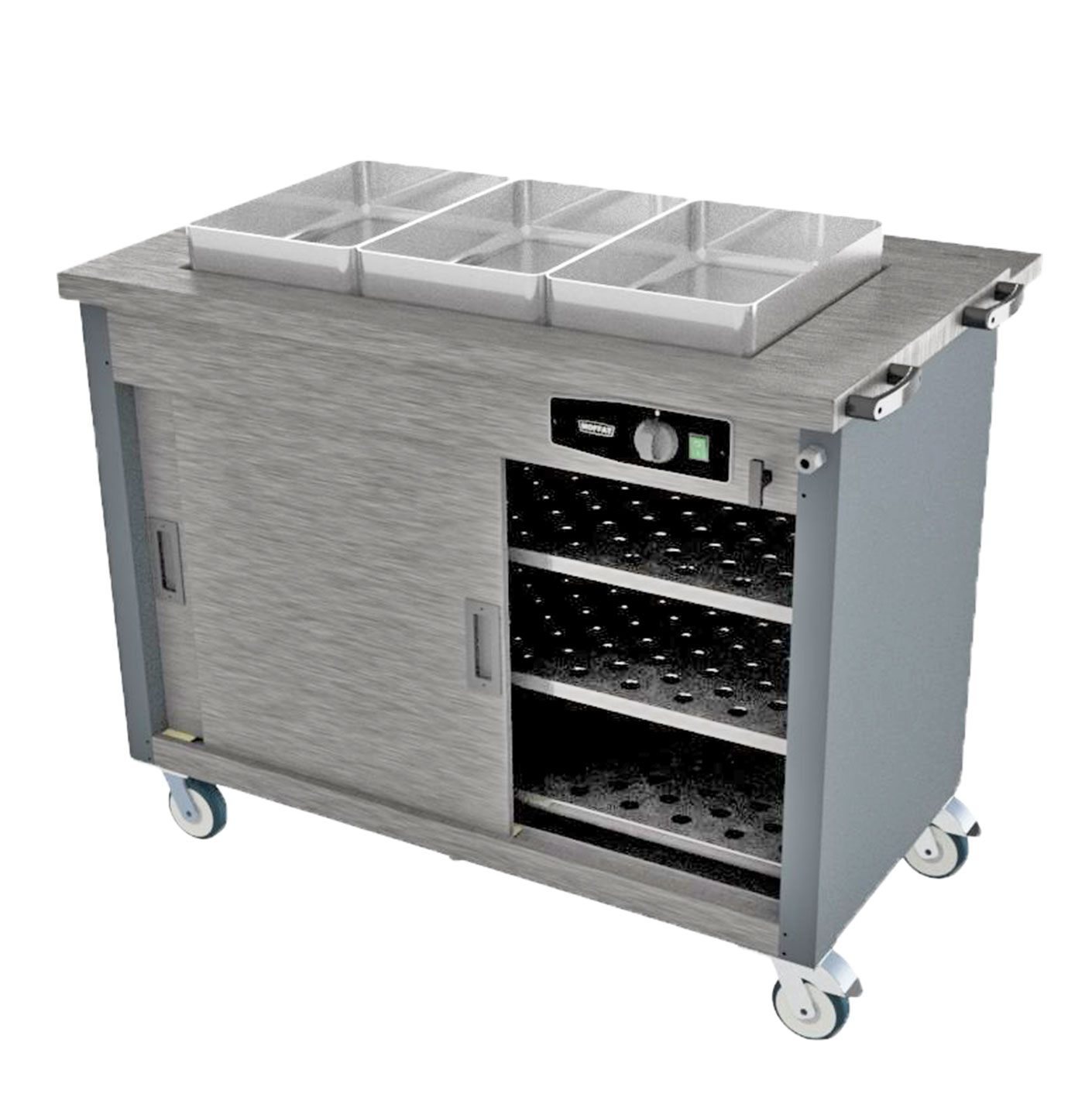

  • MHB9 model has a unique recessed top to suit Grundy pans.
  • 24 hour operation.
  • Complete with push / pull handles on one side
  • Plug and Go, complete with 2 metre long power cable and 13amp plug
  • Mobile all swivel castors two with brakes

Operating Modes

  • Hot service trolley designed for cost effective hot food storage, transport, and service.
  • Incorporating a hot cupboard fitted with Moffat’s renowned innovative sahara fan heating cell.
  • Grundy Tins: Grundy baking trays are a traditional heavy duty aluminium pan type with optional lids used in many schools’ kitchens. Grundy corresponds to 409mm x 267mm and a half size 206mm x 267mm

Electrical Specifications

  • Rating - 1.5 kW
  • Electrical Supply - 13amp

Wiring Drawings

  • Wiring drawing can be obtained by contacting Sales

Options

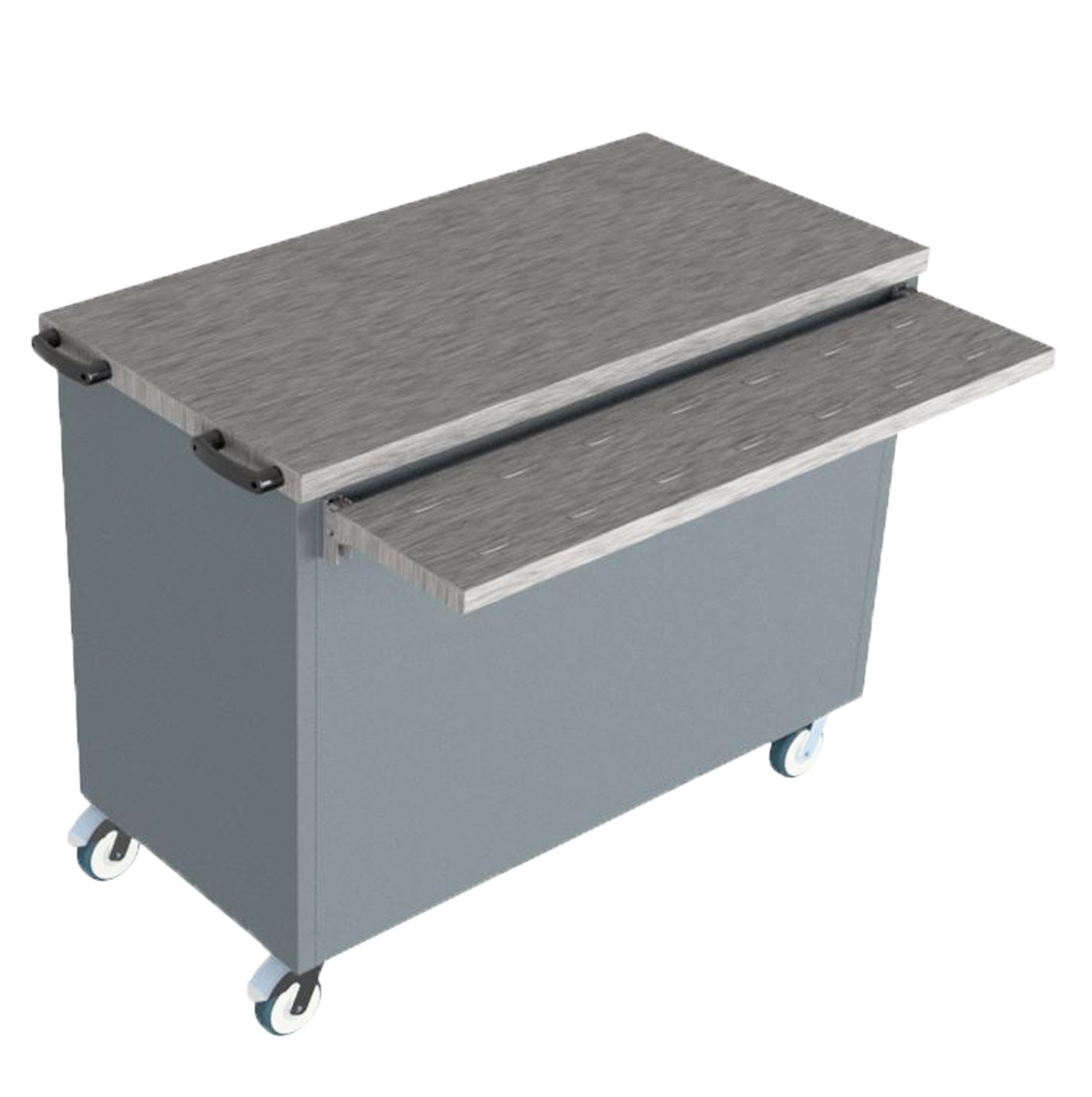

  • MH9HTSL Fold down solid tray slides
