Focus Mobile Plain Top Hot Cupboard complete with base and mid grid Shelves
2/3/4FHCM
Hot display trolley designed for cost effective hot food storage, transport, and service. Incorporating a dry well Bain-Marie and hot cupboard fitted with Moffat’s renowned innovative sahara fan heating cell. Easily removable for cleaning and maintenance. The energy efficient Bain-Marie and hot cupboard work in sync, residual heat from the hot cupboard is used to compliment the Bain-Marie heating element.
Hot cupboard and Bain-Marie are controlled by a 30° to 110° thermostat. This convection, heated Bain-Marie and hot cupboard offers unparalleled flexibility of use. No additional plumbing. No need to maintain water levels. No issues with water scale. Designed to maintain pre-heated, cooked food at a regulated temperature. Suitable for the display of most types of hot foods, accommodate various combinations of Interchangeable gastronom type pans up to 150 mm deep.
DOWNLOADS
Specification
Key features
- Fast heat up and recovery time
- Thermostatically controlled.
- Unique, removable, forced air heating cell.
- Low maintenance, easily cleaned, and highly efficient
- Gastronorm pans can be swapped out and replenished during service.
- A unique raised lip around the well allows the easy removal of pans.
Operating Modes
- 3 models in the range holding 2 to 4 gn 1/1 gastronorm type containers.
- Various mixed sizes of gastronorm pans can be used in unison.
- Plug and Go, complete with 2 metre long power cable and 13amp plug
- Mobile all swivel castors two with brakes.
Electrical Specifications
- Rating - 0.9 kW - 1.9 kW
- Rating with gantry - 1.12 kW - 2.56 kW
- Electrical Supply - 13amp
Wiring Drawings
- Wiring drawing can be obtained by contacting Sales
Options
- Heated quartz gantries.
( Codes: 2FG, 3FG, 4FG) - Bain-Marie glass hot top adaptor
(Neo-Ceram) (code: DNCA) - Bain-Marie round pot adaptor & 2 x 4.5 litre pots with lids (code:DRP4)
- Bain-Marie round pot adaptor & 2 x 7.0 litre pots with lids (code: DRP7)
- Gastronorm pans.

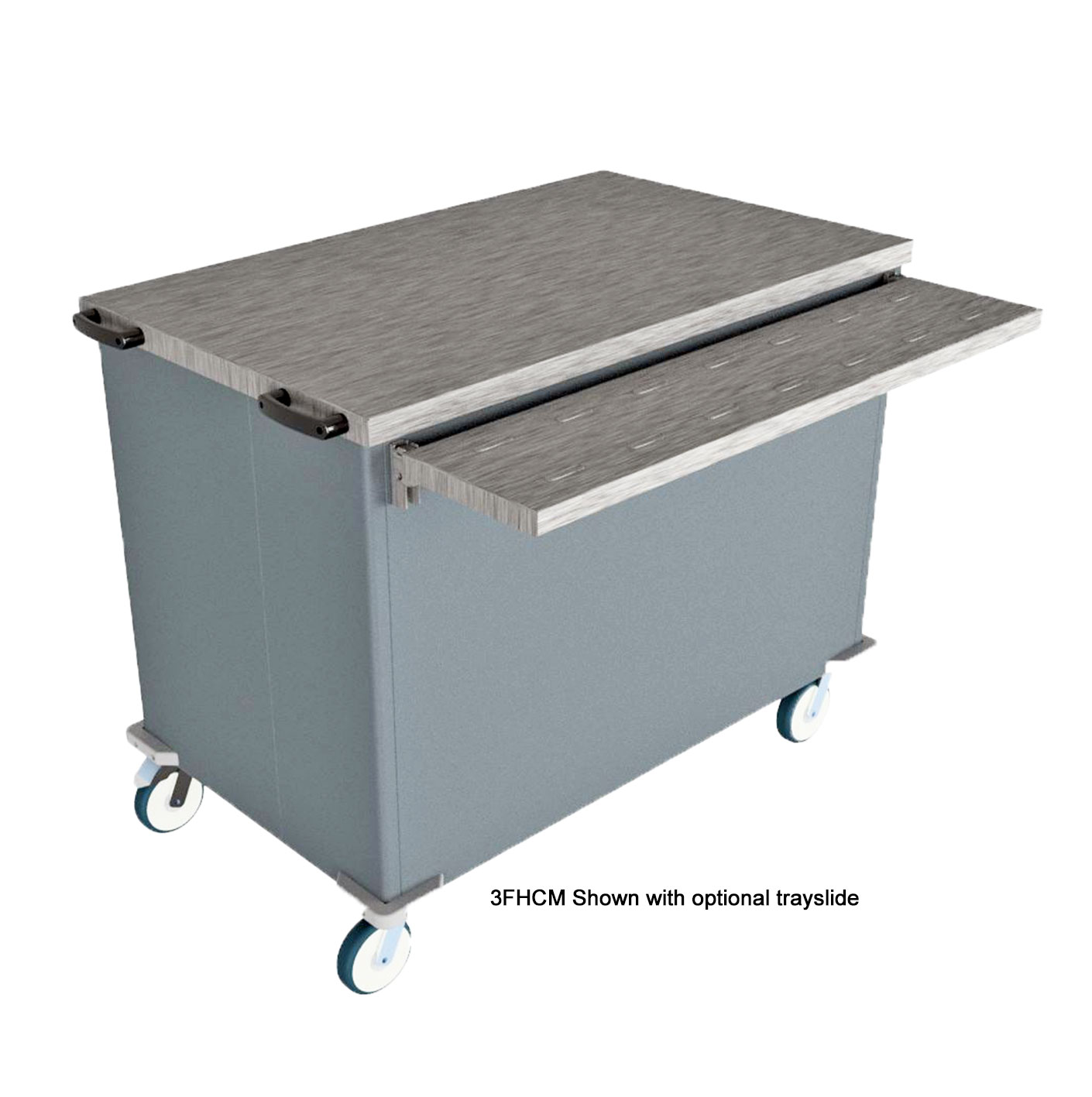

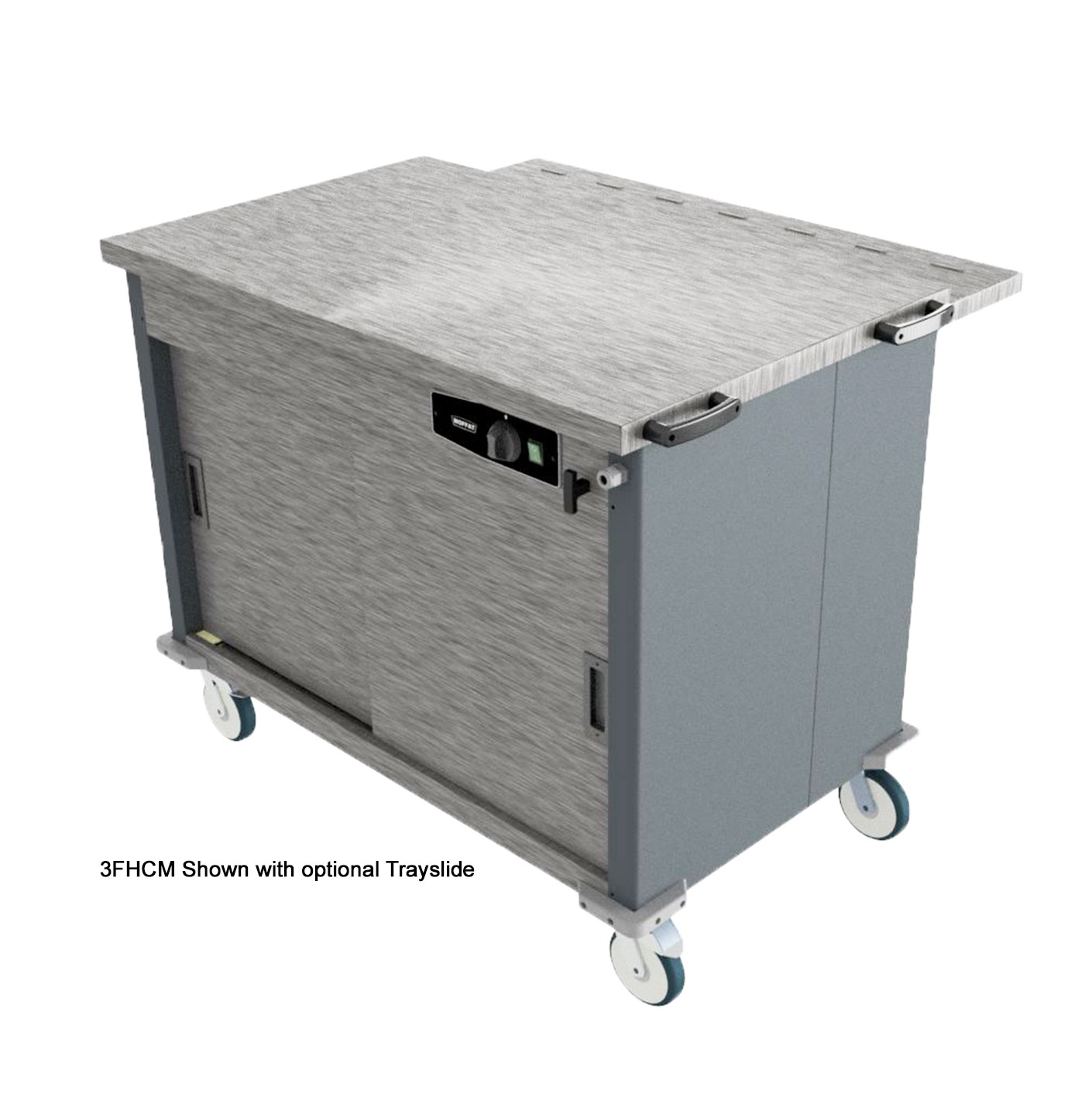

- Fold down solid tray slides
(codes: 2FPTS, 3FPTS, 4 FPTS)
