CSS2

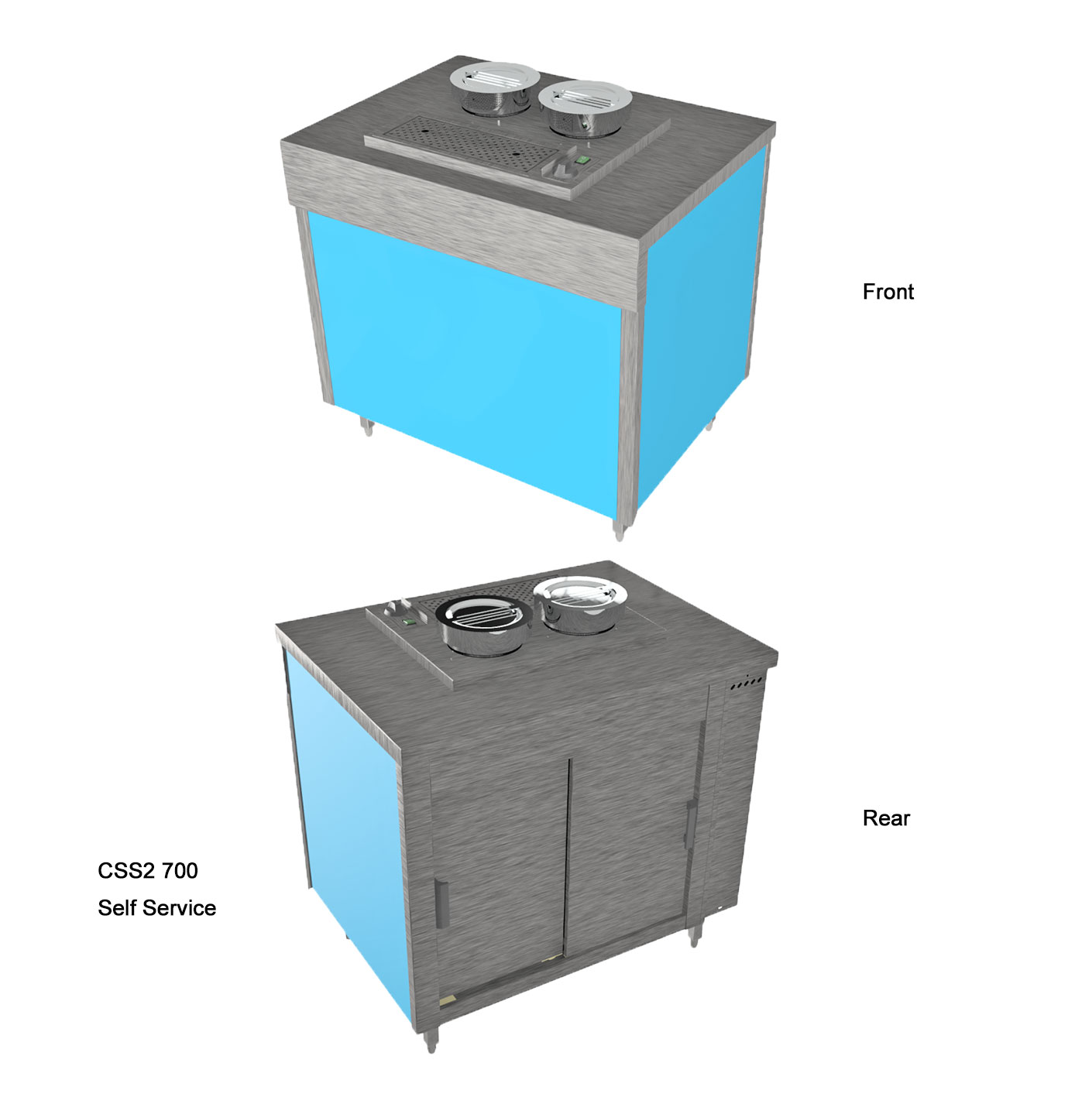

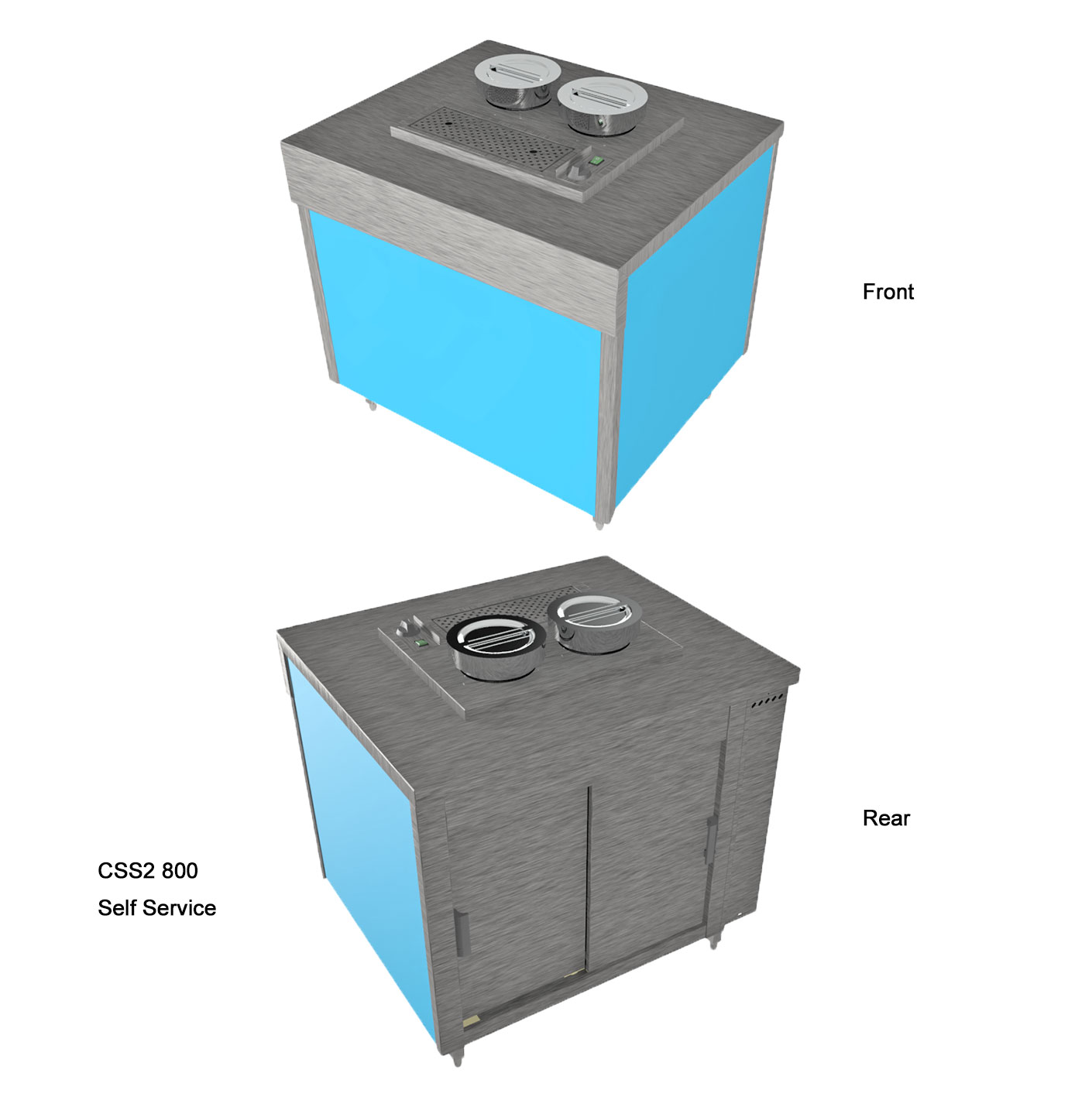

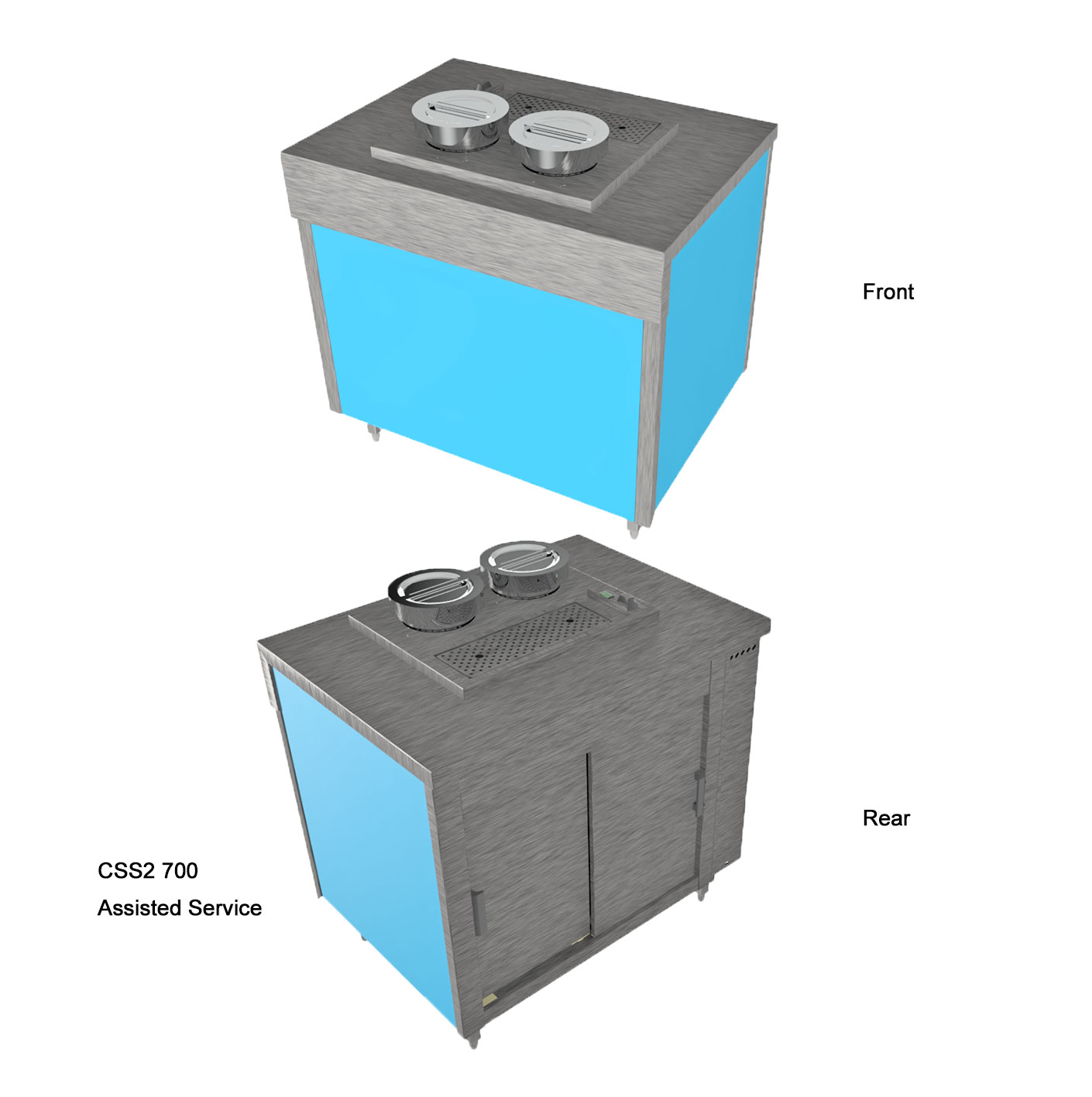

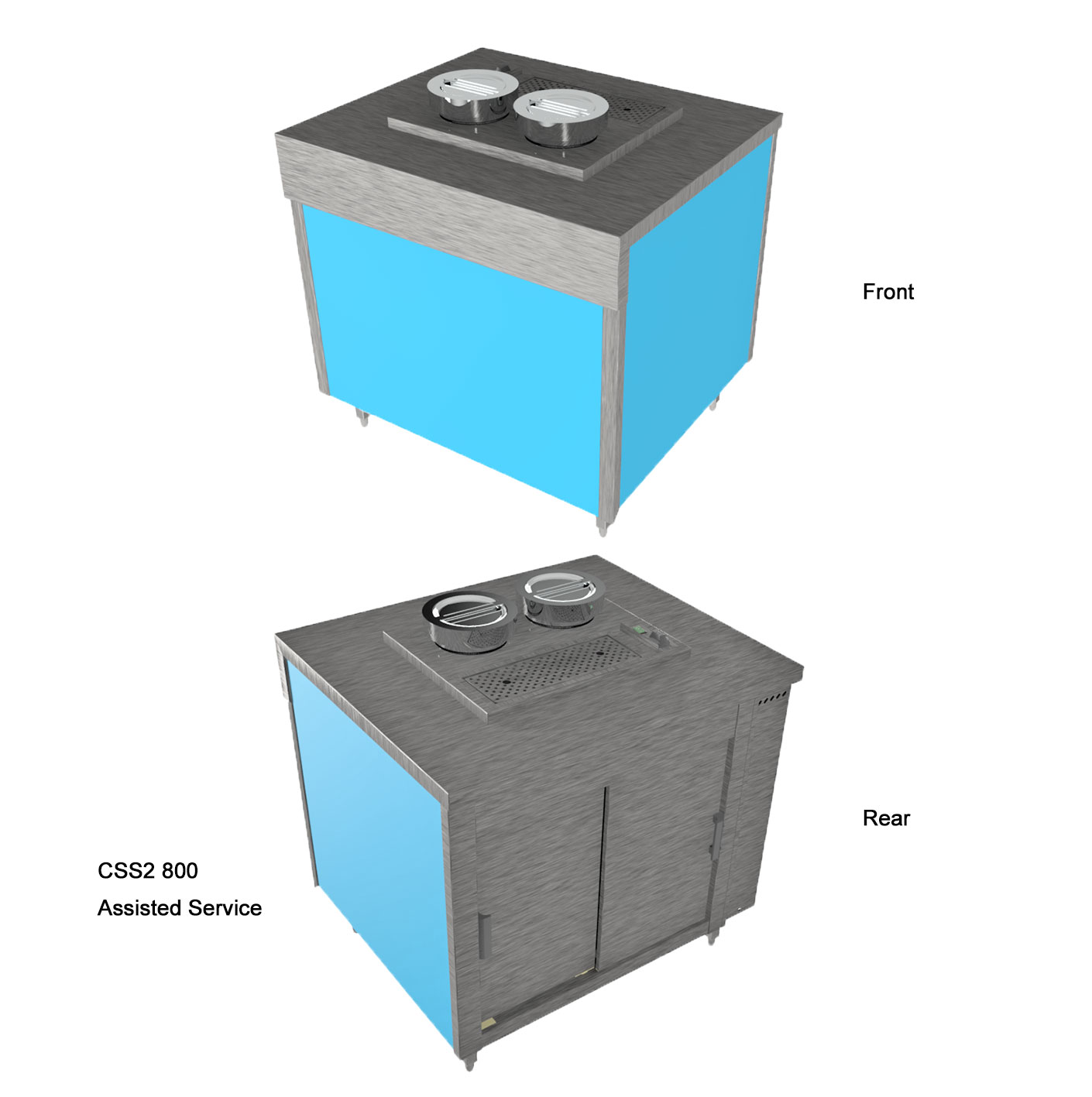

Soup stations with ambient storage cupboard under. The soup dispenser is designed to keep pre-cooked soups, sauces, and gravy at serving temperature using built in elements that guarantee even heat distribution. Along with a removable drip tray which aids cleaning, they also come supplied with the 4,5 litre stainless steel pots, complete with stainless steel lids. Controls are surface mounted for convenience and consist of a neon power indicator and an energy regulator dial which also acts as an on/off switch. The soup station insert can be fitted into the counter body in either self service (drip tray to customers side) or assisted service (drip tray to operators side) configuration.

DOWNLOADS

Specification

Key features

Insulated for increased efficiency.
Low maintenance, easy cleaned and highly efficient.
Pots can be swapped out and replenished during service.
A raised lip around well stops liquid ingress into the unit
Drip tray can be removed for easy cleaning
24-hour operation [opening must be fitted with pots or covers during service]
With hygiene in mind all stainless-steel construction, inner panels are bright polished.
Base and door track in one piece for easy cleaning.
Doors are very easily removed for cleaning, sliding doors have unique double life skid pads.
Doors can be fully rotated and reinserted allowing the spare skid pads to be used offering a long and trouble-free service.
Easy lift out GN 1/1 size multiple grid shelving, held by heavy-duty stainless-steel tube supports.
The recessed, slide-out, control panel is mounted to operator right hand side of cupboard.

Operating Modes

The soup dispenser is designed to keep pre-cooked soups, sauces, and gravy at serving temperature using built in elements that guarantee even heat distribution
24-hour operation [opening must be fitted with pots or covers during service]

Electrical Specifications

Rating - 0.9 kW
Electrical Supply - 13amp

Wiring Drawings

Wiring drawing can be obtained by contacting Sales

Options

24-hour operation [opening must be fitted with pots or covers during service]
Fully insulated
Various colours and styles of front and side panels are available, plastic coated steel, laminated wood type or Corian.
Various designs of overhead illuminates gantries are available, curved or square type glass, open or full front. Island, Deli, or traditional kitchen pass types can all be fitted.
Solid tray slide or tubular tray rails fixed or fold down types.
