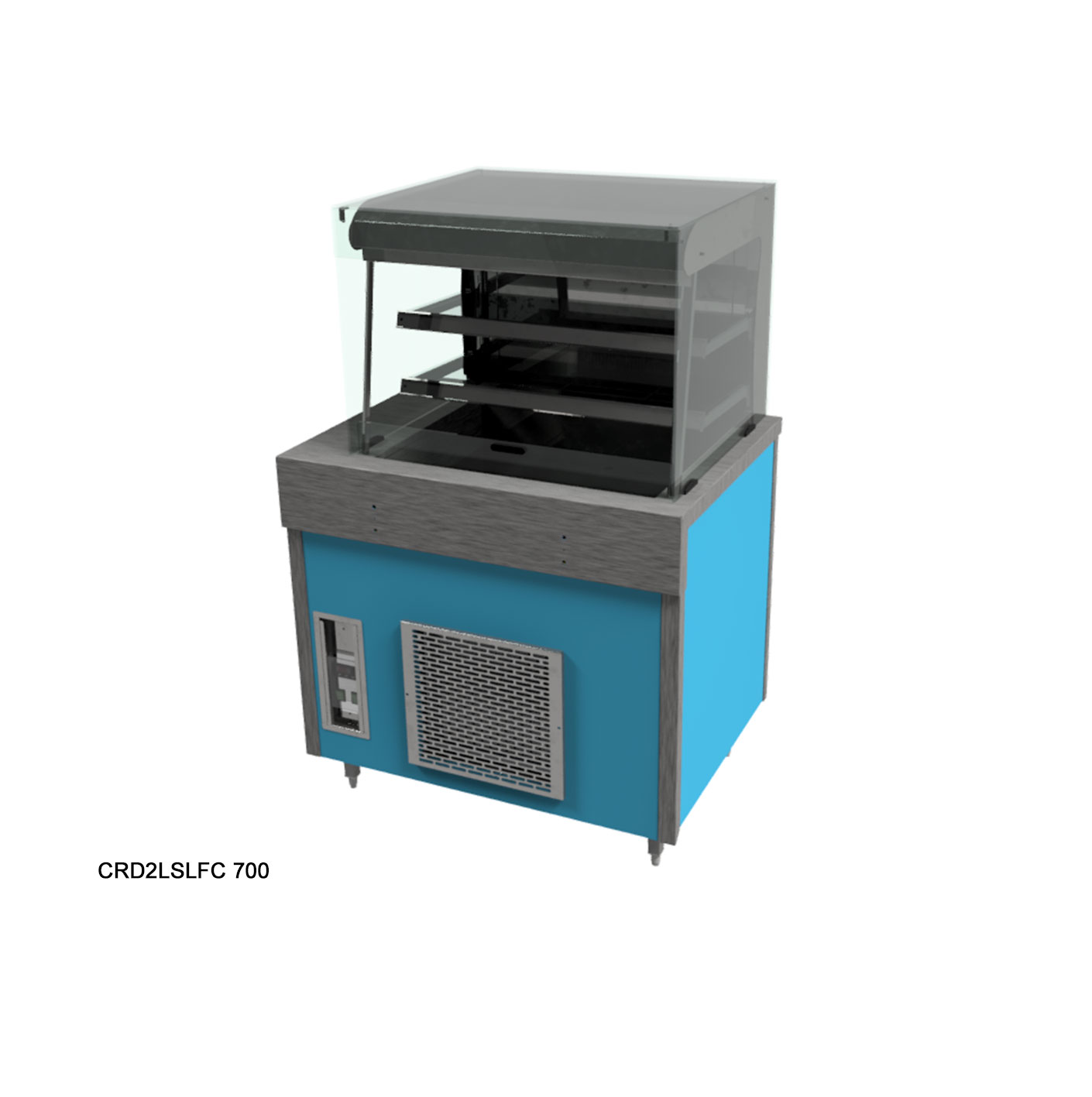

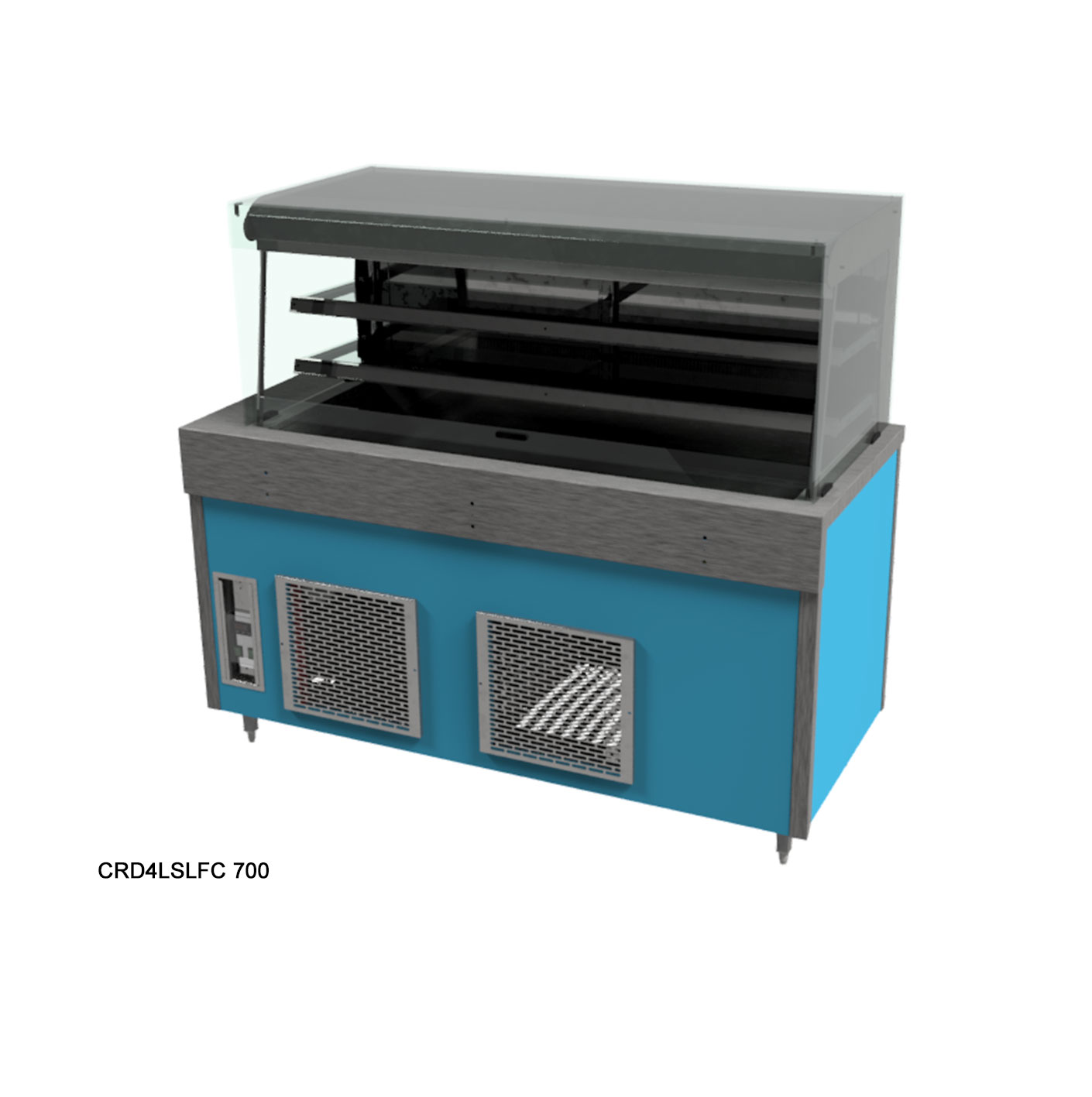

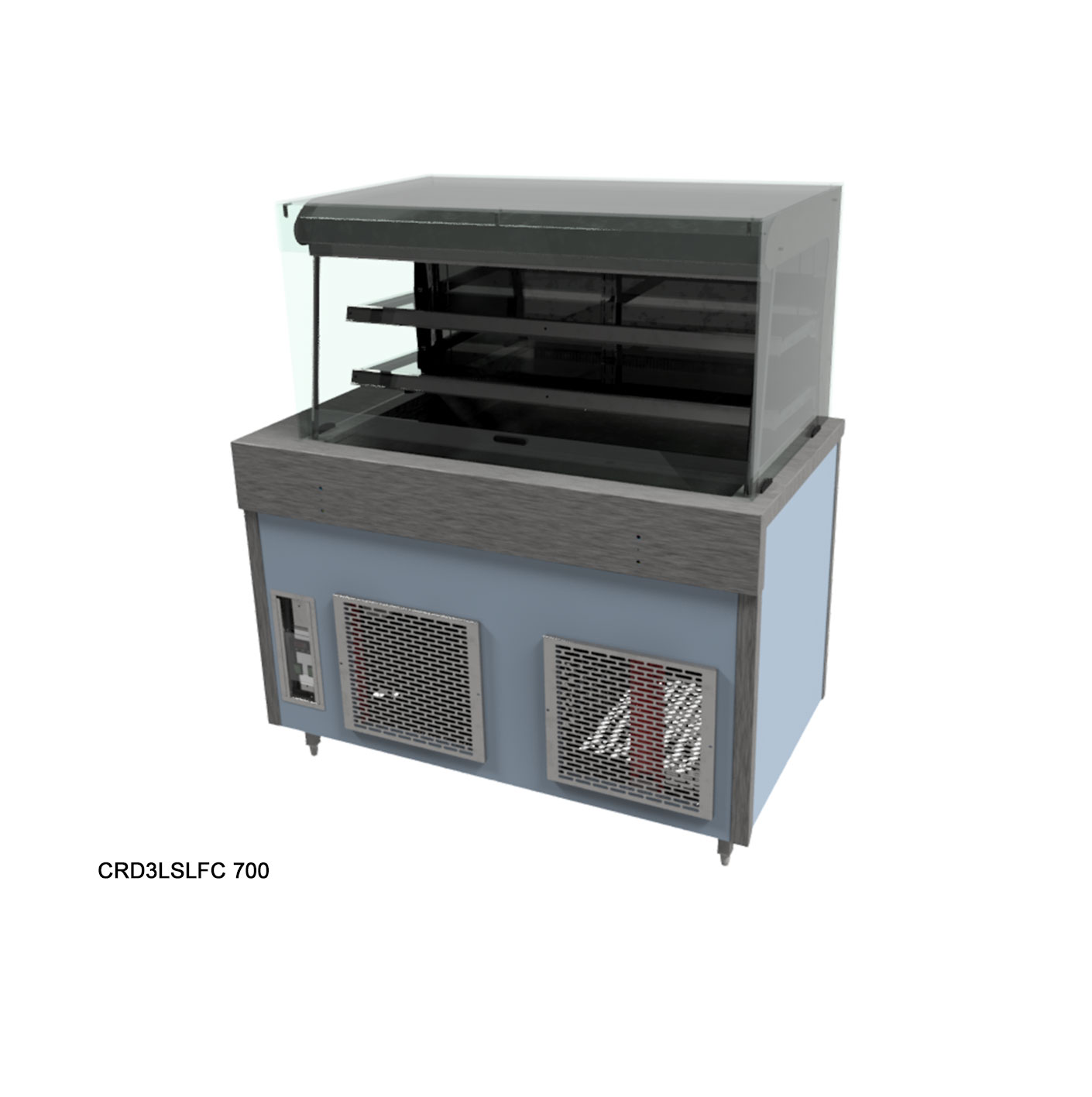

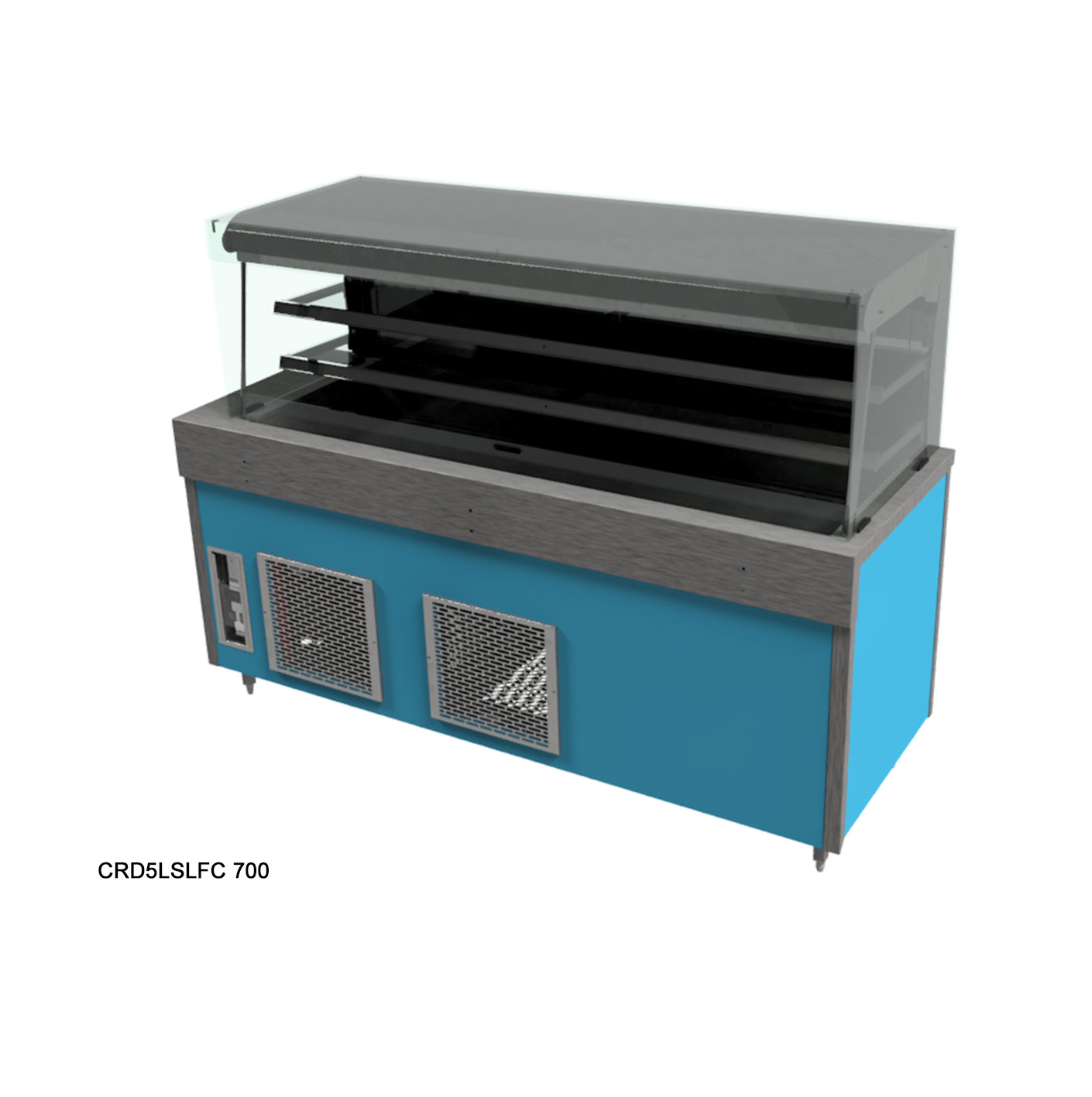

CRD2/3/4/5LSLFC

Chilled display units incorporating a cold well and 2 glass display shelves. The unique Moffat innovative “Polar Air Stream” system provides a constant recirculating cold air curtain completely enveloping the food displayed. Holding pre-chilled food at a safe, regulated temperature while retaining taste and freshness. Perfect for sandwiches, fruit, yoghurt and cold drinks. Self-contained units with accurate, digital control, automatic defrost, high pressure warning and automatic condensate evaporation. Utilising a highly efficient, naturally occurring, hermetically sealed, hydrocarbon gas type R290 reducing carbon footprint and energy consumption. Use individual or as a part of a specialised Moffat servery counter.

Each model can be made part of a specially designed bespoke Moffat servery counter, with integrated Granite, Corian, or Stainless worktops

Note: The standard unit depth is 700mm, These models are also available at 800mm deep. Additionally when integrated into a bespoke counter, the worktop depth can be made to suit specific design parameters.

Frost tops can be made from either stainless steel or granite. Stainless steel models have a shallow recessed display area, Granite type have a small shallow trough around the display area, both have a drain for excess water.

DOWNLOADS

Specification

Key features

With hygiene in mind all stainless-steel construction, inner panels are bright polished.
4 models in the range each with a chilled well and three fully adjustable glass shelves.
Size 3, 4 & 5 have condensing unit set at 90° angle. Removes the need for unsightly vents in the front panels.
Size 4 and 5 models have a storage space under at the operators left side.
Digital thermostat and temperature control with automatic defrost.
Advanced air flow design with unique polar air stream technology.
Fully insulated efficient, eco-friendly, refrigeration. 24 hour operation.
Maintaining the core product temperature of pre-chilled food below 5°C in ambient condition not exceeding 25°C and 60% relative humidity
Automatic condensate water evaporation [no need to empty drip trays)
Supplied with 2m long power cord and 13amp plug [13A 230v 50Hz]

Operating Modes

Digital thermostat and temperature control with automatic defrost.
Advanced air flow design with unique polar air stream technology.
Fully insulated efficient, eco-friendly, refrigeration. 24 hour operation.
Maintaining the core product temperature of pre-chilled food below 5°C
in ambient condition not exceeding 25°C and 60% relative humidity
Automatic condensate water evaporation [no need to empty drip trays)

Electrical Specifications

Rating - 1.5 - 1.7 kW
Electrical Supply - 13amp/32amp

Wiring Drawings

Wiring drawing can be obtained by contacting Sales

Options

Front roller blind codes.
NB2:- size 2 unit, NB3:- size 3 unit, NB4:- size 4 unit, NB5:- size 5 unit.
Lockable roller shutter models.
Various colours and styles of front and side panels are available, plastic coated steel, laminated wood type or Corian.
Various designs of overhead illuminates gantries are available, curved or square type glass, open or full front. Island, Deli, or traditional kitchen pass types can all be fitted.
Solid tray slide or tubular tray rails fixed or fold down types.
