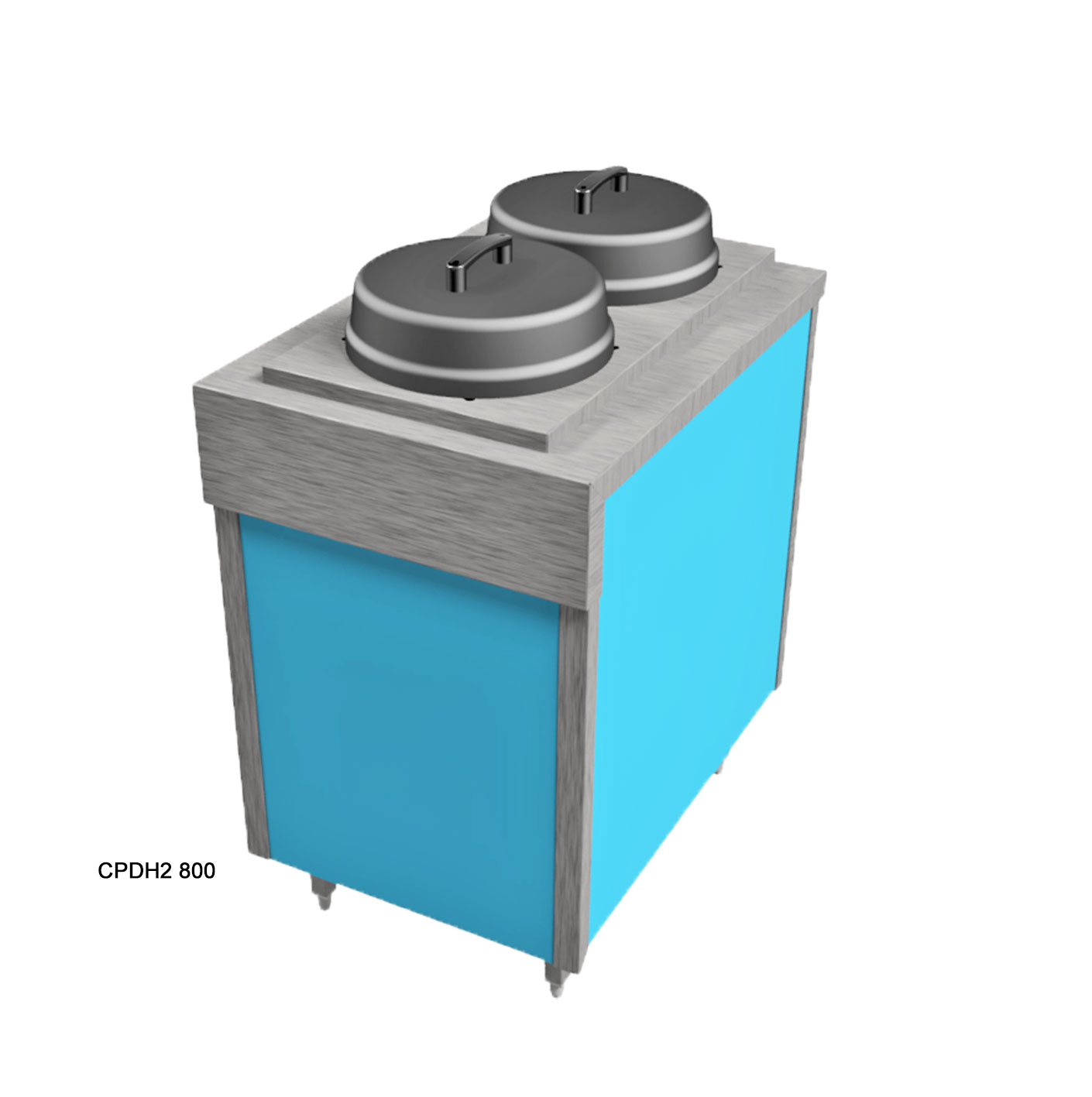

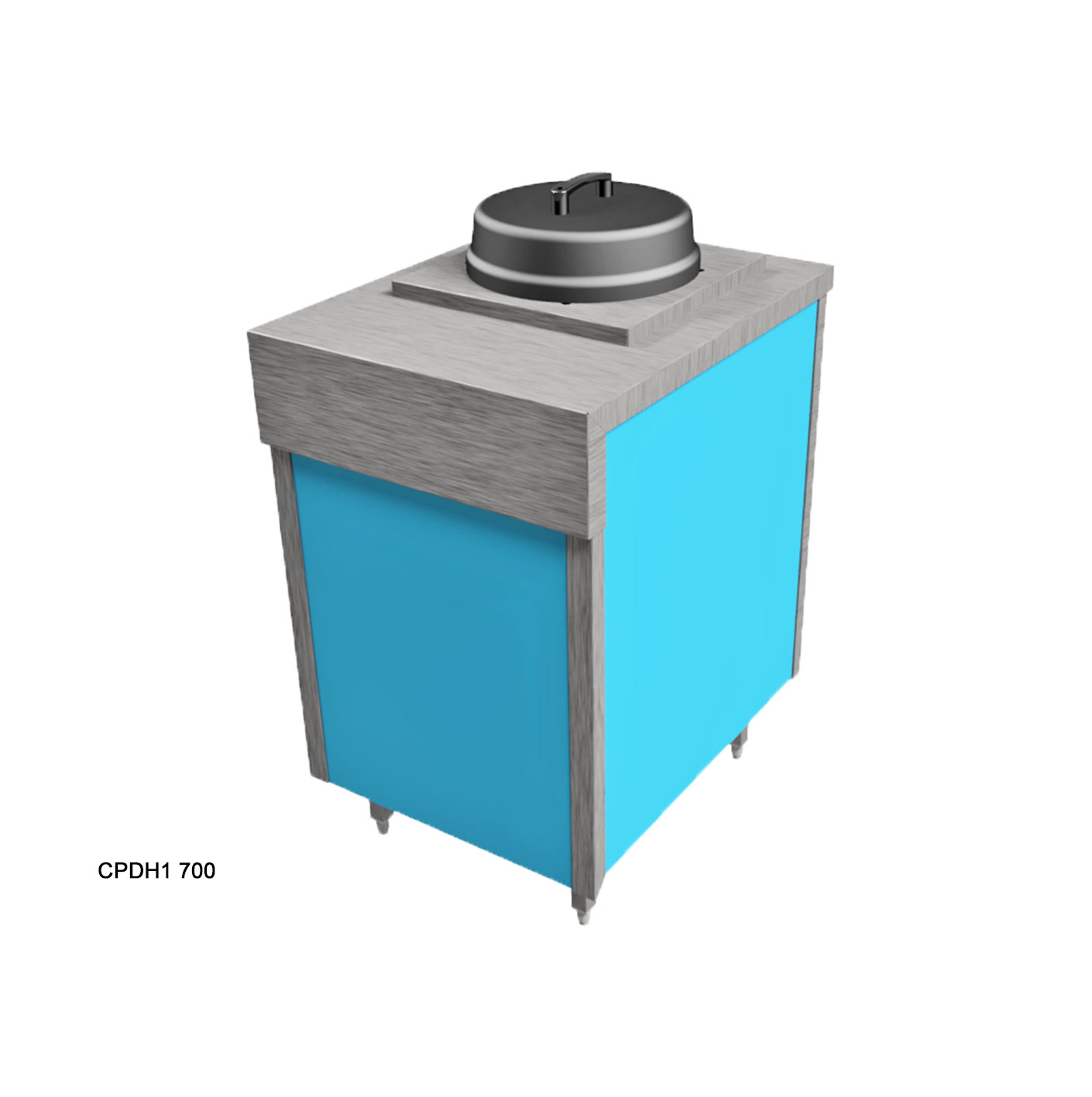

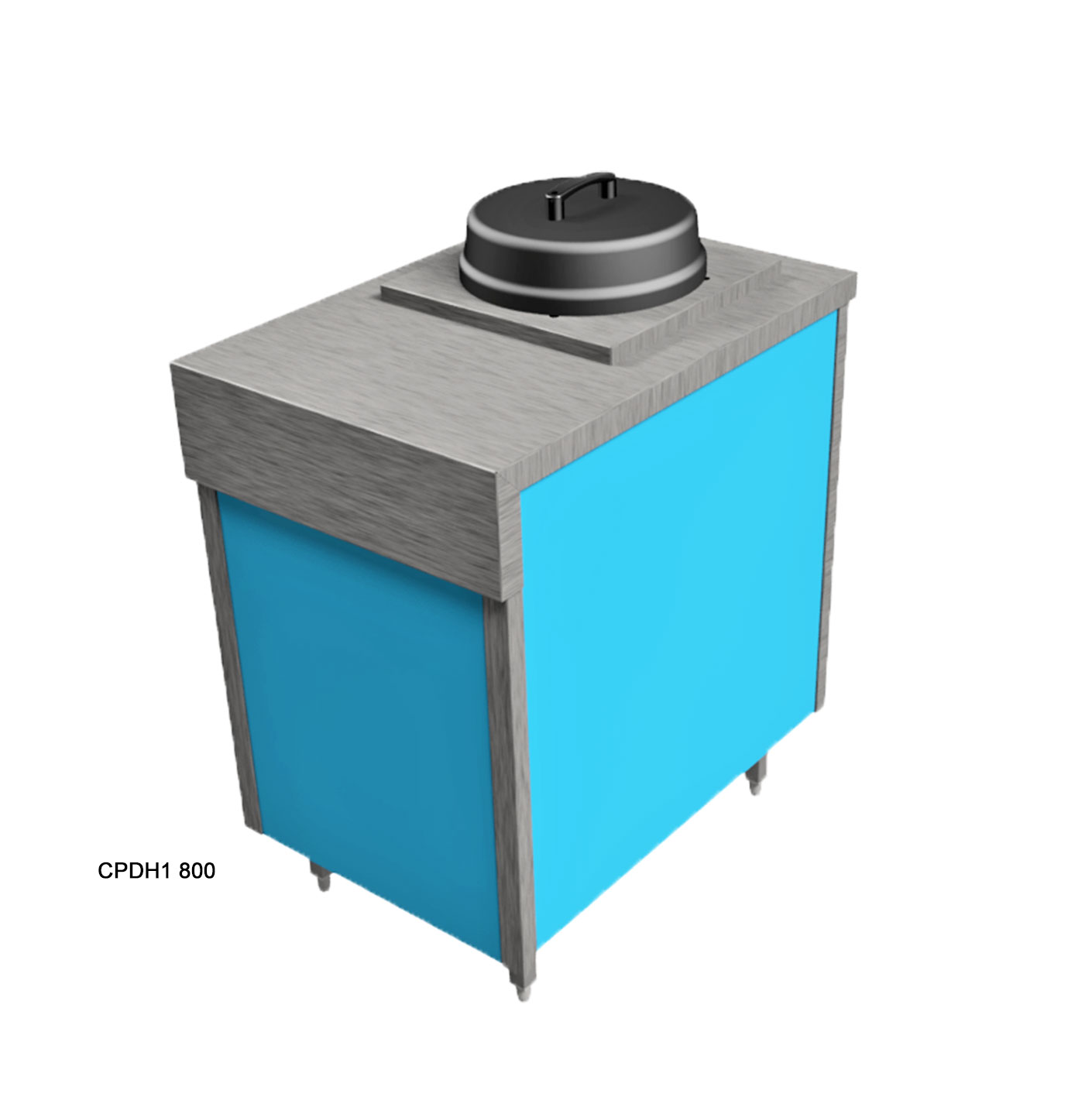

CPDH1/2

Each Tube has four adjustable guide rods to enable it to take various size plates for 8”-12” (205mm-305mm) diameter with a maximum capacity of around 65 plates per tube. The dispensers have a Pop-Up variable spring system to accommodate different weights of plates. Lift off top plate and the next one automatically moves up into position Heated units complete with Impact resistant ABS covers and 13amp plug and cable Temperature controlled by internal thermostat with surface level illuminated on/off switch for easy operation.

Note: The standard unit depth is 700mm, These models are also available at 800mm deep. Additionally when integrated into a bespoke counter, the worktop depth can be made to suit specific design parameters.

Frost tops can be made from either stainless steel or granite. Stainless steel models have a shallow recessed display area, Granite type have a small shallow trough around the display area, both have a drain for excess water.

DOWNLOADS

Specification

Key features

Well proven elements and components provide evenly distributed heat.
Factory set thermostatic controls internal air at 60° C.
Interior finished in clinical bright polished stainless steel.
Capacity approximately 65 plates per tube depending on type, profile and thickness.
Heated units supplied with an ABS lid and 2 metre long cable and 13 amp plug.
Simplistic easy adjustable springs allows repeated pop up plate presentation.
24/7 operation.
Self-contained unit. Electrics are integral no awkward fitting under counter control boxes.
Easily adjustable plate guides, no tools required.

Operating Modes

Factory set thermostatic controls internal air at 60° C.
Capacity approximately 65 plates per tube depending on type, profile and thickness.
Heated units supplied with an ABS lid and 2 metre long cable and 13 amp plug.
24/7 operation.
Easily adjustable plate guides, no tools required.
