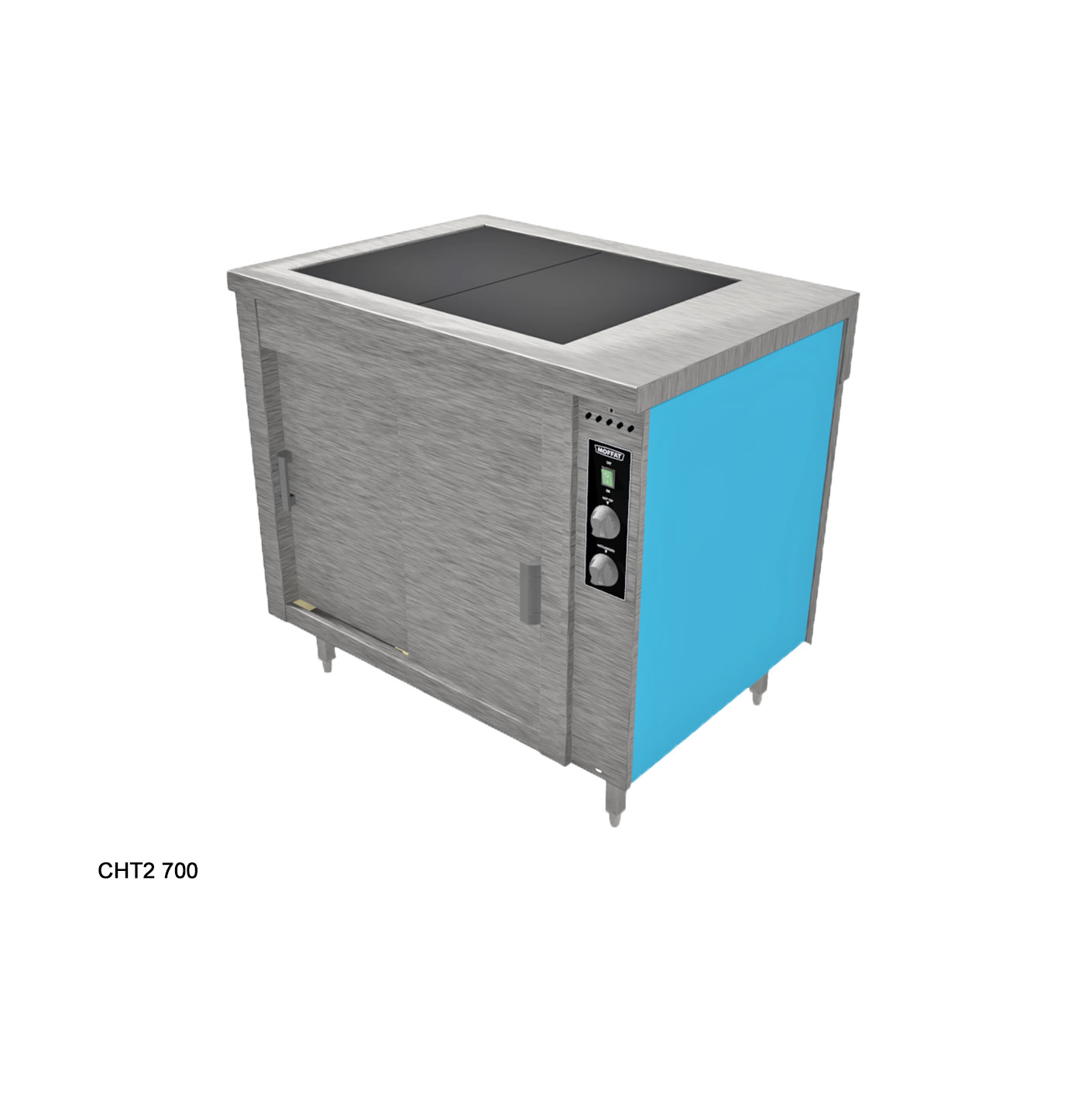

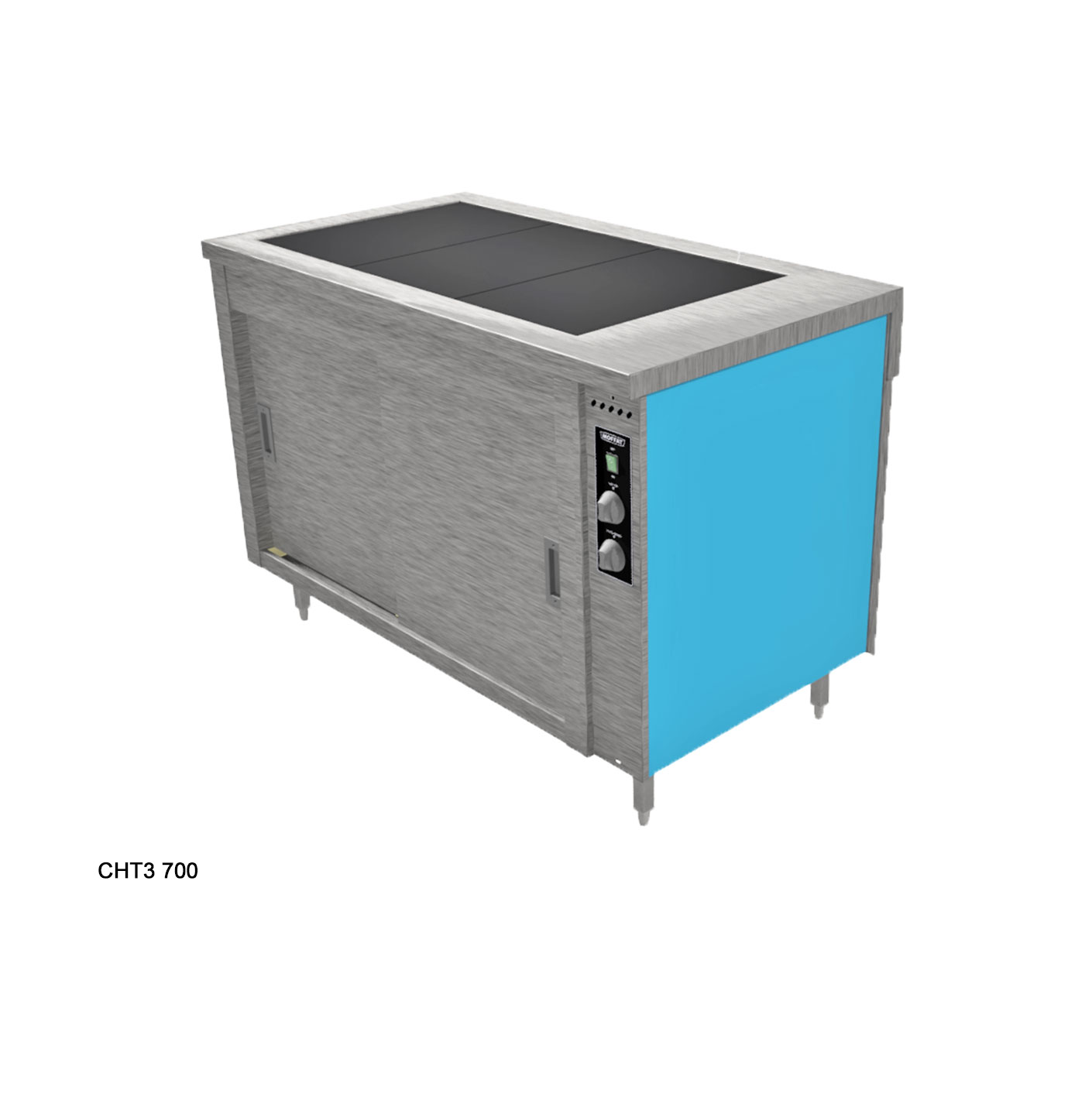

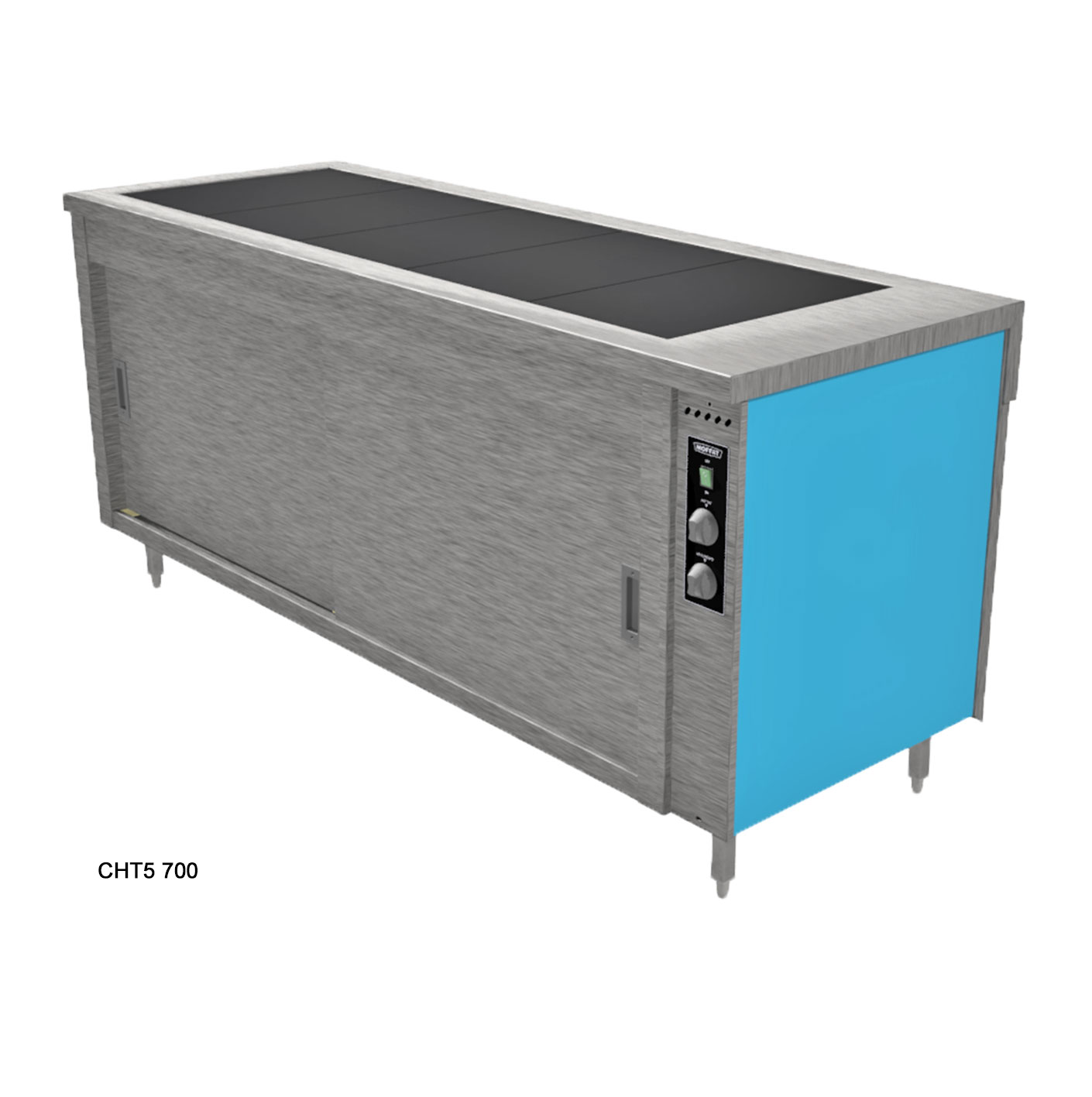

CHT2/3/4/5

Hot display with black Neo-Ceram glass thermo panels. The thermo panel hot top temperature is adjustable using an energy regulating rotary control. Complete with a hot cupboard under fitted with Moffat’s renowned innovative sahara fan heating cell. Easily removable for cleaning and maintenance. Designed to maintain pre-heated, cooked food at a regulated temperature. Suitable for the display of most types of hot foods, The hot cupboard is designed to accommodate GN1/1 size gastronom type pans. The neo-ceram hot top is not an induction type unit which require dedicated food pans,any suitable heatproof food container with a flat base can be used. Chafing dishes are not required. The hot top surface temperature when on full power regulates around 95°. The hot cupboard is controlled by a 30° to 110° thermostat. Heavy-duty units available in four lengths designed to accommodate 1/1 Gn pans, the hot cupboard is great for pre-heating plates and dishes, as well as the temporary storage of pre-cooked food. Use individual or as a part of a specialised Moffat servery counter.

Each model can be made part of a specially designed bespoke Moffat servery counter, with integrated Granite, Corian, or Stainless worktops

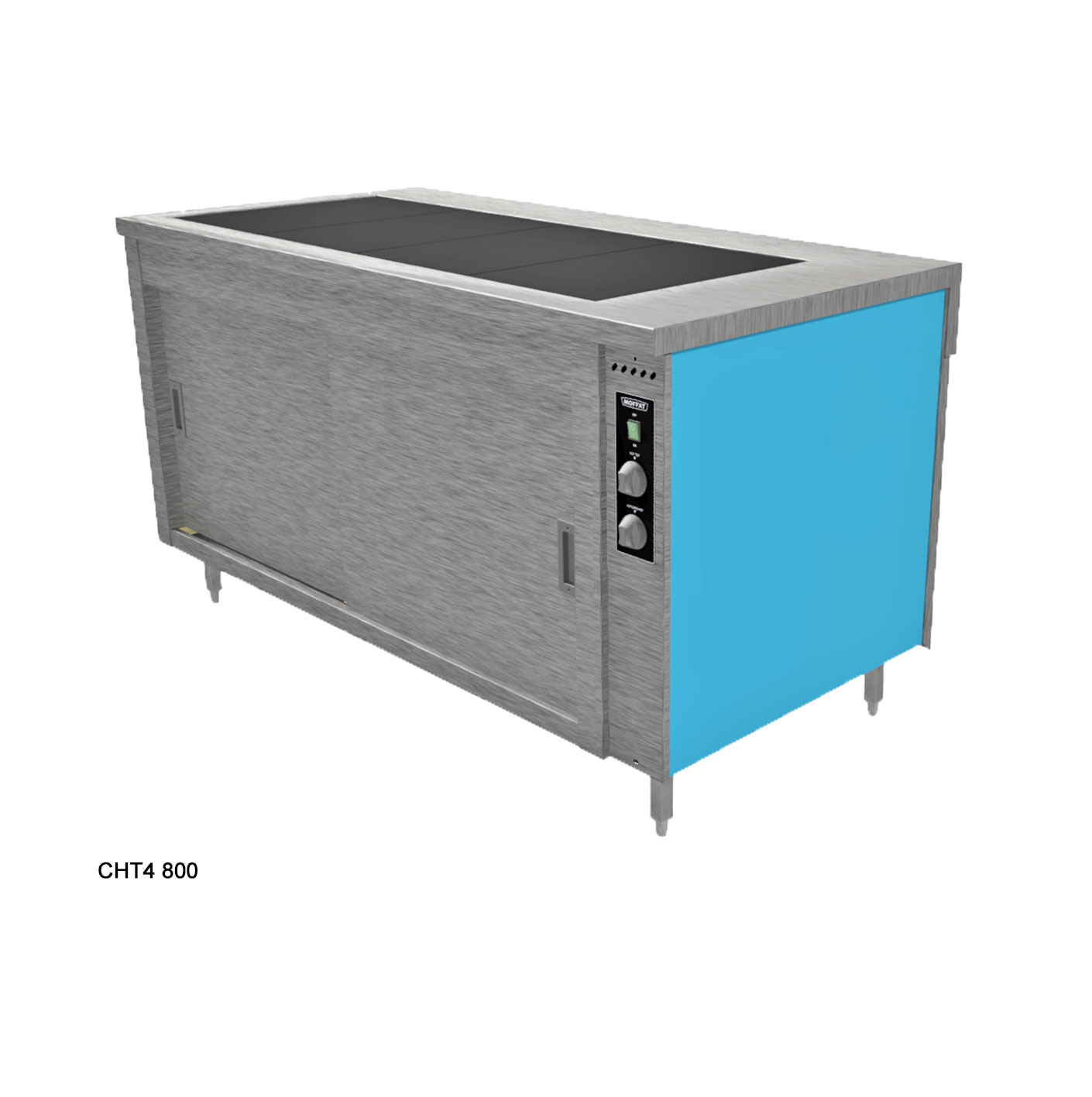

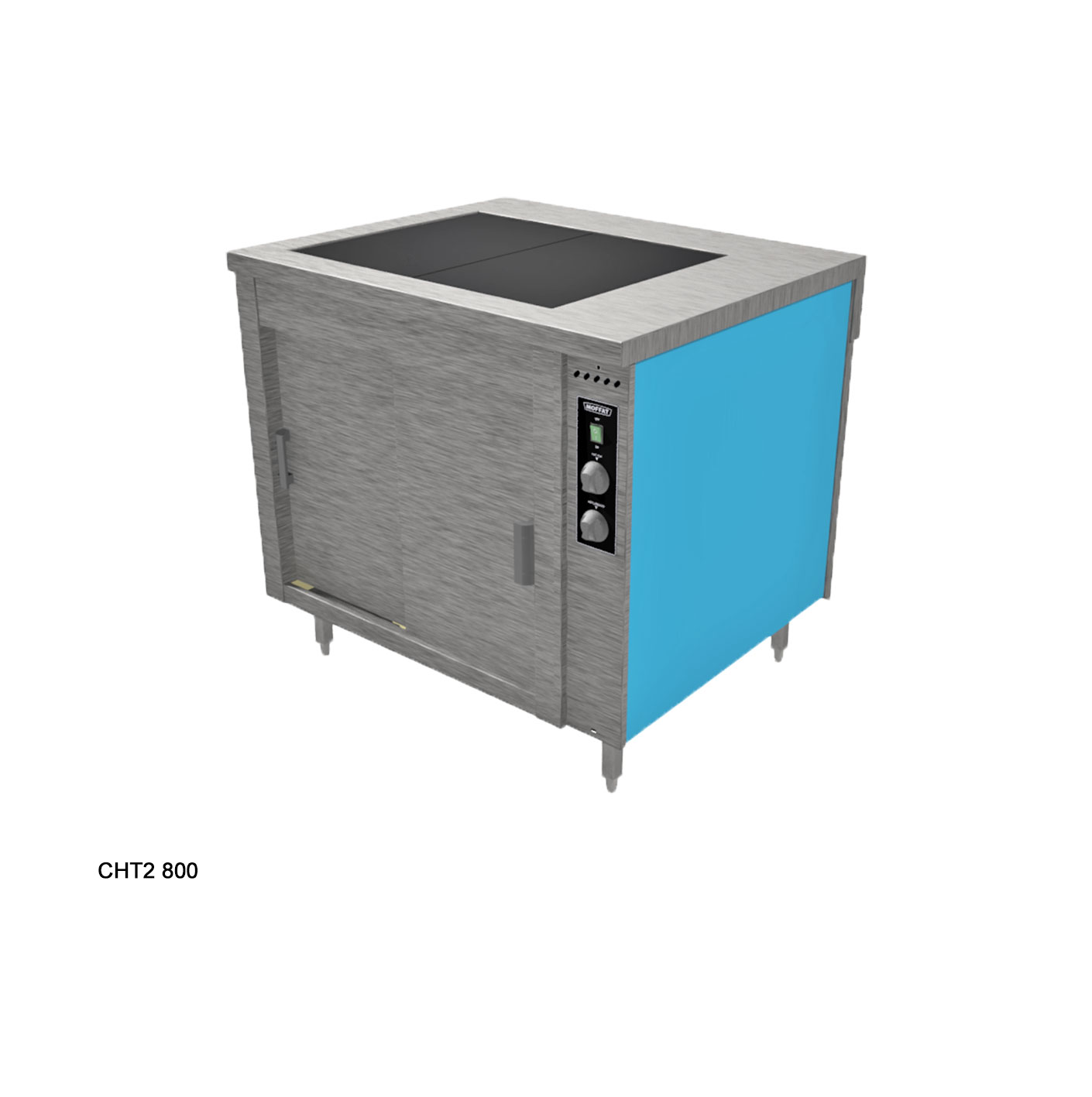

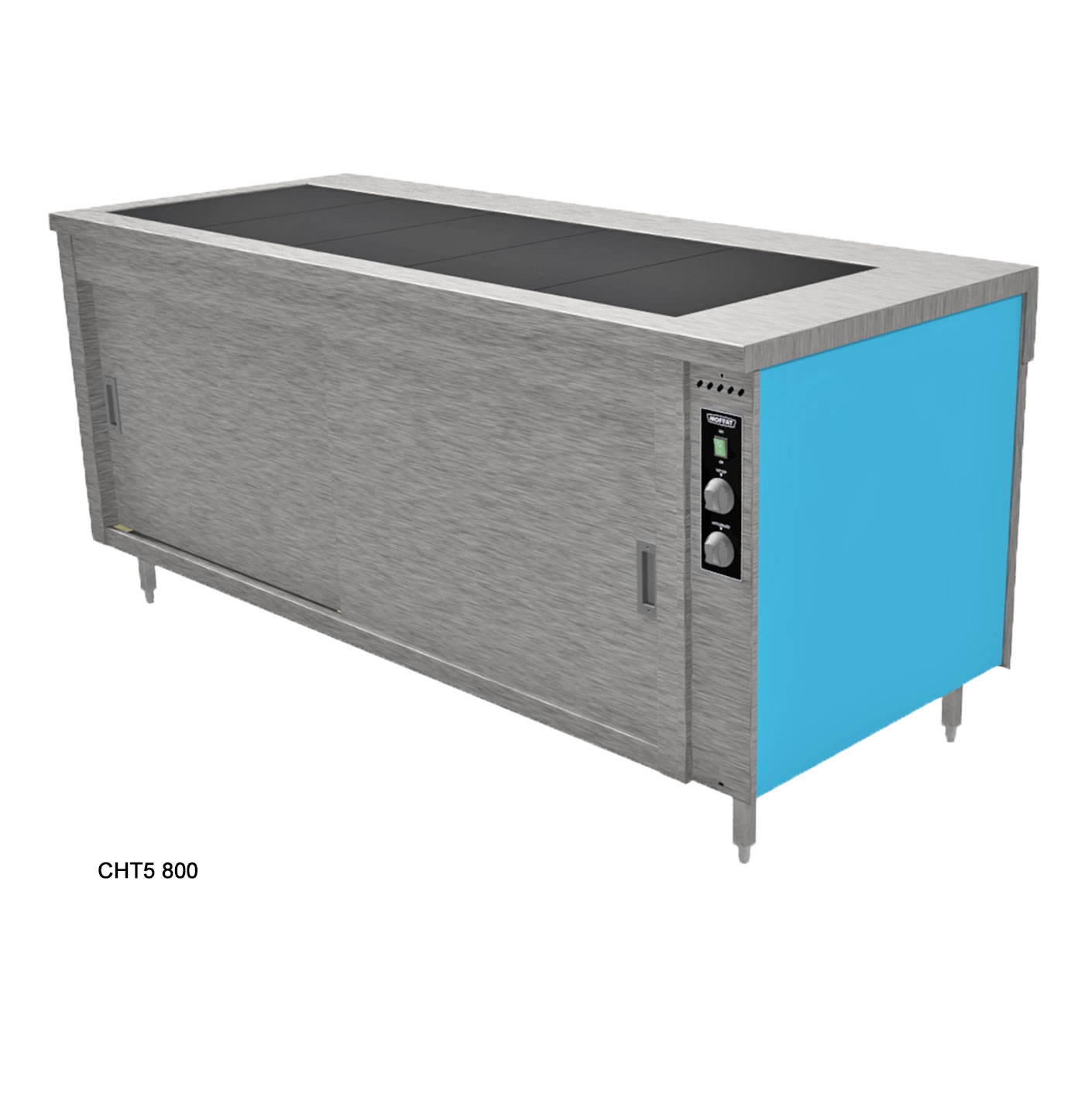

Note: The standard unit depth is 700mm, These models are also available at 800mm deep. Additionally when integrated into a bespoke counter, the worktop depth can be made to suit specific design parameters.

DOWNLOADS

Specification

Key features

Fast heat up and recovery times.
Guaranteed evenly distributed heat with no hot spots distortion or discolouring.
Various types of flat bottom dishes can be used.
Insulated for increased efficiency.
With hygiene in mind all stainless-steel construction, inner panels are bright polished.
Forced-air, convection, heated cupboard offers unparalleled flexibility of use.
Fan unit is easily removable for cleaning and maintenance.
Base and door track in one piece for easy cleaning.
Thermostatically controlled fan assisted hot cupboard. 30°-110°C
Energy regulated Hot Top up to 95°C.
Doors are very easily removed for cleaning, sliding doors have unique double life skid pads.
Doors can be fully rotated and reinserted allowing the spare skid pads to be used offering a long and trouble-free service.
Easy lift out GN 1/1 size multiple grid shelving, held by heavy-duty stainless-steel tube supports.
The recessed, slide-out, control panel is mounted to operator right hand side of cupboard.
Complete with a 2-meter-long cable and plug [most units work from a 13-amp supply

Operating Modes

Thermostatically controlled fan assisted hot cupboard. 30°-110°C
Energy regulated Hot Top up to 95°C.

Electrical Specifications

Rating with Gantry - 1.48 kW - 3.68 kW
Rating without Gantry - 1.26 kW - 2.8 kW
Electrical Supply - 13amp/16amp

Wiring Drawings

Wiring drawing can be obtained by contacting Sales

Options

Heavy duty spiked stainless steel carving pad (Code: VCCP)
Fold down solid tray slide or tubular tray rail
Door Locks
Gastronorm pans
Various colours and styles of front and side panels are available, plastic coated steel, laminated wood type or Corian.
Various designs of overhead illuminates gantries are available, curved or square type glass, open or full front. Island, Deli, or traditional kitchen pass types can all be fitted.
Solid tray slide or tubular tray rails fixed or fold down types.
