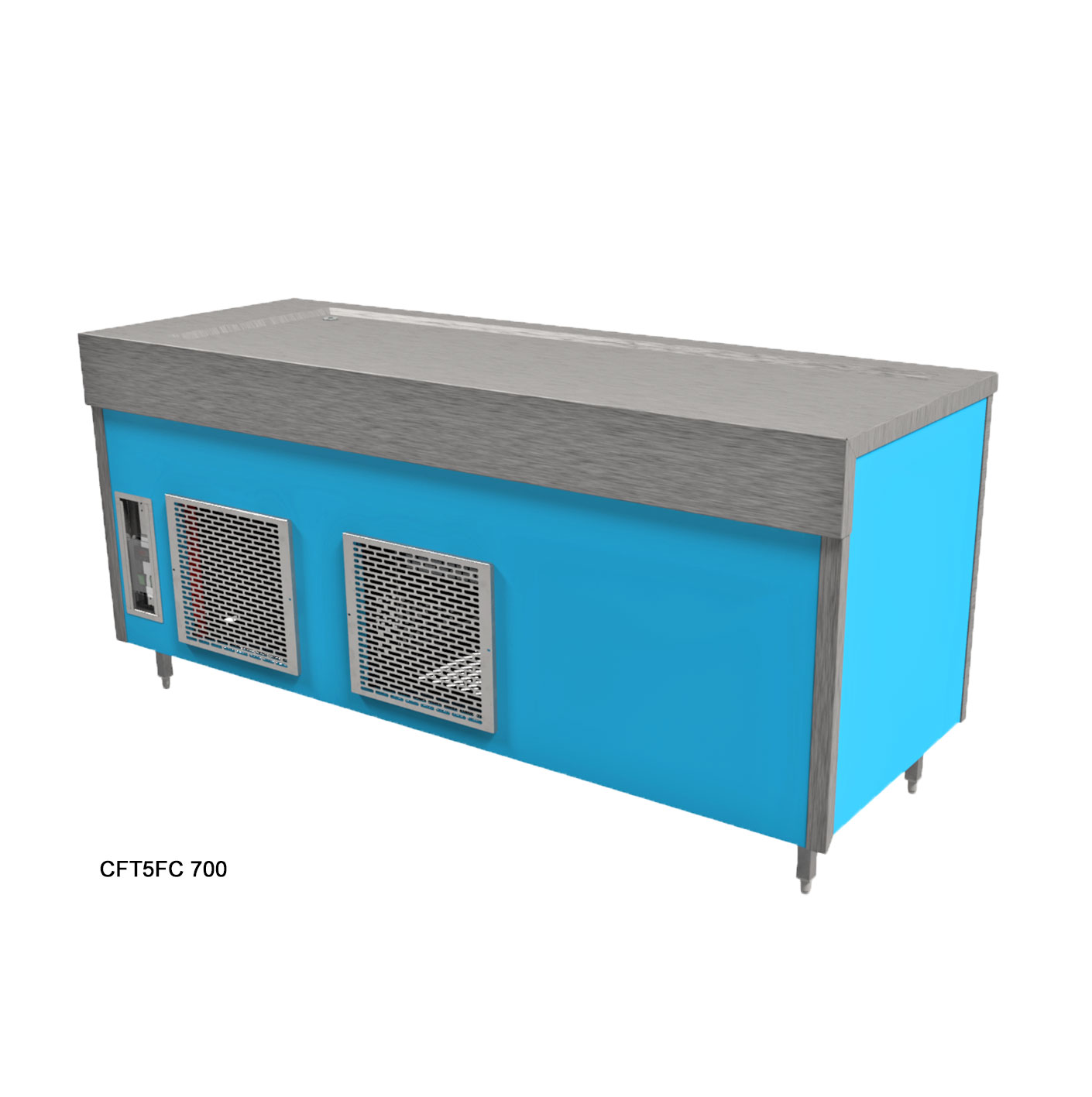

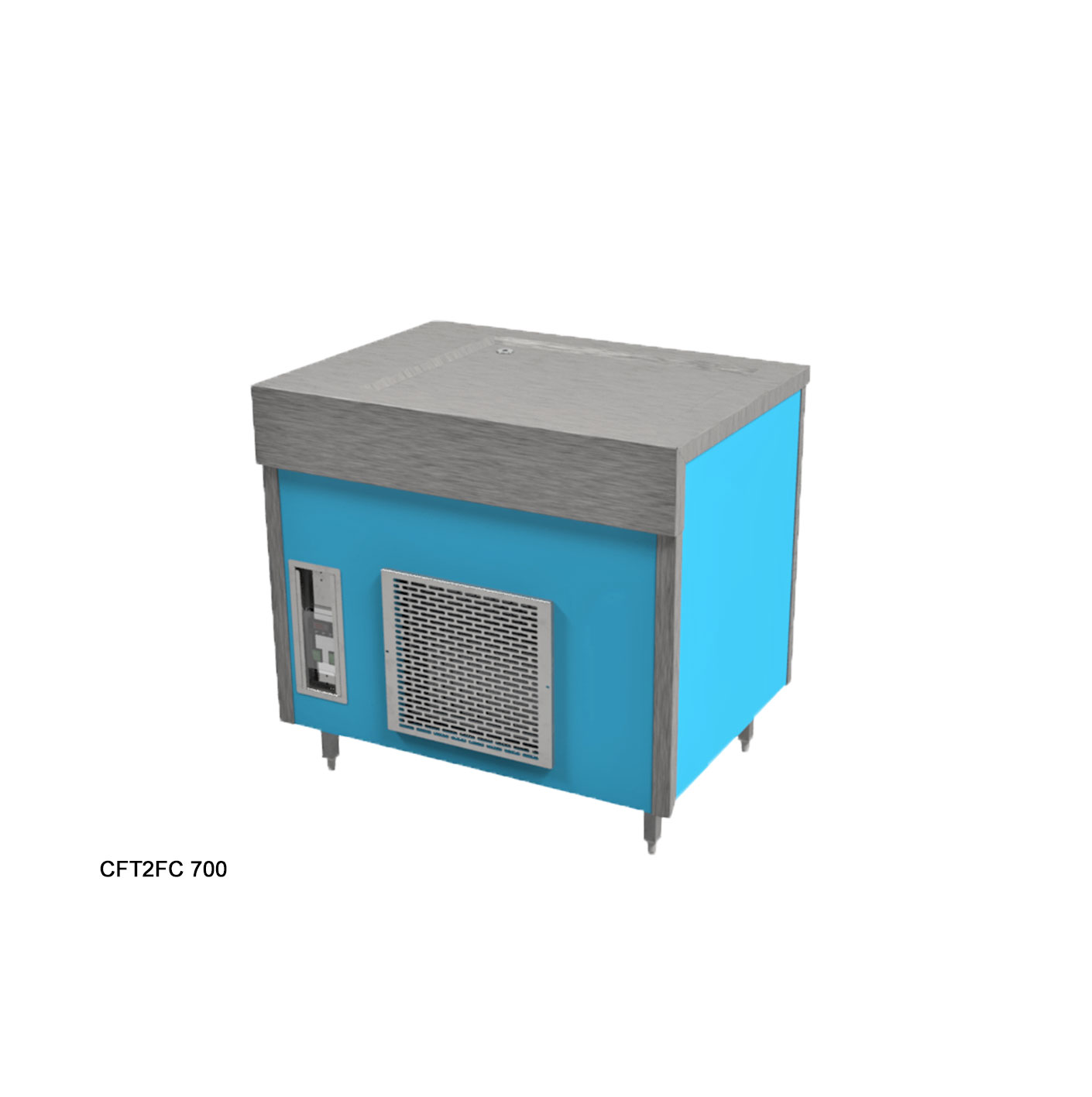

CFT2/3/4/5FC

Chilled display units specially designed to safely hold quick-turnaround, pre-chilled food products at optimum serving temperatures incorporating a recessed frosted top. Frost Tops keep pre-chilled snacks, hors d’oeuvre, side dishes and beverages cool and ready to serve. The unique Moffat innovative contact cooling system provides a frosted chilled display area with a surface temperature between -1 and -5. The recessed area can accommodate 1/1GN trays, this allows a simple and easy method of handling and restocking of food products. Self-contained units with accurate digital control, high pressure warning, and a drain which has a shut of valve. The drain pipe can be connected into the main waste system or alternatively simply place a suitable vessel under to catch the excess water after service. Utilising a highly efficient, naturally occurring hermetically sealed hydrocarbon refrigeration gas type R290 reducing the carbon footprint and energy consumption. Use individual or as a part of a specialised Moffat servery counter.

Each model can be made part of a specially designed bespoke Moffat servery counter, with integrated Granite, Corian, or Stainless worktops

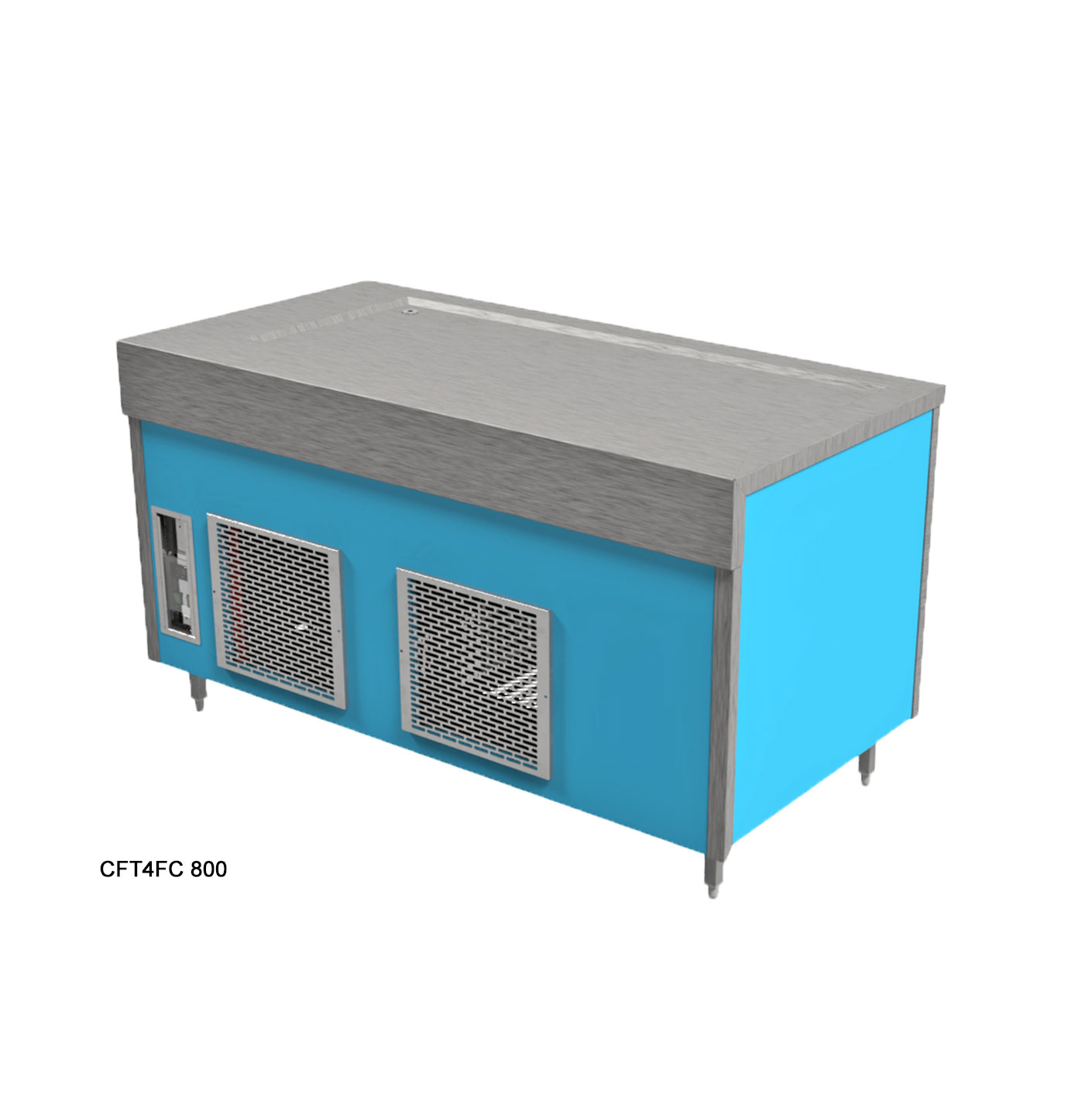

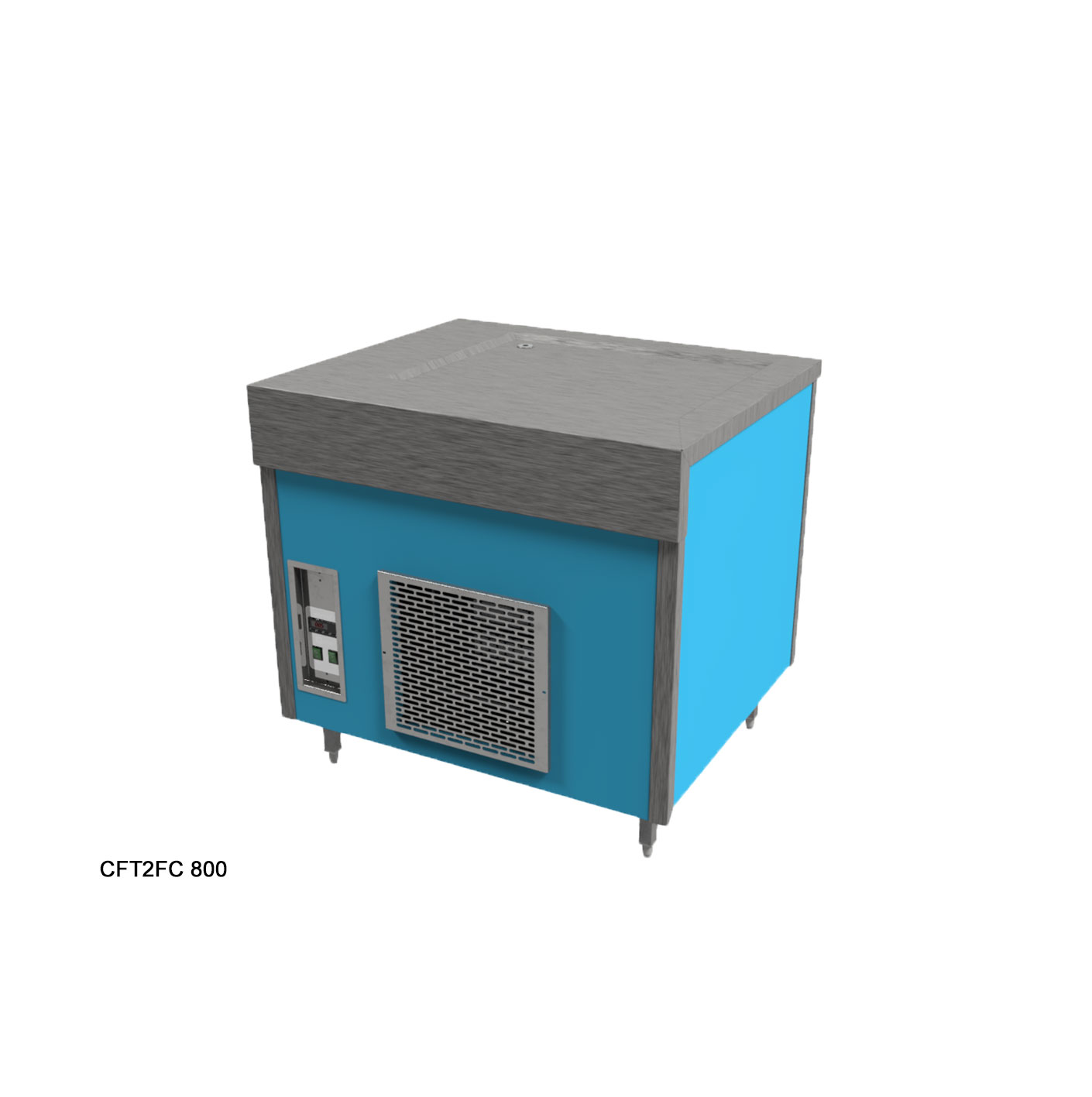

Note: The standard unit depth is 700mm, These models are also available at 800mm deep. Additionally when integrated into a bespoke counter, the worktop depth can be made to suit specific design parameters.

Frost tops can be made from either stainless steel or granite. Stainless steel models have a shallow recessed display area, Granite type have a small shallow trough around the display area, both have a drain for excess water.

DOWNLOADS

Specification

Key features

With hygiene in mind all stainless-steel construction.
4 models in the range accommodating 2 to 5 GN 1/1 Gastronorm type trays.
Size 3, 4 & 5 have condensing unit set at 90° angle. Removes the need for unsightly vents in the front panels.
Size 4 and 5 models have a storage space under at the operators left side.
Digital thermostat and temperature control
Fully insulated efficient, eco-friendly, refrigeration.
Maintaining the core product temperature of pre-chilled food below 5°C in ambient condition not exceeding 25°C and 60% relative humidity
Drain with shut off valve, 24 hour operation.
Supplied with 2m long power cord and 13amp plug [13A 230v 50Hz]

Operating Modes

Digital thermostat and temperature control
Fully insulated efficient, eco-friendly, refrigeration.
Maintaining the core product temperature of pre-chilled food below 5°C in ambient condition not exceeding 25°C and 60% relative humidity
Drain with shut off valve, 24 hour operation.

Electrical Specifications

Rating without Gantry - 1.0 kW
Rating with Gantry - 1.22 kW
Electrical Supply - 13amp

Wiring Drawings

Wiring drawing can be obtained by contacting Sales

Options

Gastronorm trays
Various colours and styles of front and side panels are available, plastic coated steel, laminated wood type or Corian.
Various designs of overhead illuminates gantries are available, curved or square type glass, open or full front. Island, Deli, or traditional kitchen pass types can all be fitted.
Solid tray slide or tubular tray rails fixed or fold down types.
