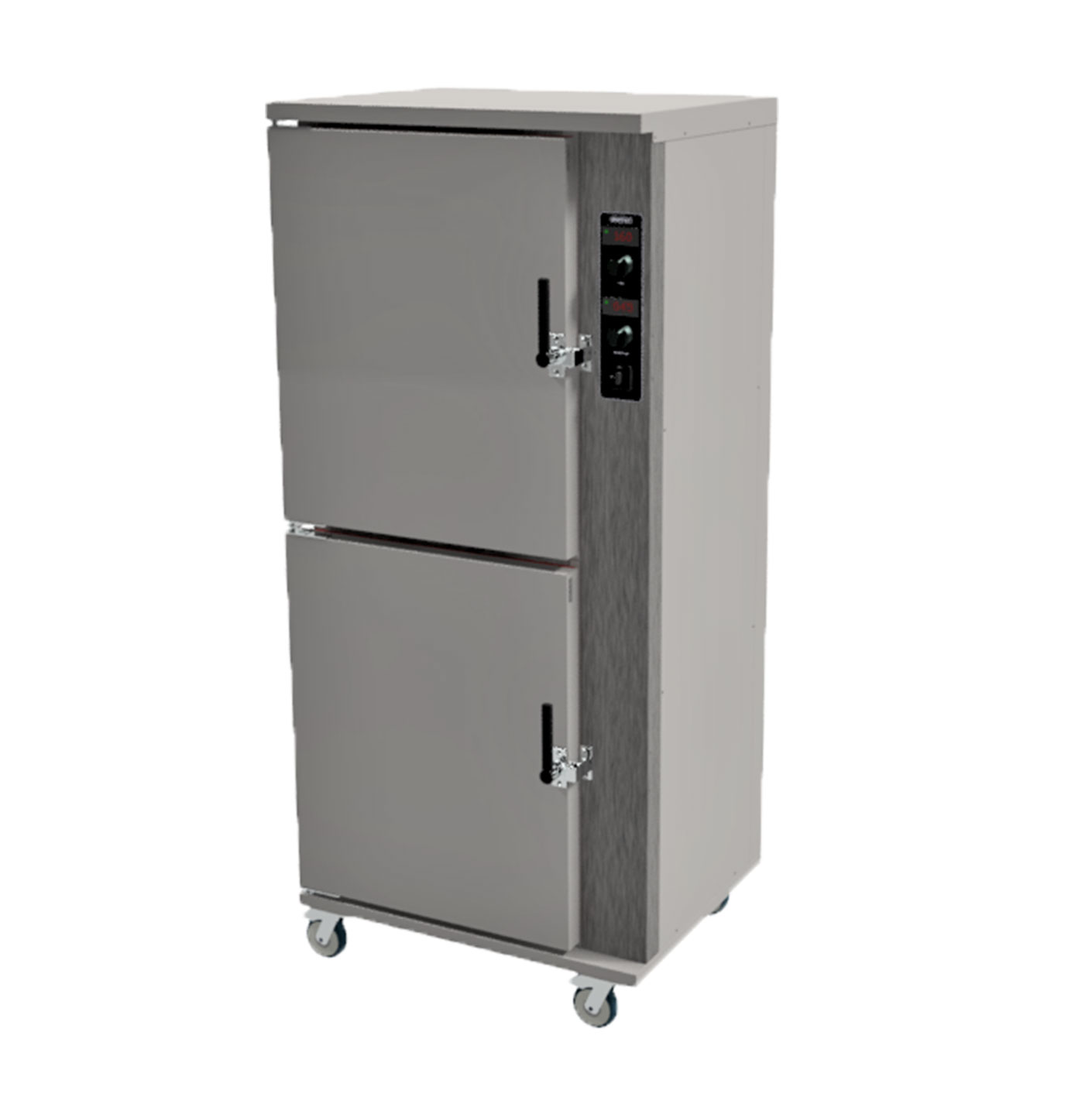

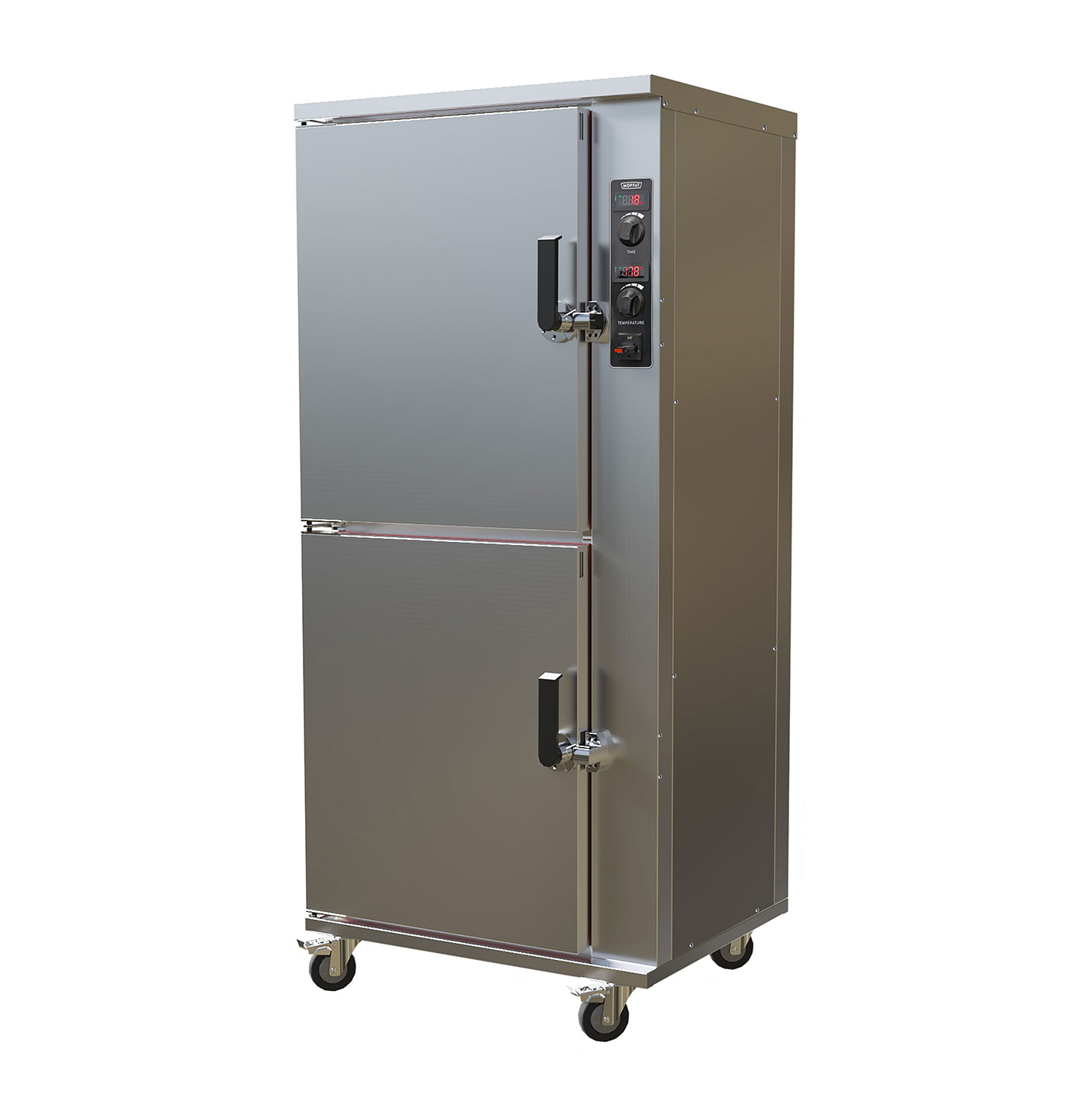

Convection/Regeneration Oven

CR20L16, CR20L32, CR20L63

Designed specifically for the cooking / regeneration and serving of fresh, chilled or frozen bulk food. These ovens can also be used for pre-chilled plated meal regeneration. The unique multi-fan air circulation system allows fast and even heat distribution throughout. Designed for GN1/1 type pans, the CR20L has Twenty shelf positions (six grid shelves supplied as standard).

The ovens have a bright, polished, stainless steel interior, satin finished outer panels, complete with a heavy duty hinged doors and slam shut door catches. The unit is supplied with adjustable for height feet.



DOWNLOADS

Specification

Key features

  • 1/1 GN compatible. Simple to transfer to serving equipment or load from other kitchen appliances
  • Digital timer and thermostat guarantees precise time and temperature control.
  • Simply rotary controls, temperature and count down timer display, with an audible buzzer indicating when food is ready.

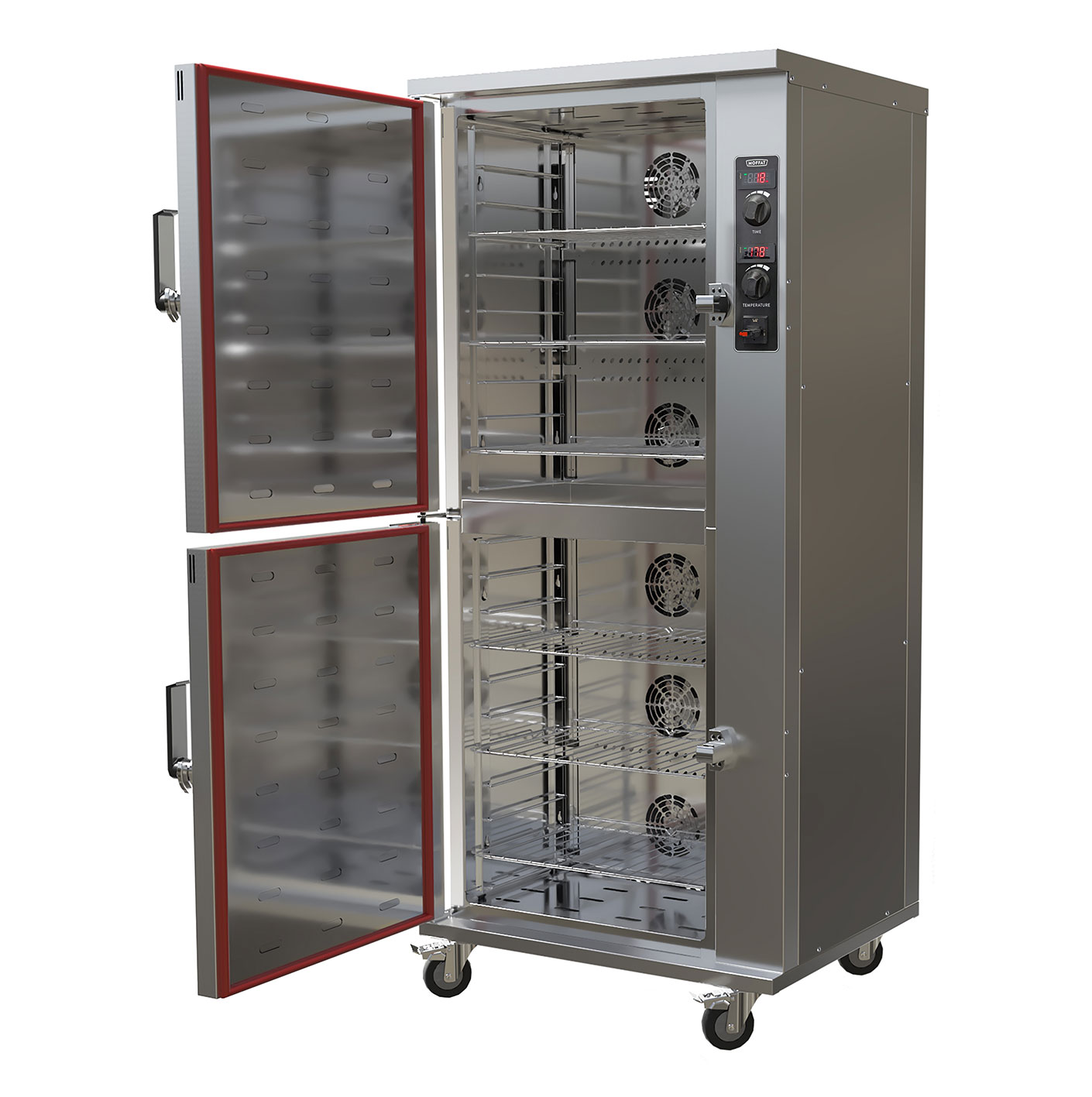

  • Multi fans deliver even heating across the entire oven chamber, ensuring no cool spots and consistent cooking results.
  • Designed for bulk production, with 8 shelf capacity (shelf pitch is 71mm).
  • Supplied ready assembled complete with electrical plug so no installation expense and ready to go as soon as it’s delivered.

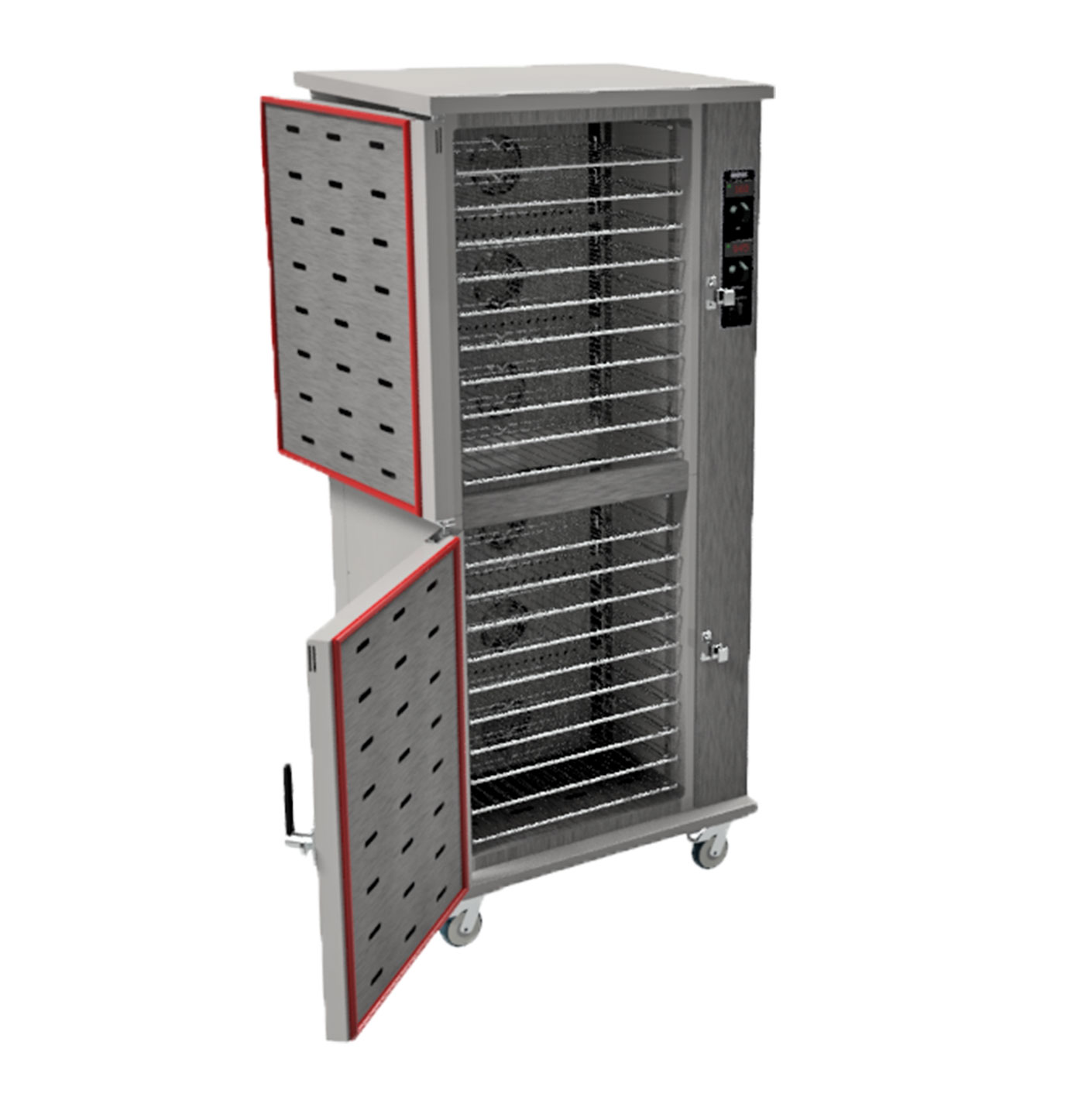

  • Shelving and supports are removable for easy cleaning.
  • Hi-Tech insulation.
  • Slam catch hinged door.
  • 13amp powered models are supplied with a 2m long power cord.

Operating Modes

  • Cook & Serve - Use in the same manner as a traditional convection oven.
  • Cook Chilled - Regeneration of chilled bulk food [0°C to 8°C optimum 5°C] to above 82°C.
  • Cook Frozen - Regeneration of frozen bulk food
    [-6°C to -25°C optimum -18°C] to above 82°C.
  • Keep Hot - Holding hot bulk food above 63°C, compartment controlled at 90°C.

Electrical Specifications

  • For CR20L16
  • Rating - 9.0 kW
  • Electrical Supply - 16amp 3PH

Alternative Power supply (recommended for frozen food)

  • For CR20L32 / CR20L63
  • Rating - 11.4kW
  • Electrical Supply - 32amp-3PH or 63amp-1PH

Wiring Drawings

  • Wiring drawing can be obtained by contacting Sales

Options

  • VLS Additional grid shelves.
  • Gastronorm pans.
