Bulk Food Trolley
PM2/3, PM2/3R
BF2/3, BF2/3R, BF2/3B, BF2/3BR, BF2RR
These trolleys are designed for the distribution of bulk food meals in 1/1 gastronorm containers.
This versatile range can be supplied as an ambient trolley, or with keep hot compartments (BF2, BF3), refrigeration compartments or with a combination of these. With the plate converter fitted (either factory or retro) the PM range can accommodate 16 plated meals in each compartment.

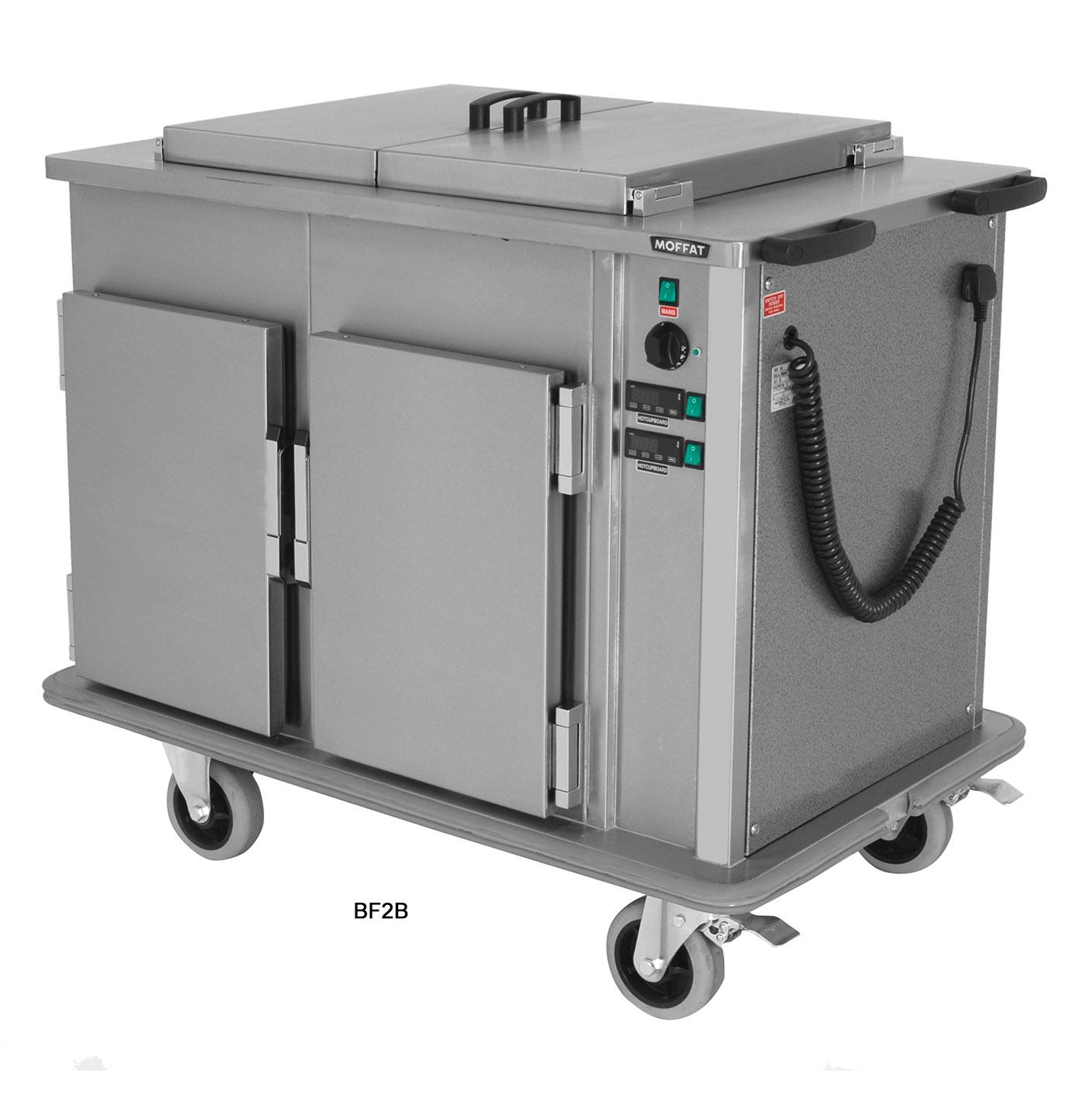

The BF2B, BF2BR, BF3B and BF3BR also feature Bains Marie with covers to the top of the unit along with the combinations of ambient, heated or refrigerated compartments below.
DOWNLOADS
Specification
Key features

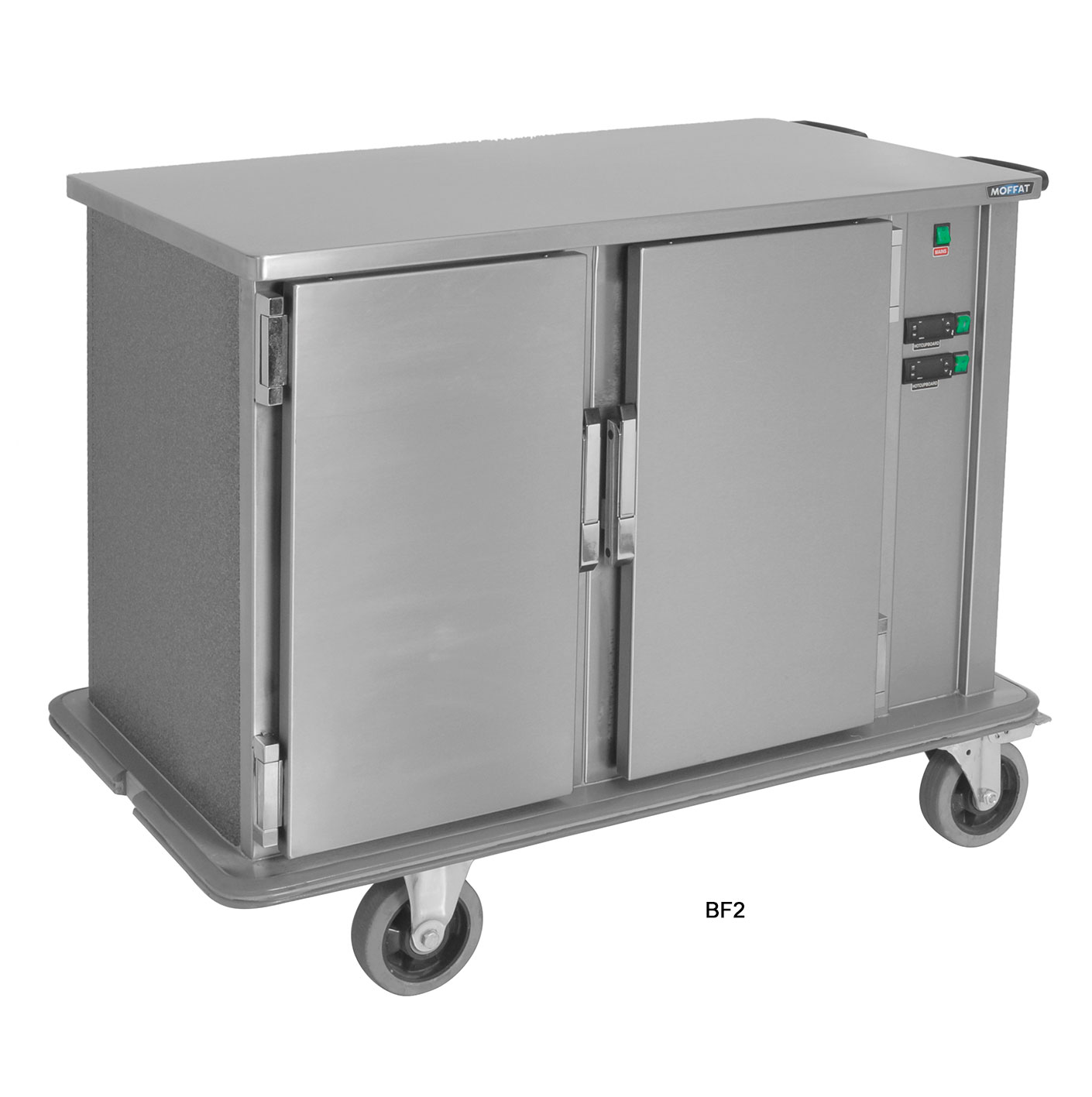

- Each compartment in a BF2 can hold 8 1/1 gastronorm containers 65mm deep.

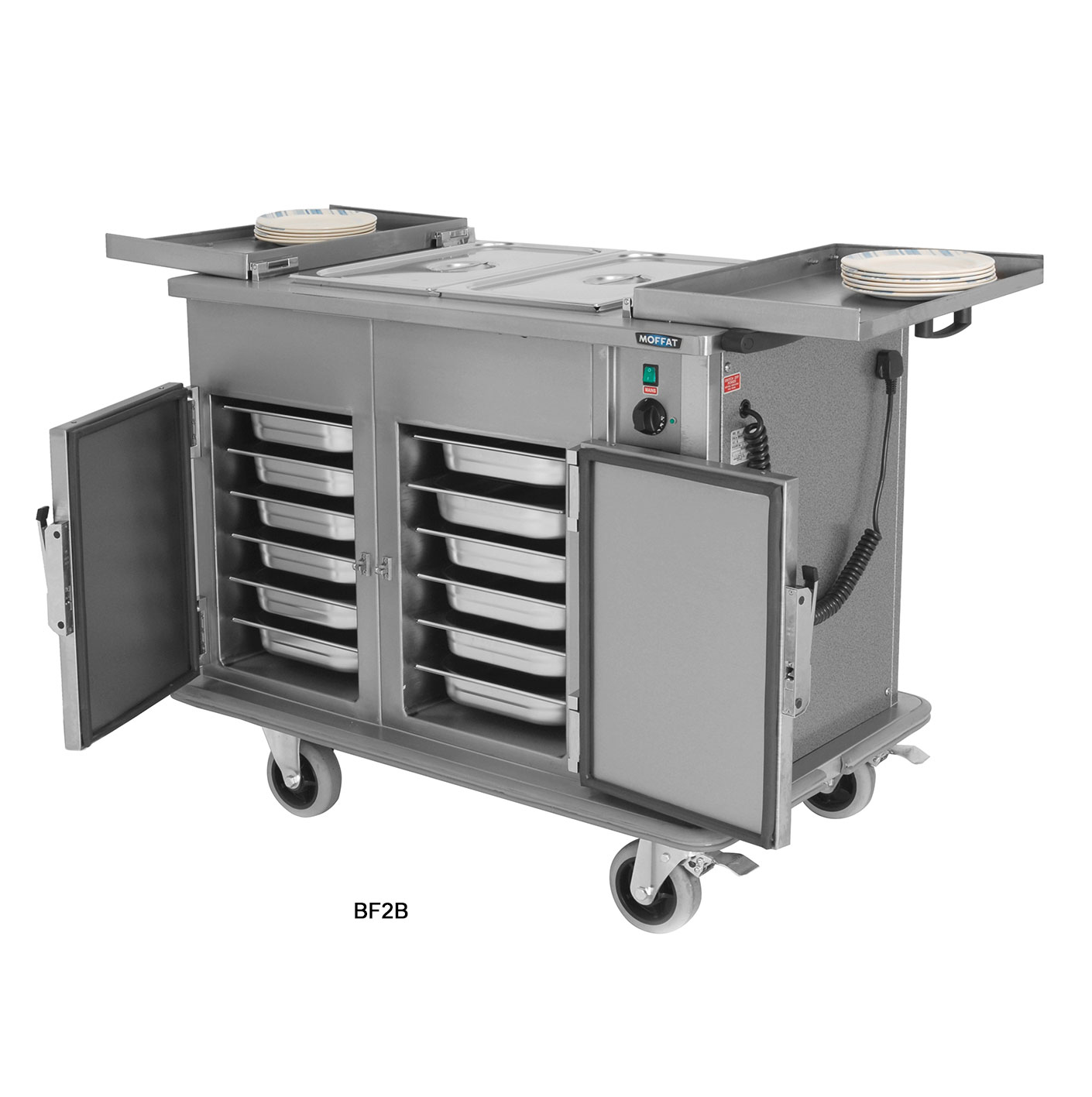

- The BF2B Trolley has a bains marie well in the top that can hold 2 x 1/1 gastronorm up to 150mm deep, the bains marie is fitted with hinged covers which convert to service areas when opened out. Each compartment in a BF2B can hold 6 1/1 Gastronorm containers 65mm deep.
- The Trolley is manufactured from 304 stainless steel
- throughout and all the internal compartments are formed into a one piece unit leaving a crevice free easy clean interior.
- The unit is also fitted with four 150mm diameter precision bearing castors two with brakes for easy manoeuvring.
Operating Modes
- There is a digital control temperature and display to each compartment pre wired with a 13amp plug and cable.
Electrical Specifications
- Rating - 0.75 kW - 2.9kW
- Electrical Supply - 13amp
Wiring Drawings
- Wiring drawing can be obtained by contacting Sales
Options
- Additional Bulk Food/Plated Meal grid shelf.
- VGEN tow bar.
- Triple tube trayslide.
- Plain trayslide with cutlery cut outs.
- VGEN end shelf.
- Gantry (for plain top units only).
- All round tubular gallery rail to plain top.
