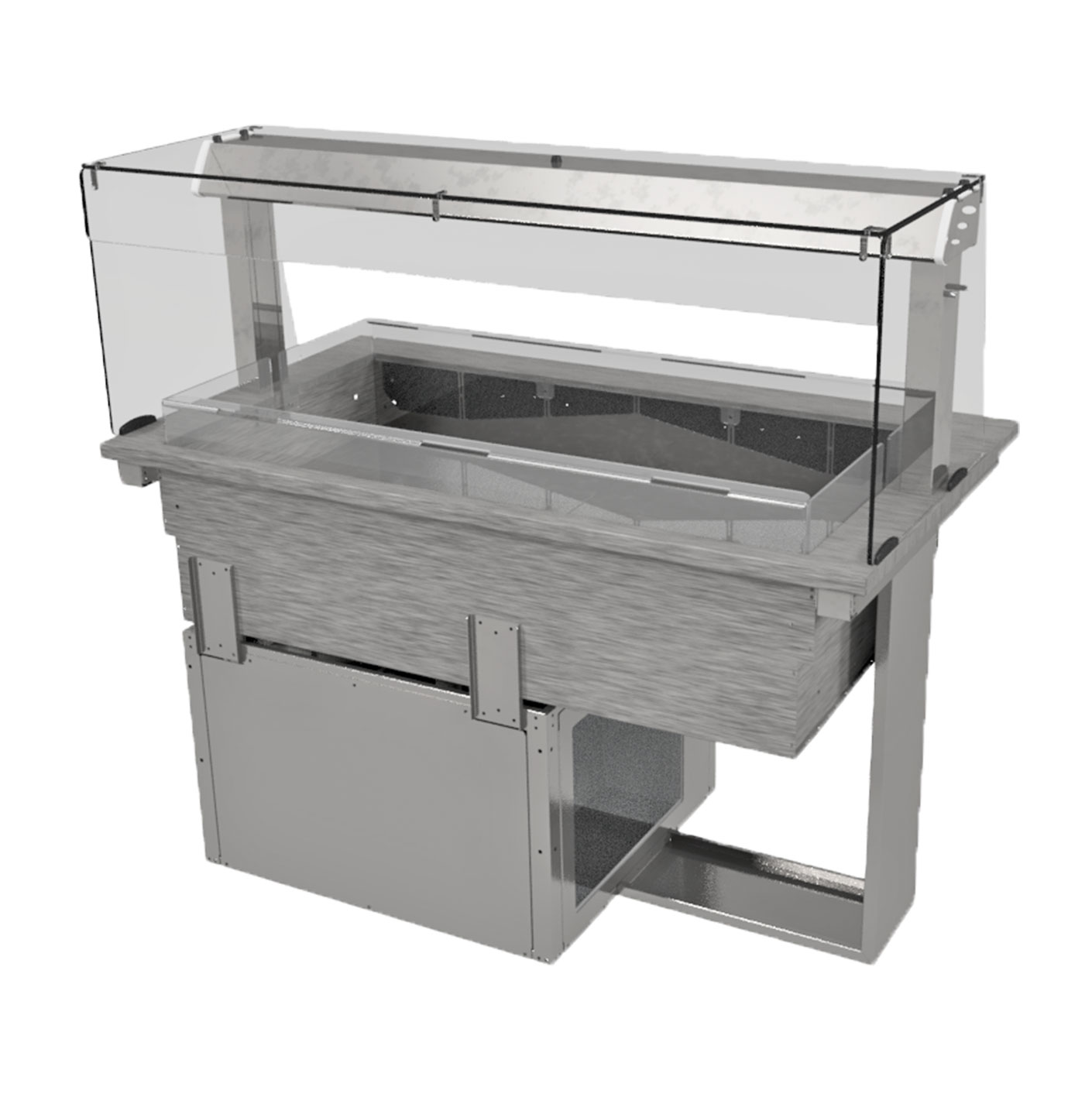

D2/3/4/5RWSL

Chilled display Units incorporating a cold well, the unique Moffat innovative “Polar Air Stream” system provides a constant wall of cold air which moves across the well blanketing the food displayed and recirculates back through the system. Holding pre-chilled food at a safe and regulated temperature. Retaining taste and freshness throughout, perfect for fruit and vegetables, salads, and cold drinks. Self-contained units with accurate digital control, automatic defrost, high pressure warning, and automatic condensate evaporation. The Refrigeration System is housed underneath in a tidy compact cradle. LED illumination from above. Utilising a highly efficient, naturally occurring hydrocarbon refrigeration gas type R290 (as standard). Hermetically sealed, reducing the carbon footprint and energy consumption.

MODEL OPTIONS

  • Model D2/3/4/5RWNG
  • Model D2/3/4/5RW
  • Model D2/3/4/5RWI
  • Model D2/3/4/5RWF
  • Model D2/3/4/5RWSLI
  • Model D2/3/4/5RWSLF
  • Model D2/3/4/5RWD
  • Model D2/3/4/5RWDSL

DOWNLOADS

Specification

Key features

  • Condensing unit set at 90° angle. Removes the need for unsightly vents in the front panels of serveries and counters.
  • Accommodates 60mm deep 1/1 GN pans [not supplied].
  • Digital thermostat and temperature control.
  • Advanced air flow design with unique polar airstream technology.
  • Efficient, eco-friendly, refrigeration.
  • Long life, low energy LED.
  • Maintaining the core product temperature of pre-chilled food below 5°C in ambient condition not exceeding 25°C and 60% relative humidity.
  • Automatic condensate water evaporation [no need to empty drip trays).
  • Automatic defrost control.
  • 24 hour operation.
  • Fully insulated.
  • Supplied with 2m long power cord and 13amp plug [13A 230v 50Hz].
  • Plenum duct to aid onsite ventilation and installation.

Operating Modes

  • Chilled display Units incorporating a cold well, the unique Moffat innovative “Polar Air Stream”.
  • Utilising a highly efficient, naturally occurring hydrocarbon refrigeration gas type R290 (as standard).



Electrical Specifications

  • Rating - 1.0 kW - 2.0 kW
  • Electrical Supply - 13amp

Options

  • Double sided Island Glass Curved or Shear line type.
  • Additional air flow kit [In-line fan and flexi-duct kit for difficult non-standard installations] (Code: DRAF).
  • Gastronorm adaptor 3 x 1/3 Gn Size (Code: DGPA).
