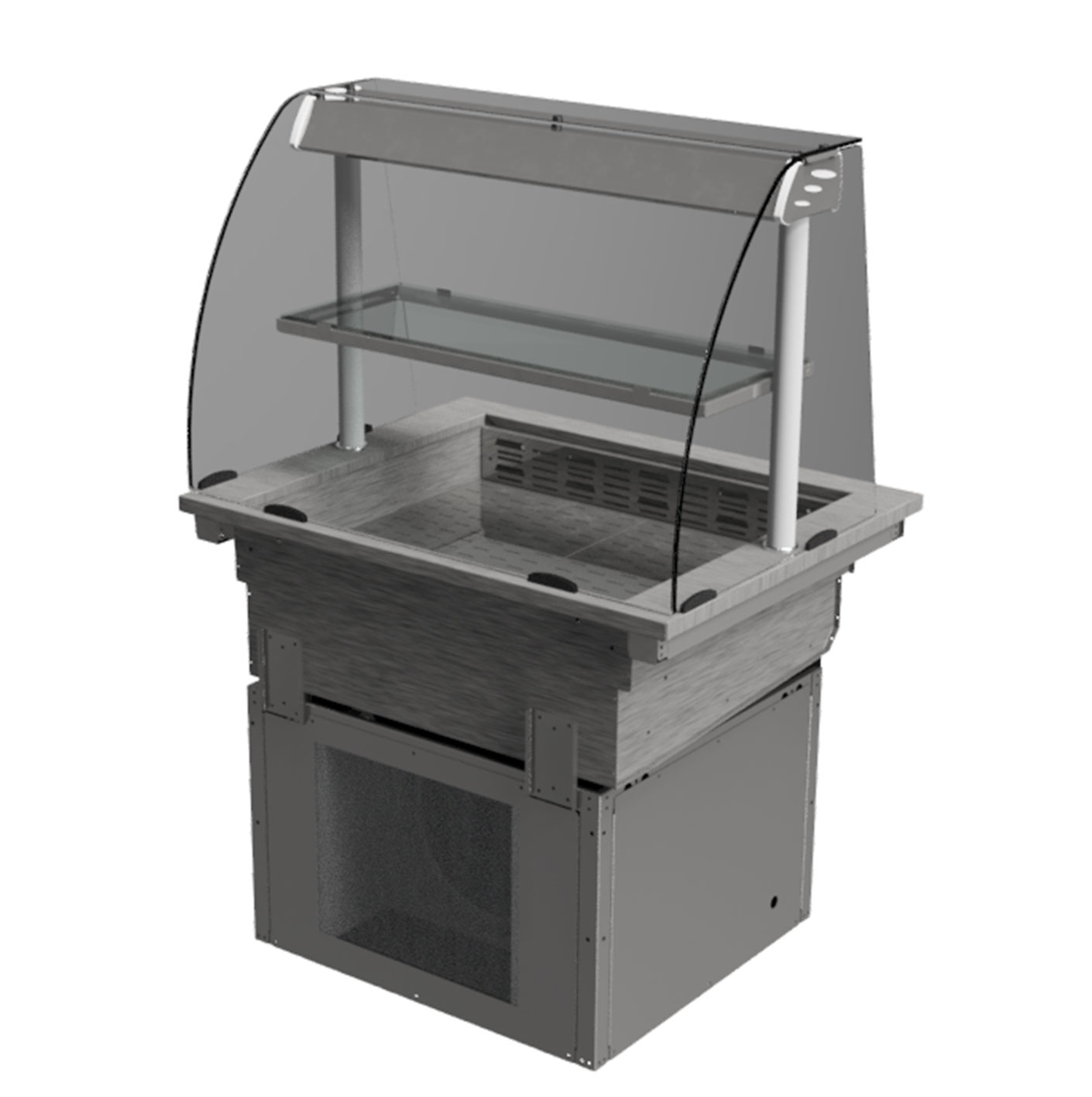

D2/3/4/5RWD
Chilled display Units incorporating a cold well, the unique Moffat innovative “Polar Air Stream” system provides a constant wall of cold air which moves across the well blanketing the food displayed and recirculates back through the system. Holding pre-chilled food at a safe and regulated temperature. Retaining taste and freshness throughout, perfect for fruit and vegetables, salads, and cold drinks. Self-contained units with accurate digital control, automatic defrost, high pressure warning, and automatic condensate evaporation. The Refrigeration System is housed underneath in a tidy compact cradle. LED illumination from above. Utilising a highly efficient, naturally occurring hydrocarbon refrigeration gas type R290 (as standard). Hermetically sealed, reducing the carbon footprint and energy consumption.
MODEL OPTIONS
- Model D2/3/4/5RWNG
- Model D2/3/4/5RW
- Model D2/3/4/5RWI
- Model D2/3/4/5RWF
- Model D2/3/4/5RWSL
- Model D2/3/4/5RWSLI
- Model D2/3/4/5RWSLF
- Model D2/3/4/5RWDSL
DOWNLOADS
Specification
Key features
- Condensing unit set at 90° angle. Removes the need for unsightly vents in the front panels of serveries and counters.
- Accommodates 60mm deep 1/1 GN pans [not supplied].
- Digital thermostat and temperature control.
- Advanced air flow design with unique polar airstream technology.
- Efficient, eco-friendly, refrigeration.
- Long life, low energy LED.
- Maintaining the core product temperature of pre-chilled food below 5°C in ambient condition not exceeding 25°C and 60% relative humidity.
- Automatic condensate water evaporation [no need to empty drip trays).
- Automatic defrost control.
- 24 hour operation.
- Fully insulated.
- Supplied with 2m long power cord and 13amp plug [13A 230v 50Hz].
- Plenum duct to aid onsite ventilation and installation.
Operating Modes
- Chilled display Units incorporating a cold well, the unique Moffat innovative “Polar Air Stream”.
- Utilising a highly efficient, naturally occurring hydrocarbon refrigeration gas type R290 (as standard).
Electrical Specifications
- Rating - 1.0 kW - 2.0 kW
- Electrical Supply - 13amp
Options
- Double sided Island Glass Curved or Shear line type.
- Additional air flow kit [In-line fan and flexi-duct kit for difficult non-standard installations] (Code: DRAF).
- Gastronorm adaptor 3 x 1/3 Gn Size (Code: DGPA).
- Prep-shelf and cutting board (Codes: D2PS, D3PS, D4PS & D5PS) for Deli models only.
- Rear sliding doors (Codes: D2DD, D3DD. D4DD & D5DD) Deli models only.
