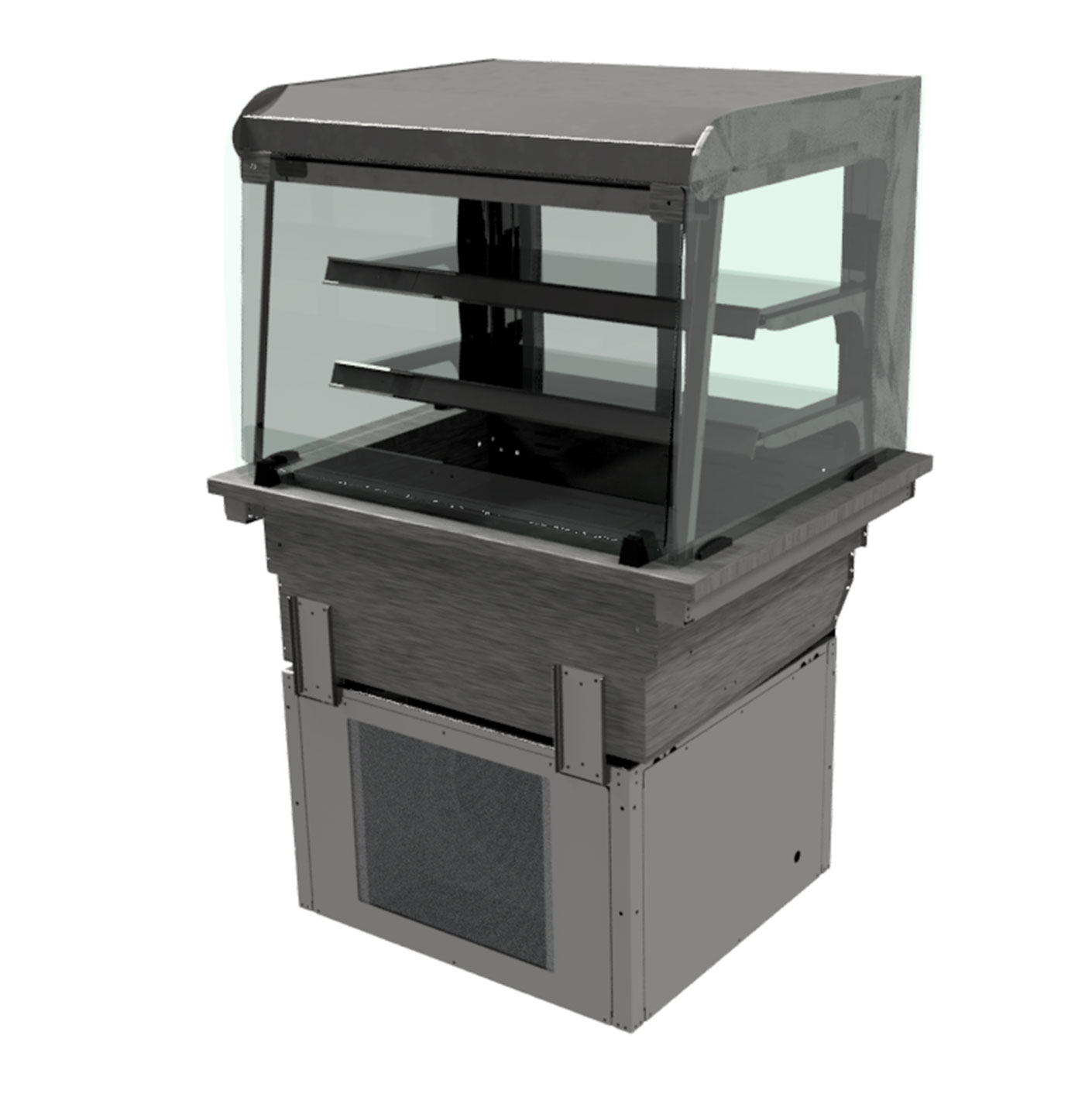

D2/3/4/5RDLF
Chilled display units incorporating a cold well and 2 glass display shelves. The unique Moffat innovative “Polar Air Stream” system provides a constant, recirculating cold air curtain completely enveloping the food displayed. Holding pre-chilled food at a safe, regulated temperature while retaining taste and freshness. Perfect for sandwiches, fruit, yogurts and cold drinks. Self-contained units with accurate, digital control, automatic defrost, high pressure warning and automatic condensate evaporation. The Refrigeration System is housed underneath in a tidy, compact cradle. Utilising a highly efficient, naturally occurring, hermetically sealed, hydrocarbon gas type R290 as standard - reducing carbon footprint and energy consumption.
MODEL OPTIONS
- Model D2/3/4/5RDL
- Model D2/3/4/5RDLFC
- Model D2/3/4/5RDLSA
- Model D2/3/4/5RDLSAFC
- Model D2/3/4/5RDLSL
- Model D2/3/4/5RDLSLF
- Model D2/3/4/5RDLSLFC
DOWNLOADS
Specification
Key features
- Condensing unit set at 90°. Removes the need for unsightly vents in the front panels of serveries and counters.
- Digital thermostat & temperature controller.
- Sliding rear double glazed doors.
- Advanced air flow design with unique polar airstream technology.
- Controls conveniently positioned in the gantry hood.
- Efficient, ozone friendly hydrocarbon refrigeration.
- Long life, low energy LED.
- Maintaining the core product temperature of pre-chilled food below 5°C in ambient condition not exceeding 25°C and 60% relative humidity
- Automatic condensate water evaporation [no need to empty drip trays).
- Automatic defrost control.
- 24 hour operation.
- Fully insulated.
- Supplied with 2m long power cord and 13amp plug [13A 230v 50Hz].
- Plenum duct to aid onsite ventilation and installation.
Operating Modes
- Chilled display units incorporating a cold well and 2 glass display shelves. The unique Moffat innovative “Polar Air Stream”.
- Utilising a highly efficient, naturally occurring, hermetically sealed, hydrocarbon gas type R290.
Electrical Specifications
- Rating - 1.5 kW - 2.5 kW
- Electrical Supply - 13amp
Wiring Drawings
- Wiring drawing can be obtained by contacting Sales
Options
- Additional air flow kit [In-line fan and flexi-duct kit for difficult non-standard installations] (Code: DRAF).
- Front Roller Blind (add “RB” to end of model code).
