D2/3/4/5HT

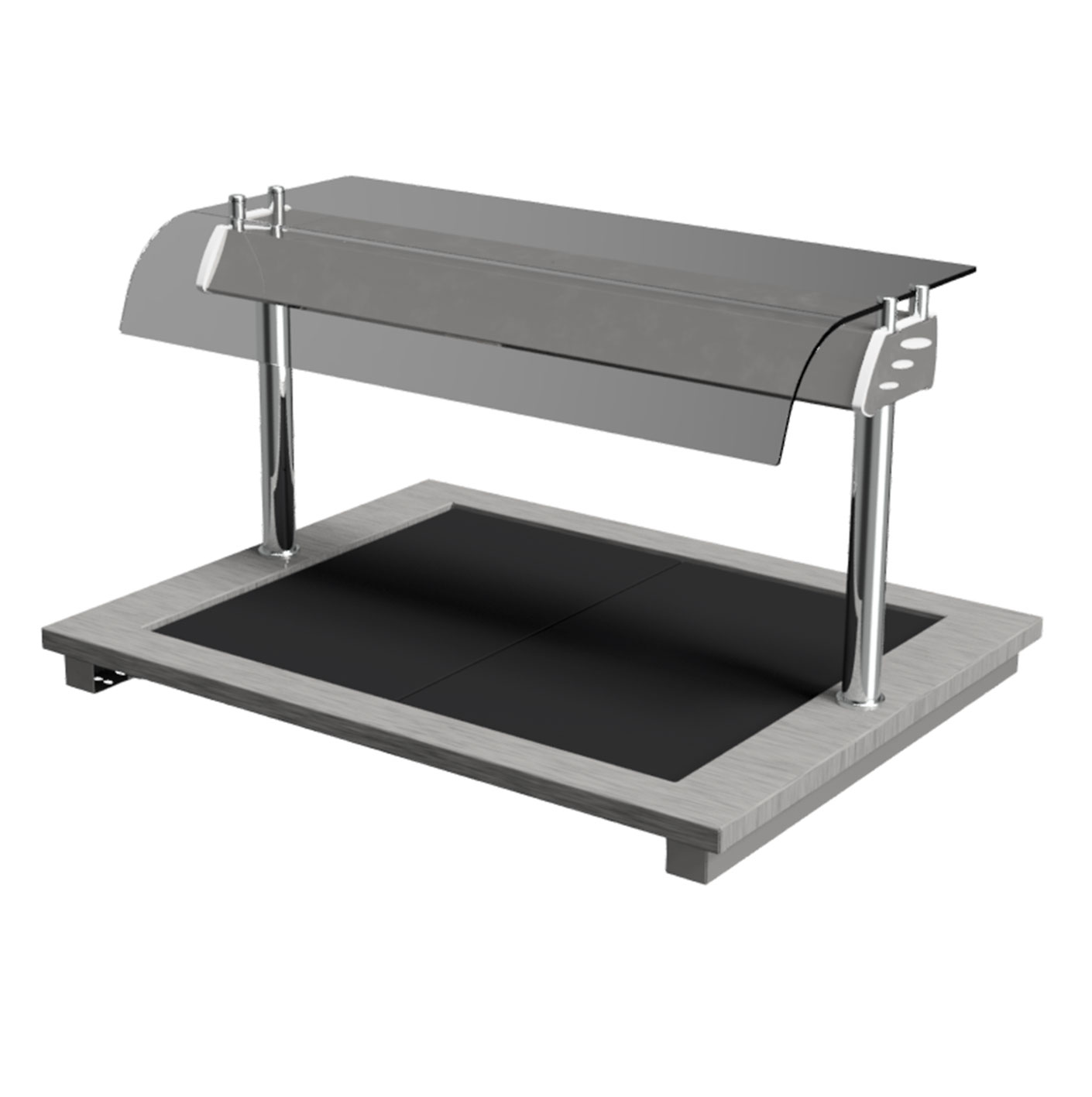

Hot Display with individual, Neo - Ceram glass, GN 1/1 size, thermo panels collectively governed by an energy regulating control. Designed to maintain Precooked food at serving temperature. They are not induction type units which require dedicated food pans, and apart from cast iron can be used with any suitable heatproof food container. Chafing dishes are not required. The surface temperature of the panels is adjustable to a maximum of 100°C. Complete with an aesthetic gantry hood above fitted with large quartz heat lamps, Providing an illuminated display area and additional heat source.
MODEL OPTIONS
- Model D2/3/4/5HTNG
- Model D2/3/4/5HTI
- Model D2/3/4/5HTF
- Model D2/3/4/5HTSL
- Model D2/3/4/5HTSLI
- Model D2/3/4/5HTSLF
- Model D2/3/4/5HTD
- Model D2/3/4/5HTDSL
DOWNLOADS
Specification
Key features
- Simply drop into place and plug into a 13amp power outlet
- All controls are fitted in the gantry hood for easy install, commissioning and operation
- Alternative panel mounted remote control Box on models with no overhead gantry
- Gantry ends light up indicating display is on
- Available in Curved or Square glass profiles
- 24/7 operation
- Self-contained unit. Electrics are integral no awkward fitting under counter control boxes.
- 13amp plug and go
- Ready to Insert into any new or existing ambient counter structure
- Guaranteed evenly distributed heat with no hot spots
- Even flat surface with no distortion or discolouring
Operating Modes
- Hot Display with individual, Neo - Ceram glass
- GN 1/1 size
- thermo panels collectively governed by an energy regulating control
Electrical Specifications
- Rating - 0.36 kW - 1.78kW
- Electrical Supply - 13amp
Options
- Double sided Island Glass Curved or Shear line type
- Heavy Duty spiked Stainless Steel Carving pad (Code: VCCP)
