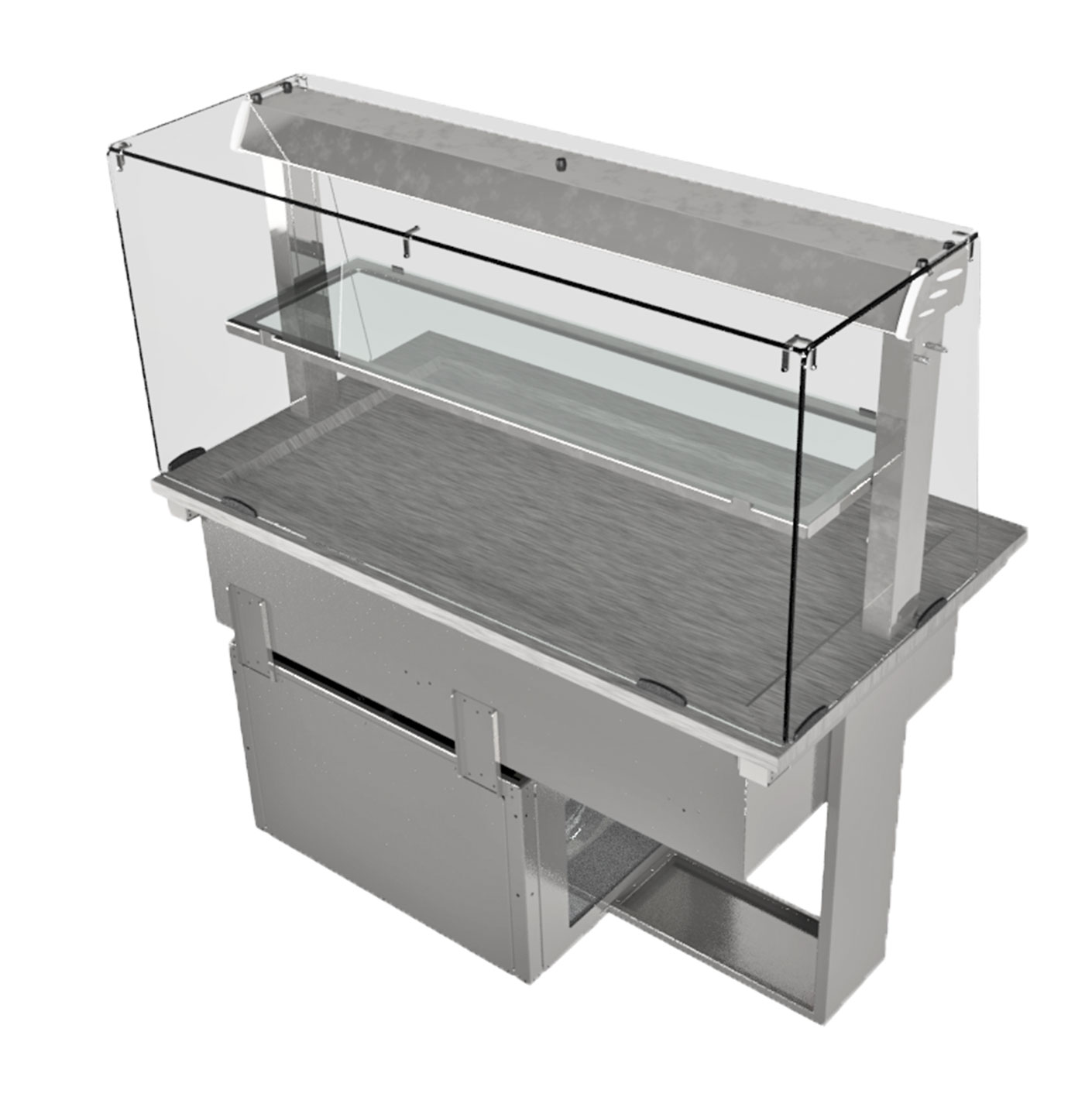

D2/3/4/5FTDSL
Chilled display units specially designed to safely hold quick-turnaround, pre-chilled food products at optimum serving temperatures incorporating a recessed frosted top. Frost Tops keep pre-chilled snacks, hors d’oeuvres, side dishes and beverages cool and ready to serve. The unique Moffat innovative contact cooling system provides a frosted chilled display area with a surface temperature between -1°C and -5°C.
The recessed area can accommodate 1/1GN trays, this allows a simple and easy method of handling and restocking of food products. Selfcontained units with accurate digital control, high pressure warning, and a drain which has a shut of valve. The drain pipe can be connected into the main waste system or alternatively simply place a suitable vessel under to catch the excess water after service. The Refrigeration System is housed underneath in a tidy compact cradle. Utilising a highly efficient, naturally occurring, hydrocarbon refrigeration gas type R290 (as standard). Hermetically sealed, reducing the carbon footprint and energy consumption. Optional overhead gantry’s have LED illumination.
MODEL OPTIONS
- Model D2/3/4/5FTNG
- Model D2/3/4/5FT
- Model D2/3/4/5FTI
- Model D2/3/4/5FTF
- Model D2/3/4/5FTSL
- Model D2/3/4/5FTSLI
- Model D2/3/4/5FTSLF
- Model D2/3/4/5FTD
DOWNLOADS
Specification
Key features
- Size 3, 4, and 5 models have the condensing unit set at 90°. Removing the need for
vents in the front panels of serveries and counters. - Size 2 models have straight through type refrigeration as standard and must have a
front and rear vent. - Accommodates 1/1 trays [not supplied].
- Digital thermostat and temperature control.
- Gantry’s have Long life, low energy LED’s.
- Maintaining the core product temperature of pre-chilled food below 5°C in ambient condition not exceeding 25°C and 60% relative humidity.
- Drain with shut off valve, 24 hour operation. Fully insulated.
- Supplied with 2m long power cord and 13amp plug [13A 230v 50Hz]
- Plenum duct to aid on-site ventilation and installation.
Operating Modes
- The recessed area can accommodate 1/1GN trays, this allows a simple and easy method of handling and restocking of food products.
- Selfcontained units with accurate digital control, high pressure warning, and a drain which has a shut of valve.
- The unique Moffat innovative contact cooling system provides a frosted chilled display area with a surface temperature between -1°C and -5°C.
- Utilising a highly efficient, naturally occurring, hydrocarbon refrigeration gas type R290 (as standard). Hermetically sealed, reducing the carbon footprint and energy consumption. Optional overhead gantry’s have LED illumination.
Electrical Specifications
- Rating - 1.0 kW
- Electrical Supply - 13amp
Wiring Drawings
- Wiring drawing can be obtained by contacting Sales
Options
- Double sided Island Glass Curved or Shear line type
- Additional air fl ow kit [In-line fan and flexi- duct kit for difficult non-standard installations] (Code: DRAF)
