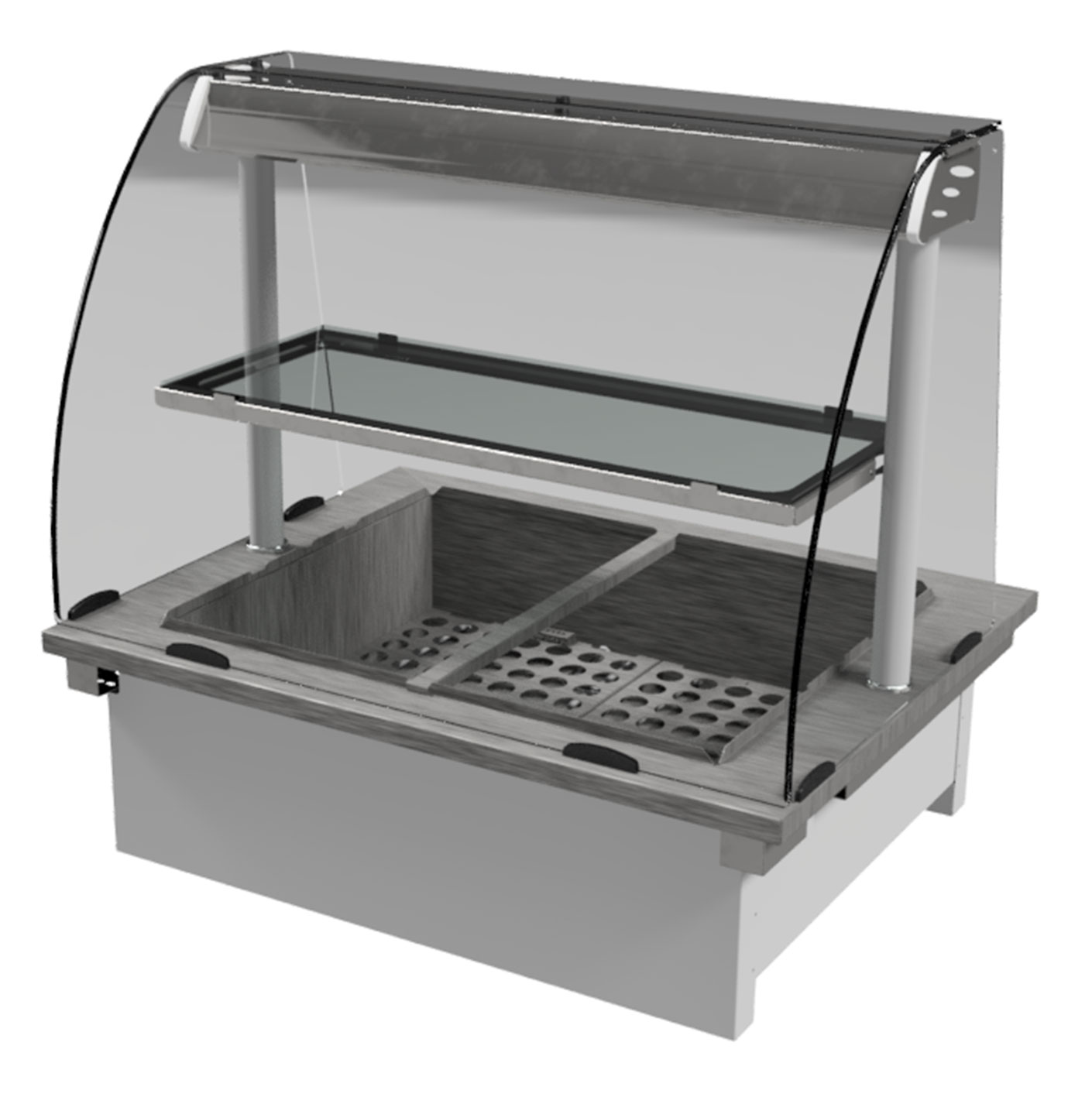

D2/3/4/5BMWD
Hot display units incorporating a wet well Bain-Marie. Fitted with specially designed, high powered, multiple immersion heating elements - ideal for holding pre-heated delicate food products like sauces and soups at a constant temperature. Minimising issues with products drying out. Suitable for the display of most types of hot foods, designed to accommodate various combinations of Interchangeable Gastronom type pans up to 150 mm deep. Each opening can also be fitted with our optional lift-off, heavy duty, Spiked Carvery Pad, Neo-Ceram Hot Top adaptor or alternatively the Round Pot Adaptors. Complete with a drain and valve.
MODEL OPTIONS
- Model D2/3/4/5BMWNG
- Model D2/3/4/5BMW
- Model D2/3/4/5BMWI
- Model D2/3/4/5BMWF
- Model D2/3/4/5BMWSL
- Model D2/3/4/5BMWSLI
- Model D2/3/4/5BMWSLF
- Model D2/3/4/5BMWDSL
DOWNLOADS
Specification
Key features
- Digitally thermostat & temperature control
- Digital flashing Low water warning system
- Individual 1/1 GN size elements immersed in the water for high efficiency
- Easy lift out perforated heating element covers
- Gastronorm pans can be swapped out and replenished during service
- A unique raise lip all-round the well allows the easy removal of pans
- 4 models in the range holding 2 to 5 GN 1/1 Gastronorm type containers
- Various mixed sizes of Gastronorm pans can be used in unison
- 24 hour operation [as long as water level is maintained & Bain-marie openings have Pans or covers during service]
- Self-contained unit. Electrics are integral no awkward fitting under counter control boxes.
- Fully insulated
Operating Modes
- Hot display units incorporating a wet well Bain-Marie
- Fitted with specially designed, high powered, multiple immersion heating elements
- ideal for holding pre-heated delicate food products
like sauces and soups at a constant temperature
Electrical Specifications
- Rating - 2.0 kW - 5.0kW
- Electrical Supply - 13amp/16amp/32amp
Options
- Double sided Island Glass Curved or Shear line type
- Water fill Faucet fitted to the operators right hand (Code: DWF)
- Heavy Duty spiked Stainless Steel Carving pad (Code: DCP)
- Glass Hot Top adaptor [Neo-Ceram] (Code: DNCA)
- Round Pot Adaptor & 2 x 4.5 litre Pots with lids(Code: DRP4)
- Round Pot Adaptor & 2 x 7.0 litre Pots with lids (Code: DRP7)
- Gastronorm Pans
