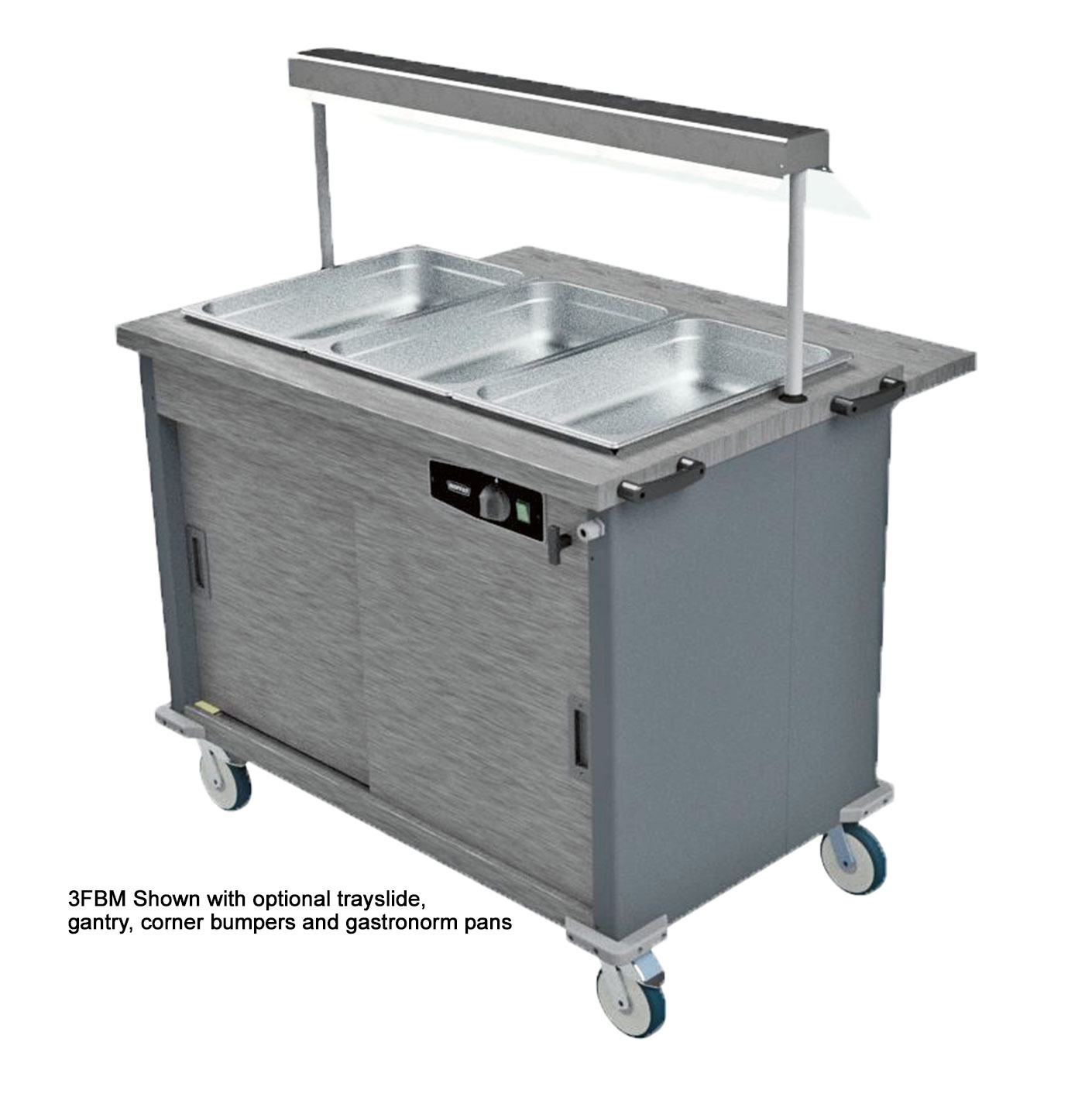

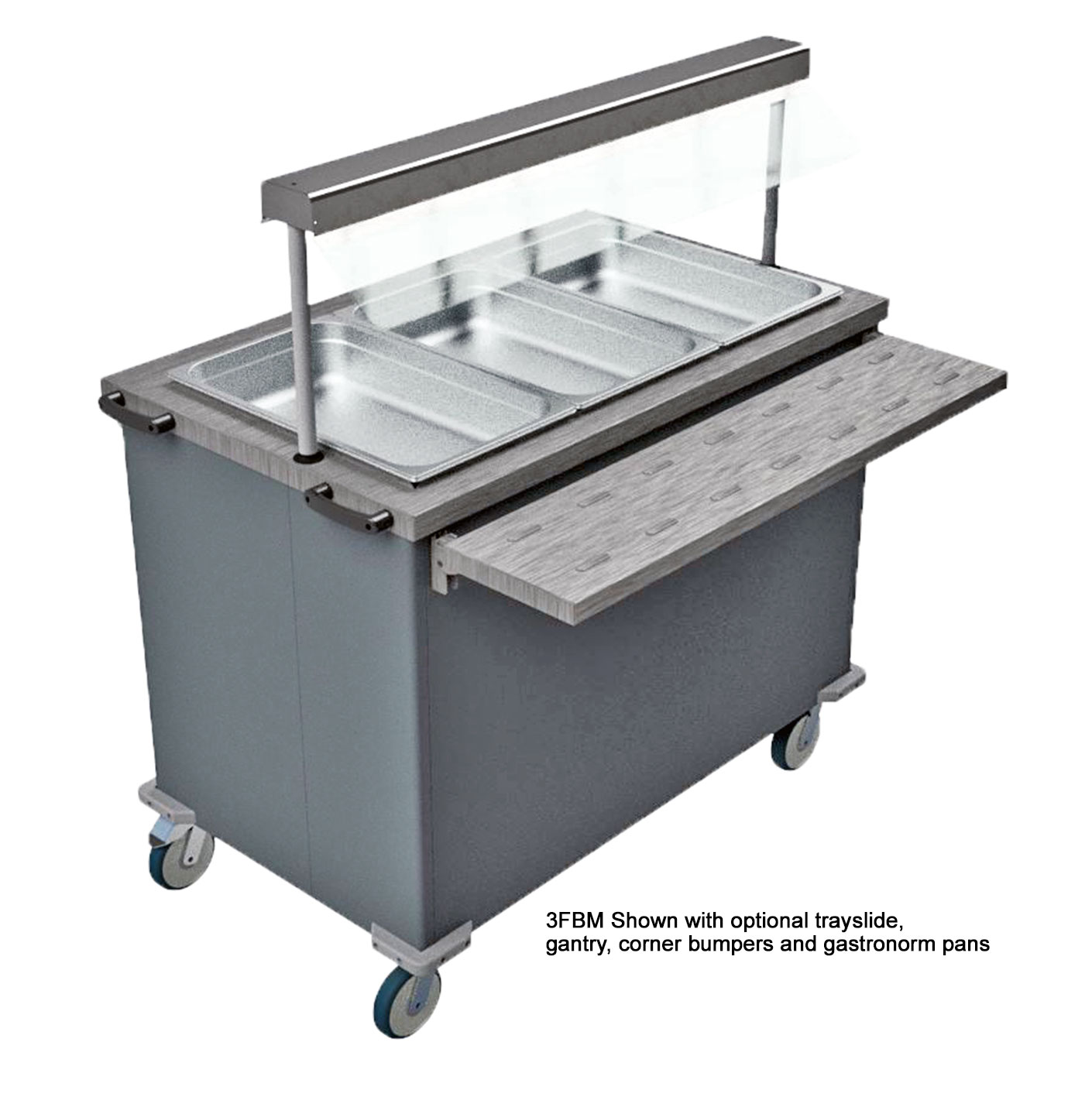

Focus Mobile Dry Heat Bain-Marie Hot Cupboard complete with base and mid grid shelves

2/3/4FBM

Hot display trolley designed for cost effective hot food storage, transport, and service. Incorporating a dry well Bain-Marie and hot cupboard fitted with Moffat’s renowned innovative sahara fan heating cell. Easily removable for cleaning and maintenance. The energy efficient Bain-Marie and hot cupboard work in sync, residual heat from the hot cupboard is used to compliment the Bain-Marie heating element.

Hot cupboard and Bain-Marie are controlled by a 30° to 110° thermostat. This convection, heated Bain-Marie and hot cupboard offers unparalleled flexibility of use. No additional plumbing. No need to maintain water levels. No issues with water scale. Designed to maintain pre-heated, cooked food at a regulated temperature. Suitable for the display of most types of hot foods, accommodate various combinations of Interchangeable gastronom type pans up to 150 mm deep.



DOWNLOADS

Specification

Key features

  • Fast heat up and recovery time.
  • Thermostatically controlled.
  • Unique, removable, forced air heating cell.
  • Low maintenance, easily cleaned, and highly efficient.
  • Gastronorm pans can be swapped out and replenished during service.
  • A unique raised lip around the well allows the easy removal of pans.

Operating Modes

  • 3 models in the range holding 2 to 4 gn 1/1 gastronorm type containers.
  • Various mixed sizes of gastronorm pans can be used in unison.
  • 24 hour operation [Bain-Marie opening must be fitted with Pans or covers during service].
  • Plug and Go, complete with 2 metre long power cable and 13amp plug.
  • Mobile all swivel castors two with brakes.









Electrical Specifications

  • Rating - 1.9 kW
  • Rating with gantry - 2.12 kW - 2.56 kW
  • Electrical Supply - 13amp

Wiring Drawings

  • Wiring drawing can be obtained by contacting Sales

Options

  • Heated quartz gantries.
    ( Codes: 2FG, 3FG, 4FG)
  • Bain-Marie glass hot top adaptor
    (Neo-Ceram) (code: DNCA)
  • Bain-Marie round pot adaptor & 2 x 4.5 litre pots with lids (code:DRP4)
  • Bain-Marie round pot adaptor & 2 x 7.0 litre pots with lids (code: DRP7)
  • Gastronorm pans.
  • Fold down solid tray slides
    (codes: 2FPTS, 3FPTS, 4 FPTS)
