Dishwash Tabling

DW6/9/12/15/18/21/24

Dishwash tables are manufactured from stainless steel (type 304). The profile can be as our standard or a special as required. Dishwash table ends are shaped to suit the particular dishwash machine entry. The understructure is made from 30mm square section stainless steel and the legs are fitted with adjustable feet and come complete with undershelf as standard. Extras include scrapping chutes, welded in waste disposal hoppers, pre-rinse sinks and sprays, runners to accommodate dishwash baskets, watertight joints and special splashbacks. Please see price list for detailed specification.

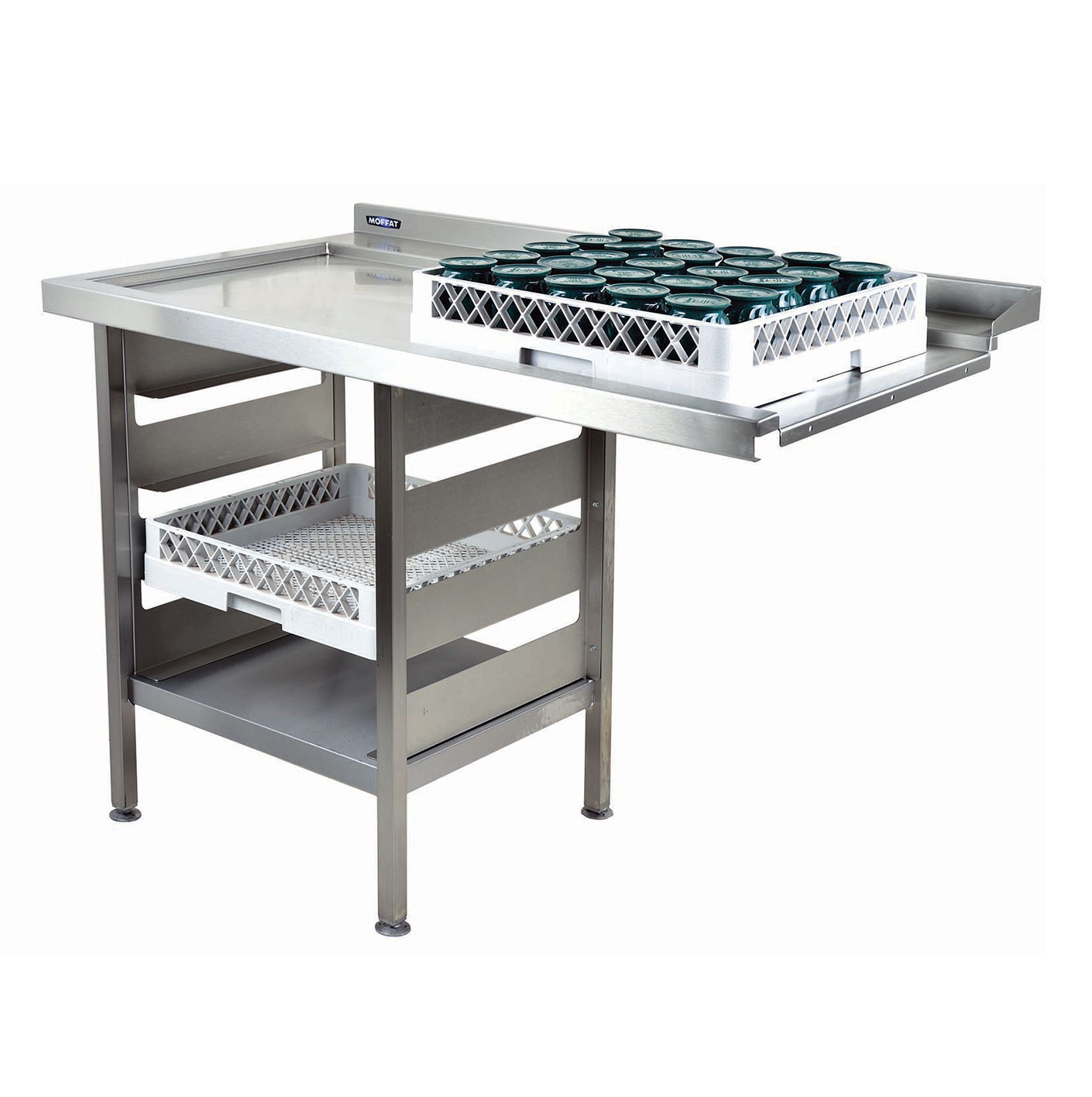

Image shown with optional basket shelves. See FX67



DOWNLOADS

Specification

Key features

  • Top’s – 304 Grade Stainless Steel (Upstand 50mm High, 20mm Deep Top Front & End Turndown 50mm).
  • Bowl/Bowls – 304 Grade Stainless Steel.
  • Undershelf – 430 Grade Stainless Steel (Fixed Position).
  • Legs – 30x30 430 Grade Stainless Steel.
  • Feet – Adjustable Die Cast Flanged – 35mm max adjustment.

Options

  • FX67 Bank of basket runners (500x 500mm)
  • FX69 Extended rear ledge price to both inlet/outlet where required / 300mm of length required.
