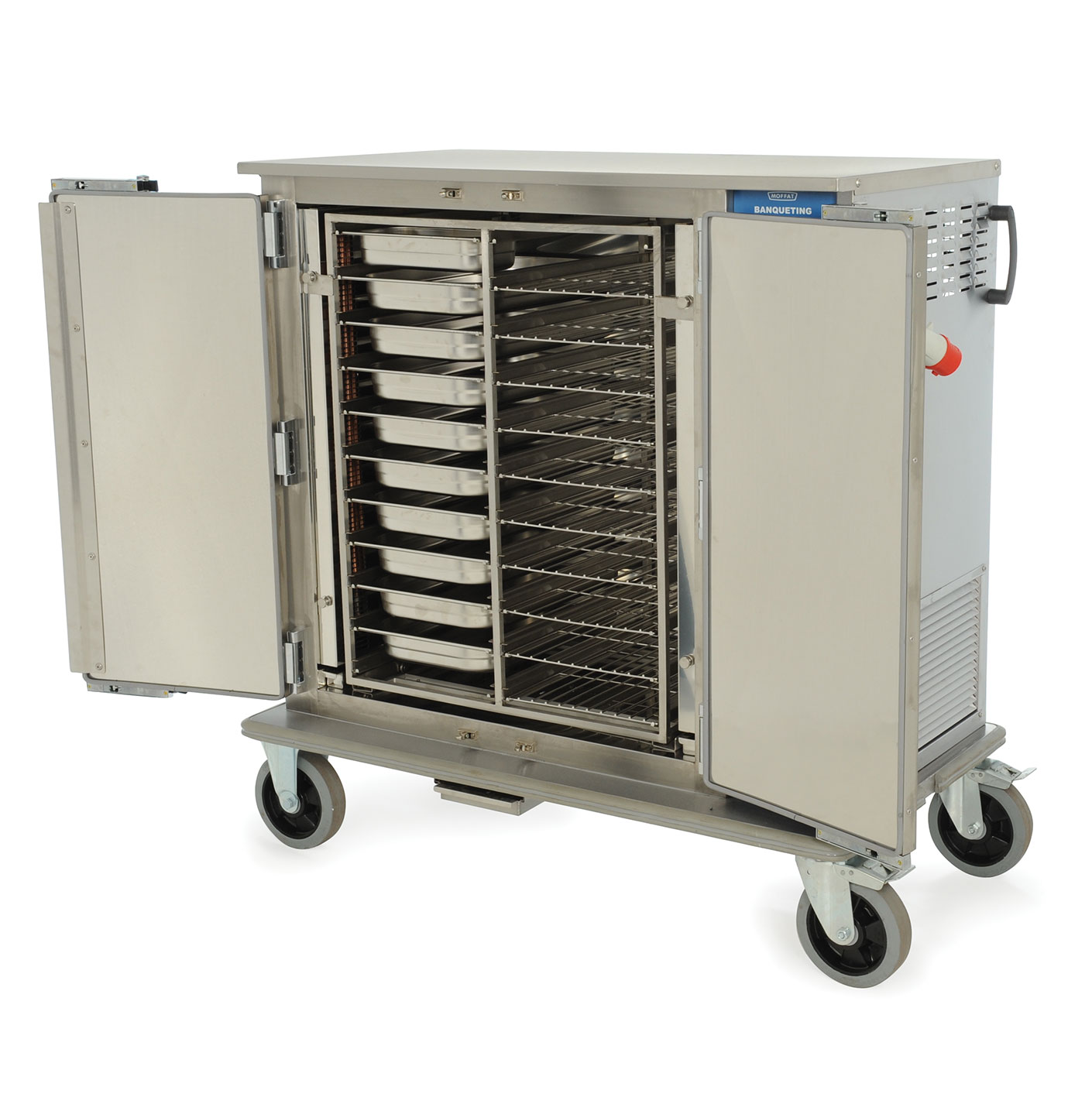

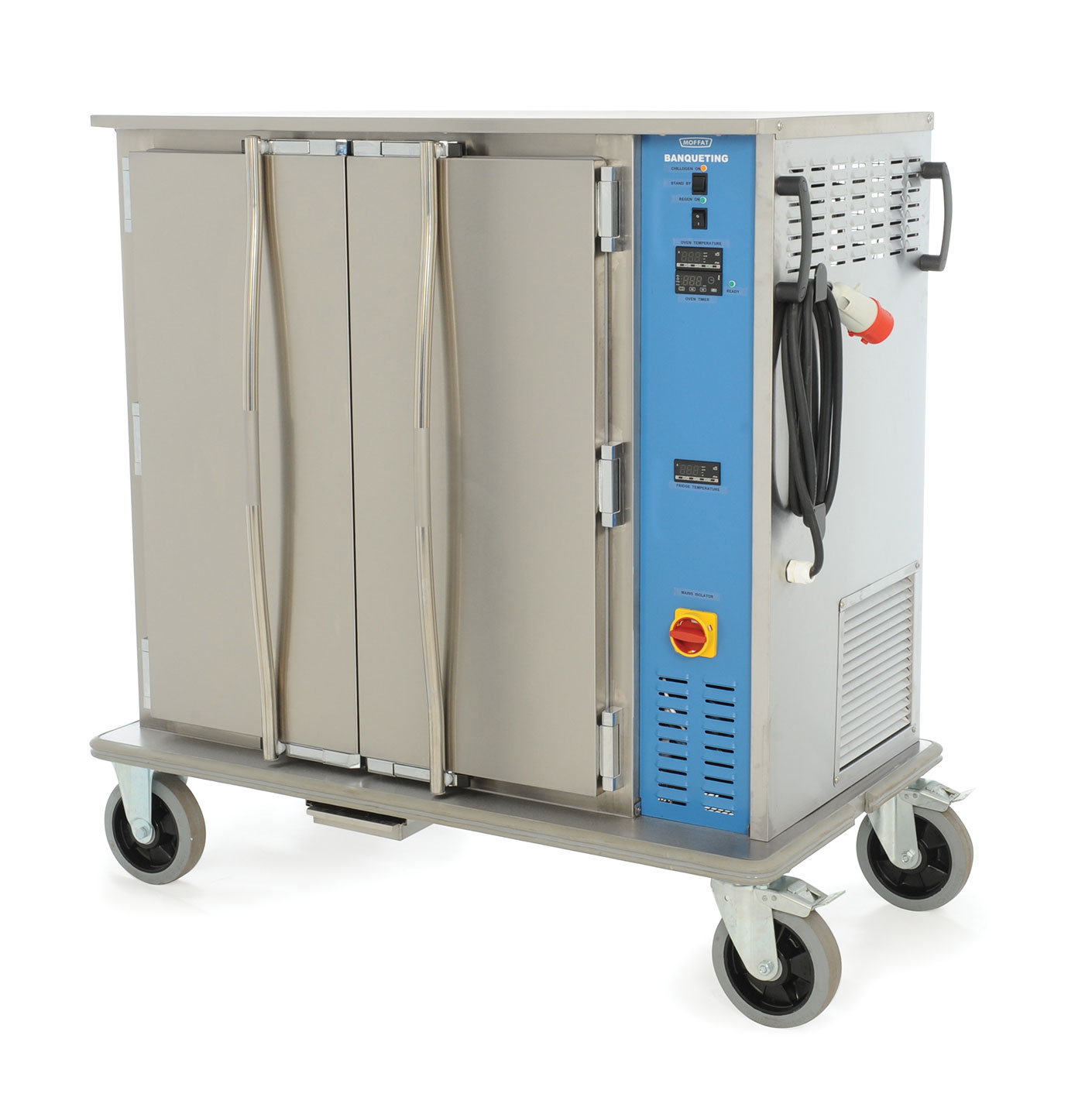

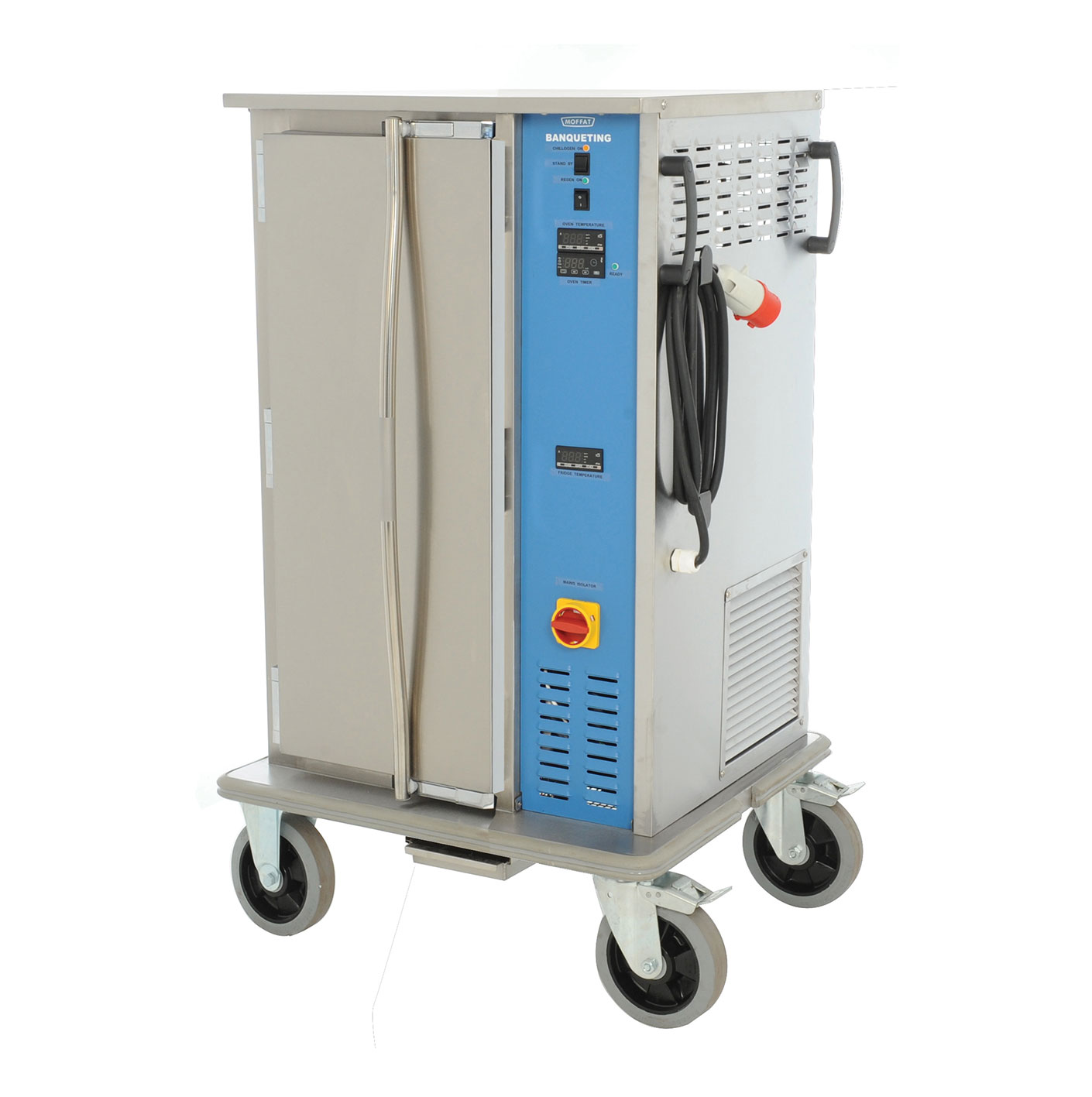

Regeneration Banguet Trolley

BBQ10/20

These robust Banqueting trolleys provide a large capacity, mobile, chilled food regeneration solution for Bulk food. Available in two models 10 or 20 shelf, Ideal for hotels, conferences, and event catering on a large scale. Designed around the standard Gastronorm GN1/1 pans. Simply load it with your chilled food and it will regenerate the food to a suitable temperature and automatically hold warm until ready to serve. Transfer the unit to the service area and plate up or load the pans into a Servery unit Bain-marie. Multi fan technology allows the food products to be regenerated and held in perfect condition.

These powerfully regen models use a unique power sharing function this allows each model to use two 13amp type power supplies.



DOWNLOADS

Specification

Key features

  • Manual Operated Bulk Food Chillogen Trolley.
  • BBQ10C Designed to Chill and store.
    10 x 65 mm deep containers within 90 minutes.
  • BBQ20C Designed to Chill and store
    20 x 65 mm deep containers within 90 minutes.
  • Then Regenerate from Chilled.
  • Stainless Steel finish.
  • 200mm Castors 2 x Fixed and 2 x Swivel.
  • Unit comes complete with slide out cassette.
  • Capacity
  • Model GN1/1 Pans/Shelves
    BBQ10 10
    BBQ20 20

Operating Modes

  •  Reheat food, hold hot food, transport food.



Electrical Specifications

BBQ10CM

  • Rating - 5.75kW
  • Electrical Supply - 2 x 13amp

BBQ20CM

  • Rating - 8.0kW
  • Electrical Supply - 16amp 3PH

Wiring Drawings

  • Wiring drawing can be obtained by contacting Sales

Options

  • 0576 Extra grid shelves.
