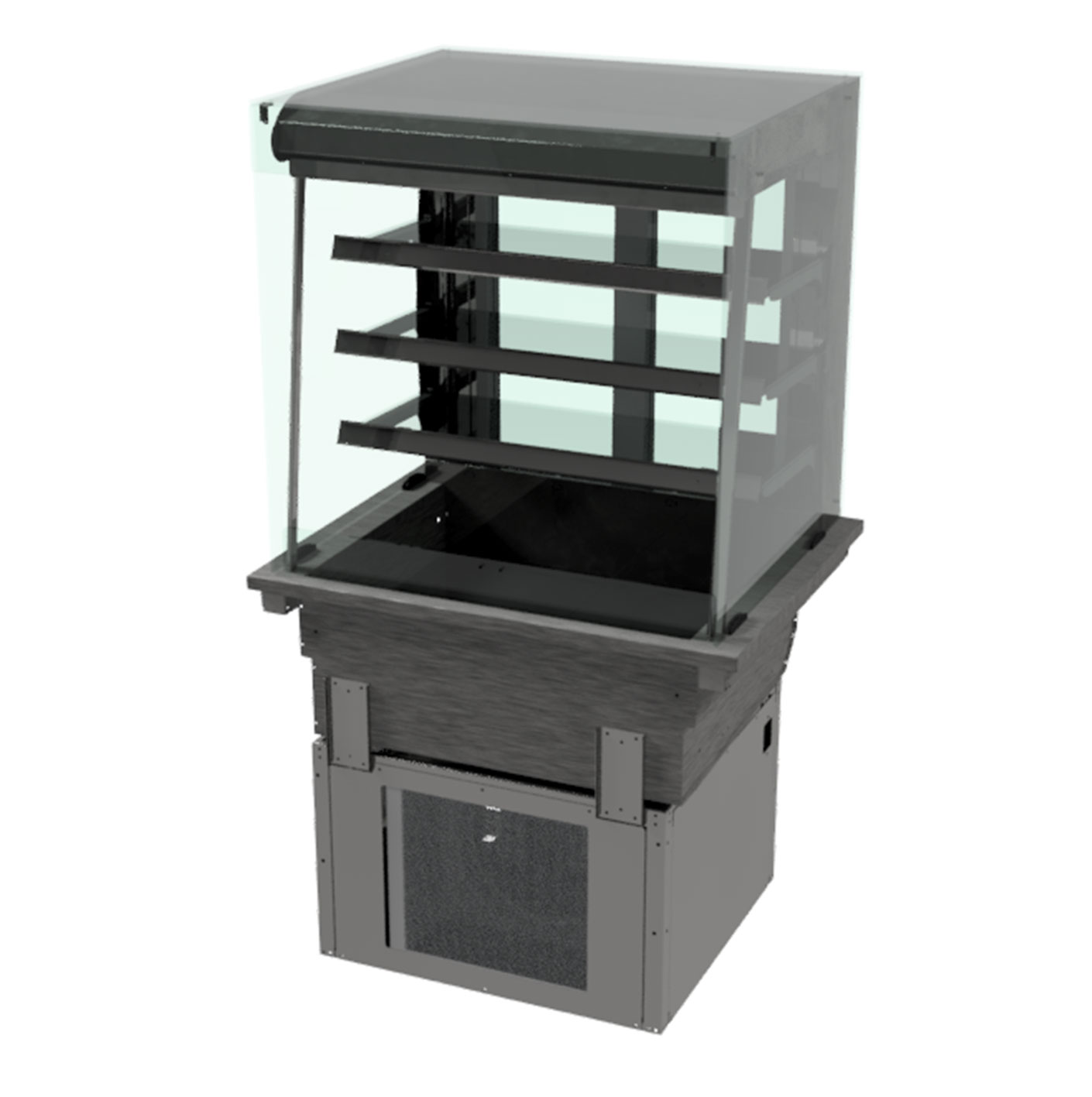

D2/3/4/5RDSL

Chilled display units incorporating a cold well and 3 glass display shelves. The unique Moffat innovative “Polar Air Stream” system provides a constant, recirculating cold air curtain completely enveloping the food displayed. Holding pre-chilled food at a safe, regulated temperature while retaining taste and freshness. Perfect for sandwiches, fruit, yogurts and cold drinks. Self-contained units with accurate, digital control, automatic defrost, high pressure warning and automatic condensate evaporation. The Refrigeration System is housed underneath in a tidy, compact cradle. Utilising a highly efficient, naturally occurring, hermetically sealed, hydrocarbon gas type R290 as standard - reducing carbon footprint and energy consumption.

MODEL OPTIONS

  • Model D2/3/4/5RD
  • Model D2/3/4/5RDF
  • Model D2/3/4/5RDFC
  • Model D2/3/4/5RDSA
  • Model D2/3/4/5RDSAFC
  • Model D2/3/4/5RDSLF
  • Model D2/3/4/5RDSLFC

DOWNLOADS

Specification

Key features

  • Condensing unit set at 90°. Removes the need for unsightly vents in the front panels of serveries and counters.
  • Digital thermostat & temperature controller
  • Sliding rear double glazed doors
  • Advanced air flow design with unique polar airstream technology
  • Controls conveniently positioned in the gantry hood
  • Efficient, ozone friendly hydrocarbon refrigeration
  • Long life, low energy LED
  • Maintaining the core product temperature of pre-chilled food below 5°C in ambient condition not exceeding 25°C and 60% relative humidity
  • Automatic condensate water evaporation [no need to empty drip trays)
  • Automatic defrost control
  • 24 hour operation
  • Fully insulated
  • Supplied with 2m long power cord and 13amp plug [13A 230v 50Hz]
  • Plenum duct to aid onsite ventilation and installation

Operating Modes

  • Chilled display units incorporating a cold well and 3 glass display shelves. The unique Moffat innovative “Polar Air Stream”
  • Utilising a highly efficient, naturally occurring, hermetically sealed, hydrocarbon gas type R290



Electrical Specifications

  • Rating - 1.5 kW - 2.5 kW
  • Electrical Supply - 13amp

Wiring Drawings

  • Wiring drawing can be obtained by contacting Sales

Options

  • Additional air flow kit [In-line fan and flexi-duct kit for difficult non-standard installations] (Code: DRAF)
  • Front Roller Blind (add “RB” to end of model code)
